DG-Vitruvio Ruby: the T73's light, broken into far finer sparkle

Brilliance 94 · Fire 37 · Scintillation 98 · in our census, where the T73 scores 94 · 37 · 80 in ruby

In ruby, DG-Vitruvio has the T73's Brilliance, 94, and more Scintillation: 98 against 80. All its extra facets sit on the girdle.

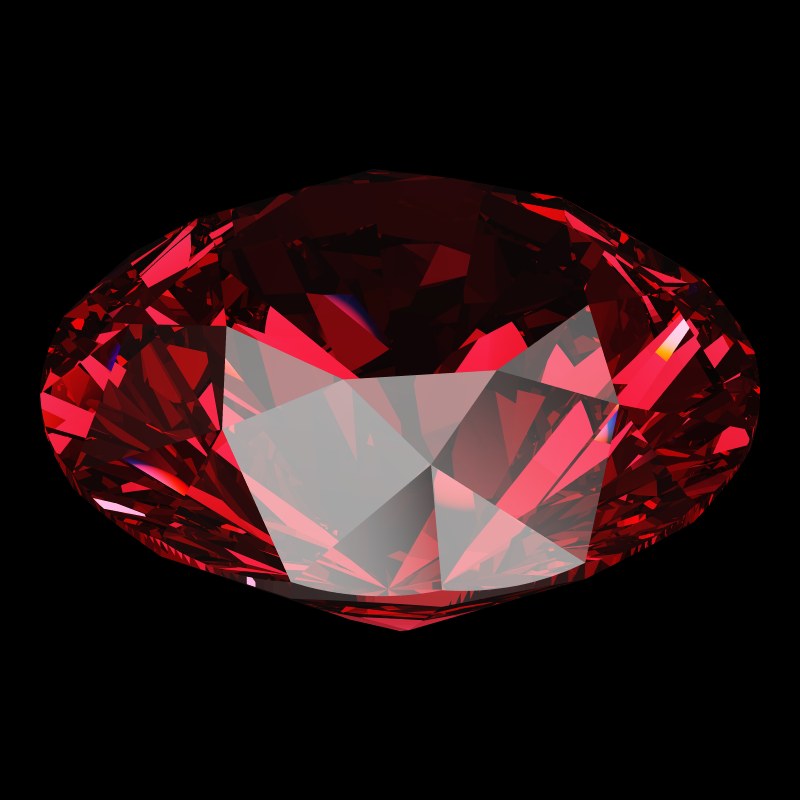

The DG-Vitruvio in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Vitruvio model, 1.00 ct, studio light.

DG-Vitruvio Ruby

DG-Vitruvio keeps the T-series crown and pavilion. Its girdle is a band of 96 facets, 153 facets in all, over a 40.75° pavilion. In ruby its Brilliance is 94, the same as the T73's. It leaks 6% of the light through the pavilion, and the T73 leaks 5%.

It is stronger on scintillation, which our census scores from the facet plan. It loses to its own diamond twin. The critical angle of ruby is 34.6° against 24.4° for diamond, and its dispersion is 0.018 against 0.044. So the same design keeps less light when tilted and shows much less fire.

A round is a less usual outline for a ruby. Much ruby rough grows as flat six-sided plates, and cutters often prefer ovals and cushions that keep more of the crystal.

Is ruby a good match for DG-Vitruvio? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the DG-Vitruvio in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Vitruvio in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Vitruvio in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+2Brilliance0Fire0Scintillation+18Spread0Symmetry0Shape-norm−1Tilt0

Against the T73 Round Brilliant in ruby: ahead on 2, level on 5, behind on 1.

  • Global81, the comparison 79, difference +2
  • Brilliance94, the comparison 94, difference 0
  • Fire37, the comparison 37, difference 0
  • Scintillation98, the comparison 80, difference +18
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm101, the comparison 102, difference −1
  • Tilt75, the comparison 75, difference 0
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in DG-Vitruvio

Much finer sparkle than the T73

Scintillation 98 against 80 for the T73 Round Brilliant in ruby: 18 points higher

Our scintillation score comes from the census's model of the cut. That model divides the face much more finely than the T73's, and the extra facets sit in the girdle band. The crown and pavilion angles are the T73's, and the two cuts return the same light.

DG-Vitruvio · 153 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where DG-Vitruvio costs a ruby

Less than half the fire of the diamond version

Fire 37 against 79 for the DG-Vitruvio in diamond: 42 points lower

Put the same 153-facet design in both stones, and our census gives the diamond 79 for fire and the ruby 37. In a saturated red, the few spectral flashes must also compete with the body color.

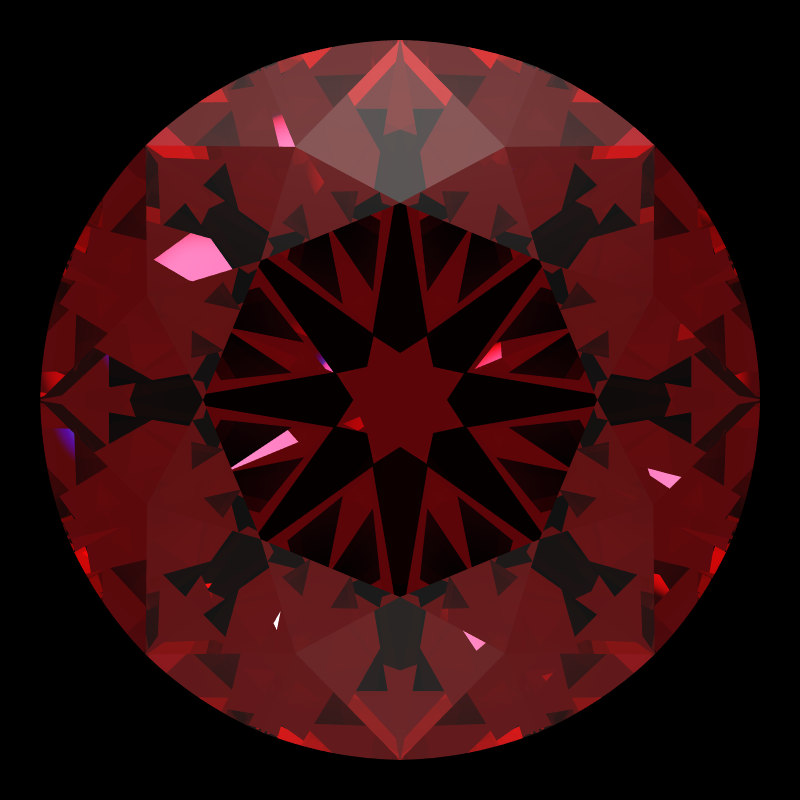

Dg-vitruvio in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 37)

DG-Vitruvio in ruby · Fire 37

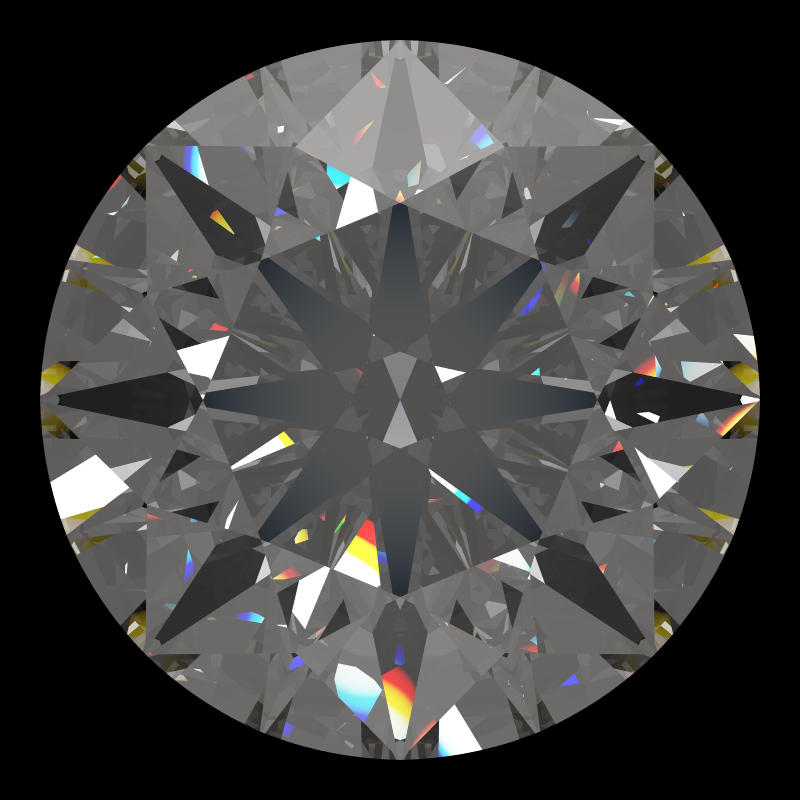

Dg-vitruvio in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 79)

DG-Vitruvio in diamond · Fire 79

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: The material, not the girdle, causes this gap, and no round we measure closes it. Among ruby cuts that stay close to the T73's light, the Trilliant Cut Ruby shows the most fire, 52. Among rounds, DG-Anteros Ruby leads at 43.

Try it yourself: See the fire in the 3D Gemstone Simulator

Keeps less light when tipped than in diamond

Tilt 75 against 93 for the DG-Vitruvio in diamond: 18 points lower

Tilt measures how much of its face-up light a stone still returns when tilted by 20°. Ruby has a larger critical angle, which opens a wider escape window in the pavilion. As the ruby moves, more light escapes than in diamond.

DG-Vitruvio in ruby · Tilt 75

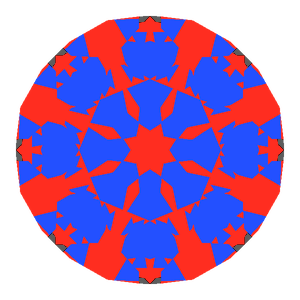

Dg-vitruvio in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak

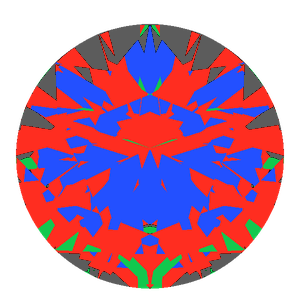

Dg-vitruvio in ruby tilted 10 degrees: Light Return map, 11% of the face leaking10° · 11% leak

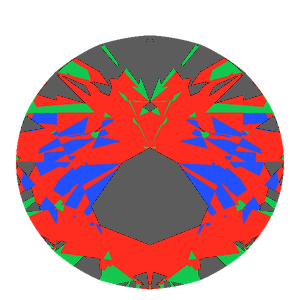

Dg-vitruvio in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
Dg-vitruvio in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak

DG-Vitruvio in diamond · Tilt 93

Dg-vitruvio in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak

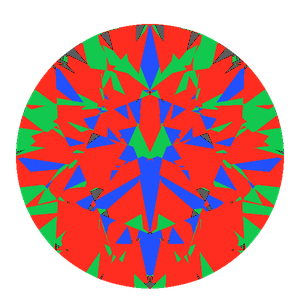

Dg-vitruvio in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak

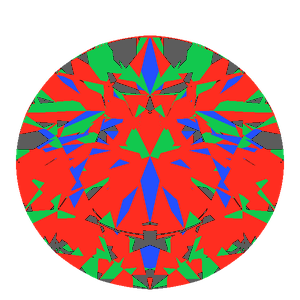

Dg-vitruvio in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak

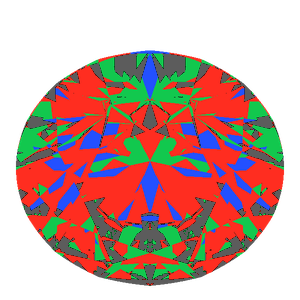

Dg-vitruvio in diamond tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Among the bright rounds in ruby, DG-Miliano Ruby keeps the most light when tilted, 83. It costs a few points of brilliance (90).

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Heavier than a diamond of the same size

1.16 ct at 6.5 mm, against 1.02 ct for the same cut in diamond (+14%)

The specific gravity of ruby is 4.00 against 3.52 for diamond, so a ruby weighs about 14% more at identical dimensions. A 6.5 mm DG-Vitruvio weighs 1.16 ct in ruby and 1.02 ct in diamond.

Ruby1.16 ctDiamond1.02 ct
A DG-Vitruvio 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: The density of ruby is fixed, so compare DG-Vitruvio rubies by width, not by carats.

Try it yourself: Weights in every gemstone on the DG-Vitruvio page

A few points more leakage than in diamond

Leakage 6 against 2 for the DG-Vitruvio in diamond: 4 points higher

In our census, 6% of the light leaves through the pavilion, against 2% for the diamond version. The share is small, within a point of the T73 in ruby. The gap comes from the material, not from the girdle.

DG-Vitruvio in ruby · Leakage 6

Dg-vitruvio in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
Dg-vitruvio in ruby tilted 10 degrees: Light Return map, 11% of the face leaking10° · 11% leak
Dg-vitruvio in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
Dg-vitruvio in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak

DG-Vitruvio in diamond · Leakage 2

Dg-vitruvio in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-vitruvio in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-vitruvio in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-vitruvio in diamond tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size does not change the share. DG-M5 Ruby leaks 0% in ruby, the least of any cut on our ruby pages.

Try it yourself: Tilt it yourself in the simulator's light map

Who a DG-Vitruvio ruby suits

Choose DG-Vitruvio for a round ruby with the T73's light and a finer, livelier pattern. It also suits renders where the outline must look perfectly smooth. In ruby it loses nothing to the T73 on brilliance and almost nothing on leakage.

If the most light matters more than the finest sparkle, DG-M5 Ruby returns 100. For color flashes from a ruby, look beyond rounds: the Trilliant Cut Ruby scores 52 for fire at 86 brilliance.

DG-Vitruvio Ruby: questions

Does DG-Vitruvio make a ruby sparkle more?

Yes, in our census: Scintillation 98 against 80 for the T73 Round Brilliant in ruby. The Brilliance is the same, 94.

Does a DG-Vitruvio ruby have fire?

Not much. Our census gives the ruby 37 for fire and the diamond version 79. The 153 facets are the same, but the material is different. The census swaps the whole stone, so it does not identify one property as the cause.

What does a 6.5 mm DG-Vitruvio ruby weigh?

At 6.5 mm across, the ruby version weighs 1.16 ct and the diamond version 1.02 ct.

DG-Vitruvio or T73 for a ruby?

Light return is a tie at 94, and leakage is almost a tie, 6% against 5%. DG-Vitruvio sparkles more, 98 against 80. The T73 has the girdle that most setters know.
