Old Single Cut Ruby: a simple eight cut that lets half the light through

Brilliance 36 · Fire 9 · Scintillation 44 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A table, one ring of crown facets and one ring of pavilion mains. In ruby, more than half the light in our census leaves through the pavilion.

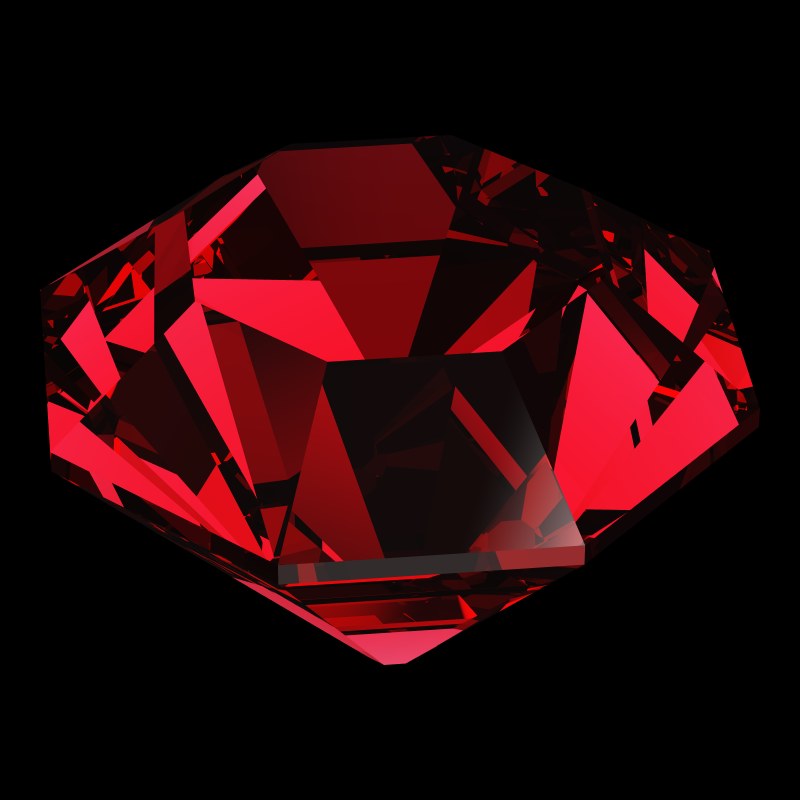

The Old Single Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Single Cut model, 1.00 ct, studio light.

Old Single Cut Ruby

Think of an octahedron with its top ground away for a table and its corners beveled. That is the single cut, with one crown angle and one pavilion angle. We measured it with 26 facets, a 57.5% table, a 40.0° crown and a steep 48.48° pavilion.

That pavilion is twelve degrees above the guide minimum for ruby, 36.4°. So the leak is not the classic window of a shallow stone. The cut has so few facets that light which misses the main reflections has nowhere else to go.

Today the single cut survives mostly in melee, tiny stones where a full brilliant would be wasted. Small calibrated rubies are among them.

Can an Old Single cut work for ruby? Pros and cons

Pros

None that we measure. Its Tilt of 100 is a full share of very little light.

Compared with the T73 Round Brilliant in ruby and with the Old Single Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Single Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Single Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−30Brilliance−58Fire−28Scintillation−36Spread−3Symmetry0Shape-norm−63Tilt+25

Against the T73 Round Brilliant in ruby: ahead on 1, level on 1, behind on 6.

  • Global49, the comparison 79, difference −30
  • Brilliance36, the comparison 94, difference −58
  • Fire9, the comparison 37, difference −28
  • Scintillation44, the comparison 80, difference −36
  • Spread97, the comparison 100, difference −3
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm39, the comparison 102, difference −63
  • Tilt100, the comparison 75, difference +25
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in an Old Single cut

No score counts as a pro by our rules. Tilt is 100, the top of the scale, above both the T73's 75 and the diamond's 94. But the face returns only 36. The case for the cut is size and simplicity: in very small rubies, a point of red matters more than brilliance.

Why the Old Single struggles in ruby

Almost no fire at all

Fire 9 against 84 for the Old Single Cut in diamond: 75 points lower

Fire 9, the lowest score on our ruby pages, against 84 for the eight cut in diamond. Fire counts the share of the returned light that splits into color. In ruby, almost none of the light from this cut does.

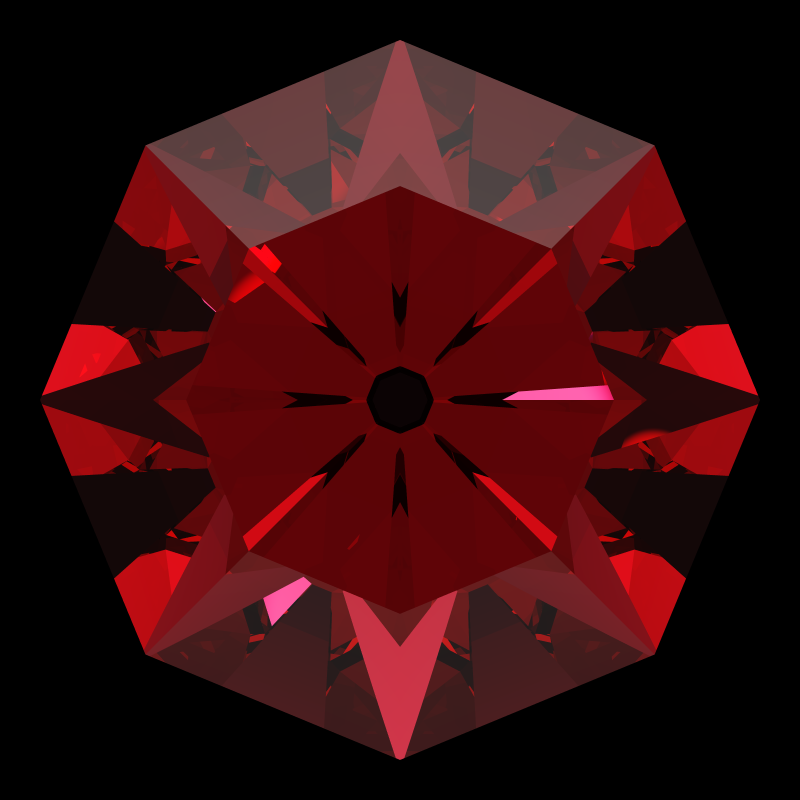

Old single cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 9)

Old Single Cut in ruby · Fire 9

Old single cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Old Single Cut in diamond · Fire 84

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: In every cut we measure, ruby shows less fire than the same cut in diamond. Of the ruby cuts that stay close to the T73's light, the Trilliant Cut Ruby shows the most, 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Little light back through the crown

Brilliance 36 against 94 for the T73 Round Brilliant in ruby: 58 points lower

Brilliance 36 against 94 for the T73 in ruby. Only the triangle, DG-Elongated Hexagon, the radiant and DG-Bowtie return less on our ruby pages. With only 26 facets, the single cut cannot catch light from as many directions as a brilliant. And with a 34.6° critical angle, ruby lets much of the missed light escape.

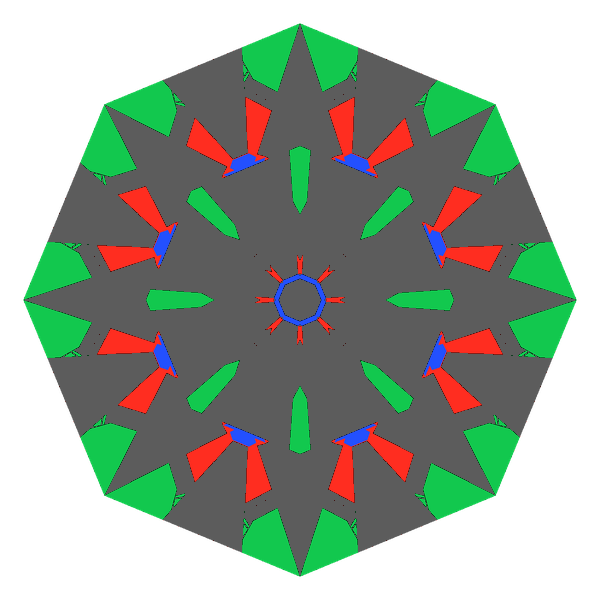

Old single cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 36)

Old Single Cut in ruby · Brilliance 36

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: Every DG and T-series round we measure gets most of it back. In ruby, DG-M5 Ruby returns 100 and the T73 Round Brilliant Ruby 94.

Try it yourself: Open this Light Return map in the simulator

More than half the light leaks

Leakage 54 against 5 for the T73 Round Brilliant in ruby: 49 points higher

The pavilion leaks 54% of the light in our census, where the T73 loses 5%. Only DG-Bowtie, DG-Elongated Hexagon and the radiant lose more on our ruby pages.

Old Single Cut in ruby · Leakage 54

Old single cut in ruby tilted 0 degrees: Light Return map, 71% of the face leaking0° · 71% leak

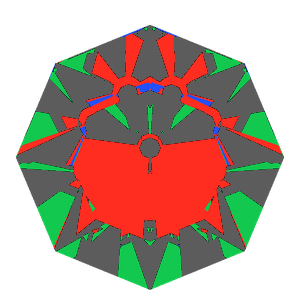

Old single cut in ruby tilted 10 degrees: Light Return map, 48% of the face leaking10° · 48% leak

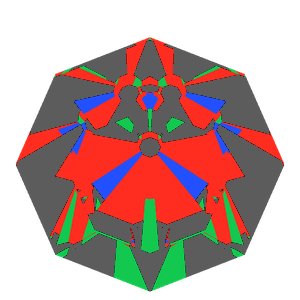

Old single cut in ruby tilted 20 degrees: Light Return map, 48% of the face leaking20° · 48% leak

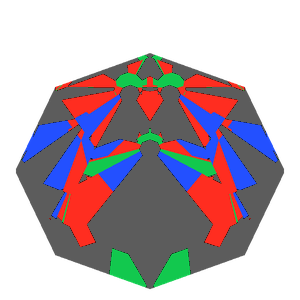

Old single cut in ruby tilted 30 degrees: Light Return map, 53% of the face leaking30° · 53% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: No steeper Old Single is in our census. At 48.48°, the pavilion is already far above the 36.4° guide minimum. DG-M5 Ruby leaks 0%.

Try it yourself: Tilt it yourself in the simulator's light map

Slow, sparse flashes

Scintillation 44 against 80 for the T73 Round Brilliant in ruby: 36 points lower

Scintillation follows the facet count: 26 against 73 for the T73. So the sparkle comes in a few large flashes, not a fine glitter.

Old Single Cut · 26 facets · Scintillation 44

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: The eight-cut plan sets this, not the angles. For a historic ruby round with many more flashes, the Old European Cut Ruby scores 81.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who an Old Single ruby suits

We would not cut a ruby of any size worth showing as an Old Single. It suits melee and accent rubies where a dot of red is enough, and period pieces that need the eight cut.

If the ruby must be historic and round, the Old European Cut Ruby more than doubles the light, at 78. For any ruby that must look bright, choose a modern round such as DG-Anteros Ruby.

Old Single Cut Ruby: questions

Is the Old Single a good cut for ruby?

Not if light matters: Brilliance 36 against 94 for the T73, and 54% of the light leaks through the pavilion.

Why is an Old Single ruby so dark?

More than half the light escapes: 54% in our census, against 19% for the same cut in diamond. The likely reasons are few facets and the 34.6° critical angle of ruby.

What does a 6.5 mm Old Single ruby weigh?

The deep eight cut weighs about 1.20 ct at 6.5 mm in ruby and 1.05 ct in diamond.
