Marquise Cut Ruby: about a fifth more face per carat than a round

Brilliance 55 · Fire 54 · Scintillation 86 · in our census, where the T73 scores 94 · 37 · 80 in ruby

Pointed at both ends, the marquise spreads a carat of ruby over about a fifth more area than a round. It also sparkles a little more. But nearly two-fifths of its light leaks.

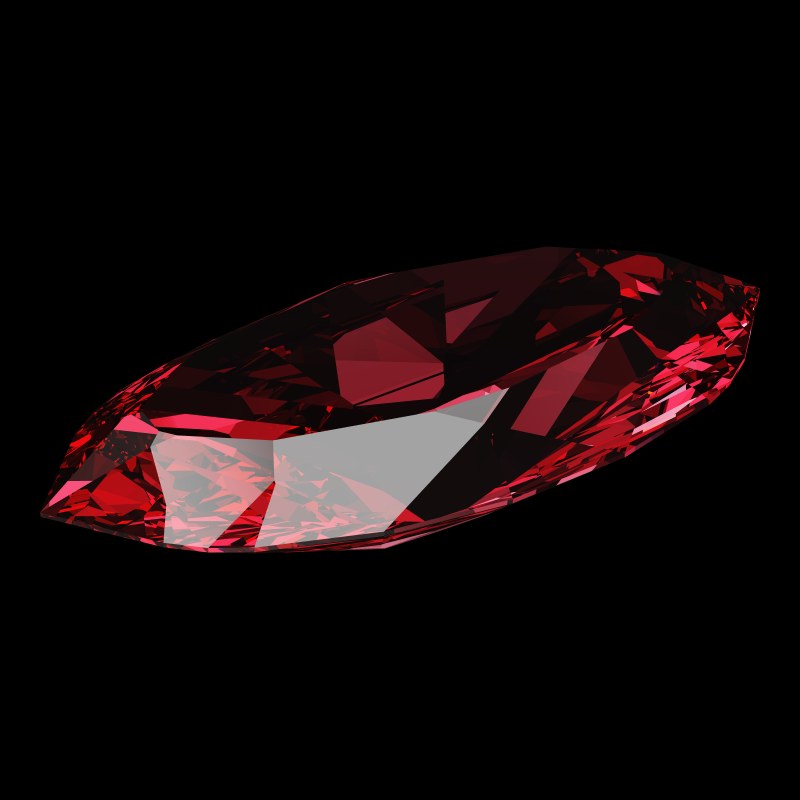

The Marquise Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Marquise Cut model, 1.00 ct, studio light.

Marquise Cut Ruby

Our marquise is 2.059 times as long as it is wide and pointed at both ends. It has 87 facets, a 31.41° pavilion and 62.0% depth.

That pavilion is below both reference angles for ruby: the 34.6° critical angle and the 36.4° guide minimum. Much of the light from above meets it at angles where it can pass through. That fits the leak and the low light that we measure.

In return it sparkles a little more than the T73. It also shows as much face for its weight as any cut we measure, level only with the rectangle. Its length makes a ruby of modest weight look like a long line of red on the finger.

Is a marquise a sensible cut for ruby? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the Marquise Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Marquise Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Marquise Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−16Brilliance−39Fire+17Scintillation+6Spread0Symmetry−6Shape-norm−38Tilt−19

Against the T73 Round Brilliant in ruby: ahead on 2, level on 1, behind on 5.

  • Global63, the comparison 79, difference −16
  • Brilliance55, the comparison 94, difference −39
  • Fire54, the comparison 37, difference +17
  • Scintillation86, the comparison 80, difference +6
  • Spread100, the comparison 100, difference 0
  • Symmetry94, the comparison 100, difference −6
  • Shape-norm64, the comparison 102, difference −38
  • Tilt56, the comparison 75, difference −19
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a marquise

As much face for its weight as any cut we measure

Face-up size 121 against 100 for the T73 Round Brilliant in ruby (T73 = 100): 21% more face-up area for the same weight

The marquise is close to the T73 in depth, 62.0% against 61.7%, so its gain comes from the outline. At 2.059 times its width, a carat of it covers about a fifth more area than a carat of round. The picture puts the two side by side at 1.00 ct, on one scale.

Marquise Cut · 10.04 x 4.88 mm at 1.00 ct · Face-up size 121

T73 Round Brilliant · 6.21 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in ruby and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in ruby in the 3D Gemstone Simulator

A little more sparkle than a round

Scintillation 86 against 80 for the T73 Round Brilliant in ruby: 6 points higher

The long outline has 87 facets against 73 for the T73. Our scintillation score follows the facet plan and rises with them.

Marquise Cut · 87 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where the marquise falls short in ruby

Much less light than a round ruby

Brilliance 55 against 94 for the T73 Round Brilliant in ruby: 39 points lower

Brilliance 55 against 94. On our ruby pages, that is below the oval, pear and teardrop.

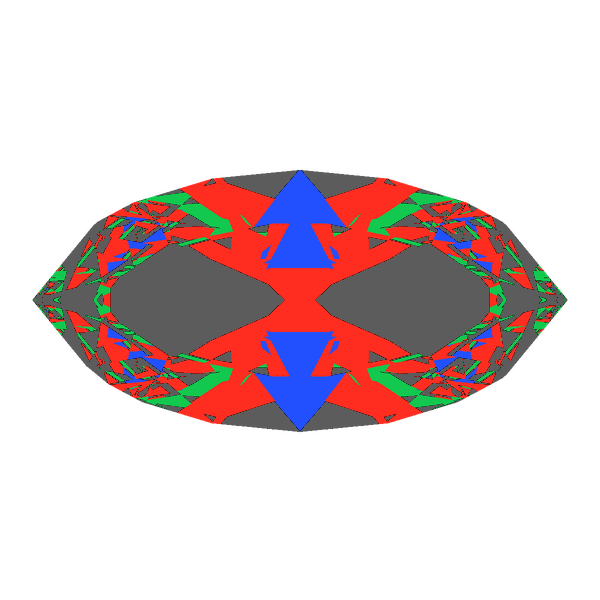

Marquise cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 55)

Marquise Cut in ruby · Brilliance 55

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Oval Cut Ruby is less stretched and returns 66 in ruby. We have not measured a marquise with a steeper pavilion, so we cannot promise what one would gain.

Try it yourself: Open this Light Return map in the simulator

Less fire than a diamond marquise

Fire 54 against 89 for the Marquise Cut in diamond: 35 points lower

Fire 54 against 89. In ruby it has more fire than any round we measure: more of its returned light splits into color. But it has less than the oval, teardrop and pear.

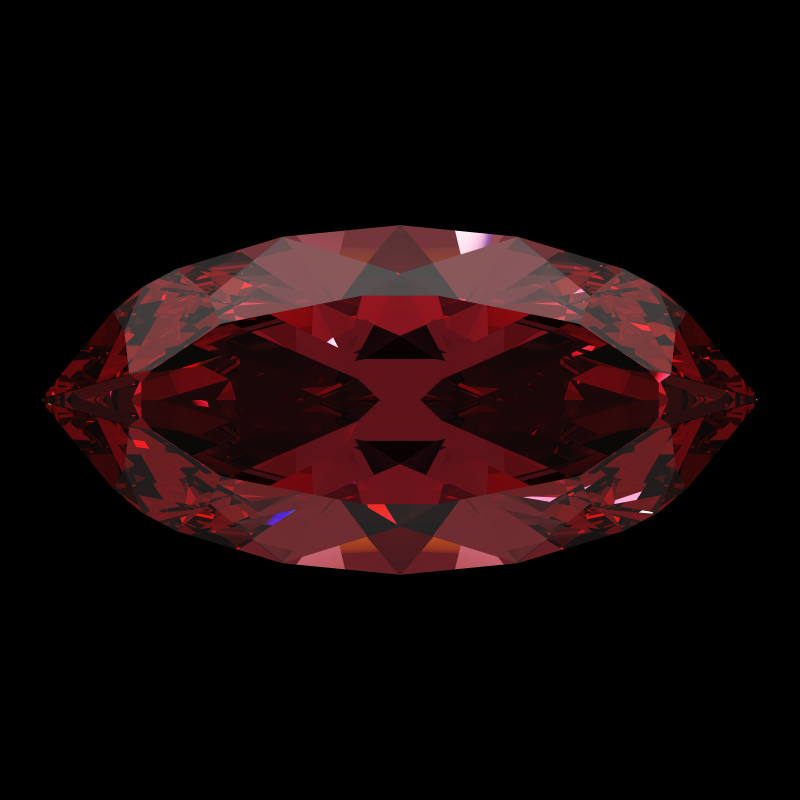

Marquise cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 54)

Marquise Cut in ruby · Fire 54

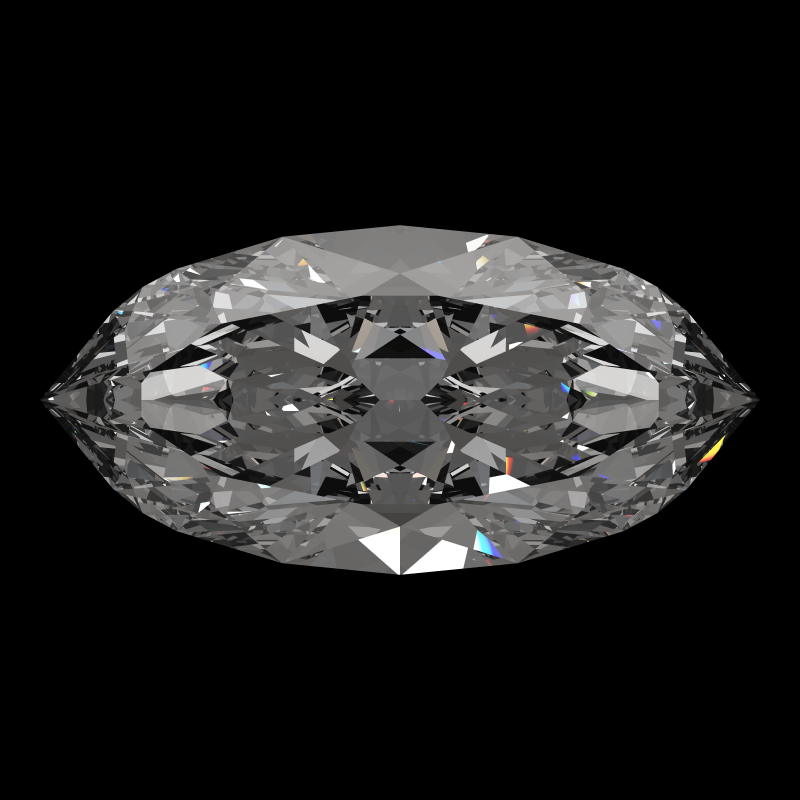

Marquise cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 89)

Marquise Cut in diamond · Fire 89

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Nearly two-fifths of the light leaks

Leakage 39 against 5 for the T73 Round Brilliant in ruby: 34 points higher

In our census, 39% of the light leaves through the shallow pavilion. The T73 in ruby loses 5%.

Marquise Cut in ruby · Leakage 39

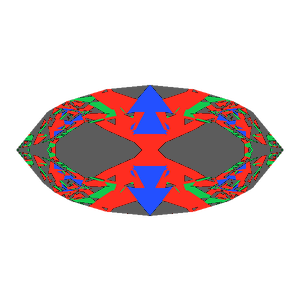

Marquise cut in ruby tilted 0 degrees: Light Return map, 39% of the face leaking0° · 39% leak

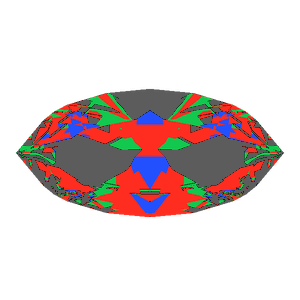

Marquise cut in ruby tilted 10 degrees: Light Return map, 39% of the face leaking10° · 39% leak

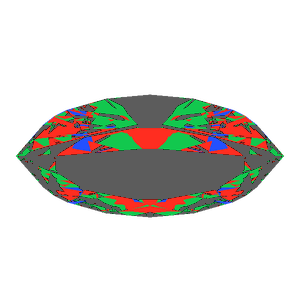

Marquise cut in ruby tilted 20 degrees: Light Return map, 53% of the face leaking20° · 53% leak

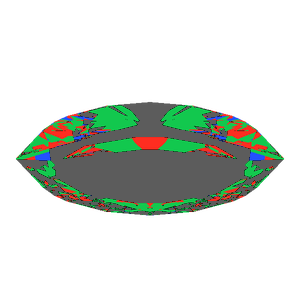

Marquise cut in ruby tilted 30 degrees: Light Return map, 58% of the face leaking30° · 58% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The Oval Cut Ruby loses 26%, and size changes neither figure.

Try it yourself: Tilt it yourself in the simulator's light map

Loses much of its light at an angle

Tilt 56 against 87 for the Marquise Cut in diamond: 31 points lower

Tilted 20°, the ruby marquise keeps 56% of its face-up light. In diamond it keeps 87%.

Marquise Cut in ruby · Tilt 56

Marquise cut in ruby tilted 0 degrees: Light Return map, 39% of the face leaking0° · 39% leak
Marquise cut in ruby tilted 10 degrees: Light Return map, 39% of the face leaking10° · 39% leak
Marquise cut in ruby tilted 20 degrees: Light Return map, 53% of the face leaking20° · 53% leak
Marquise cut in ruby tilted 30 degrees: Light Return map, 58% of the face leaking30° · 58% leak

Marquise Cut in diamond · Tilt 87

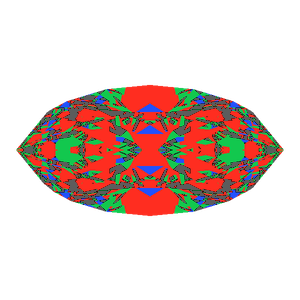

Marquise cut in diamond tilted 0 degrees: Light Return map, 17% of the face leaking0° · 17% leak

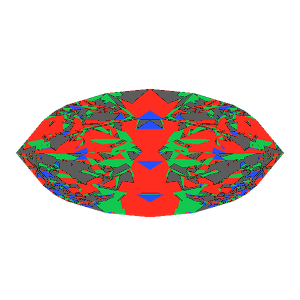

Marquise cut in diamond tilted 10 degrees: Light Return map, 23% of the face leaking10° · 23% leak

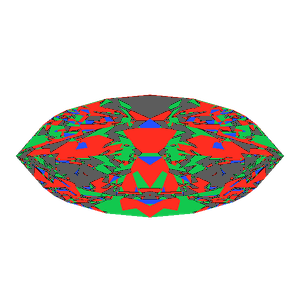

Marquise cut in diamond tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak

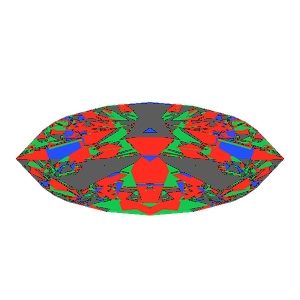

Marquise cut in diamond tilted 30 degrees: Light Return map, 29% of the face leaking30° · 29% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: In ruby, its oval, pear and teardrop cousins all keep less light than a round when tilted. When tilt matters more than the outline, DG-Miliano Ruby keeps 83.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a marquise ruby suits

The marquise suits a ruby where the long, pointed outline and the most face per carat matter most, in a navette ring or as accents. That face per carat is the most we measure, level with the rectangle's, and the buyer must accept a dimmer face. The points need protection, usually with V-prongs.

For an elongated ruby with more light, choose the Oval Cut Ruby, 66. For one rounded end, choose the Pear Cut Ruby. Like any elongated cut, it can show a darker bow-tie across the middle, and we do not measure that.

Marquise Cut Ruby: questions

Is a marquise a good cut for ruby?

For face per carat, yes: 121 against 100 for a round. Sparkle is also slightly ahead (86 against 80). For light, it is much worse: Brilliance 55 and 39% leakage.

Marquise or oval ruby?

For light, the oval: Brilliance 66 against 55, leakage 26% against 39%. The marquise shows more face for its weight, 121 against 108.

What does a marquise ruby 6.5 mm wide weigh?

About 2.38 ct on our model, which is 2.059 times as long as it is wide. In diamond it weighs 2.09 ct.
