Oval Cut Ruby: twice the T73's fire, from the same material

Brilliance 66 · Fire 74 · Scintillation 87 · in our census, where the T73 scores 94 · 37 · 80 in ruby

In our census the oval shows the most fire of any ruby cut: Fire 74, twice the T73's 37.

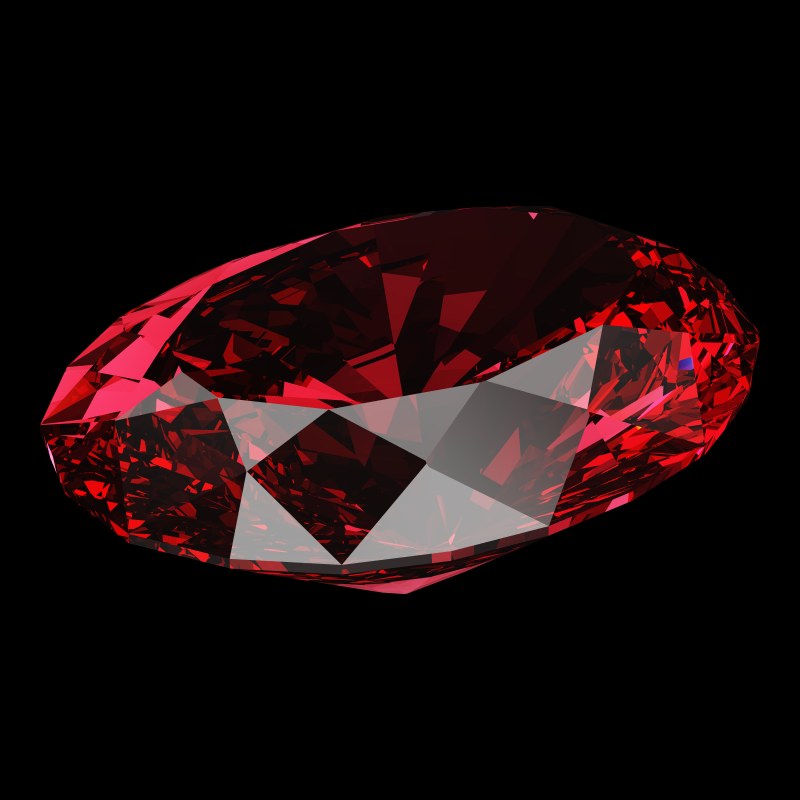

The Oval Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Oval Cut model, 1.00 ct, studio light.

Oval Cut Ruby

Much ruby rough grows as flat hexagonal crystals, and an oval follows that rough with less waste than a round. Our model stretches the brilliant plan to a length-to-width ratio of 1.331. It has 93 facets, a 41.0° pavilion and a depth of 64.0%.

Against the T73, fire doubles and a carat covers more area. But the oval returns less light, and more of it leaks. Against the same oval in diamond, ruby keeps much less light when tilted and shows less fire. But it returns more light face-up: Brilliance 66 against 47.

Is an oval the best shape for a ruby? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the Oval Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Oval Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Oval Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−6Brilliance−28Fire+37Scintillation+7Spread−1Symmetry−2Shape-norm−25Tilt−17

Against the T73 Round Brilliant in ruby: ahead on 2, behind on 6.

  • Global73, the comparison 79, difference −6
  • Brilliance66, the comparison 94, difference −28
  • Fire74, the comparison 37, difference +37
  • Scintillation87, the comparison 80, difference +7
  • Spread99, the comparison 100, difference −1
  • Symmetry98, the comparison 100, difference −2
  • Shape-norm77, the comparison 102, difference −25
  • Tilt58, the comparison 75, difference −17
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in an oval

The most fire we measure in ruby

Fire 74 against 37 for the T73 Round Brilliant in ruby: 37 points higher

The elongated plan puts pavilion facets at many different angles along the length of the stone. Each facet splits light a little differently. The score is well below the diamond oval's 92. But a larger share of the returned light leaves as color than in any round we measure in ruby.

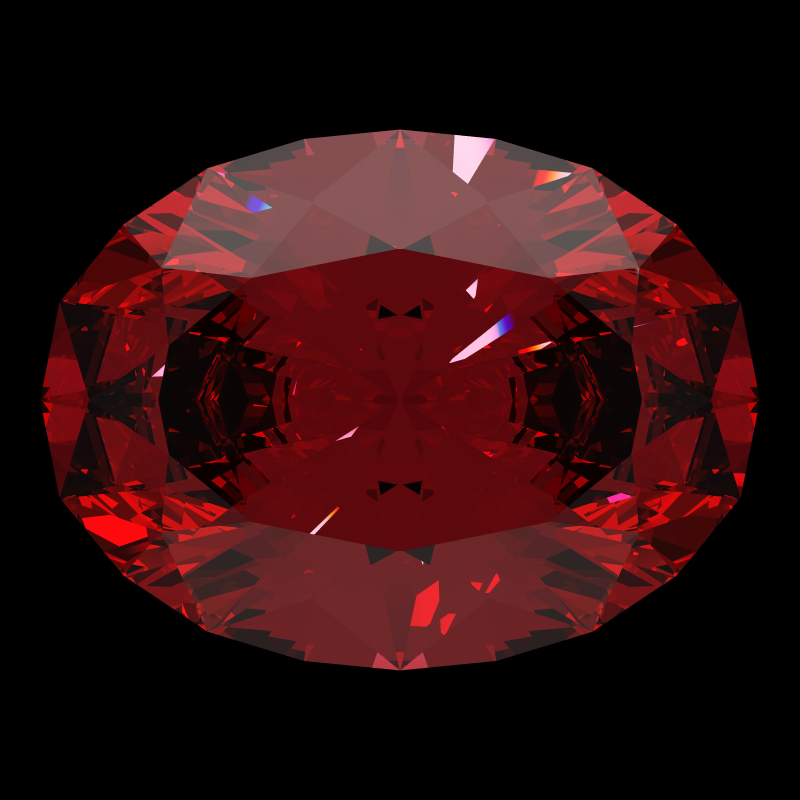

Oval cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 74)

Oval Cut in ruby · Fire 74

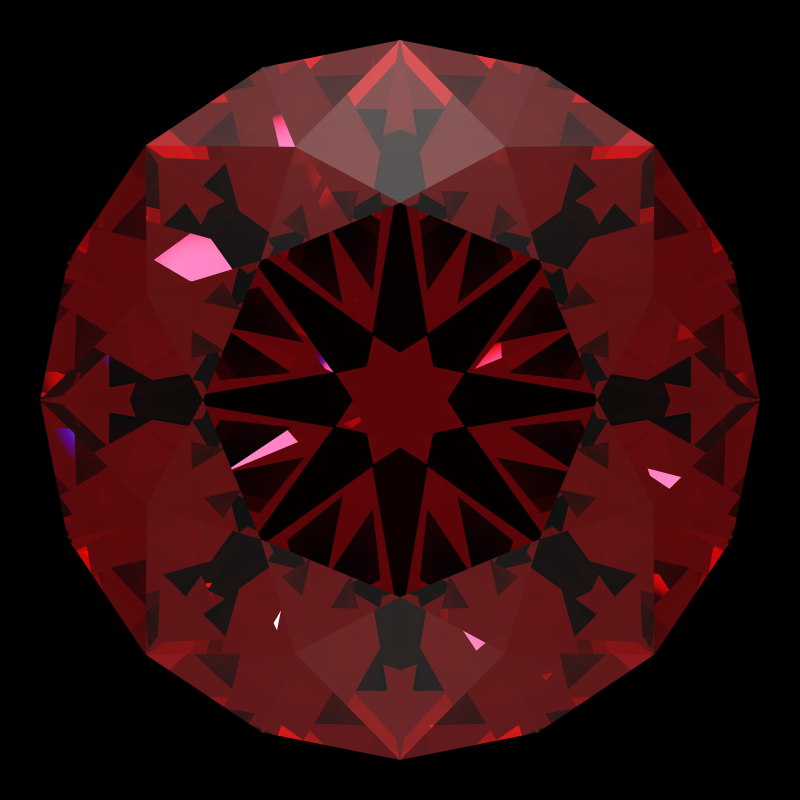

T73 round brilliant in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 37)

T73 Round Brilliant in ruby · Fire 37

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

More face for its weight than a round

Face-up size 108 against 100 for the T73 Round Brilliant in ruby (T73 = 100): 8% more face-up area for the same weight

Our oval is 64.0% deep, and the T73 61.7%. The outline more than makes up for that. The oval is 1.331 times as long as it is wide, so a carat of oval covers more area than a carat of round. The 1.00 ct outlines in the picture show this. The pear, teardrop and marquise are longer and gain more.

Oval Cut · 7.37 x 5.54 mm at 1.00 ct · Face-up size 108

T73 Round Brilliant · 6.21 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in ruby and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in ruby in the 3D Gemstone Simulator

A little more sparkle than the T73

Scintillation 87 against 80 for the T73 Round Brilliant in ruby: 7 points higher

Scintillation 87 against 80. The census's model of the oval divides its face more finely than the T73's.

Oval Cut · 93 facets · Scintillation 87

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

The catch with an oval ruby

Darkens much more than a diamond oval when tilted

Tilt 58 against 92 for the Oval Cut in diamond: 34 points lower

Tilted 20°, the ruby oval keeps 58% of its face-up light, and the diamond version keeps 92%. Of our ruby pages, only the baguette and DG-Elongated Hexagon lose more against their diamond twins.

Oval Cut in ruby · Tilt 58

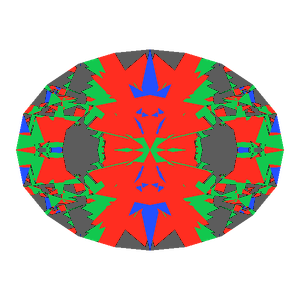

Oval cut in ruby tilted 0 degrees: Light Return map, 22% of the face leaking0° · 22% leak

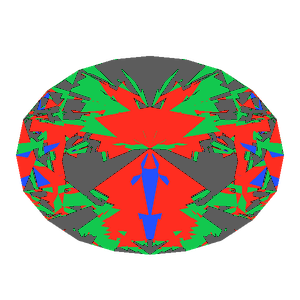

Oval cut in ruby tilted 10 degrees: Light Return map, 29% of the face leaking10° · 29% leak

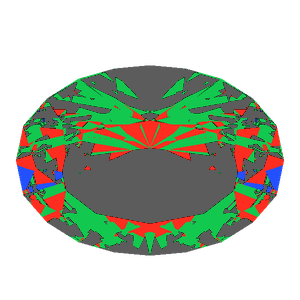

Oval cut in ruby tilted 20 degrees: Light Return map, 49% of the face leaking20° · 49% leak

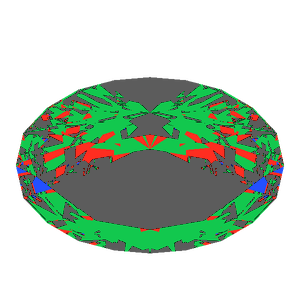

Oval cut in ruby tilted 30 degrees: Light Return map, 49% of the face leaking30° · 49% leak

Oval Cut in diamond · Tilt 92

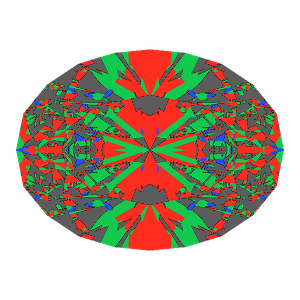

Oval cut in diamond tilted 0 degrees: Light Return map, 31% of the face leaking0° · 31% leak

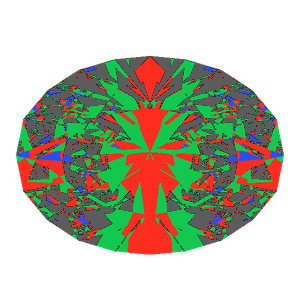

Oval cut in diamond tilted 10 degrees: Light Return map, 31% of the face leaking10° · 31% leak

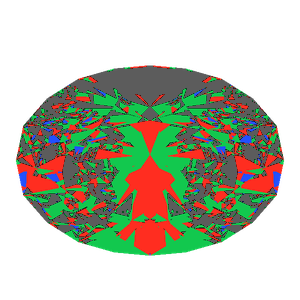

Oval cut in diamond tilted 20 degrees: Light Return map, 32% of the face leaking20° · 32% leak

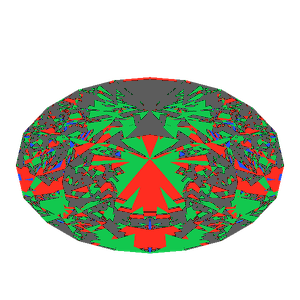

Oval cut in diamond tilted 30 degrees: Light Return map, 35% of the face leaking30° · 35% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A round holds its light better at an angle. If people will often see the stone tilted, DG-Miliano Ruby keeps 83 against the 58 of this oval.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Less light than a round ruby

Brilliance 66 against 94 for the T73 Round Brilliant in ruby: 28 points lower

Brilliance 66 against 94. Along its length, the pavilion meets light at angles that a round never presents. The 34.6° critical angle of ruby lets some of that light go. Ovals often show this as a darker band across the middle, the bow-tie, which we do not measure.

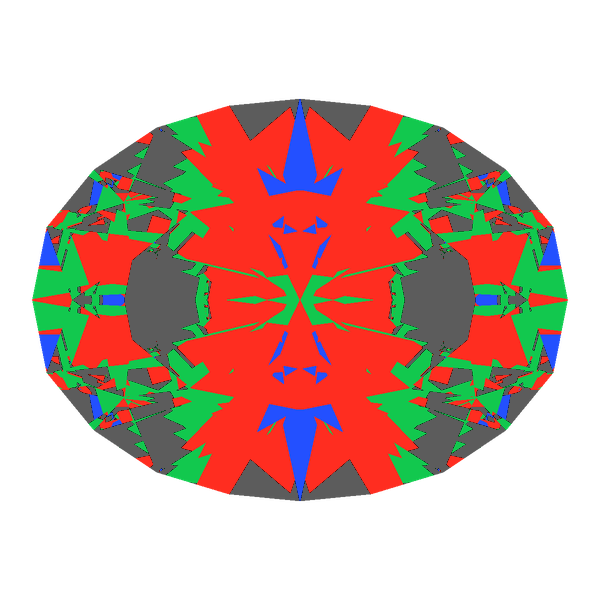

Oval cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 66)

Oval Cut in ruby · Brilliance 66

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The pavilion is already at 41.0°, above the 36.4° guide minimum for ruby, so our data does not support a steeper pavilion as the fix. For more light without a round outline, the Cushion Cut Ruby returns 88.

Try it yourself: Open this Light Return map in the simulator

A quarter of the light leaks

Leakage 26 against 5 for the T73 Round Brilliant in ruby: 21 points higher

Of the light that enters the oval, 26% escapes through the pavilion. The T73 in ruby loses 5%.

Oval Cut in ruby · Leakage 26

Oval cut in ruby tilted 0 degrees: Light Return map, 22% of the face leaking0° · 22% leak
Oval cut in ruby tilted 10 degrees: Light Return map, 29% of the face leaking10° · 29% leak
Oval cut in ruby tilted 20 degrees: Light Return map, 49% of the face leaking20° · 49% leak
Oval cut in ruby tilted 30 degrees: Light Return map, 49% of the face leaking30° · 49% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The share does not change with size. The Cushion Cut Ruby leaks 11%.

Try it yourself: Tilt it yourself in the simulator's light map

Heavier than a diamond oval

1.62 ct at 6.5 mm, against 1.42 ct for the same cut in diamond (+14%)

A 6.5 mm wide oval weighs 1.62 ct in ruby and 1.42 ct in diamond, because ruby is about 14% denser.

Ruby1.62 ctDiamond1.42 ct
A Oval Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Specify an oval ruby by length and width in millimeters.

Try it yourself: Weights in every gemstone on the Oval Cut page

Who an oval ruby suits

Choose the oval for a ruby that must flash color as well as glow red. It has the most fire of any cut we measure in this stone. It suits a ring that people see mostly face-up.

If light matters more than color flashes, a round gives more: DG-M5 Ruby returns 100. For an elongated outline with a gentle point, the Teardrop Cut Ruby faces up larger for its weight, 116 against 108. But it returns less light.

The two pleochroic colors of ruby, purplish red and orangey red, sit at right angles in the crystal. An elongated outline does not always let the cutter put the better color face-up. That is one reason why oval rubies from the same rough can differ in color.

Oval Cut Ruby: questions

Is an oval a good cut for ruby?

For color flashes, yes: Fire 74, the highest we measure in ruby. For returned light, a round ruby is better, 94 against 66.

Does an oval ruby have a bow-tie?

Many ovals show a darker band across their width, and in a ruby it looks like a deeper red stripe. Our tools have no bow-tie metric, so the 26% leak figure is the nearest thing we can give.

Oval ruby or oval diamond?

Diamond has more fire (92 against 74) and holds its light much better when tilted. In this cut, ruby returns more light face-up (66 against 47).

What does a 6.5 mm wide oval ruby weigh?

About 1.62 ct at a length-to-width ratio of 1.331. A diamond of the same size weighs 1.42 ct.
