T73 Round Brilliant Ruby: the benchmark round, with more sparkle than the T57

Brilliance 94 · Fire 37 · Scintillation 80 · in our census, where the T57 scores 94 · 39 · 72 in ruby

Our benchmark round, in ruby. Against the T57, it scores Scintillation 80 to 72 at the same Brilliance, 94. Its Face-up size is 100 to 107.

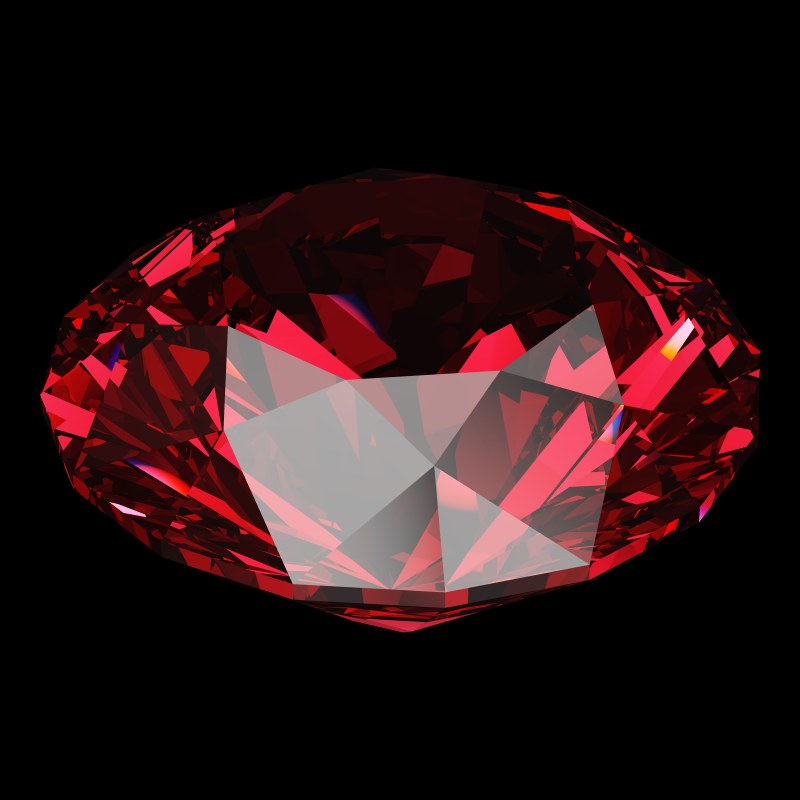

The T73 Round Brilliant in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the T73 Round Brilliant model, 1.00 ct, studio light.

T73 Round Brilliant Ruby

The T73 is the 1919 round brilliant with a sixteen-facet girdle band: 73 facets, a 40.75° pavilion and a depth of 61.7%. We measure every other ruby round on this site against it. On this page we compare it with the T57 instead, the same plan without the girdle facets.

In ruby the two return the same light, Brilliance 94 each, and the T73 sparkles more. Three of the cons come from comparing ruby with diamond in the same cut: less fire, less light at a tilt and more weight. The fourth comes from the T57, which shows more face carat for carat.

Most rubies are not cut round at all. Ovals and cushions keep more of the flat, hexagonal rough. When cutters do cut a ruby round, most choose this plan.

How good is a T73 round ruby? Pros and cons

Compared with the T57 Round Brilliant in ruby and with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T57

At a glance: the T73 Round Brilliant in ruby (white) against the T57 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: T73 Round Brilliant in ruby, against the T57 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+1Brilliance0Fire−2Scintillation+8Spread−1Symmetry0Shape-norm+1Tilt+1

Against the T57 Round Brilliant in ruby: ahead on 4, level on 2, behind on 2.

  • Global79, the comparison 78, difference +1
  • Brilliance94, the comparison 94, difference 0
  • Fire37, the comparison 39, difference −2
  • Scintillation80, the comparison 72, difference +8
  • Spread100, the comparison 101, difference −1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm102, the comparison 101, difference +1
  • Tilt75, the comparison 74, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a T73

More sparkle than the T57

Scintillation 80 against 72 for the T57 Round Brilliant in ruby: 8 points higher

Sixteen girdle facets bring the count from 57 to 73, and our scintillation score follows the facet plan. The crown and pavilion do not change, and the two cuts return the same light, 94 each.

T73 Round Brilliant · 73 facets · Scintillation 80

T57 Round Brilliant · 57 facets · Scintillation 72

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where the T73 costs a ruby

Far less fire than a diamond T73

Fire 37 against 78 for the T73 Round Brilliant in diamond: 41 points lower

Across identical facets, fire falls from 78 in diamond to 37 in ruby.

T73 round brilliant in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 37)

T73 Round Brilliant in ruby · Fire 37

T73 round brilliant in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

T73 Round Brilliant in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: No round fixes this in ruby. The Trilliant Cut Ruby reaches 52 and stays close to the T73's light, 86 against 94.

Try it yourself: See the fire in the 3D Gemstone Simulator

Holds less light at an angle than in diamond

Tilt 75 against 92 for the T73 Round Brilliant in diamond: 17 points lower

At a 20° tilt the ruby keeps 75% of its face-up light and the diamond 92%. The 1919 angles were made for diamond, which has a critical angle of 24.4°. The critical angle of ruby is 34.6°, and a tilt finds the difference.

T73 Round Brilliant in ruby · Tilt 75

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak

T73 Round Brilliant in diamond · Tilt 92

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-Miliano Ruby keeps 83 at 20° in ruby, for a few points less brilliance.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Heavier than diamond

1.15 ct at 6.5 mm, against 1.01 ct for the same cut in diamond (+14%)

The outline is the same and the stone is denser: a 6.5 mm T73 weighs 1.15 ct in ruby and 1.01 ct in diamond.

Ruby1.15 ctDiamond1.01 ct
A T73 Round Brilliant 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Calibrated round settings come in millimeter sizes, so order a T73 ruby that way.

Try it yourself: Weights in every gemstone on the T73 Round Brilliant page

Less face for its weight than the T57

Face-up size 100 against 107 for the T57 Round Brilliant in ruby (T73 = 100): 7% less face-up area for the same weight

Our T73 model is 61.7% deep and the T57 59.2%. The difference is the sixteen-facet band at the widest point of the stone. Under the same round outline the T73 holds more ruby, so a carat of it makes a slightly narrower circle. The picture shows both at 1.00 ct, to one scale. Every other ruby page measures face-up size against the 100 of this cut. Here the T57 sets the mark, and the benchmark trails.

T73 Round Brilliant · 6.21 mm at 1.00 ct · Face-up size 100

T57 Round Brilliant · 6.41 mm at 1.00 ct · Face-up size 107

Both stones weigh 1.00 ct in ruby and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: Remove the band: the T57 Round Brilliant Ruby faces up at 107 for its weight with identical Brilliance. But its knife edge needs a protective setting. Ordered by millimeters, the two show the same circle.

Try it yourself: See its size at 1.00 ct in ruby in the 3D Gemstone Simulator

Who a T73 ruby suits

Choose the T73 for a round ruby with proportions that any cutter or setter knows. It has a girdle that fits a standard setting, and light within a few points of the best we measure.

Three rounds return more light in ruby: DG-M5 Ruby, DG-Anteros Ruby and, by a point, DG-Broken Hearts and Arrows Ruby. DG-Vitruvio gives finer sparkle at identical light: DG-Vitruvio Ruby. For color flashes, look beyond rounds. The Trilliant Cut Ruby has 52 for fire in ruby.

If you cut, the dichroism of ruby makes orientation the first decision. A table across the c-axis shows the purplish-red ray, and a table along it shows the more orange ray.

T73 Round Brilliant Ruby: questions

Is the T73 a good cut for ruby?

A sound one, and the reference for every round on our ruby pages: Brilliance 94, 5% leakage. DG-M5, DG-Anteros and DG-Broken Hearts and Arrows are slightly brighter, at 100, 97 and 95.

T73 or T57 for a ruby?

They return the same light. The T73 sparkles more (80 against 72). The T57 shows more face per carat (107 against 100).

Does a round ruby have fire?

Not much. Our T73 in ruby scores 37 for fire, and the same round in diamond 78.

What does a 6.5 mm round ruby weigh?

A T73 ruby 6.5 mm across weighs about 1.15 ct. The diamond equivalent weighs 1.01 ct.
