Catalog

Gem cuts: 3D models and faceting diagrams

40 cuts and 5 Platonic solids · 6 model formats · GemCad cutting files · 37 cuts scored in 7 gemstones

Bundles: save up to 61% · 25% off until 1 December

Bundles

The cuts people use most, in one download, for less than the single files. One ZIP with a folder per cut: the same files as the single products. 25% off every bundle until 1 December: the buy buttons apply the discount.

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Jewelry Essentials 3D: the 10 cuts in the bundle
10 cutsSave 60% on single files25% off until 1 December

Jewelry Essentials 3D

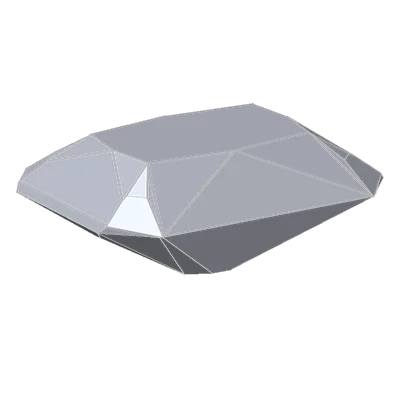

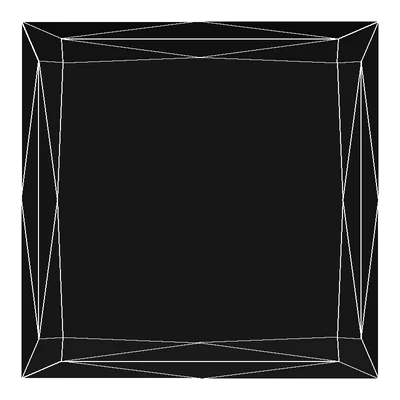

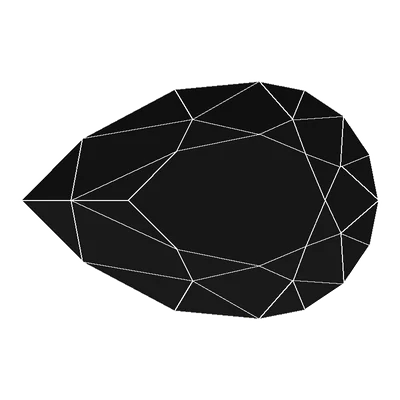

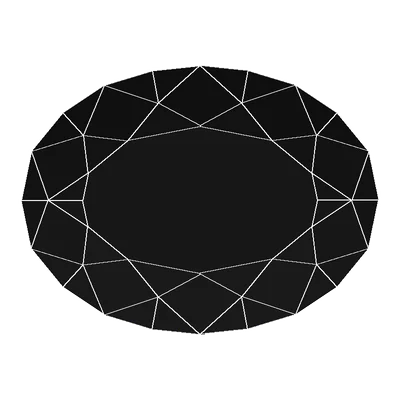

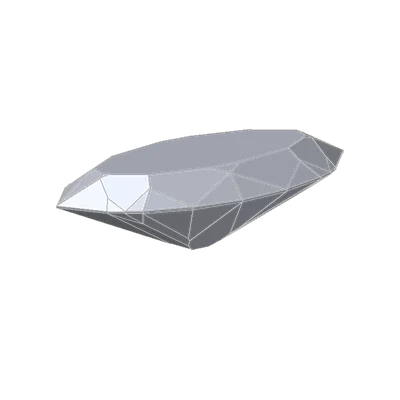

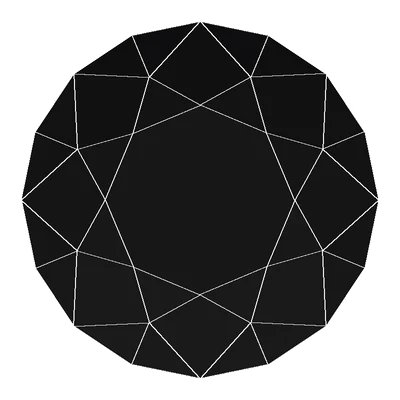

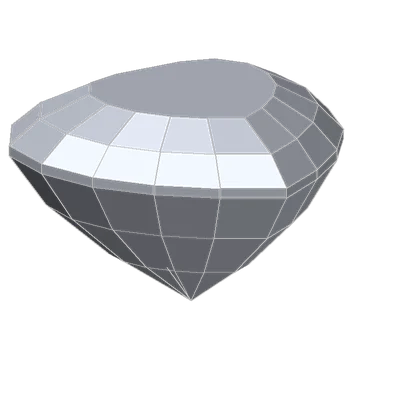

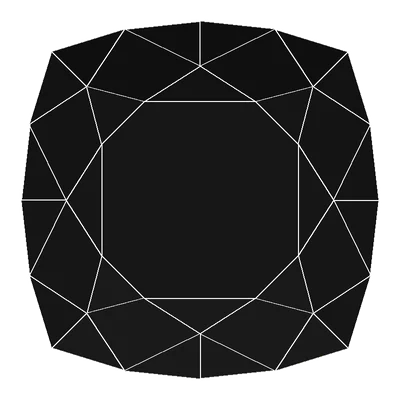

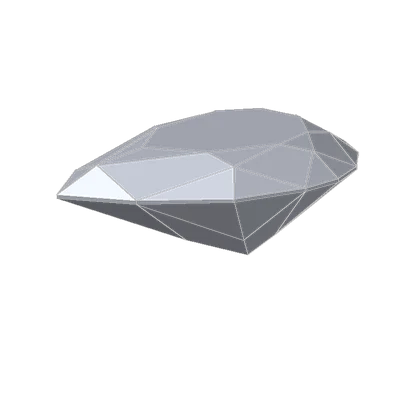

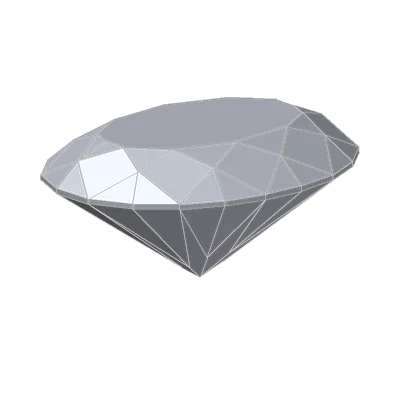

T73 Round Brilliant, Oval, Pear, Marquise, Princess, Cushion, Emerald Cut, Asscher, Radiant, Heart. 3D files: STEP, 3DM, STL, OBJ, FBX and GLB, one folder per cut. €99.90 as single files.

€29.99 until 1 December, then €39.99 · Personal useBuy the bundle
Faceter's Classics: the 10 cuts in the bundle
10 cutsSave 57% on single files25% off until 1 December

Faceter's Classics

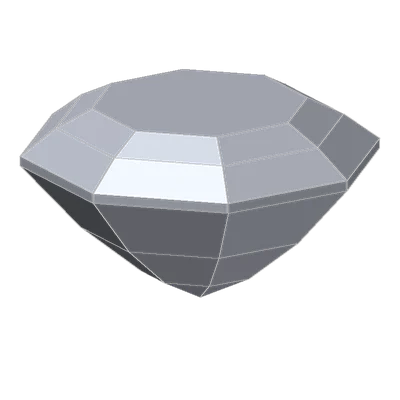

Emerald Cut, Asscher, Marquise, Baguette, Trillion, Octagon, Oval, Pear, Princess, Cushion. GemCad .asc design, tier table and printable diagram, one folder per cut. €69.90 as single files.

€22.49 until 1 December, then €29.99 · Personal useBuy the bundle
Platonic Solids Set: the 5 solids in the bundle
5 solidsSave 50% on single files25% off until 1 December

Platonic Solids Set

Tetrahedron, Hexahedron, Octahedron, Dodecahedron, Icosahedron. 3D files: STEP, 3DM, STL, OBJ, FBX and GLB, one folder per solid. €19.95 as single files.

€7.49 until 1 December, then €9.99 · Personal useBuy the bundle
Historic Cuts Complete: the 6 cuts in the bundle
6 cutsSave 61% on single files25% off until 1 December

Historic Cuts Complete

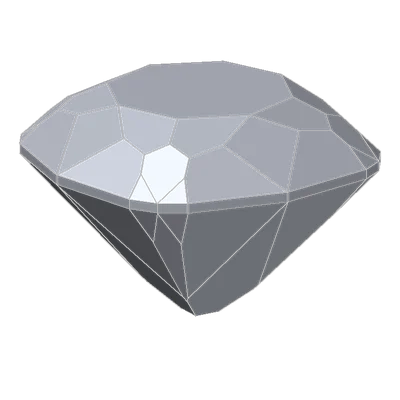

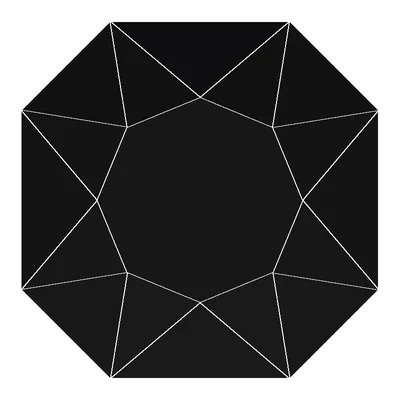

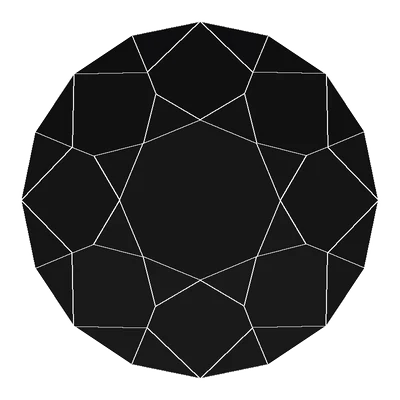

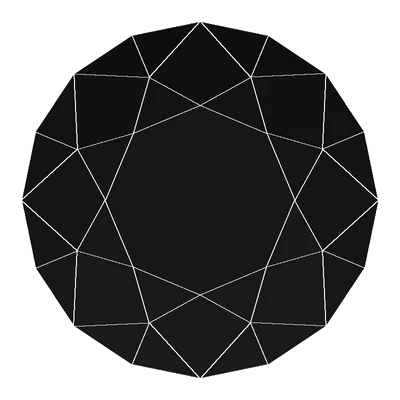

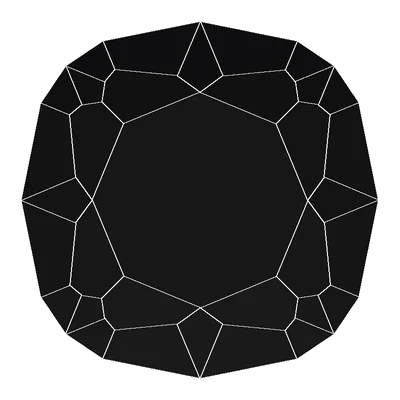

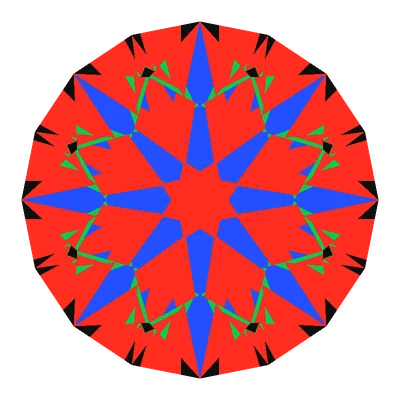

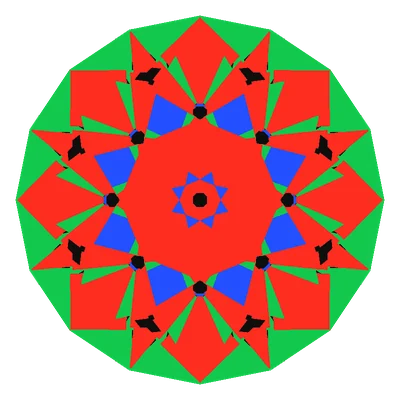

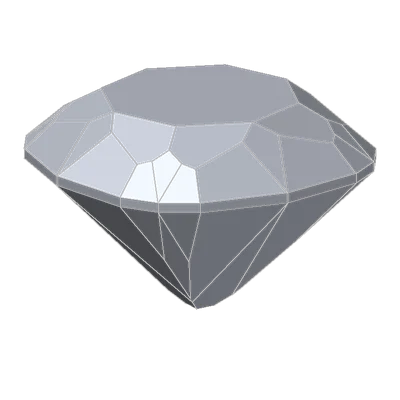

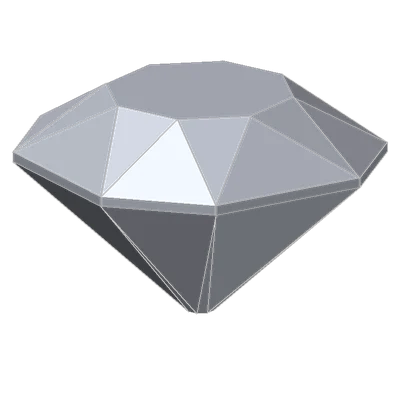

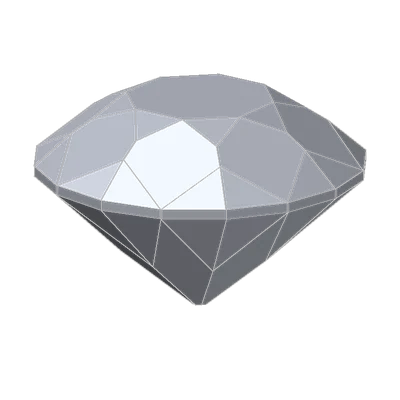

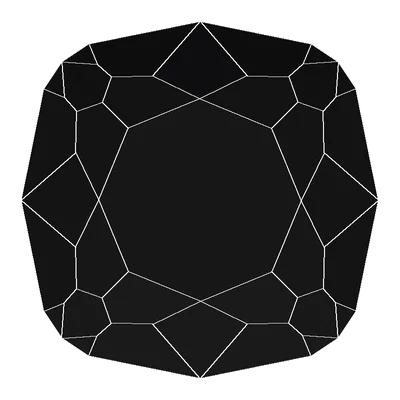

Mazarin, Old European, Old Mine, Old Single, Peruzzi, T57 Round Brilliant. Each cut complete: 3D files (STEP, 3DM, STL, OBJ, FBX, GLB) and GemCad cutting files, one folder per cut. €101.88 as single files.

€29.99 until 1 December, then €39.99 · Personal useBuy the bundle

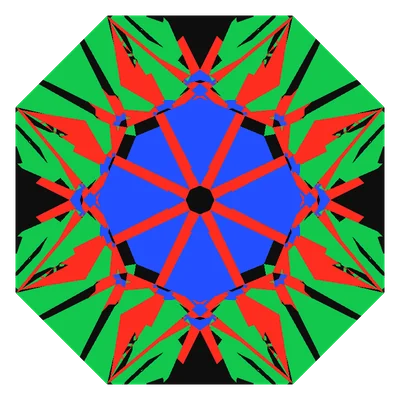

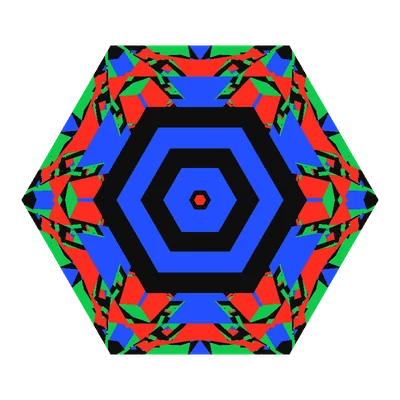

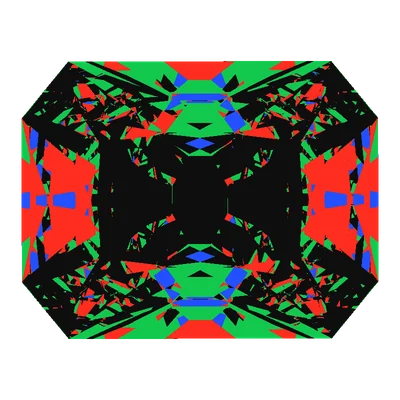

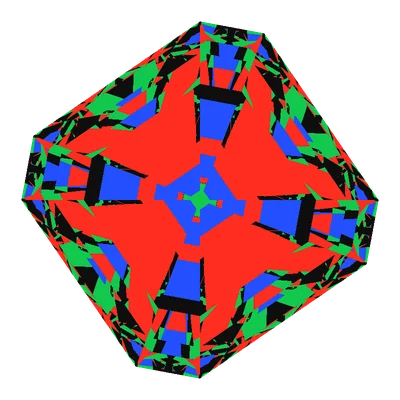

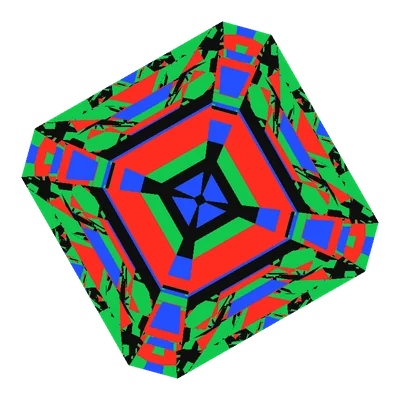

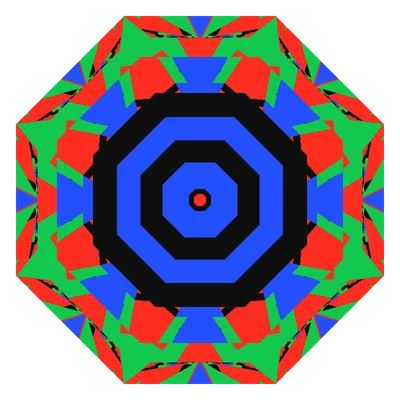

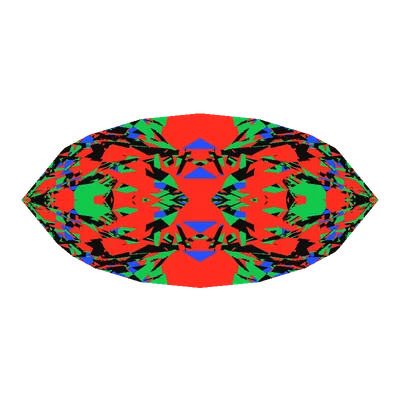

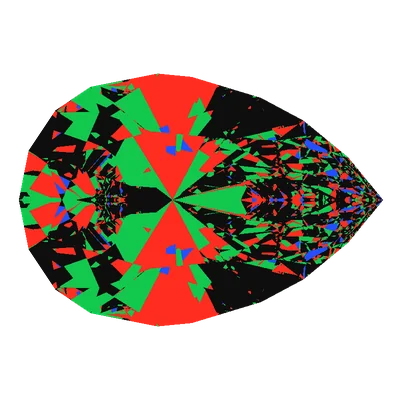

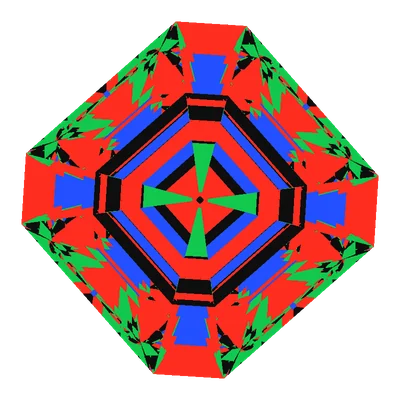

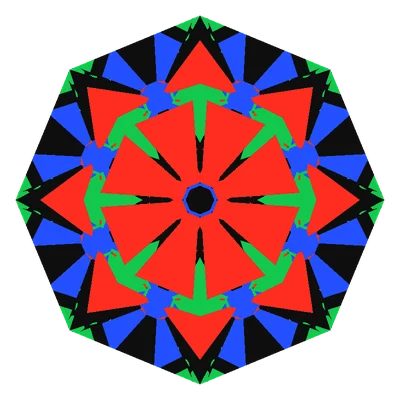

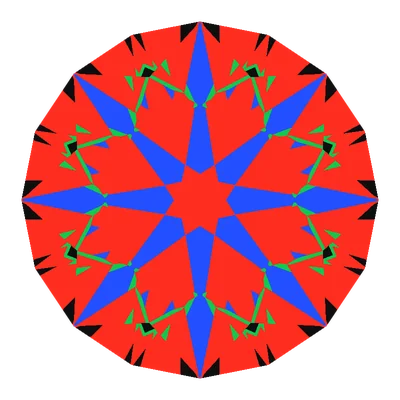

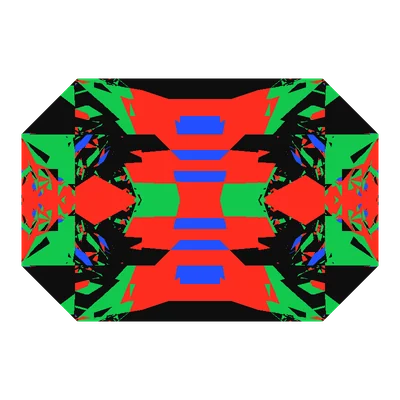

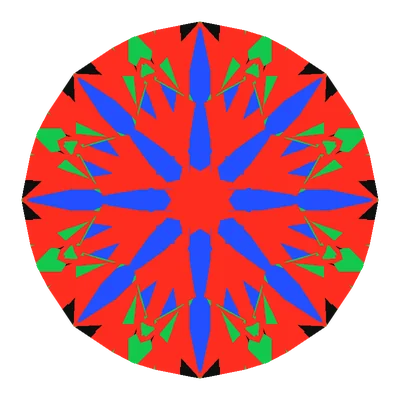

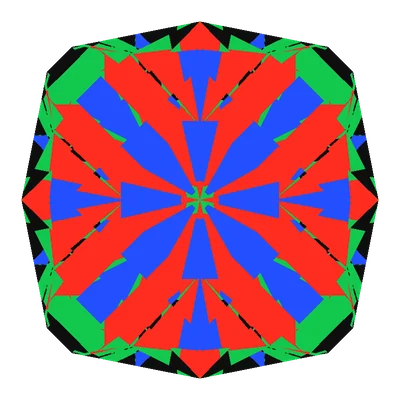

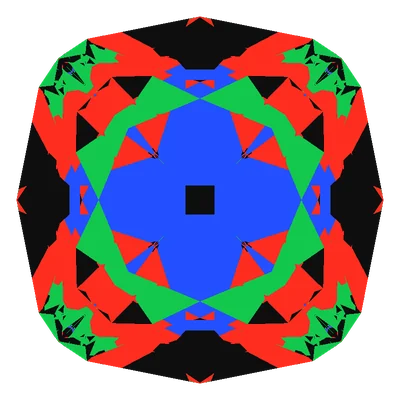

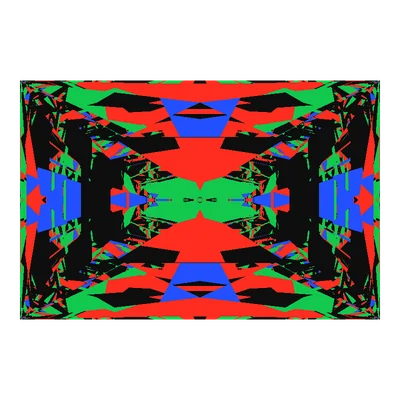

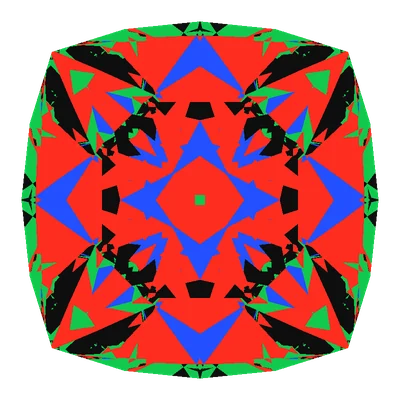

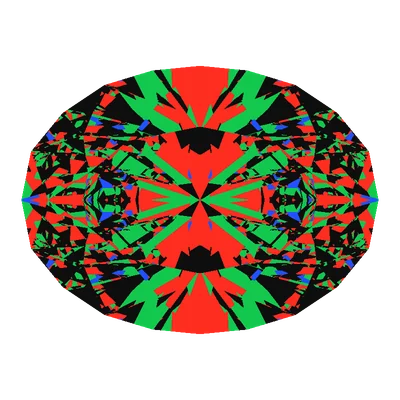

Light maps are face-up and in diamond, unless a cut was designed for another stone. We draw every picture from the cut's own model.

Brilliants

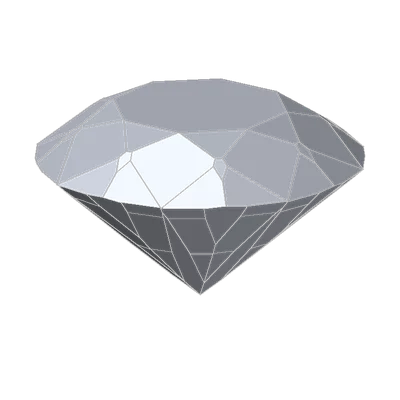

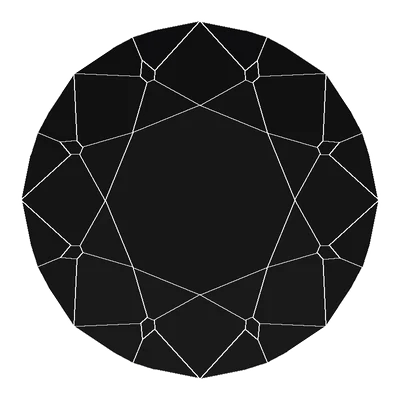

Round brilliants cut to the proportions published in 1919, from the 73-facet round to our finest subdivision.

Jewelry cuts

The shapes jewelers set every day: fancy brilliants, step cuts and traditional patterns.

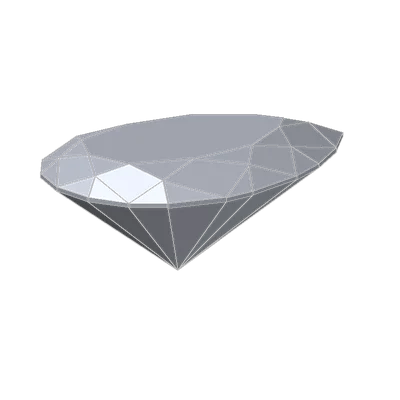

Elongated shapes

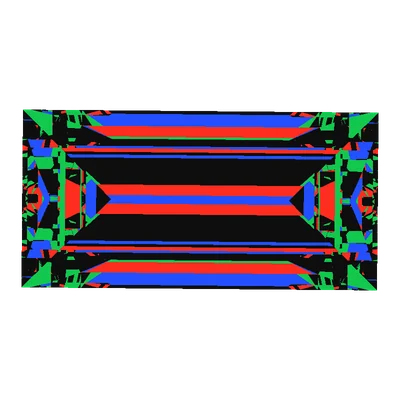

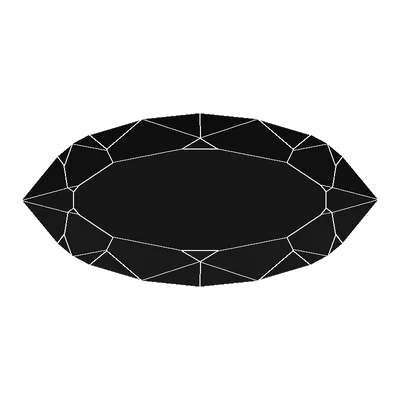

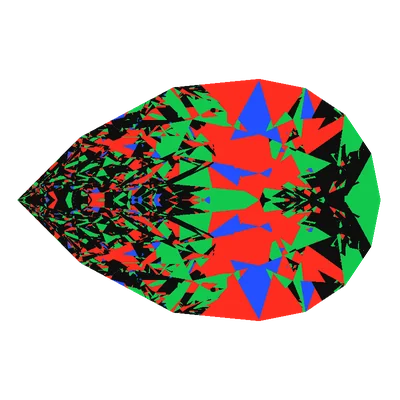

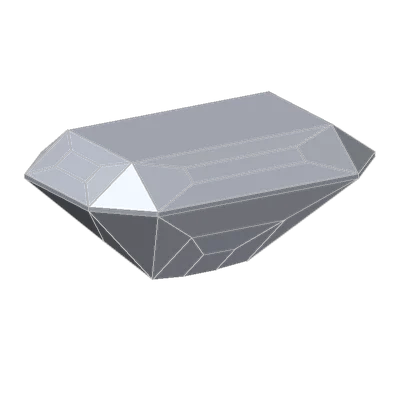

Longer than they are wide, from the oval and pear to the step-cut emerald and baguette.

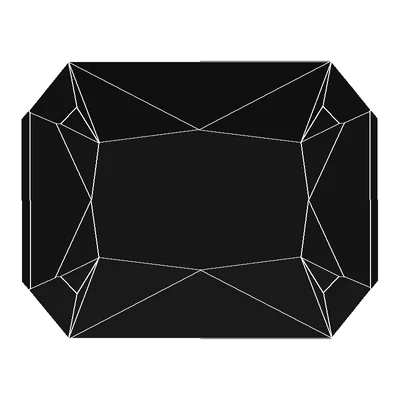

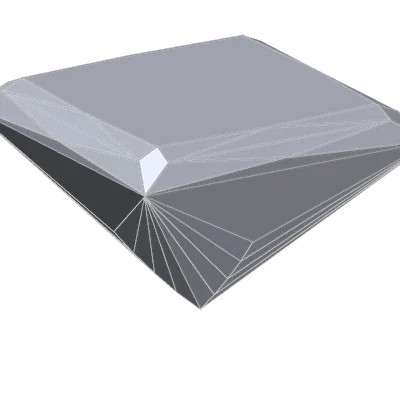

Square shapes

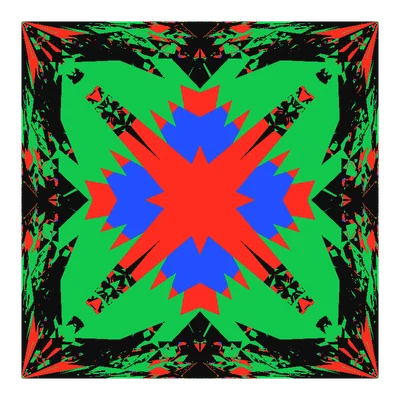

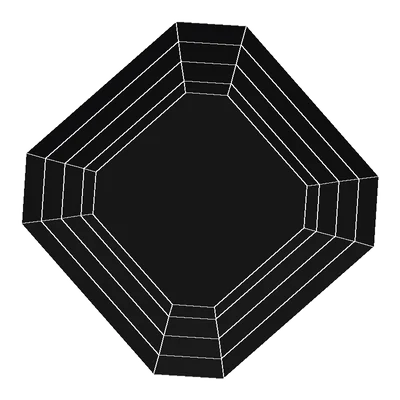

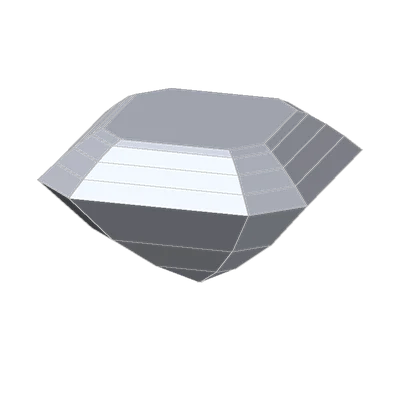

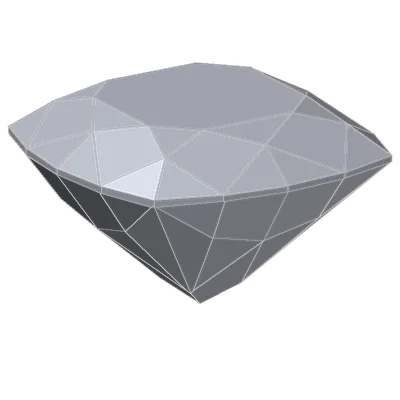

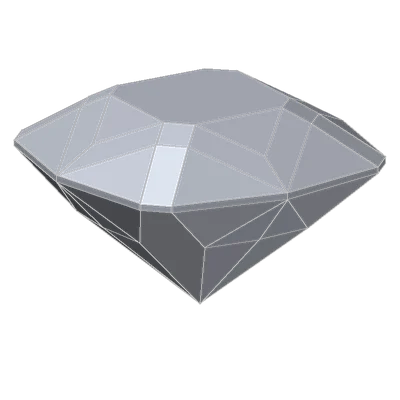

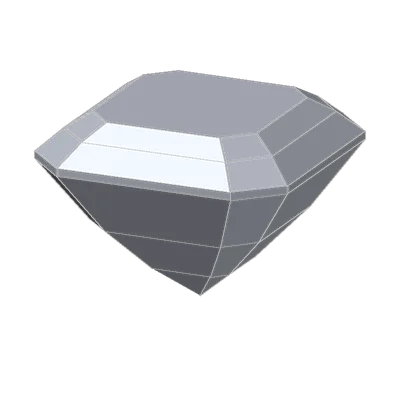

As long as they are wide, from the princess and cushion to the step-cut Asscher.

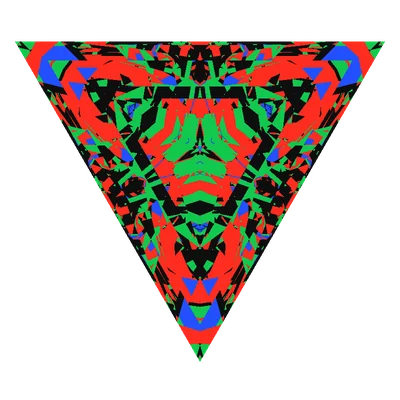

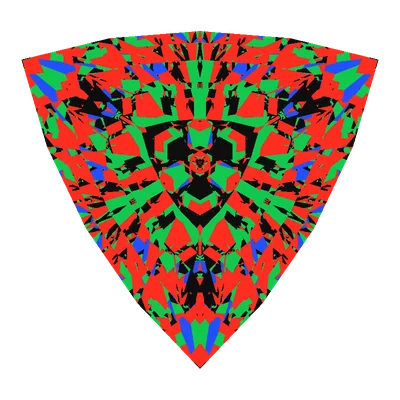

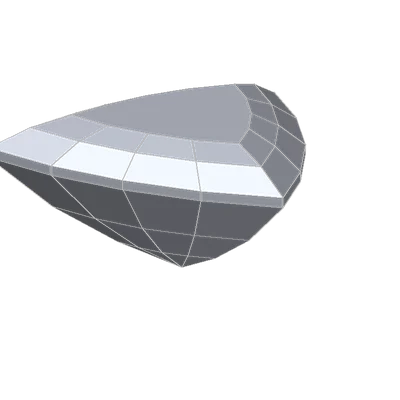

Triangular shapes

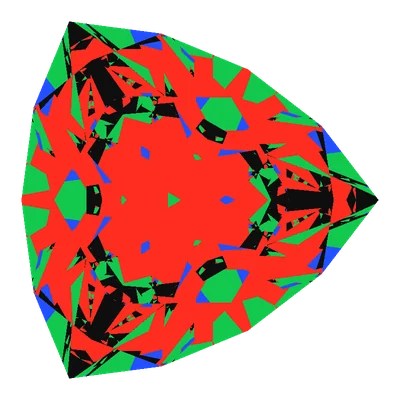

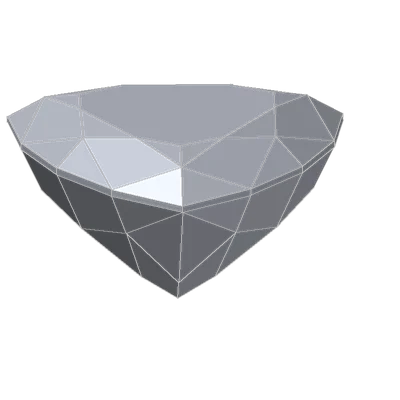

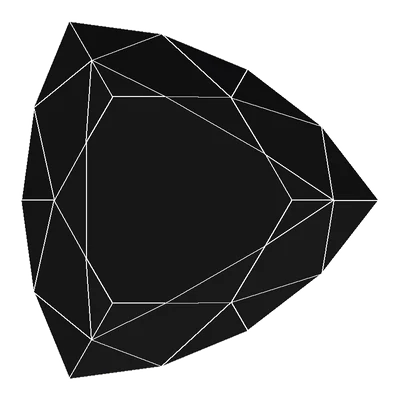

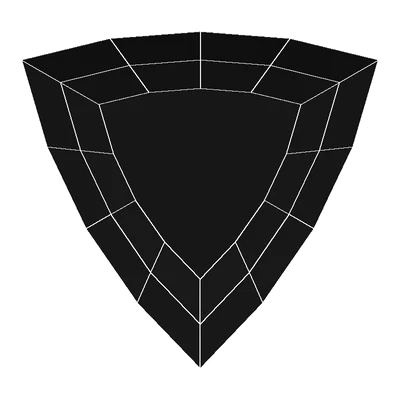

Three-sided stones, with straight sides or softly curved ones.

Other shapes

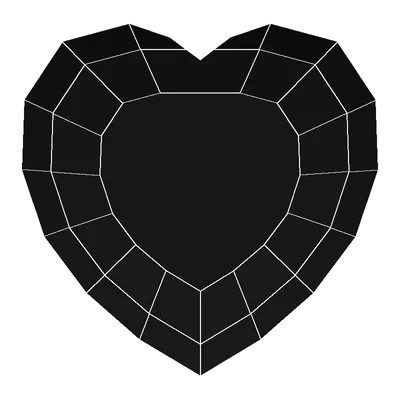

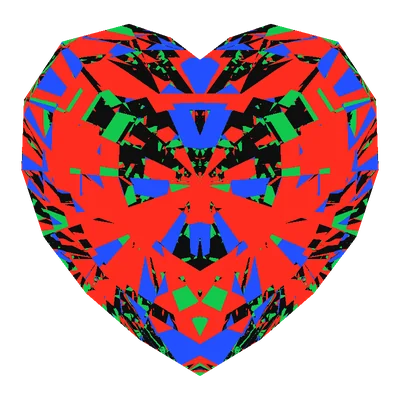

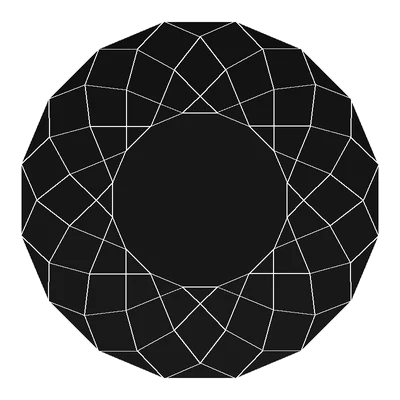

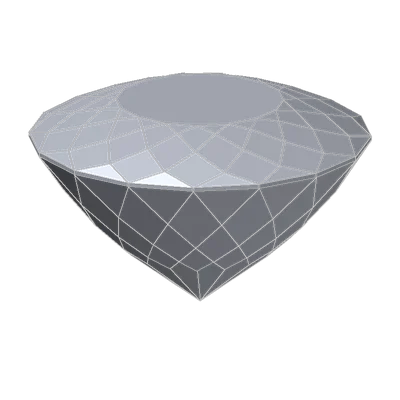

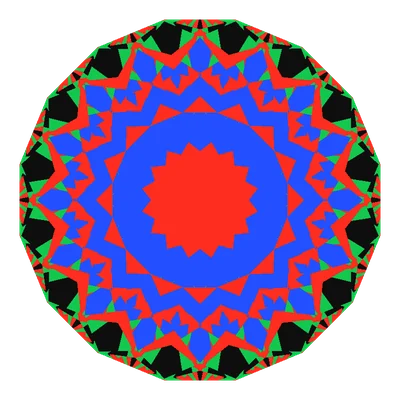

The heart, the regular hexagon and octagon, and the sixteen-sided Portuguese Bird's Nest.

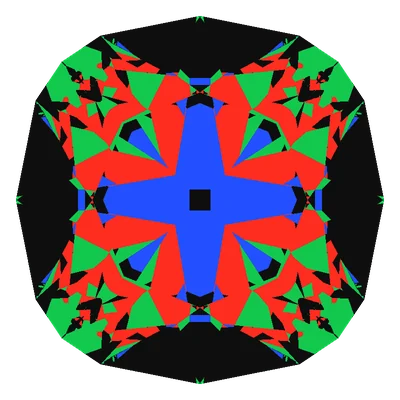

Historic cuts

The evolution of the brilliant in order, from the single cut to the 1919 round, rebuilt from primary sources.

House cuts

Our own designs, grouped by outline like the jewelry cuts. Each design is drawn for one gemstone, and its page says which.

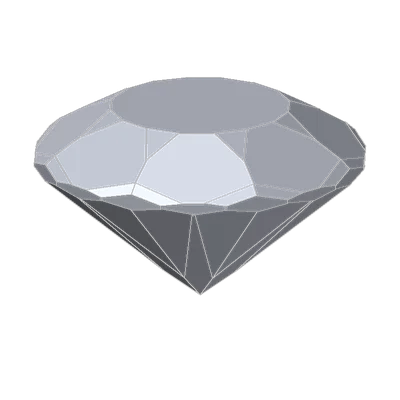

Round shapes

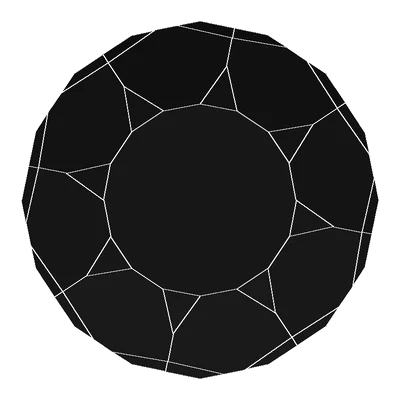

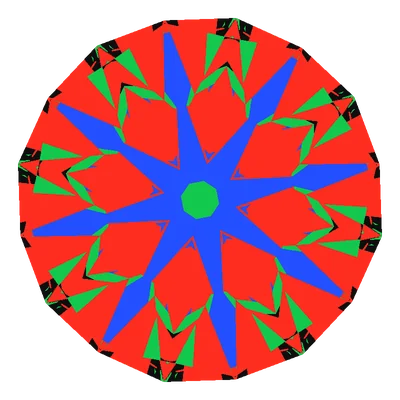

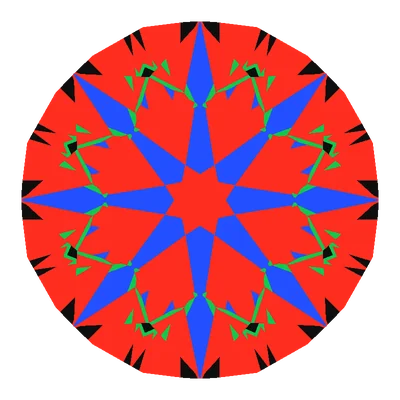

Rounds on our own facet plans, eight-fold and twelve-fold, for diamond and moissanite.

Elongated shapes

Longer than they are wide: a stepped hexagon finished the same on both faces, and a deep marquise that shows the bow-tie.

Other shapes

Regular outlines and unusual forms: an eight-fold kite, a faceted cabochon and a hexagonal double point.

Platonic solids

The five regular solids: on each, every face is the same regular polygon and every corner is the same. We sell them as 3D models only. They share one circumsphere, so the set nests together at true relative size. A solid has no face-up, so it shows in 3D in every view.
