DG-Broken Hearts and Arrows Cut

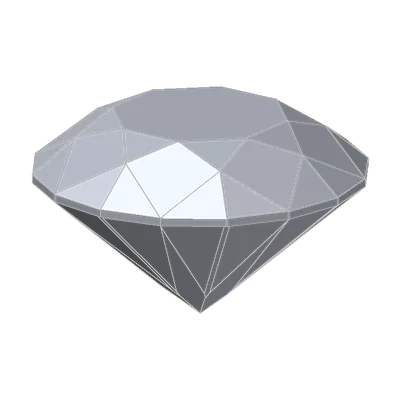

3D model and faceting diagram · 89 facets · 8.15 x 8.15 mm

DG-Broken Hearts and Arrows is designed specifically for diamond. It is the T73 round brilliant with sixteen narrow crack facets added to the pavilion, 89 facets in all. The crack facets are in eight pairs, one facet on each side of the axis of each heart. Each pair is on the ridge where two lower girdle halves meet between the mains. The cutter polishes them last, onto a finished T73 pavilion. They are small: on a 6.5 mm stone, each is at most about 0.07 mm wide and 0.003 mm deep.

Instant download · Personal-use license · What is in the files · Grade it in 3D

Drag to turn

About the DG-Broken Hearts and Arrows Cut

DG-Broken Hearts and Arrows is designed specifically for diamond. It is the T73 round brilliant with sixteen narrow crack facets added to the pavilion, 89 facets in all. The crack facets are in eight pairs, one facet on each side of the axis of each heart. Each pair is on the ridge where two lower girdle halves meet between the mains. The cutter polishes them last, onto a finished T73 pavilion. They are small: on a 6.5 mm stone, each is at most about 0.07 mm wide and 0.003 mm deep.

In a simulated Hearts & Arrows viewer, in diamond, each of the eight hearts shows a red crack, and the arrows look like the T73's. The crack tapers from the notch of the heart about three quarters of the way to its point. In moissanite, cubic zirconia and the colored stones, the white hearts do not form. In diamond, our light census gives it about the T73's brilliance and fire, more scintillation and a little less light lost through the pavilion. It is also about as steady under tilt. The crack facets need precise cutting: in the simulation, angle errors of a tenth of a degree weaken the crack.

Its hearts and arrows, in diamond

DG-Broken Hearts and Arrows is designed specifically for diamond. Its cracked hearts are a diamond pattern. In moissanite, cubic zirconia, ruby, sapphire, emerald and amethyst, its white hearts do not form. Here it is in diamond through a Hearts & Arrows viewer, next to the T73 that it is built on. The arrows are face-up and the hearts are face-down.

DG-Broken Hearts and ArrowsDiamond, RI 2.417
T73Diamond, RI 2.417, for contrast
Arrows
DG-Broken Hearts and Arrows in diamond through a Hearts and Arrows viewer, face-up: eight arrows that look like the T73's
Face-up. Eight arrows that look like the T73's.
T73 in diamond through a Hearts and Arrows viewer, face-up: eight arrows
Face-up. Eight arrows.
Hearts
DG-Broken Hearts and Arrows in diamond through a Hearts and Arrows viewer, face-down: eight hearts, each with a thin red crack from its notch toward its point
Face-down. Eight hearts, each with a thin red crack running from its notch most of the way to its point.
T73 in diamond through a Hearts and Arrows viewer, face-down: eight whole hearts
Face-down. Eight whole hearts: no crack.

White: light from the viewer's white disk, which draws the arrows and hearts. Red: light from the red reflector. Black: the lens port, or light that never comes back.

We compute all four panels from the two cut files themselves, in diamond, with the same rules for both. The Hearts & Arrows viewer has a 2.5° lens hole, a white disk to 13.5° and a red reflector to 90°.

DG-Broken Hearts and Arrows Cut specifications

Measured from the delivered model, not quoted from a standard.

CategoryBrilliants
Facets89 planar facets (73 + 16 girdles = 89)
OutlineLength to width 1.000
Total depth61.7% of width
Table53.0% of width
Crown angle (main)34.5°
Pavilion angle (main)40.8°
Reference size8.15 x 8.15 x 5.03 mm at 1.99 ct in diamond
Volume113.07 mm³
Cutting file accuracyEvery crown and pavilion facet within 0.002° of the 3D model (average under 0.001°)
Index gear96
Symmetry8-fold mirror-image symmetry
Tiers3 crown, 3 pavilion
FilesSTEP, 3DM, STL, OBJ, FBX, GLB, GemCad .asc, tier table, diagram

Face-up and profile

Face-up: the crown facets, drawn from the model's own edges.
Profile: 61.7% total depth.

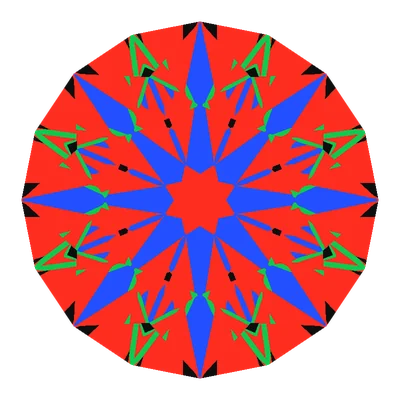

Light Return map of the DG-Broken Hearts and Arrows Cut in diamond: a computed render showing direct, indirect and contrast light across the face-up stone.
Light Return map of the DG-Broken Hearts and Arrows Cut in diamond. A computed render of the model's geometry, not a photograph.

How the DG-Broken Hearts and Arrows Cut performs in seven gemstones

The DG-Broken Hearts and Arrows Cut performs best in cubic zirconia, where its brilliance and fire together are highest: 98 for brilliance and 87 for fire. Its fire peaks in moissanite, at 97. In diamond it scores 93 for brilliance and 78 for fire, the same as the T73 benchmark. Its scintillation, 86, comes from its pattern of facets, so it is the same in every stone.

Brilliance, fire and scintillation of the DG-Broken Hearts and Arrows Cut in seven gemstones, out of 100, with the T73 Round Brilliant benchmark in each
GemstoneBrillianceFireScintillation
Diamond93 (T73 benchmark 93)78 (T73 benchmark 78)86 (T73 benchmark 80)
MoissaniteHighest fire87 (T73 benchmark 86)97 (T73 benchmark 97)86 (T73 benchmark 80)
Cubic ZirconiaBest overallHighest brilliance98 (T73 benchmark 98)87 (T73 benchmark 87)86 (T73 benchmark 80)
Ruby95 (T73 benchmark 94)36 (T73 benchmark 37)86 (T73 benchmark 80)
Sapphire95 (T73 benchmark 94)36 (T73 benchmark 37)86 (T73 benchmark 80)
Emerald78 (T73 benchmark 78)39 (T73 benchmark 39)86 (T73 benchmark 80)
Amethyst71 (T73 benchmark 72)35 (T73 benchmark 36)86 (T73 benchmark 80)
Score out of 100T73 Round Brilliant, our benchmark, in the same stoneBest overall: the highest brilliance and fire together

Brilliance is the share of face-up light that the stone returns. Fire is the share of that light that splits into color. Both come from our face-up light census. Scintillation is the sparkle that the facets give as the stone moves, and we read it from its facets. They are the same figures as the Cut Performance Wheel, where you can compare the DG-Broken Hearts and Arrows Cut with any other cut. A simulation of the geometry, not a grading report.

Also scored, with the same census, in 19 more gemstones: topaz, spinel, demantoid, zircon, tourmaline, peridot, tanzanite, YAG, pyrope, almandine, spessartine, grossular, chrysoberyl, kunzite, iolite, morganite, GGG, strontium titanate and synthetic rutile. Their head-on figures are in the table below.

Head-on reflection, critical angle and weight in each stone

The same geometry behaves differently in every material. Light that meets a pavilion facet at less than the critical angle of the stone does not reflect. It passes straight out of the back and shows face-up as a window. For each stone, we measured how much of the pavilion of this model, seen face-down, is steeper than that angle. We also measured what the model weighs at its reference size.

A window in the pavilionOne pavilion facet in amethyst, critical angle 40.4 degrees, with light that comes straight down. The gray wedge around the facet normal holds the directions that leave the stone. A facet steeper than the critical angle reflects the light. A shallower facet lets most of it out of the back, which shows face-up as a window.Facet steeper thanthe critical angleThe facet reflects the lightStoneAirFacet shallower thanthe critical angleIt goes out of the back: a windowStoneAir
A window in the pavilionOne pavilion facet in amethyst, critical angle 40.4 degrees, with light that comes straight down. The gray wedge around the facet normal holds the directions that leave the stone. A facet steeper than the critical angle reflects the light. A shallower facet lets most of it out of the back, which shows face-up as a window.Facet steeper thanthe critical angleThe facet reflects the lightStoneAirFacet shallower thanthe critical angleIt goes out of the back: a windowStoneAir
Head-on light in amethyst: a steep facet reflects it, a shallow facet lets it out of the back.
StoneRefractive indexCritical anglePavilion reflecting head-on lightWeight at this sizeVerdict
Diamond2.41724.4°100%1.99 ctHolds head-on light
Moissanite2.648 to 2.69122.2°100%1.82 ctHolds head-on light
Cubic Zirconia2.15 to 2.1827.7°100%3.28 ctHolds head-on light
Ruby1.762 to 1.77034.6°100%2.26 ctHolds head-on light
Sapphire1.762 to 1.77034.6°100%2.26 ctHolds head-on light
Emerald1.577 to 1.58339.4°100%1.54 ctHolds head-on light
Amethyst1.544 to 1.55340.4°100%1.50 ctHolds head-on light
Topaz1.606 to 1.64438.5°100%2.00 ctHolds head-on light
Spinel1.712 to 1.74735.7°100%2.05 ctHolds head-on light
Demantoid1.881 to 1.88832.1°100%2.18 ctHolds head-on light
Zircon1.925 to 1.98431.3°100%2.64 ctHolds head-on light
Tourmaline1.603 to 1.65538.6°100%1.77 ctHolds head-on light
Peridot1.650 to 1.69037.3°100%1.89 ctHolds head-on light
Tanzanite1.685 to 1.70736.4°100%1.89 ctHolds head-on light
YAG1.83333.1°100%2.57 ctHolds head-on light
Pyrope1.730 to 1.76635.3°100%2.13 ctHolds head-on light
Almandine1.750 to 1.83034.8°100%2.33 ctHolds head-on light
Spessartine1.790 to 1.83034.0°100%2.35 ctHolds head-on light
Grossular1.730 to 1.76035.3°100%2.06 ctHolds head-on light
Chrysoberyl1.746 to 1.75534.9°100%2.11 ctHolds head-on light
Kunzite1.660 to 1.67637.0°100%1.80 ctHolds head-on light
Iolite1.542 to 1.55140.4°100%1.48 ctHolds head-on light
Morganite1.572 to 1.60039.5°100%1.61 ctHolds head-on light
GGG1.97030.5°100%3.99 ctHolds head-on light
Strontium titanate2.40924.5°100%2.90 ctHolds head-on light
Synthetic rutile2.616 to 2.90322.5°100%2.41 ctHolds head-on light

Head-on light, first reflection. The 3D Gemstone Simulator traces the full Light Return in each of these gemstones.

Available in…

The DG-Broken Hearts and Arrows stone by stone: what each gemstone gains and loses in this cut, measured.

DG-Broken Hearts and Arrows Cut 3D model

Grade the DG-Broken Hearts and Arrows Cut in 3D

Open it in the 3D Gemstone Simulator. Set its carat, color, clarity and cut grade in any of seven gemstones. Turn it under ten kinds of light, and watch its 3D gemstone report change as you go. Free, in your browser.

DG-Broken Hearts and Arrows Cut: questions

What files come with the DG-Broken Hearts and Arrows Cut 3D model?

Six formats. STEP is the exact faceted solid for CAD, and 3DM is for Rhino. STL and OBJ are meshes. FBX is for Blender, 3ds Max, Maya, Cinema 4D, Unity and Unreal. GLB is for the web and AR. All are in millimeters at real-world scale, with 89 planar facets.

Is there a faceting diagram for the DG-Broken Hearts and Arrows Cut?

Yes. The cutting files contain a GemCad .asc design (73 + 16 girdles = 89 facets, 96 index, 8-fold mirror-image symmetry) and a printable faceting diagram. They also contain a tier table in CSV, with the angles, indices and cutting order.

Does the DG-Broken Hearts and Arrows Cut work in sapphire, emerald or amethyst?

We measured the pavilion of this model against the critical angle of each stone. In Diamond, Moissanite, Cubic Zirconia, Ruby, Sapphire, Emerald, Amethyst, the whole pavilion reflects head-on light.

How accurate is the DG-Broken Hearts and Arrows Cut cutting file?

We check it facet by facet against the 3D model that it was written from. Every crown and pavilion facet within 0.002° of the 3D model (average under 0.001°). The angles are the ones you set on the machine. The 3D model is the same stone that you render or set.

How big is the DG-Broken Hearts and Arrows Cut model, and what does it weigh?

The model measures 8.15 x 8.15 x 5.03 mm, which is 1.99 ct in diamond. At the same size, it weighs 1.82 ct in moissanite, 3.28 ct in cubic zirconia, 2.26 ct in ruby, 2.26 ct in sapphire, 1.54 ct in emerald, 1.50 ct in amethyst. You can scale it uniformly to any size: the weight follows the cube of the size.

Weight follows the cube of the sizeA small cube, and a cube twice as long, twice as wide and twice as deep. The large cube holds eight small cubes, so it weighs eight times as much.One size1 × the weightTwice the size2 × 2 × 2 = 8 × the weight
Weight follows the cube of the sizeA small cube, and a cube twice as long, twice as wide and twice as deep. The large cube holds eight small cubes, so it weighs eight times as much.One size1 × the weightTwice the size2 × 2 × 2 = 8 × the weight
Twice the size holds eight times the material, so it weighs eight times as much.
Can I 3D print or cast the DG-Broken Hearts and Arrows Cut model?

Yes. The mesh is watertight and manifold, with outward normals and no duplicate vertices, so it prints and casts without repair. Use the STEP file when you need the exact faceted solid in CAD.
