DG-Broken Hearts and Arrows Amethyst: the T73's light within a point, a quarter lighter than diamond

Brilliance 71 · Fire 33 · Scintillation 83 · in our census, where the T73 scores 72 · 36 · 80 in amethyst

The T73 with eight thin facets added to the pavilion, along the ridges between the lower girdle halves. In quartz it returns about the T73's light, but the broken hearts it was drawn to show in diamond do not form.

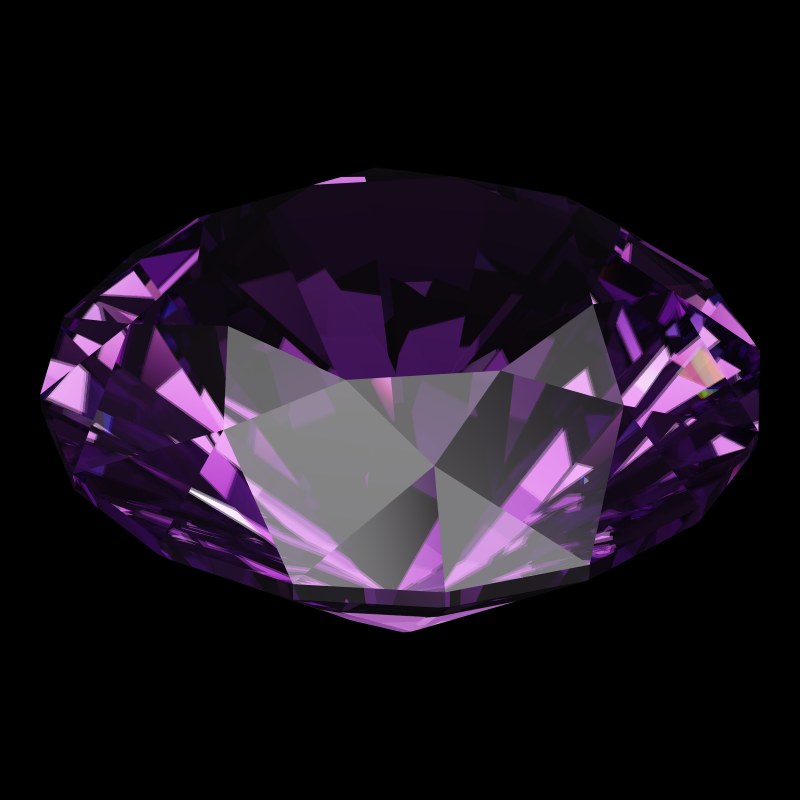

The DG-Broken Hearts and Arrows in amethyst, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Broken Hearts and Arrows model, 1.00 ct, studio light.

DG-Broken Hearts and Arrows Amethyst

It keeps the T73's 53.0% table, 34.5° crown and 40.75° pavilion mains, which clear amethyst's guide minimum of 40.4° by less than half a degree, and adds a narrow crack facet on each ridge where two lower girdle halves meet: 81 facets in all.

Those crack facets were placed for diamond, where a simulated Hearts and Arrows viewer shows them splitting each heart down its middle. In amethyst the hearts do not form, so this page leaves them out. Against the T73 it is close on every light figure: Brilliance 71 to 72, Fire 33 to 36, leakage 29% to 28%. Its head-on Light Return map is a little less grey than the T73's, while the census, averaging a wider cone of light, counts a point more leakage. Scintillation reads 83 to the round's 80, too small a gap for us to count as a gain. Against diamond the gaps are larger, and they make up the four cons; the one pro is weight.

Is DG-Broken Hearts and Arrows a good cut for amethyst? Pros and cons

Compared with the T73 Round Brilliant in amethyst and with the DG-Broken Hearts and Arrows in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Broken Hearts and Arrows in amethyst (white) against the T73 Round Brilliant in amethyst (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Broken Hearts and Arrows in amethyst, against the T73 Round Brilliant in amethyst as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−1Brilliance−1Fire−3Scintillation+3Spread0Symmetry0Shape-norm−1Tilt+2

Against the T73 Round Brilliant in amethyst: ahead on 2, level on 2, behind on 4.

  • Global69, the comparison 70, difference −1
  • Brilliance71, the comparison 72, difference −1
  • Fire33, the comparison 36, difference −3
  • Scintillation83, the comparison 80, difference +3
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm76, the comparison 77, difference −1
  • Tilt82, the comparison 80, difference +2
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What amethyst gains in DG-Broken Hearts and Arrows

A quarter lighter than diamond

0.76 ct at 6.5 mm, against 1.01 ct for the same cut in diamond (−25%)

At 6.5 mm across this cut weighs 0.76 ct in amethyst and 1.01 ct in diamond: quartz's specific gravity is 2.65, diamond's 3.52.

Amethyst0.76 ctDiamond1.01 ct
A DG-Broken Hearts and Arrows 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in all seven gemstones on the DG-Broken Hearts and Arrows page

What quartz costs DG-Broken Hearts and Arrows

Less than half the diamond version's fire

Fire 33 against 78 for the DG-Broken Hearts and Arrows in diamond: 45 points lower

In quartz the same facets fall from 78 to 33. Amethyst's dispersion is 0.013 against diamond's 0.044, but its index is lower too, and the census swaps both at once. The amethyst render shows fewer coloured flashes than the diamond one.

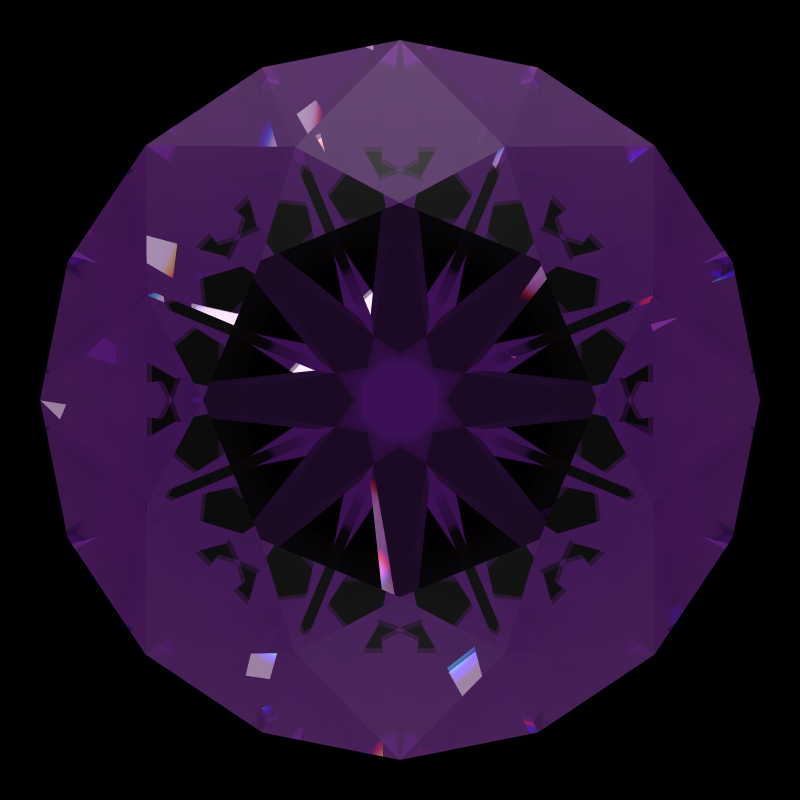

Dg-broken hearts and arrows in amethyst face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 33)

DG-Broken Hearts and Arrows in amethyst · Fire 33

Dg-broken hearts and arrows in diamond face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 78)

DG-Broken Hearts and Arrows in diamond · Fire 78

Look at the coloured flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: The most fire among amethyst cuts within ten points of the T73's light comes from DG-Anteros Amethyst, 54, which also returns more light, 82.

Try it yourself: See the fire in the 3D Gemstone Simulator

Far more light out of the back than in diamond

Leakage 29 against 2 for the DG-Broken Hearts and Arrows in diamond: 27 points higher

In amethyst 29% of the light escapes through the pavilion; the diamond version loses 2%. The amethyst strip is about an eighth grey head-on, over a third at 10° and over two fifths by 30°; the diamond's stays under a seventh in every frame.

DG-Broken Hearts and Arrows in amethyst · Leakage 29

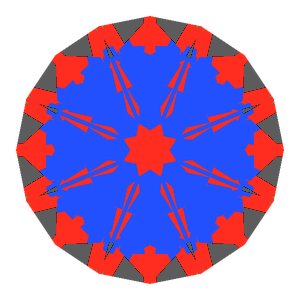

Dg-broken hearts and arrows in amethyst tilted 0 degrees: Light Return map, 12% of the face leaking0° · 12% leak

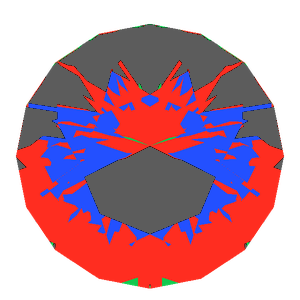

Dg-broken hearts and arrows in amethyst tilted 10 degrees: Light Return map, 37% of the face leaking10° · 37% leak

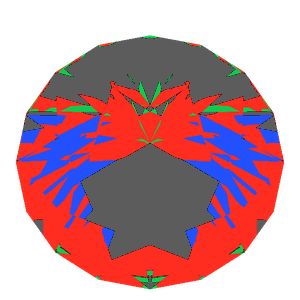

Dg-broken hearts and arrows in amethyst tilted 20 degrees: Light Return map, 38% of the face leaking20° · 38% leak

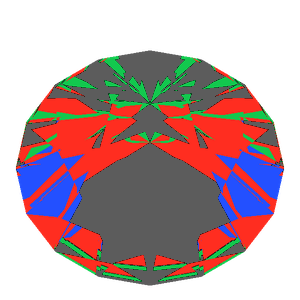

Dg-broken hearts and arrows in amethyst tilted 30 degrees: Light Return map, 44% of the face leaking30° · 44% leak

DG-Broken Hearts and Arrows in diamond · Leakage 2

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

What helps: We have measured no steeper version of this cut, so we promise none. DG-M5 Amethyst leaks 15%, the least in this stone.

Try it yourself: Tilt it yourself in the simulator's light map

Less light than the diamond version

Brilliance 71 against 94 for the DG-Broken Hearts and Arrows in diamond: 23 points lower

Diamond returns 94 in this cut, amethyst 71, a point under the T73's 72. In the amethyst map grey wedges ring the rim; the diamond map is almost free of grey.

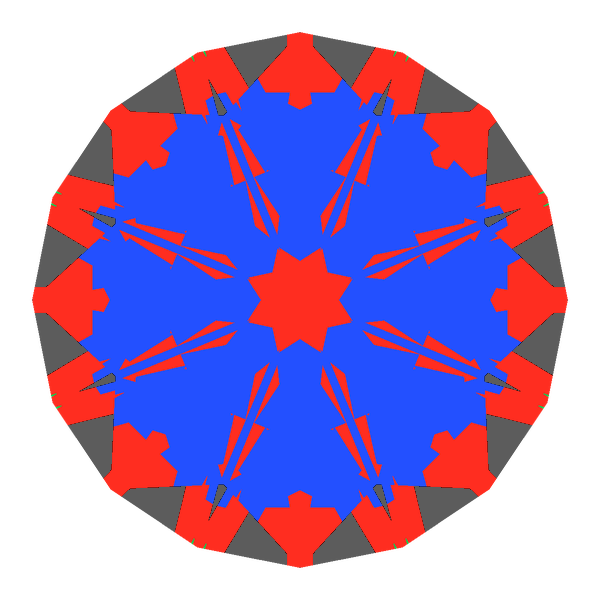

Dg-broken hearts and arrows in amethyst face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 71)

DG-Broken Hearts and Arrows in amethyst · Brilliance 71

Dg-broken hearts and arrows in diamond face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 94)

DG-Broken Hearts and Arrows in diamond · Brilliance 94

Red, green and blue = light returning to the eye; grey = light leaving through the pavilion. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: DG-M5 Amethyst returns 85 with no grey in its head-on map.

Try it yourself: Open this Light Return map in the simulator

Keeps less light when tipped than in diamond

Tilt 82 against 92 for the DG-Broken Hearts and Arrows in diamond: 10 points lower

Tipped by 20°, the amethyst holds 82 of its face-up light, the diamond version 92. Against the T73's 80 in quartz, the crack facets cost it nothing here.

DG-Broken Hearts and Arrows in amethyst · Tilt 82

Dg-broken hearts and arrows in amethyst tilted 0 degrees: Light Return map, 12% of the face leaking0° · 12% leak
Dg-broken hearts and arrows in amethyst tilted 10 degrees: Light Return map, 37% of the face leaking10° · 37% leak
Dg-broken hearts and arrows in amethyst tilted 20 degrees: Light Return map, 38% of the face leaking20° · 38% leak
Dg-broken hearts and arrows in amethyst tilted 30 degrees: Light Return map, 44% of the face leaking30° · 44% leak

DG-Broken Hearts and Arrows in diamond · Tilt 92

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

What helps: Among the cuts within ten points of the T73's light, the T105 Round Brilliant Amethyst holds the most when tipped, 87, from less light face-up, 65.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-Broken Hearts and Arrows amethyst suits

Choose it in amethyst if you want this design in quartz: it gives the T73's light, within a point, and no gain over the round large enough for us to count. Do not choose it for the hearts: in quartz our simulated viewer shows none to break.

For more light, DG-M5 Amethyst (85 against 71); for the same plan without the eight extra facets, the T73 Round Brilliant Amethyst.

DG-Broken Hearts and Arrows Amethyst: questions

Is DG-Broken Hearts and Arrows good for amethyst?

On light, as good as the T73 it is built on, within a point: Brilliance 71 against 72. It returns far less than the same cut in diamond, which reaches 94 and leaks 2%.

Does a broken hearts and arrows amethyst show hearts?

No. In our simulated viewer the hearts form only in diamond.

DG-Broken Hearts and Arrows or the T73 for amethyst?

On light they are within a point and the T73 has a little more fire (36 against 33); this cut reads 83 to 80 for Scintillation and holds 82 when tipped to the T73's 80, gaps too small for us to call gains.

What does a 6.5 mm DG-Broken Hearts and Arrows amethyst weigh?

0.76 ct; in diamond the same width weighs 1.01 ct.
