DG-Broken Hearts and Arrows Diamond: more scintillation than the T73, with its light unchanged

Brilliance 93 · Fire 78 · Scintillation 86 · in our census, where the T73 scores 93 · 78 · 80 in diamond

The T73 with sixteen hairline facets polished into its pavilion in pairs. In our simulated viewer, they put a red crack in each heart of a diamond. Our census finds the T73's light and more scintillation.

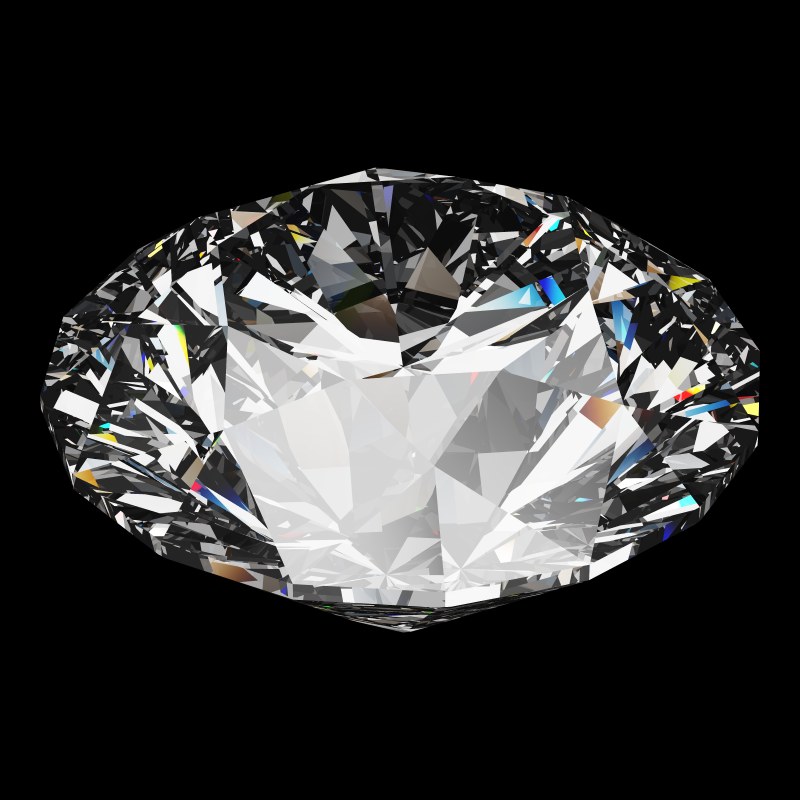

The DG-Broken Hearts and Arrows in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Broken Hearts and Arrows model, 1.00 ct, studio light.

DG-Broken Hearts and Arrows Diamond

Start from a finished T73 pavilion. Polish two slivers beside the axis of each heart, on the ridge where two lower girdle halves meet between the mains. That gives sixteen crack facets in eight pairs and brings DG-Broken Hearts and Arrows to 89 facets. It keeps the T73's 53.0% table, 34.5° crown and 40.75° pavilion mains, 61.7% deep. The crack facets lie a little flatter than the lower halves. On a 6.5 mm stone each is under a tenth of a millimeter wide and a few thousandths of a millimeter deep.

The pattern is why the cut exists, and it is a diamond pattern. In our simulated Hearts and Arrows Scope, each of the eight hearts keeps the T73's outline and a smaller dark notch. A red crack tapers from the notch's tip about three quarters of the way down. The point of the heart is not split. Face-up, the eight arrows look like the T73's. In moissanite, cubic zirconia, ruby, sapphire, emerald and amethyst the hearts do not form.

The census scores light. Against the T73 Round Brilliant it was built on, only scintillation moves past our margins: 86 against 80. Brilliance reads 93 to 93, Fire 78 to 78 and Tilt 93 to 92. 2% of the light leaks, where the T73 loses 2%.

DG-Broken Hearts and Arrows in diamond through a Hearts and Arrows viewer, face-up: the arrows

Arrows, face-up

DG-Broken Hearts and Arrows in diamond through a Hearts and Arrows viewer, face-down: the hearts

Hearts, face-down

Our simulated Hearts and Arrows viewer, in diamond, traced from the cut's own model. Left, face-up: the eight arrows, which look like the T73's. Right, face-down: the eight hearts, each with a thin red crack running from its notch most of the way to its point. White is light from the viewer's white disk, red is light from its red reflector, and black is the lens port or light that never comes back.

Is DG-Broken Hearts and Arrows a good diamond cut? Pros and cons

Cons

None: brilliance, fire, tilt and leakage all sit within our margins of the T73.

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Broken Hearts and Arrows in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Broken Hearts and Arrows in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global0Brilliance0Fire0Scintillation+6Spread0Symmetry−1Shape-norm0Tilt+1

Against the T73 Round Brilliant in diamond: ahead on 2, level on 5, behind on 1.

  • Global90, the comparison 90, difference 0
  • Brilliance93, the comparison 93, difference 0
  • Fire78, the comparison 78, difference 0
  • Scintillation86, the comparison 80, difference +6
  • Spread100, the comparison 100, difference 0
  • Symmetry99, the comparison 100, difference −1
  • Shape-norm100, the comparison 100, difference 0
  • Tilt93, the comparison 92, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What the sixteen crack facets give a diamond

More flashes than the T73

Scintillation 86 against 80 for the T73 Round Brilliant in diamond: 6 points higher

Our scintillation score rises with the number of facets that can flash as a stone moves. The sixteen crack facets take the count from 73 to 89. All sixteen are on the pavilion, so the two crowns drawn below are the same. Six cuts we measure in diamond score higher, DG-Vitruvio at 98 among them. But the new facets are slivers. Our census cannot measure how much they add to the sparkle a viewer sees.

DG-Broken Hearts and Arrows · 89 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where DG-Broken Hearts and Arrows trails the T73

No score falls behind the T73 by our thresholds. Brilliance is 93 to 93, Fire 78 to 78, and 2% of the light leaks against the T73's 2%. Face-up size, taken from the model's outline, is 100 to 100. Symmetry reads 99 to 100: our score groups pavilion facets by angle, and the crack facets fall into one group with the lower halves. Their different distances from the center count as a small scatter. If leakage is the concern, the T105 Round Brilliant Diamond has the lowest figure we measure in diamond: 1%.

Who a DG-Broken Hearts and Arrows diamond suits

Choose DG-Broken Hearts and Arrows for a round diamond whose hearts are part of the appeal. It suits a stone that people will look at in a viewer, with a cracked heart that a standard round does not have. In our census it costs nothing in light and adds a little scintillation.

The cracks need exact work. In the design's own simulation, cutting errors of a tenth of a degree fade the crack in many stones. Crack facets polished a twentieth of a degree flatter roughly halve it. For whole hearts, the T73 Round Brilliant Diamond is the same stone without the sixteen slivers. For the most scintillation with the T73's light, DG-Vitruvio Diamond reaches 98.

Outside diamond the cracked hearts do not appear. So in moissanite, cubic zirconia or a colored stone, the choice comes down to light: see DG-Broken Hearts and Arrows Moissanite.

DG-Broken Hearts and Arrows Diamond: questions

Is DG-Broken Hearts and Arrows a good cut for diamond?

Yes, by our census. Scintillation is 86 against 80 for the T73, and Brilliance 93 against 93. No score is behind it by our margins.

What does a broken heart look like in this diamond?

Each heart keeps the T73's shape, with a red crack from its notch about three quarters of the way to its point. The arrows match the T73's.

Do the broken hearts show in moissanite or other stones?

No. In our simulated viewer the cracked hearts form in diamond only. In moissanite, cubic zirconia, ruby, sapphire, emerald and amethyst there are no hearts to crack.

What does a 6.5 mm DG-Broken Hearts and Arrows diamond weigh?

1.01 ct in our model, the same as a T73 of that width: the sixteen slivers take away almost nothing.
