Emerald Square Cut Diamond: more fire than a modern round, on a stepped square

Brilliance 64 · Fire 84 · Scintillation 72 · in our census, where the T73 scores 93 · 78 · 80 in diamond

The emerald step cut on a square outline. It has more fire than the T73, much less light, and a face no larger per carat than a round's.

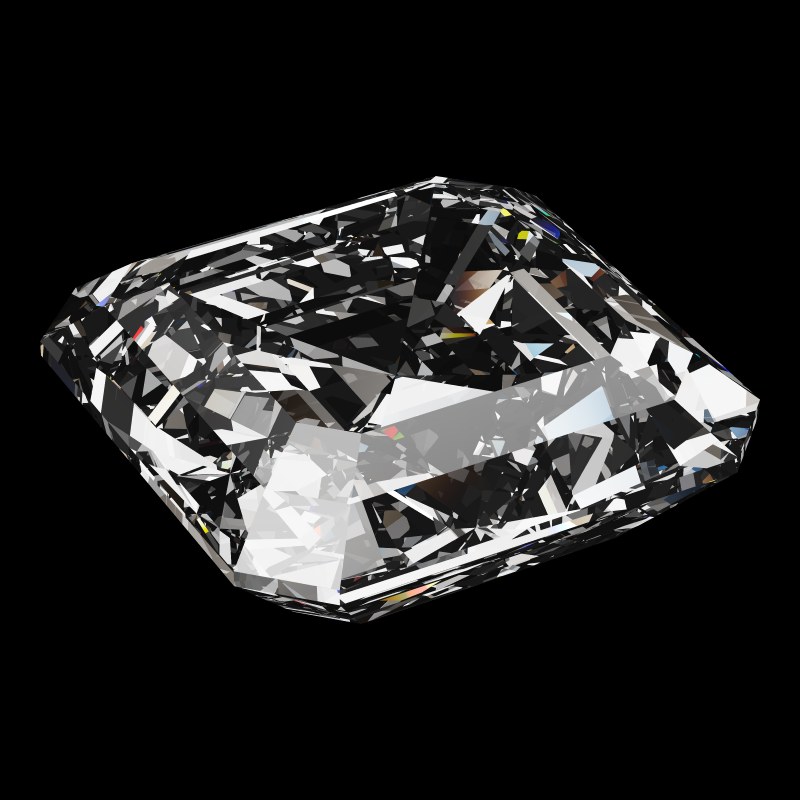

The Emerald Square Cut in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Emerald Square Cut model, 1.00 ct, studio light.

Emerald Square Cut Diamond

Take the emerald cut's concentric steps and cropped corners, set them on a square, and you have the emerald square. Its 49 facets sit on a model 61.0% deep, with the pavilion steps at a shallow 28.26°.

Like the Asscher, it is a square step cut with cropped corners. In diamond each one wins on something. The emerald square has more fire (84 against 80). The Asscher Cut Diamond has more light (69 against 64) and less leakage.

Is an emerald square cut good for diamond? Pros and cons

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Emerald Square Cut in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Emerald Square Cut in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−14Brilliance−29Fire+6Scintillation−8Spread+8Symmetry0Shape-norm−16Tilt−13

Against the T73 Round Brilliant in diamond: ahead on 2, level on 1, behind on 5.

  • Global76, the comparison 90, difference −14
  • Brilliance64, the comparison 93, difference −29
  • Fire84, the comparison 78, difference +6
  • Scintillation72, the comparison 80, difference −8
  • Spread108, the comparison 100, difference +8
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm84, the comparison 100, difference −16
  • Tilt79, the comparison 92, difference −13
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What diamond gains in an emerald square cut

More fire than the T73

Fire 84 against 78 for the T73 Round Brilliant in diamond: 6 points higher

Long, straight step facets send light out in broad flashes that separate into color. The margin over the T73 is clear.

Emerald square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Emerald Square Cut in diamond · Fire 84

T73 round brilliant in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

T73 Round Brilliant in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

The emerald square's costs in diamond

Much less light than a round

Brilliance 64 against 93 for the T73 Round Brilliant in diamond: 29 points lower

Step facets are broad and parallel, and fewer of them face the eye at the angles that return light. In our census it trails the T73 by nearly a third.

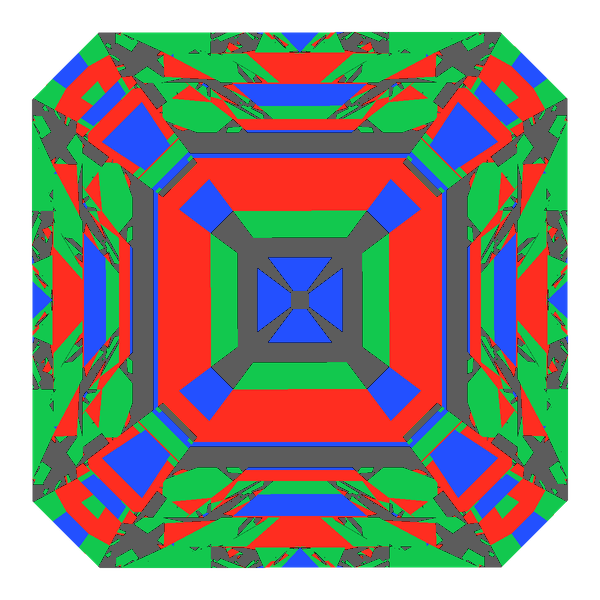

Emerald square cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 64)

Emerald Square Cut in diamond · Brilliance 64

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

T73 Round Brilliant in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Asscher Cut Diamond, also a square step cut, returns 69. As a brilliant, the Square Cut Diamond returns 85.

Try it yourself: Open this Light Return map in the simulator

More light through the back

Leakage 17 against 2 for the T73 Round Brilliant in diamond: 15 points higher

In the census, the emerald square loses 17% of its light out of the back, where the T73 loses 2%. The 28.26° pavilion figure sits well below the 38.9° guide minimum we use for rounds. We have not measured a steeper version.

Emerald Square Cut in diamond · Leakage 17

Emerald square cut in diamond tilted 0 degrees: Light Return map, 20% of the face leaking0° · 20% leak
Emerald square cut in diamond tilted 10 degrees: Light Return map, 27% of the face leaking10° · 27% leak
Emerald square cut in diamond tilted 20 degrees: Light Return map, 28% of the face leaking20° · 28% leak
Emerald square cut in diamond tilted 30 degrees: Light Return map, 28% of the face leaking30° · 28% leak

T73 Round Brilliant in diamond · Leakage 2

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller stone leaks the same share. The Asscher Cut Diamond loses 11%.

Try it yourself: Tilt it yourself in the simulator's light map

Darkens more when tipped

Tilt 79 against 92 for the T73 Round Brilliant in diamond: 13 points lower

At 20° it keeps 79 of its face-up light, against 92 for the T73: the same as the Asscher.

Emerald Square Cut in diamond · Tilt 79

Emerald square cut in diamond tilted 0 degrees: Light Return map, 20% of the face leaking0° · 20% leak
Emerald square cut in diamond tilted 10 degrees: Light Return map, 27% of the face leaking10° · 27% leak
Emerald square cut in diamond tilted 20 degrees: Light Return map, 28% of the face leaking20° · 28% leak
Emerald square cut in diamond tilted 30 degrees: Light Return map, 28% of the face leaking30° · 28% leak

T73 Round Brilliant in diamond · Tilt 92

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The Square Cut Diamond holds 86 at 20°, on a brilliant plan, not steps.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Fewer flashes than a round

Scintillation 72 against 80 for the T73 Round Brilliant in diamond: 8 points lower

Step cuts carry fewer facets: 49 in its design, against the T73's 73. Its score of 72, level with the Asscher's, is higher than that count alone gives.

Emerald Square Cut · 49 facets · Scintillation 72

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: The step plan sets this. The Cushion Cut Diamond reaches 85 with a brilliant plan.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who an emerald square diamond suits

Choose the emerald square for a clean, architectural square with a higher Fire score than a round, but from far less light. It suits center stones and earrings. In diamond it returns much less light than the T73, 64 against 93, and darkens as it tips.

If light matters more, the Asscher Cut Diamond is the closer step cut and the Square Cut Diamond the brilliant one. For fire above a round's with far more light, choose DG-Octagonal Kite Diamond: Fire 82 and Brilliance 88.

Emerald Square Cut Diamond: questions

Does an emerald square cut diamond look big for its weight?

No larger than a round: Face-up size 99 against 100 for the T73. The wheel shows a Spread of 108, but that is an estimate from depth. Measured from the outline, there is no gain.

Is an emerald square cut diamond fiery?

More than a round: Fire 84 against 78.

Emerald square or Asscher for a diamond?

The Asscher for light (69 against 64). The emerald square for fire (84 against 80).

What does a 6.5 mm emerald square diamond weigh?

1.46 ct: heavier at that width than the Asscher, because less of the square is cropped away.

Get the Emerald Square Cut files

6 formatsMillimetersWatertight

Emerald Square Cut 3D files

The Emerald Square Cut as exact geometry: 49 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

Emerald Square Cut cutting files

The Emerald Square Cut as a faceting design: 41 + 8 girdles = 49 facets, 96 index, 4-fold symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
