Emerald Square Cut Emerald: a square step cut that shares the stone's name, lighter in weight than in diamond

Brilliance 66 · Fire 46 · Scintillation 72 · in our census, where the T73 scores 78 · 39 · 80 in emerald

A square step cut with cropped corners. In emerald it returns a little more light than in diamond, and it faces up level with a round of the same weight.

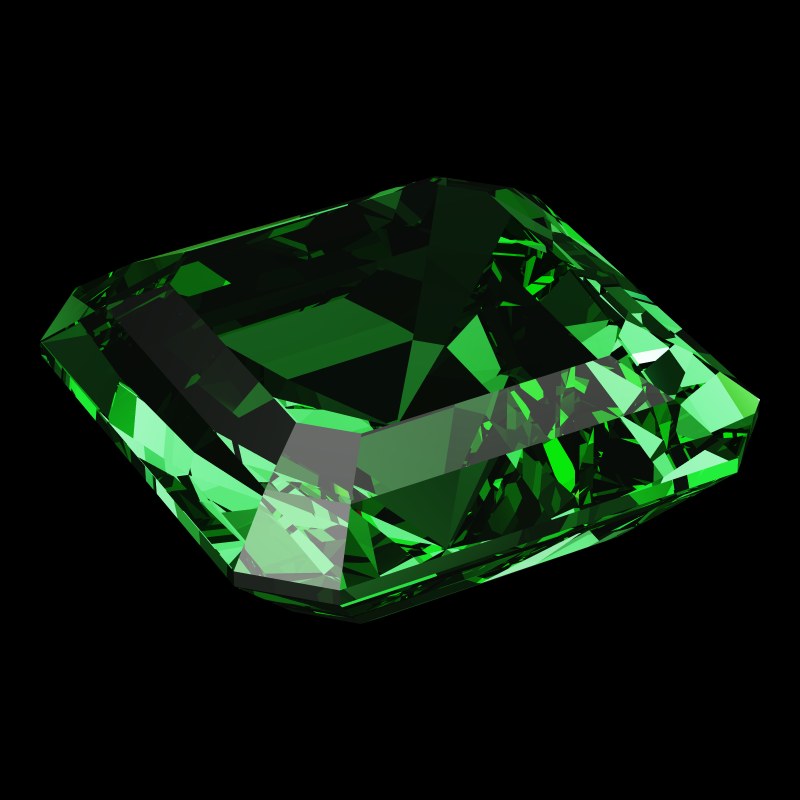

The Emerald Square Cut in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Emerald Square Cut model, 1.00 ct, studio light.

Emerald Square Cut Emerald

The emerald step cut takes its name from the stone. The site's gemstone notes say emeralds get step cuts for their color, their inclusions and some brittleness. This is the square version, with cropped corners, concentric steps and an open table. In our model the steps add up to 49 facets. The pavilion figure is a low 28.26°, and the total depth is 61.0%.

What do the numbers say? This square step cut is in emerald's top ten among the jewelry cuts, and so is the Asscher. The rectangular Emerald Cut Emerald is not, but it returns 58, more than the listed marquise's 43. Every step cut we measure in emerald trails the T73's 78 on light. The reasons for the tradition are practical and about color, and our census measures neither.

This cut does not buy size either. The wheel's Spread, an estimate from depth alone, gives it 108. Our outline measure puts its face-up size per carat at 99, level with the T73's 100.

Does emerald suit the Emerald Square cut? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the Emerald Square Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Emerald Square Cut in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Emerald Square Cut in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−5Brilliance−12Fire+7Scintillation−8Spread+8Symmetry0Shape-norm+3Tilt0

Against the T73 Round Brilliant in emerald: ahead on 3, level on 2, behind on 3.

  • Global68, the comparison 73, difference −5
  • Brilliance66, the comparison 78, difference −12
  • Fire46, the comparison 39, difference +7
  • Scintillation72, the comparison 80, difference −8
  • Spread108, the comparison 100, difference +8
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm87, the comparison 84, difference +3
  • Tilt77, the comparison 77, difference 0
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in an Emerald Square cut

Lighter than the diamond version

1.13 ct at 6.5 mm, against 1.46 ct for the same cut in diamond (−23%)

At 6.5 mm across, the stone weighs 1.13 ct in emerald and 1.46 ct in diamond. Beryl's specific gravity, 2.72, is the reason.

Emerald1.13 ctDiamond1.46 ct
A Emerald Square Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Emerald Square Cut page

Where the Emerald Square falls short in emerald

Much less fire than in diamond

Fire 46 against 84 for the Emerald Square Cut in diamond: 38 points lower

Fire is 46 against 84, but above the T73 in emerald (39). Step cuts show emerald's color in broad planes, not in spectral flashes.

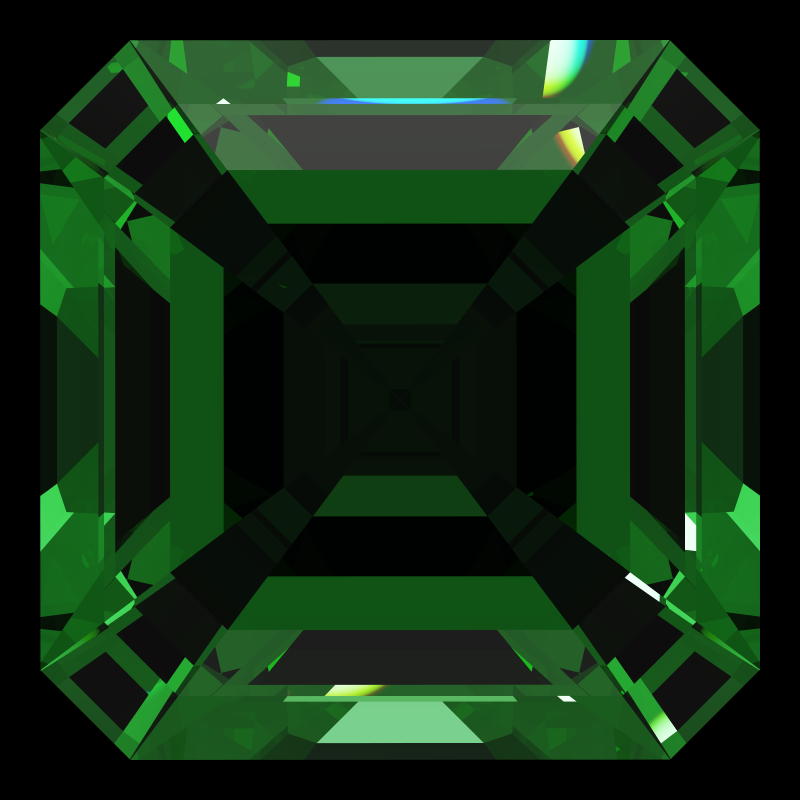

Emerald square cut in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 46)

Emerald Square Cut in emerald · Fire 46

Emerald square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Emerald Square Cut in diamond · Fire 84

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

A third of the light leaks

Leakage 32 against 17 for the Emerald Square Cut in diamond: 15 points higher

32% in our census, about twice the diamond version's 17%. The steps run at a pavilion figure of 28.26°, far below emerald's critical angle of 39.4°.

Emerald Square Cut in emerald · Leakage 32

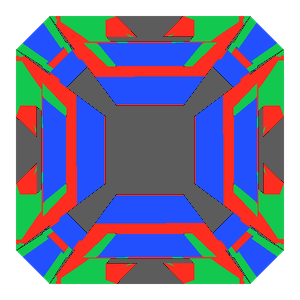

Emerald square cut in emerald tilted 0 degrees: Light Return map, 25% of the face leaking0° · 25% leak

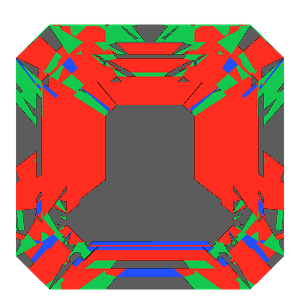

Emerald square cut in emerald tilted 10 degrees: Light Return map, 34% of the face leaking10° · 34% leak

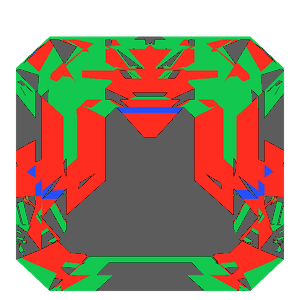

Emerald square cut in emerald tilted 20 degrees: Light Return map, 39% of the face leaking20° · 39% leak

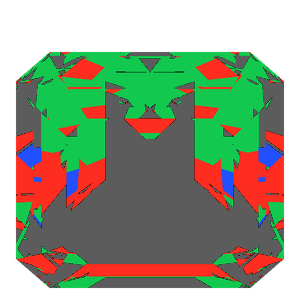

Emerald square cut in emerald tilted 30 degrees: Light Return map, 46% of the face leaking30° · 46% leak

Emerald Square Cut in diamond · Leakage 17

Emerald square cut in diamond tilted 0 degrees: Light Return map, 20% of the face leaking0° · 20% leak
Emerald square cut in diamond tilted 10 degrees: Light Return map, 27% of the face leaking10° · 27% leak
Emerald square cut in diamond tilted 20 degrees: Light Return map, 28% of the face leaking20° · 28% leak
Emerald square cut in diamond tilted 30 degrees: Light Return map, 28% of the face leaking30° · 28% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: We have not measured a steeper step cut, so we make no promise for one. The square brilliant leaks 26%.

Try it yourself: Tilt it yourself in the simulator's light map

Less light than a round

Brilliance 66 against 78 for the T73 Round Brilliant in emerald: 12 points lower

66 against 78. Here emerald is not the problem: the same cut in diamond returns 64, slightly less.

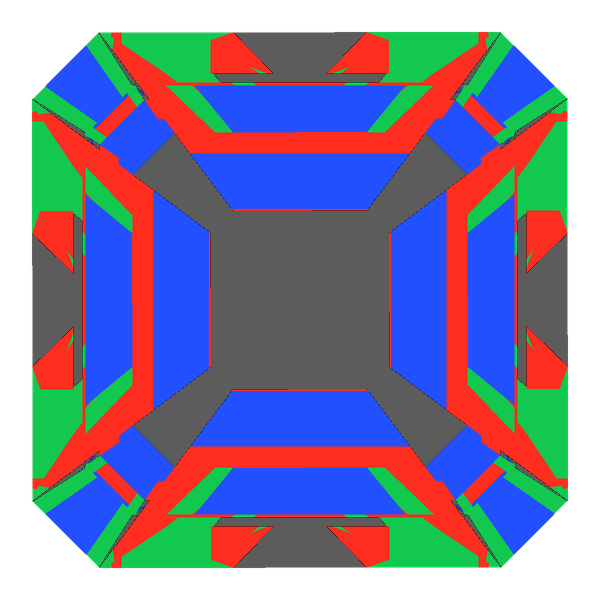

Emerald square cut in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 66)

Emerald Square Cut in emerald · Brilliance 66

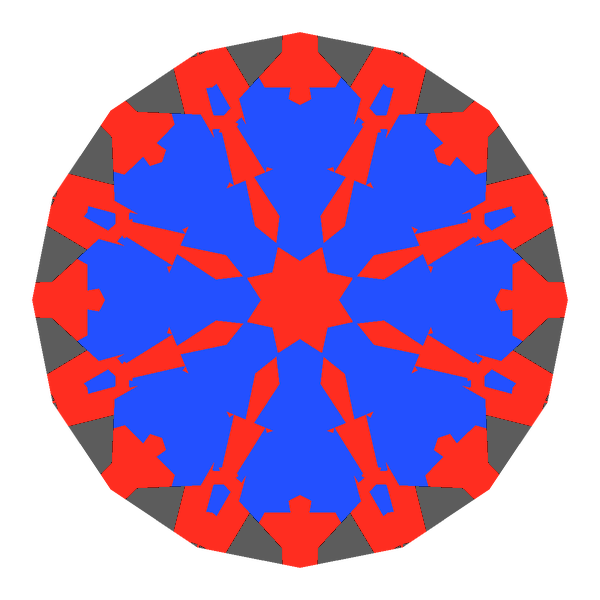

T73 round brilliant in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 78)

T73 Round Brilliant in emerald · Brilliance 78

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a square outline with more light, the square brilliant returns 68, and the Cushion Cut Emerald 74.

Try it yourself: Open this Light Return map in the simulator

Fewer, broader flashes than a round

Scintillation 72 against 80 for the T73 Round Brilliant in emerald: 8 points lower

Concentric steps give scintillation 72 against the T73's 80. The score follows the facet plan in the census's model of the cut, in any stone. The step cut's flashes are larger and slower.

Emerald Square Cut · 49 facets · Scintillation 72

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who the Emerald Square suits in emerald

Choose the Emerald Square for a traditional step-cut emerald with an open table, where the color matters more than light. Of the two step cuts in emerald's top ten, it returns the more light.

For more light in a square, choose the Cushion Cut Emerald or Square Cut Emerald. For a step cut with more deeply cropped corners, choose the Asscher Cut Emerald.

Emerald Square Cut Emerald: questions

Does the emerald cut suit emerald best?

Not on light. This square step cut returns 66 and the rectangular Emerald Cut 58, against 90 for DG-M5. Its strengths are a stone lighter than diamond at the same width and the traditional look.

Emerald Square or Asscher for an emerald?

This one for light (66 against 62) and leakage (32% against 37%). The Asscher scores more fire, and the two are close on face per carat (102 against 99).

How much light does an Emerald Square emerald leak?

32% in our census, against 22% for the T73 in emerald and 17% for the same cut in diamond.

Get the Emerald Square Cut files

6 formatsMillimetersWatertight

Emerald Square Cut 3D files

The Emerald Square Cut as exact geometry: 49 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

Emerald Square Cut cutting files

The Emerald Square Cut as a faceting design: 41 + 8 girdles = 49 facets, 96 index, 4-fold symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
