DG-Rafaello Emerald: sparkle near the top of what we measure in this stone, and more face for its weight than the T73

Brilliance 54 · Fire 28 · Scintillation 96 · in our census, where the T73 scores 78 · 39 · 80 in emerald

In diamond DG-Rafaello returns 94 for Brilliance. In emerald it returns 54, and 46% of its light leaves through the pavilion.

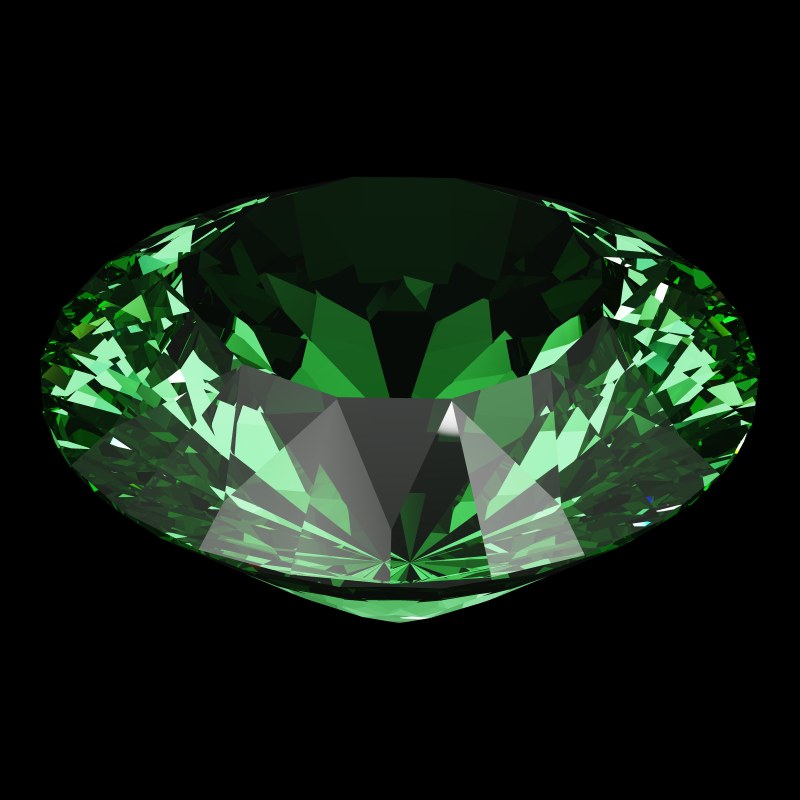

The DG-Rafaello in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Rafaello model, 1.00 ct, studio light.

DG-Rafaello Emerald

DG-Rafaello is a twelve-fold round: twenty-four crown mains and twelve stars over a pavilion cut in five tiers. Each tier is a little shallower than the last. Our model has 145 facets and is 59.0% deep. Its pavilion figure is 40.0°.

That figure sits less than a degree above emerald's guide minimum of 39.4°, and the lower tiers are shallower still. In our census 46% of the light leaks, more than twice the T73's 22%.

In diamond the same design scores Brilliance 94 and Fire 80. In emerald, the same geometry shows how much the design depends on diamond's optics.

Is DG-Rafaello a fit for emerald? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the DG-Rafaello in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Rafaello in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Rafaello in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−8Brilliance−24Fire−11Scintillation+16Spread+1Symmetry0Shape-norm−26Tilt+23

Against the T73 Round Brilliant in emerald: ahead on 3, level on 1, behind on 4.

  • Global65, the comparison 73, difference −8
  • Brilliance54, the comparison 78, difference −24
  • Fire28, the comparison 39, difference −11
  • Scintillation96, the comparison 80, difference +16
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm58, the comparison 84, difference −26
  • Tilt100, the comparison 77, difference +23
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in DG-Rafaello

Lighter than the same cut in diamond

0.73 ct at 6.5 mm, against 0.94 ct for the same cut in diamond (−23%)

At 6.5 mm it weighs 0.73 ct in emerald and 0.94 ct in diamond. Beryl is roughly three-quarters as dense.

Emerald0.73 ctDiamond0.94 ct
A DG-Rafaello 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Rafaello page

Much more sparkle than the T73

Scintillation 96 against 80 for the T73 Round Brilliant in emerald: 16 points higher

Twelve-fold symmetry and five pavilion tiers break the stone into 145 facets. Our score depends on the plan and not the stone, and it puts that at 96 against 80.

DG-Rafaello · 145 facets · Scintillation 96

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

A wider stone than the T73 for each carat

Face-up size 106 against 100 for the T73 Round Brilliant in emerald (T73 = 100): 6% more face-up area for the same weight

Seen face-up, DG-Rafaello and the T73 are both circles. Underneath, DG-Rafaello is the shallower stone, 59.0% deep against 61.7%. A carat of it covers a slightly wider circle, as the two 1.00 ct outlines in the picture show. Like scintillation, the figure is the same in every stone: the diamond version faces up at 106 too.

DG-Rafaello · 7.24 mm at 1.00 ct · Face-up size 106

T73 Round Brilliant · 7.06 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in emerald and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in emerald in the 3D Gemstone Simulator

Where DG-Rafaello struggles in emerald

Very little fire against the diamond version

Fire 28 against 80 for the DG-Rafaello in diamond: 52 points lower

In diamond DG-Rafaello scores 80. In emerald it scores 28, the lowest fire of the ten cuts in emerald's Brilliants top ten.

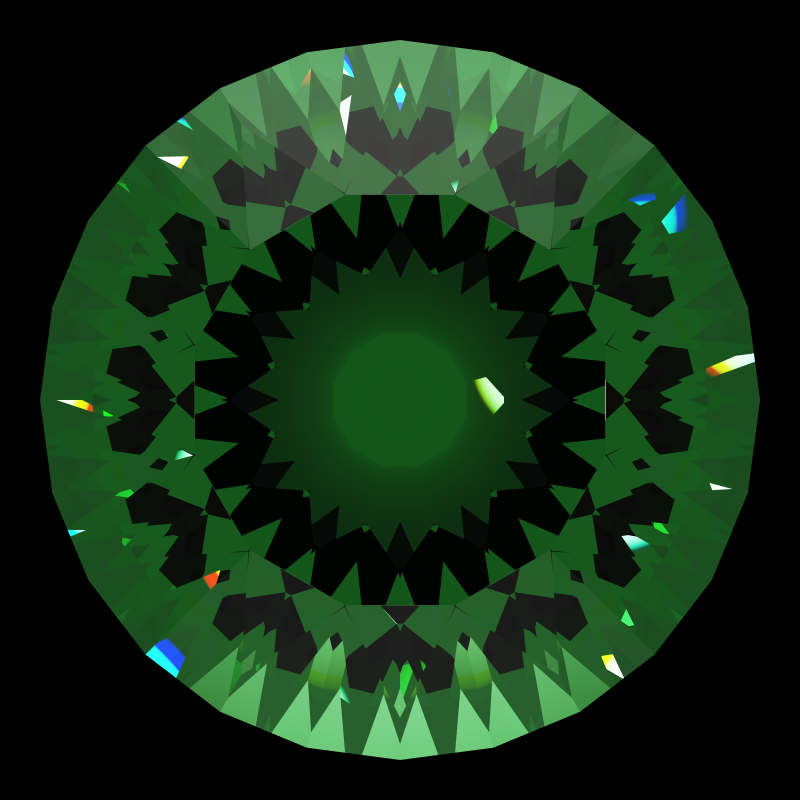

Dg-rafaello in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 28)

DG-Rafaello in emerald · Fire 28

Dg-rafaello in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 80)

DG-Rafaello in diamond · Fire 80

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Nearly half the light leaks

Leakage 46 against 5 for the DG-Rafaello in diamond: 41 points higher

46% of the light in our census, against 5% in diamond. The shallower tiers toward the point give light more chances to strike inside emerald's 39.4° critical angle.

DG-Rafaello in emerald · Leakage 46

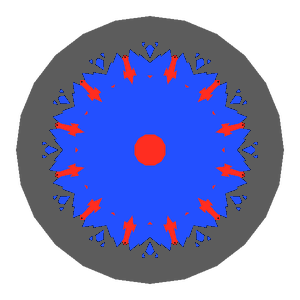

Dg-rafaello in emerald tilted 0 degrees: Light Return map, 46% of the face leaking0° · 46% leak

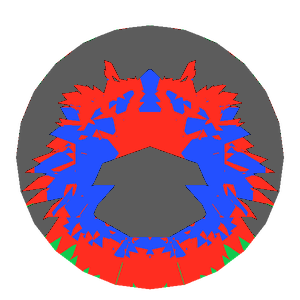

Dg-rafaello in emerald tilted 10 degrees: Light Return map, 42% of the face leaking10° · 42% leak

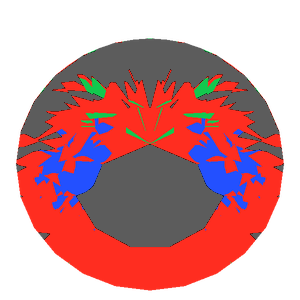

Dg-rafaello in emerald tilted 20 degrees: Light Return map, 38% of the face leaking20° · 38% leak

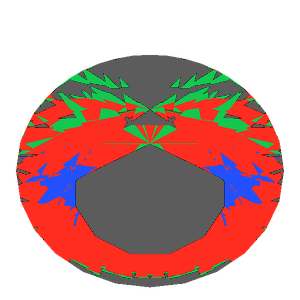

Dg-rafaello in emerald tilted 30 degrees: Light Return map, 38% of the face leaking30° · 38% leak

DG-Rafaello in diamond · Leakage 5

Dg-rafaello in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-rafaello in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-rafaello in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-rafaello in diamond tilted 30 degrees: Light Return map, 17% of the face leaking30° · 17% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-M5 Emerald leaks 10%. We have not measured a steeper DG-Rafaello, so we cannot say what a change to its tiers will do.

Try it yourself: Tilt it yourself in the simulator's light map

Little more than half the diamond version's light

Brilliance 54 against 94 for the DG-Rafaello in diamond: 40 points lower

54 against 94. Of the ten cuts in emerald's Brilliants top ten, none falls further from its diamond self.

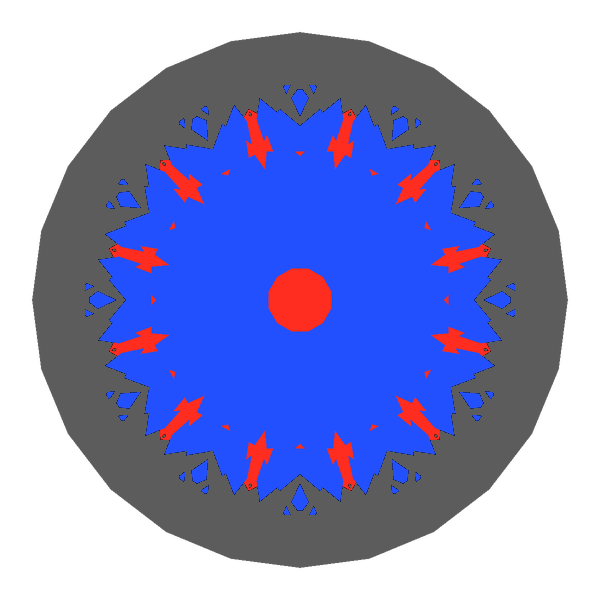

Dg-rafaello in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 54)

DG-Rafaello in emerald · Brilliance 54

Dg-rafaello in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

DG-Rafaello in diamond · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: In emerald, DG-M5 Emerald, also twelve-fold, returns 90.

Try it yourself: Open this Light Return map in the simulator

Who a DG-Rafaello emerald suits

In emerald, we do not recommend DG-Rafaello for light. It keeps a fine, busy sparkle. It suits a cutter who wants the twelve-fold pattern and accepts a darker stone.

For a twelve-fold round that suits emerald, choose DG-M5 Emerald. For fine sparkle with more light, choose DG-Vitruvio Emerald. In diamond DG-Rafaello is a different story: see the DG-Rafaello page.

DG-Rafaello Emerald: questions

Is DG-Rafaello good for emerald?

Not for light: Brilliance 54 against 78 for the T73 in emerald, with 46% leakage. Its scintillation, 96, is high.

DG-Rafaello or DG-M5 for an emerald?

DG-M5: Brilliance 90 against 54, leakage 10% against 46%. Both are twelve-fold.

Why is DG-Rafaello's Tilt score so high in emerald?

Our Tilt figure compares a stone with itself: how much of its face-up light survives a 20° tip. DG-Rafaello keeps all of it, 100. But with Brilliance 54 there is less to keep, so we do not count it as a pro.
