DG-M5 Emerald: the most light of any cut we measure in this stone

Brilliance 90 · Fire 46 · Scintillation 85 · in our census, where the T73 scores 78 · 39 · 80 in emerald

Twelve-fold, one pavilion angle, and the most light we measure in emerald: Brilliance 90, with only 10% of the light leaving through the back.

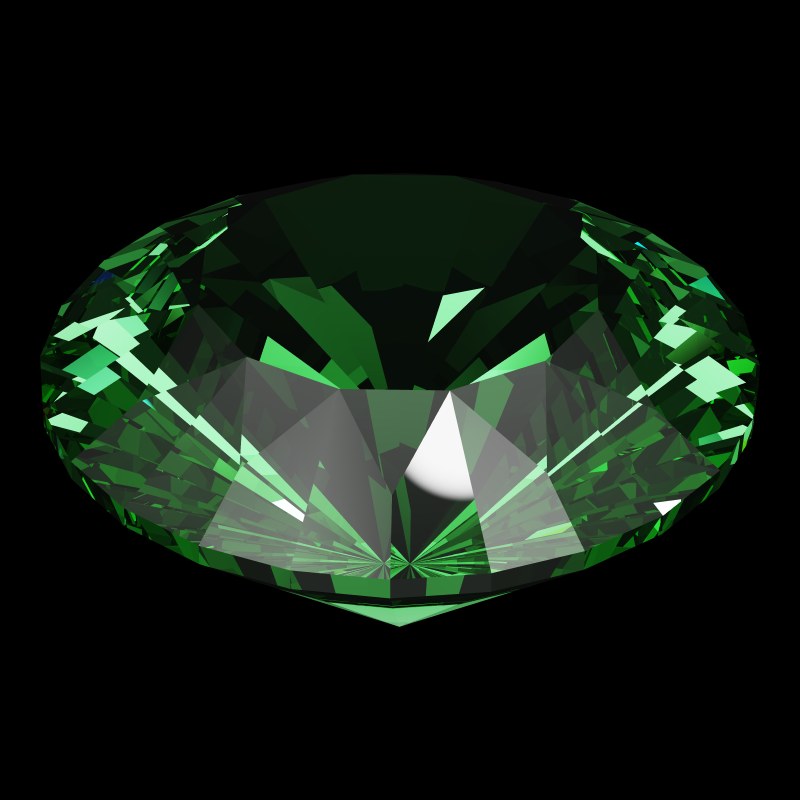

The DG-M5 in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-M5 model, 1.00 ct, studio light.

DG-M5 Emerald

DG-M5 is a twelve-fold round: twenty-four crown mains and twelve stars over a single tier of twenty-four pavilion mains, all at one angle. Our model has 85 facets and a 41.49° pavilion, and stands 60.6% deep.

Emerald's refractive index is about 1.58, so its critical angle is 39.4°. Diamond's is 24.4°. DG-M5's mains sit at 41.49°, above the guide minimum of 39.4°. In our census it returns more light and leaks less than any other cut we have measured in emerald, rounds and fancy shapes alike.

The catch shows against the same cut in diamond. The emerald has less fire, 46 against 67. It also keeps less light when tipped, 64 against 83.

Is emerald good in DG-M5? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the DG-M5 in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-M5 in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-M5 in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+5Brilliance+12Fire+7Scintillation+5Spread0Symmetry0Shape-norm+13Tilt−13

Against the T73 Round Brilliant in emerald: ahead on 5, level on 2, behind on 1.

  • Global78, the comparison 73, difference +5
  • Brilliance90, the comparison 78, difference +12
  • Fire46, the comparison 39, difference +7
  • Scintillation85, the comparison 80, difference +5
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm97, the comparison 84, difference +13
  • Tilt64, the comparison 77, difference −13
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in DG-M5

Lighter than a diamond of the same size

0.76 ct at 6.5 mm, against 0.98 ct for the same cut in diamond (−23%)

Beryl is far less dense than diamond: its specific gravity is 2.72 against 3.52. A DG-M5 6.5 mm across weighs 0.76 ct in emerald and 0.98 ct in diamond.

Emerald0.76 ctDiamond0.98 ct
A DG-M5 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-M5 page

The most light we measure in emerald

Brilliance 90 against 78 for the T73 Round Brilliant in emerald: 12 points higher

Twenty-four pavilion mains sit at one steep angle. They give light many chances to strike a facet beyond emerald's 39.4° critical angle and turn back up. DG-Anteros comes next at 86. The T73 has proportions worked out for diamond, and it returns 78.

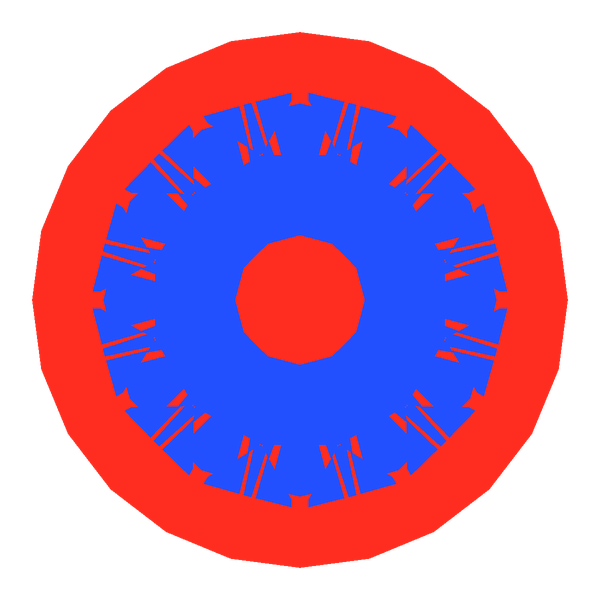

Dg-m5 in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 90)

DG-M5 in emerald · Brilliance 90

T73 round brilliant in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 78)

T73 Round Brilliant in emerald · Brilliance 78

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

Under half the T73's leakage

Leakage 10 against 22 for the T73 Round Brilliant in emerald: 12 points lower

Only 10% of the light in our census leaves through the pavilion, the lowest share of any cut we have measured in emerald. The T73 loses 22%, more than twice as much.

DG-M5 in emerald · Leakage 10

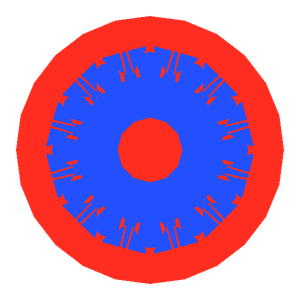

Dg-m5 in emerald tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

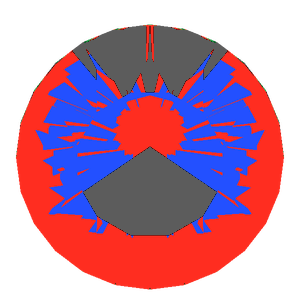

Dg-m5 in emerald tilted 10 degrees: Light Return map, 25% of the face leaking10° · 25% leak

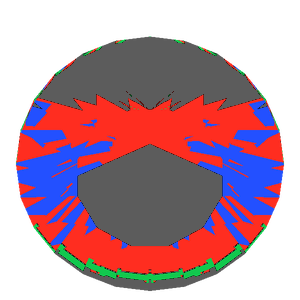

Dg-m5 in emerald tilted 20 degrees: Light Return map, 42% of the face leaking20° · 42% leak

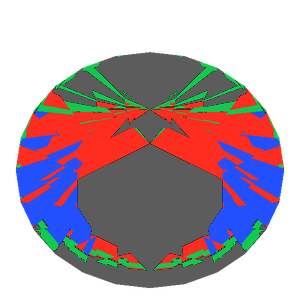

Dg-m5 in emerald tilted 30 degrees: Light Return map, 45% of the face leaking30° · 45% leak

T73 Round Brilliant in emerald · Leakage 22

T73 round brilliant in emerald tilted 0 degrees: Light Return map, 11% of the face leaking0° · 11% leak
T73 round brilliant in emerald tilted 10 degrees: Light Return map, 34% of the face leaking10° · 34% leak
T73 round brilliant in emerald tilted 20 degrees: Light Return map, 32% of the face leaking20° · 32% leak
T73 round brilliant in emerald tilted 30 degrees: Light Return map, 37% of the face leaking30° · 37% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Tilt it yourself in the simulator's light map

A little more sparkle than the T73

Scintillation 85 against 80 for the T73 Round Brilliant in emerald: 5 points higher

Scintillation follows the facet plan. It reads the same in every stone. Twelve-fold symmetry gives DG-M5 85 facets against the T73's 73. Its score is 85 against 80.

DG-M5 · 85 facets · Scintillation 85

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

The catch with a DG-M5 emerald

Far less fire than the diamond version

Fire 46 against 67 for the DG-M5 in diamond: 21 points lower

The same DG-M5 scores 67 for fire in diamond and 46 in emerald. Emerald's dispersion is 0.014 against diamond's 0.044. What an emerald shows is its color, not fire.

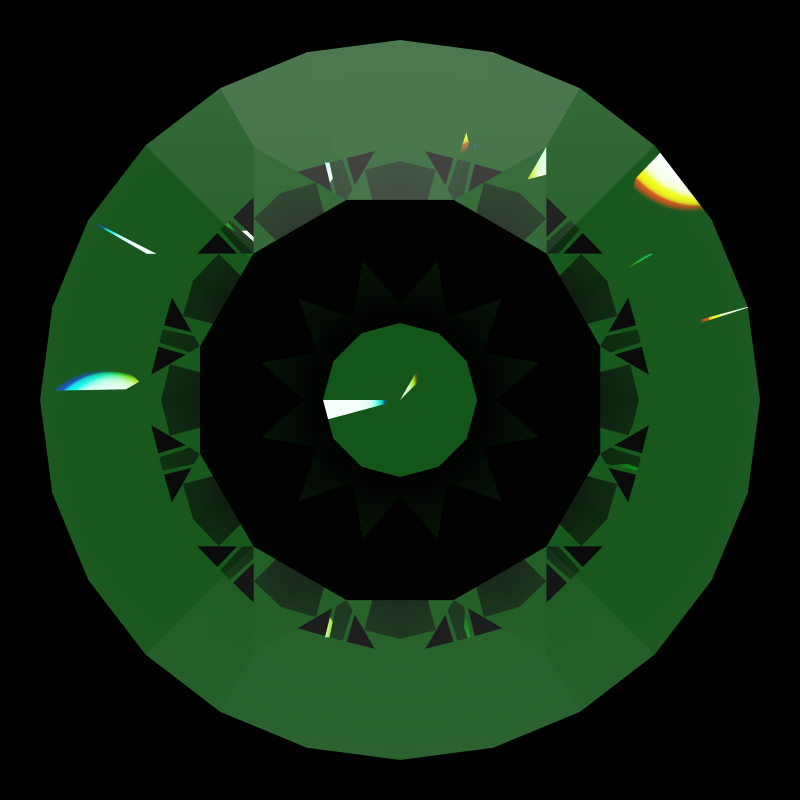

Dg-m5 in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 46)

DG-M5 in emerald · Fire 46

Dg-m5 in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 67)

DG-M5 in diamond · Fire 67

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Mostly this is the material. Only one cut within 10 points of the T73's brilliance in emerald scores more fire than DG-M5. It is DG-Anteros Emerald: 52, at 86 brilliance.

Try it yourself: See the fire in the 3D Gemstone Simulator

Gives up more light as it tips

Tilt 64 against 83 for the DG-M5 in diamond: 19 points lower

Tilted by 20°, it keeps 64 of its face-up light. In diamond the same cut keeps 83. One pavilion angle may leave little margin when light arrives at a slant.

DG-M5 in emerald · Tilt 64

Dg-m5 in emerald tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in emerald tilted 10 degrees: Light Return map, 25% of the face leaking10° · 25% leak
Dg-m5 in emerald tilted 20 degrees: Light Return map, 42% of the face leaking20° · 42% leak
Dg-m5 in emerald tilted 30 degrees: Light Return map, 45% of the face leaking30° · 45% leak

DG-M5 in diamond · Tilt 83

Dg-m5 in diamond tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-m5 in diamond tilted 20 degrees: Light Return map, 14% of the face leaking20° · 14% leak
Dg-m5 in diamond tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A steeper pavilion is not the fix: the mains already sit at 41.49°, above the 39.4° guide minimum. For a round that keeps a larger share of its light when tipped, DG-Vitruvio Emerald keeps 78, at 78 brilliance.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-M5 emerald suits

For a round emerald where light matters most, our numbers favor DG-M5. It has the highest Brilliance and the lowest leakage of every design we have measured in the stone. It suits a faceter who wants a lively round emerald and accepts modest fire. That fire is 46, against 67 for the same cut in diamond.

If you want the T73's 73-facet layout, DG-Anteros Emerald comes within a few points. If the stone will hang and swing, the T73 Round Brilliant Emerald holds its light better when tipped. Emeralds are most often step cut. The Emerald Square Cut Emerald page shows what that costs in light.

DG-M5 Emerald: questions

What is the best round cut for emerald?

In our census, DG-M5. It has Brilliance 90 and 10% leakage. DG-Anteros has 86 and 14%, and the T73 has 78 and 22%.

Is the emerald cut the best cut for an emerald?

Not for light. Our rectangular Emerald Cut Emerald returns 58, and DG-M5 returns 90. The case for the step cut rests on the stone's inclusions and brittleness. We do not measure those.

Does a DG-M5 emerald have fire?

Some. Its Fire is 46, a little above the T73's 39 in emerald. That is far below 67 for the same cut in diamond.

What does a 6.5 mm DG-M5 emerald weigh?

About 0.76 ct, against 0.98 ct for a diamond of the same width.

Get the DG-M5 Cut files

6 formatsMillimetersWatertight

DG-M5 Cut 3D files

The DG-M5 Cut as exact geometry: 85 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-M5 Cut cutting files

The DG-M5 Cut as a faceting design: 61 + 24 girdles = 85 facets, 96 index, 12-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
