DG-M5 Sapphire: the most light of any cut we measure in this stone

Brilliance 100 · Fire 39 · Scintillation 85 · in our census, where the T73 scores 94 · 37 · 80 in sapphire

DG-M5 is a twelve-fold round with one pavilion angle. In sapphire it tops our light scale: Brilliance 100, with 0% leaking out.

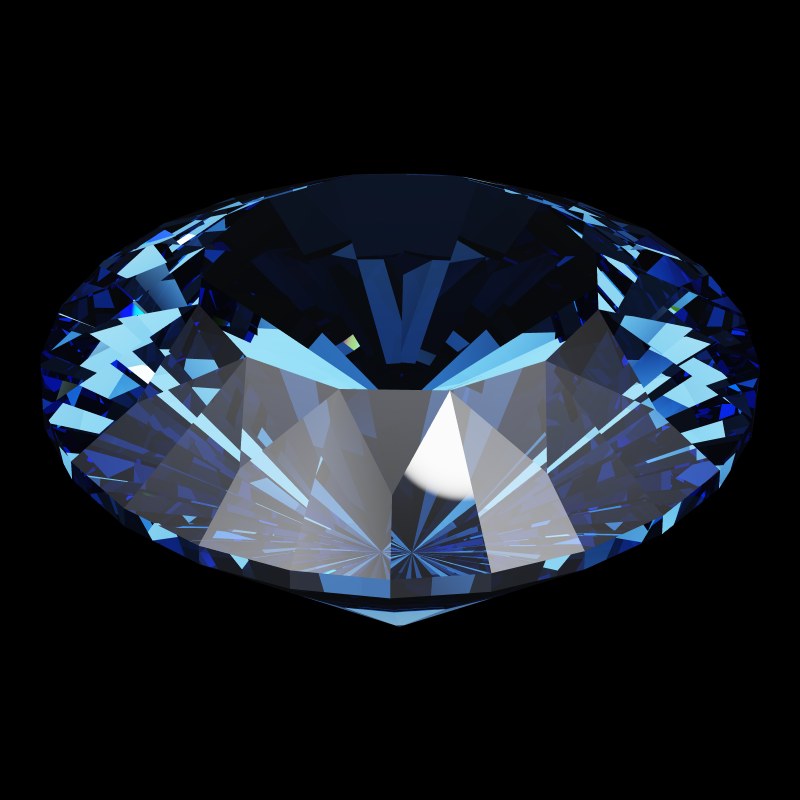

The DG-M5 in sapphire, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-M5 model, 1.00 ct, studio light.

DG-M5 Sapphire

DG-M5 was drawn for moissanite on a twelve-fold plan. It has twenty-four crown mains and twelve stars around the table. Below them, one tier of twenty-four pavilion mains, all at 41.49°, runs to a pointed culet. With no upper or lower halves, our model has just 85 facets.

Measured in sapphire, it returns more light than any other cut in our census and lets none of it out through the back. Against the same cut in diamond, it loses what sapphire loses in every modern round we measure. That is fire, and a little of its hold on light at a tilt. It also weighs more for its width.

That matters most in dark blue rough, where a cut that wastes light can make the stone look inky.

Is DG-M5 the best cut for sapphire? Pros and cons

Compared with the T73 Round Brilliant in sapphire and with the DG-M5 in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-M5 in sapphire (white) against the T73 Round Brilliant in sapphire (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-M5 in sapphire, against the T73 Round Brilliant in sapphire as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+3Brilliance+6Fire+2Scintillation+5Spread0Symmetry0Shape-norm+5Tilt+1

Against the T73 Round Brilliant in sapphire: ahead on 6, level on 2.

  • Global82, the comparison 79, difference +3
  • Brilliance100, the comparison 94, difference +6
  • Fire39, the comparison 37, difference +2
  • Scintillation85, the comparison 80, difference +5
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm107, the comparison 102, difference +5
  • Tilt76, the comparison 75, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What a sapphire gains in DG-M5

The most light of any sapphire cut we measure

Brilliance 100 against 94 for the T73 Round Brilliant in sapphire: 6 points higher

Every pavilion main sits at one angle, 41.49°, well clear of sapphire's 36.4° guide minimum. The face-up map shows almost no gray. The T73 splits its pavilion into mains and lower halves, but DG-M5 keeps a single cone.

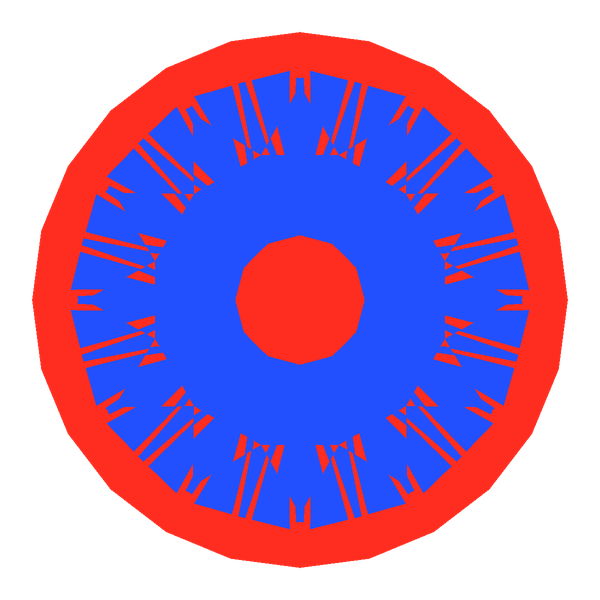

Dg-m5 in sapphire face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 100)

DG-M5 in sapphire · Brilliance 100

T73 round brilliant in sapphire face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in sapphire · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

More sparkle than the T73

Scintillation 85 against 80 for the T73 Round Brilliant in sapphire: 5 points higher

It has 85 facets in a twelve-fold pattern, against the T73's 73 in an eight-fold pattern. The gain is modest, a few points, but it costs no light.

DG-M5 · 85 facets · Scintillation 85

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Practically no leakage

Leakage 0 against 5 for the T73 Round Brilliant in sapphire: 5 points lower

Our census finds 0% of the light leaking out, against 5% for the T73 in sapphire. Every other round we measure in sapphire lets some through.

DG-M5 in sapphire · Leakage 0

Dg-m5 in sapphire tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

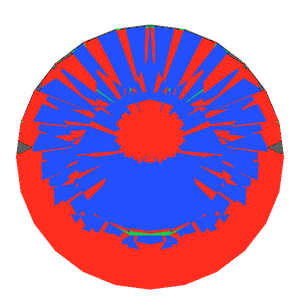

Dg-m5 in sapphire tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak

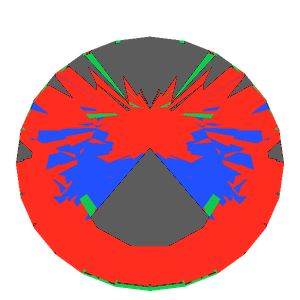

Dg-m5 in sapphire tilted 20 degrees: Light Return map, 25% of the face leaking20° · 25% leak

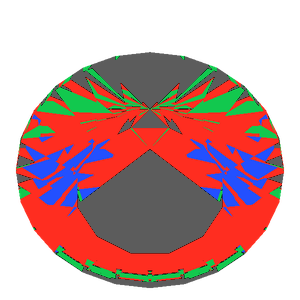

Dg-m5 in sapphire tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

T73 Round Brilliant in sapphire · Leakage 5

T73 round brilliant in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in sapphire tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in sapphire tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in sapphire tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Tilt it yourself in the simulator's light map

The catch with a DG-M5 sapphire

Fire well under the diamond version

Fire 39 against 67 for the DG-M5 in diamond: 28 points lower

In diamond, DG-M5 scores 67 for fire. In sapphire, it scores 39. Even so, of all our rounds, it has the smallest drop on the move from diamond to sapphire.

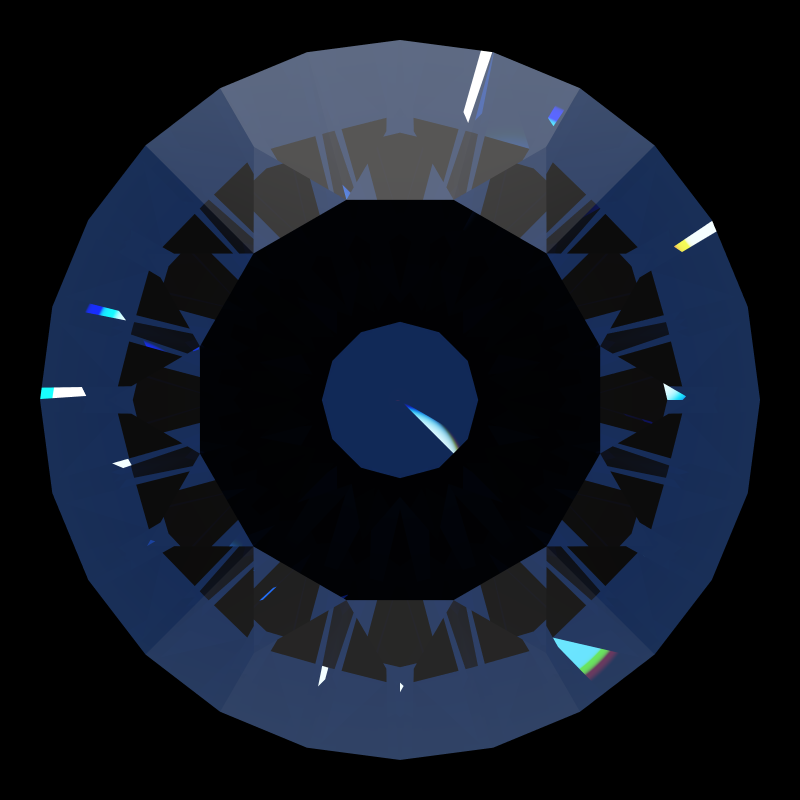

Dg-m5 in sapphire face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 39)

DG-M5 in sapphire · Fire 39

Dg-m5 in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 67)

DG-M5 in diamond · Fire 67

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Sapphire sets the limit. Among rounds, DG-Anteros Sapphire reaches 43. With near-round light, the Trilliant Cut Sapphire scores 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Heavier than diamond for its width

1.12 ct at 6.5 mm, against 0.98 ct for the same cut in diamond (+14%)

A 6.5 mm DG-M5 comes to 1.12 ct in sapphire, and the diamond would be 0.98 ct. Volume for volume, sapphire is about 14% heavier.

Sapphire1.12 ctDiamond0.98 ct
A DG-M5 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Compare stones by diameter. A 6.5 mm sapphire faces up exactly as wide as a 6.5 mm diamond.

Try it yourself: Weights in every gemstone on the DG-M5 page

Holds a little less light when tipped than in diamond

Tilt 76 against 83 for the DG-M5 in diamond: 7 points lower

At 20° of tilt, the sapphire keeps 76 of its face-up light and the diamond 83. Of our house and T-series rounds in sapphire, that gap is the smallest. DG-Anteros and DG-Miliano share it.

DG-M5 in sapphire · Tilt 76

Dg-m5 in sapphire tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in sapphire tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak
Dg-m5 in sapphire tilted 20 degrees: Light Return map, 25% of the face leaking20° · 25% leak
Dg-m5 in sapphire tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

DG-M5 in diamond · Tilt 83

Dg-m5 in diamond tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-m5 in diamond tilted 20 degrees: Light Return map, 14% of the face leaking20° · 14% leak
Dg-m5 in diamond tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-Miliano Sapphire keeps 83 when tipped, the most of our house and T-series rounds in sapphire. Its brilliance is 90.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-M5 sapphire suits

If you want the brightest round sapphire we can measure, choose this one. It has the top light score, no measurable leakage and sparkle above the baseline. None of those gains depend on fire, which is low in sapphire (39 here). So they hold for a blue, a pink or a colorless stone alike.

If the stone will swing in an earring, DG-Miliano Sapphire keeps more of its light at an angle. For the traditional eight-fold pattern that a setter will know, choose the T73 Round Brilliant Sapphire.

DG-M5 Sapphire: questions

Which cut gives a sapphire the most light?

In our census, DG-M5: Brilliance 100, ahead of DG-Anteros (97) and the T73 (94).

Does a DG-M5 sapphire leak light?

We measure 0% leakage, against 5% for the T73 in sapphire and 3% for DG-M5 in diamond.

Does DG-M5 give a sapphire more fire?

Only a little more than the T73, 39 against 37, and that is inside our margins. Diamond in the same cut reaches 67.

Can a DG-M5 sapphire be worn every day?

Sapphire's hardness of 9 makes it one of the harder-wearing ring stones for every day. The pointed culet of a single-tier pavilion should sit well inside the setting.
