DG-M5 Moissanite: our highest light and fire scores in this stone

Brilliance 98 · Fire 100 · Scintillation 85 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

A twelve-fold round with one pavilion angle. In moissanite, DG-M5 returns more light than any other cut we measure, and almost none of it leaves through the back.

The DG-M5 in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-M5 model, 1.00 ct, studio light.

DG-M5 Moissanite

Around the table of DG-M5 sit twelve stars and twenty-four crown mains. Below them is a single tier of twenty-four pavilion mains, all at one angle, 41.49°, down to a pointed culet. There are no halves above or below. A faceted girdle brings the count to 85.

We measured it in moissanite against the T73 Round Brilliant, and against the same model in diamond. It leads on light, fire and leakage. Its price is some of that light when the stone tips.

Be clear about the source of the fire. Against diamond the model is the same, so all of the gain comes from the material. Moissanite has a different refractive index and a different dispersion, and the census does not separate the two. Against the T73 in moissanite, the cut adds only a little: 100 against 97. The design shows in its light: Brilliance 98, where the T73 reaches 86.

Is DG-M5 a good cut for moissanite? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the DG-M5 in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-M5 in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-M5 in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+4Brilliance+12Fire+3Scintillation+5Spread0Symmetry0Shape-norm+12Tilt−10

Against the T73 Round Brilliant in moissanite: ahead on 5, level on 2, behind on 1.

  • Global95, the comparison 91, difference +4
  • Brilliance98, the comparison 86, difference +12
  • Fire100, the comparison 97, difference +3
  • Scintillation85, the comparison 80, difference +5
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm105, the comparison 93, difference +12
  • Tilt84, the comparison 94, difference −10
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What DG-M5 does for moissanite

The top of our fire scale

Fire 100 against 67 for the DG-M5 in diamond: 33 points higher

The two renders keep the model and the light the same and change only the material. So the whole gap to the diamond version, 67 to 100, comes from the stone. The twelve-fold plan has no part in it.

Dg-m5 in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 100)

DG-M5 in moissanite · Fire 100

Dg-m5 in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 67)

DG-M5 in diamond · Fire 67

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

More light back than the T73

Brilliance 98 against 86 for the T73 Round Brilliant in moissanite: 12 points higher

The T73's angles were worked out for diamond. DG-M5 was drawn for the higher refractive index of moissanite. In our census it returns more of the entering light than any other cut in this stone, ahead of DG-Anteros at 92.

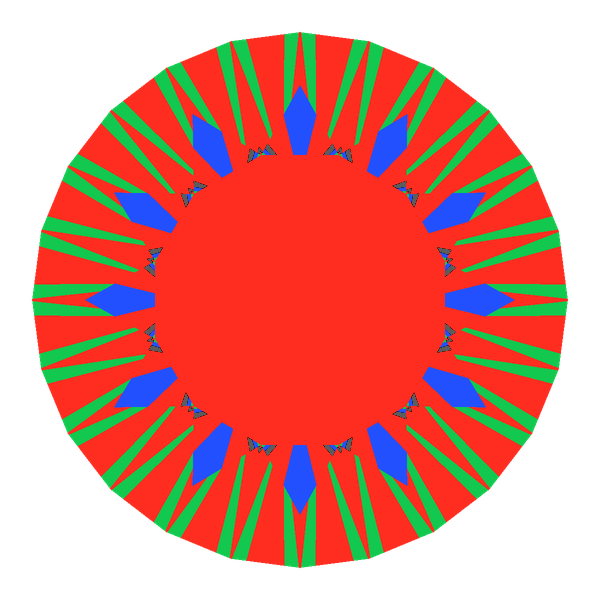

Dg-m5 in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 98)

DG-M5 in moissanite · Brilliance 98

T73 round brilliant in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

T73 Round Brilliant in moissanite · Brilliance 86

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

Lighter than a diamond of the same width

0.90 ct at 6.5 mm, against 0.98 ct for the same cut in diamond (−9%)

Density decides this, not the facets. Moissanite has a specific gravity of 3.22, diamond 3.52. Every cut on our moissanite pages has the same -9% figure.

Moissanite0.90 ctDiamond0.98 ct
A DG-M5 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-M5 page

Almost no light lost through the back

Leakage 1 against 7 for the T73 Round Brilliant in moissanite: 6 points lower

Only 1% of the light in our census leaves through the pavilion. That is the least of any cut we sell in moissanite. The T73 loses 7%, and DG-Anteros 3%.

DG-M5 in moissanite · Leakage 1

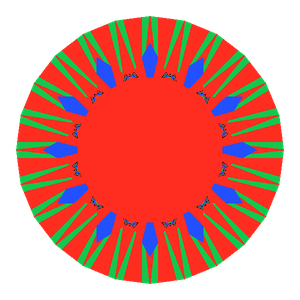

Dg-m5 in moissanite tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

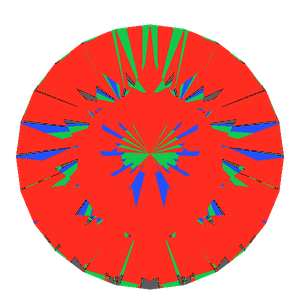

Dg-m5 in moissanite tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak

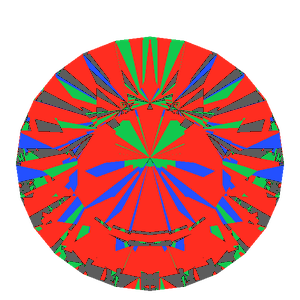

Dg-m5 in moissanite tilted 20 degrees: Light Return map, 13% of the face leaking20° · 13% leak

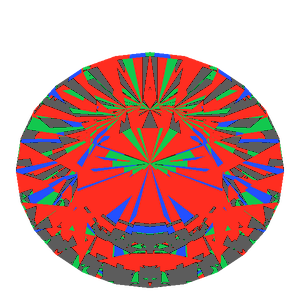

Dg-m5 in moissanite tilted 30 degrees: Light Return map, 22% of the face leaking30° · 22% leak

T73 Round Brilliant in moissanite · Leakage 7

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Tilt it yourself in the simulator's light map

The catch with DG-M5

Gives back some light when tipped

Tilt 84 against 94 for the T73 Round Brilliant in moissanite: 10 points lower

Tip DG-M5 by 20° and it keeps 84 of the light it shows face-up. The T73 keeps 94. Its strip shows the trade: almost no gray face-up and at 10°, then more gray than the T73 at 20° and 30°.

DG-M5 in moissanite · Tilt 84

Dg-m5 in moissanite tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in moissanite tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-m5 in moissanite tilted 20 degrees: Light Return map, 13% of the face leaking20° · 13% leak
Dg-m5 in moissanite tilted 30 degrees: Light Return map, 22% of the face leaking30° · 22% leak

T73 Round Brilliant in moissanite · Tilt 94

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Among our rounds in moissanite, DG-Miliano Moissanite keeps 95 when tipped and DG-Rafaello Moissanite keeps 98. Both have lower brilliance: 86 and 84. We have not measured DG-M5 with other angles, so we offer no recut.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who DG-M5 suits

For a round moissanite chosen on light and fire, our census puts this cut first: Brilliance 98, Fire 100 and 1% leakage. It suits a solitaire that people mostly see face-up.

If the stone will swing, or people will see it from the side, DG-Miliano Moissanite keeps its light better at an angle. If you prefer the eight-fold plan of the T73, DG-Anteros Moissanite keeps it.

In diamond the same cut stays bright, Brilliance 97, but its fire falls to 67.

DG-M5 Moissanite: questions

Is DG-M5 the best cut for moissanite?

On light and fire, it has the highest scores of the cuts we measure in moissanite: Brilliance 98, Fire 100, 1% leakage. Its tilt score, 84, is below the T73's 94.

DG-M5 or DG-Anteros for a moissanite?

DG-M5 returns more light (98 against 92) and more fire (100 against 91). It also leaks less. DG-Anteros keeps the eight-fold plan of the T73.

Does DG-M5 moissanite have more fire than diamond?

Yes: 100 against 67 for DG-M5 cut in diamond. Only the material changes.

What does a 6.5 mm DG-M5 moissanite weigh?

About 0.90 ct. The same model in diamond weighs 0.98 ct.

Get the DG-M5 Cut files

6 formatsMillimetersWatertight

DG-M5 Cut 3D files

The DG-M5 Cut as exact geometry: 85 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-M5 Cut cutting files

The DG-M5 Cut as a faceting design: 61 + 24 girdles = 85 facets, 96 index, 12-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).
