DG-Bowtie Moissanite: fire near the top of our scale, in a deep marquise

Brilliance 29 · Fire 98 · Scintillation 86 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

A deep marquise design. In moissanite it is one of our most fiery cuts, but it returns only about a third of the light of a round.

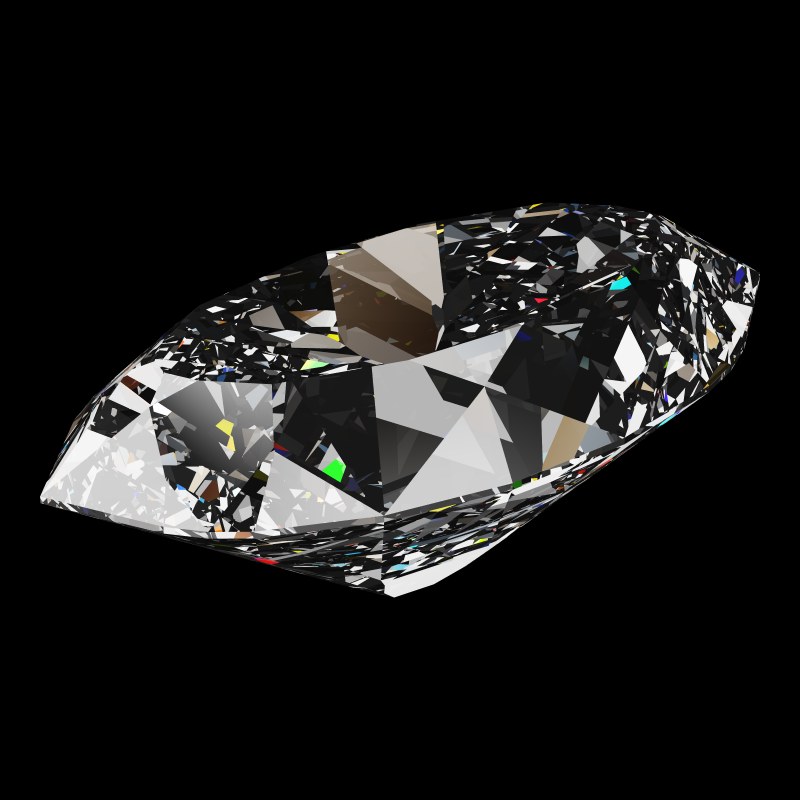

The DG-Bowtie in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Bowtie model, 1.00 ct, studio light.

DG-Bowtie Moissanite

When we remodeled our Marquise, the original design stayed in the library under its own name: DG-Bowtie. Its depth is 93.8% of its width, so it is nearly as deep as it is wide. It has 87 facets, a 42.0° pavilion and an outline 2.059 times as long as it is wide.

Nothing in it was corrected, so the bow-tie is still there: the dark band across the middle that long brilliants often show. We have no bow-tie metric, so the band has no number here.

In moissanite only DG-M5 and the Old Single score higher for fire. Light is a different matter: only DG-Elongated Hexagon returns less.

DG-Bowtie in moissanite: good or not? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the DG-Bowtie in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Bowtie in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Bowtie in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−24Brilliance−57Fire+1Scintillation+6Spread−13Symmetry−6Shape-norm−59Tilt−17

Against the T73 Round Brilliant in moissanite: ahead on 2, behind on 6.

  • Global67, the comparison 91, difference −24
  • Brilliance29, the comparison 86, difference −57
  • Fire98, the comparison 97, difference +1
  • Scintillation86, the comparison 80, difference +6
  • Spread87, the comparison 100, difference −13
  • Symmetry94, the comparison 100, difference −6
  • Shape-norm34, the comparison 93, difference −59
  • Tilt77, the comparison 94, difference −17
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in DG-Bowtie

Far more fire than in diamond

Fire 98 against 82 for the DG-Bowtie in diamond: 16 points higher

Through the same facets, diamond scores 82 and moissanite 98. The gain comes from the stone.

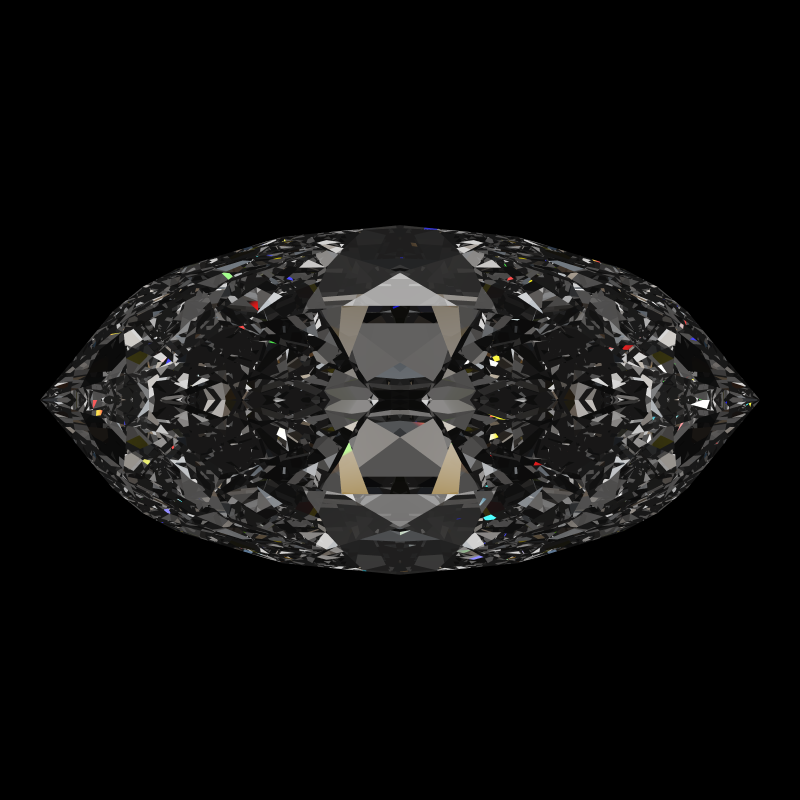

Dg-bowtie in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 98)

DG-Bowtie in moissanite · Fire 98

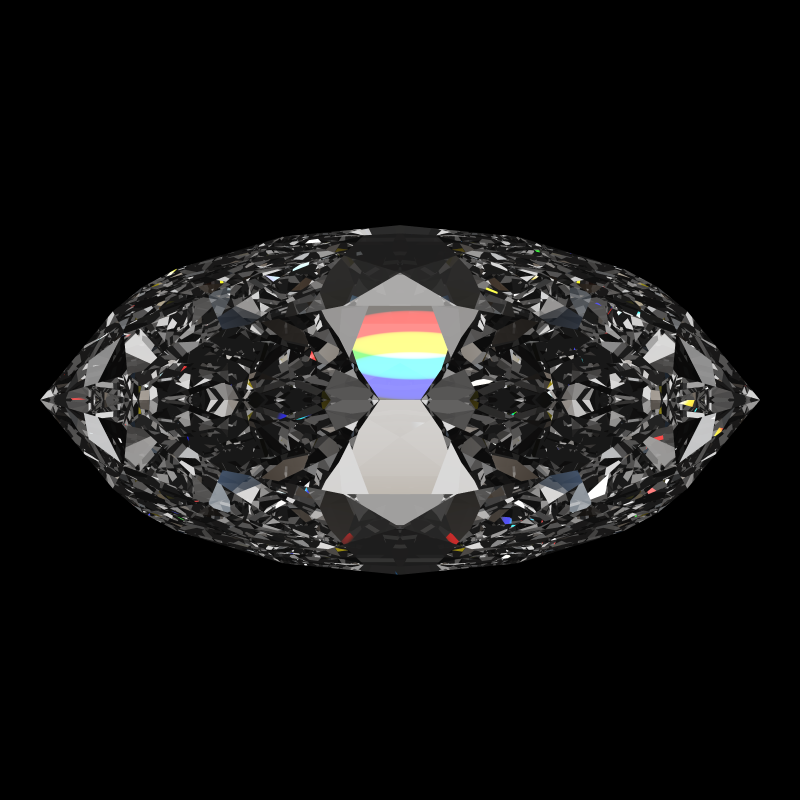

Dg-bowtie in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 82)

DG-Bowtie in diamond · Fire 82

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Lighter than in diamond

2.89 ct at 6.5 mm, against 3.16 ct for the same cut in diamond (−9%)

Cut this deep, a DG-Bowtie 6.5 mm wide is a heavy stone in any material. Moissanite, at 3.22 against 3.52, keeps it below the diamond figure.

Moissanite2.89 ctDiamond3.16 ct
A DG-Bowtie 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Bowtie page

A little more sparkle than a round

Scintillation 86 against 80 for the T73 Round Brilliant in moissanite: 6 points higher

Its 87 facets, against 73 on the T73, give Scintillation 86. That is level with the Marquise at 86.

DG-Bowtie · 87 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

The catch with a DG-Bowtie moissanite

About a third of a round's light

Brilliance 29 against 86 for the T73 Round Brilliant in moissanite: 57 points lower

29 against 86, and the diamond version is no brighter, at 27. Its pavilion, 42.0°, is above the 39.5° guide minimum for moissanite, and we have measured no other angles.

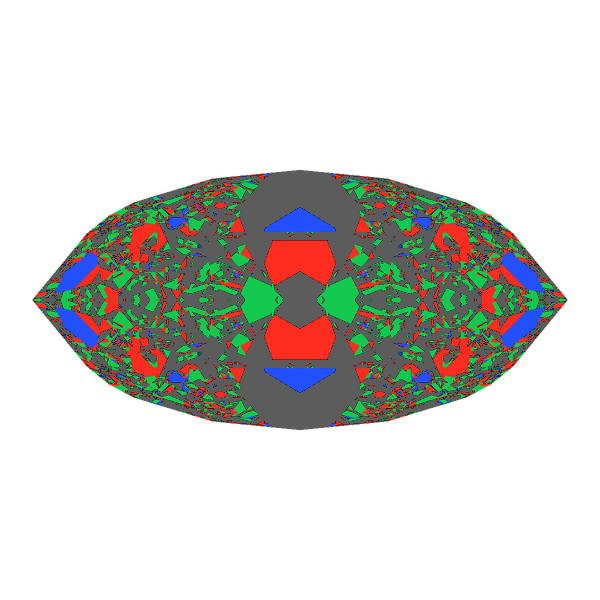

Dg-bowtie in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 29)

DG-Bowtie in moissanite · Brilliance 29

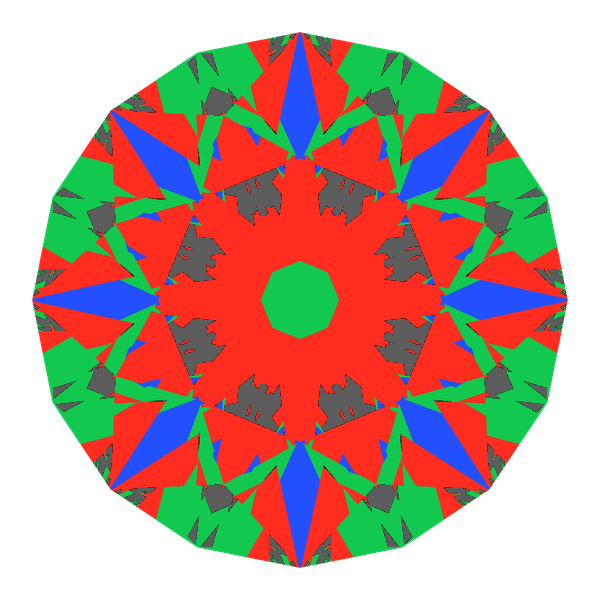

T73 round brilliant in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

T73 Round Brilliant in moissanite · Brilliance 86

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Marquise keeps the outline and returns 59. A round gives the most light: DG-M5 Moissanite, at 98.

Try it yourself: Open this Light Return map in the simulator

More leakage than a round

Leakage 29 against 7 for the T73 Round Brilliant in moissanite: 22 points higher

29% of the light in our census leaves through the back, against 7% for the T73. In diamond the same model loses 36%, so moissanite keeps a little more.

DG-Bowtie in moissanite · Leakage 29

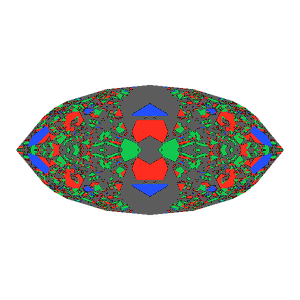

Dg-bowtie in moissanite tilted 0 degrees: Light Return map, 43% of the face leaking0° · 43% leak

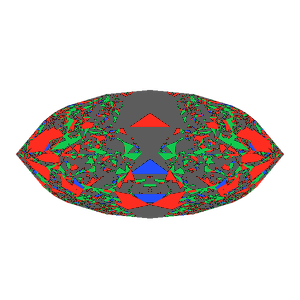

Dg-bowtie in moissanite tilted 10 degrees: Light Return map, 44% of the face leaking10° · 44% leak

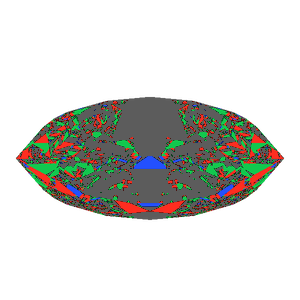

Dg-bowtie in moissanite tilted 20 degrees: Light Return map, 54% of the face leaking20° · 54% leak

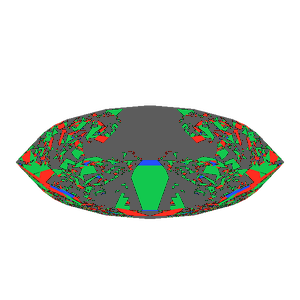

Dg-bowtie in moissanite tilted 30 degrees: Light Return map, 52% of the face leaking30° · 52% leak

T73 Round Brilliant in moissanite · Leakage 7

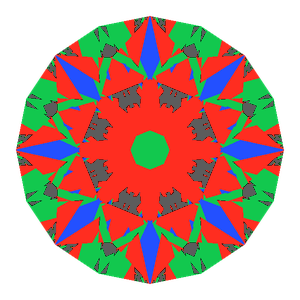

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak

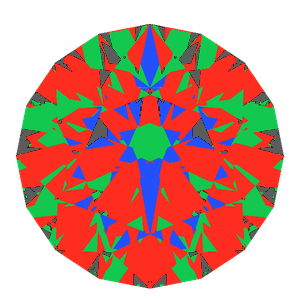

T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak

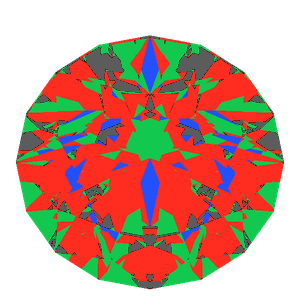

T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak

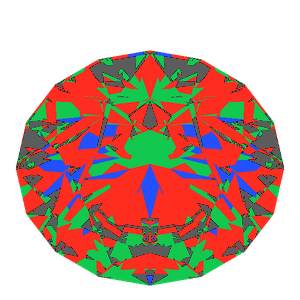

T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller stone keeps the same share. The Marquise leaks 19%, DG-Anteros Moissanite 3%.

Try it yourself: Tilt it yourself in the simulator's light map

Holds less light at an angle

Tilt 77 against 94 for the T73 Round Brilliant in moissanite: 17 points lower

DG-Bowtie keeps 77 of its face-up light when tipped by 20°, and the T73 keeps 94. Only DG-Elongated Hexagon keeps less in moissanite, and the Asscher is level.

DG-Bowtie in moissanite · Tilt 77

Dg-bowtie in moissanite tilted 0 degrees: Light Return map, 43% of the face leaking0° · 43% leak
Dg-bowtie in moissanite tilted 10 degrees: Light Return map, 44% of the face leaking10° · 44% leak
Dg-bowtie in moissanite tilted 20 degrees: Light Return map, 54% of the face leaking20° · 54% leak
Dg-bowtie in moissanite tilted 30 degrees: Light Return map, 52% of the face leaking30° · 52% leak

T73 Round Brilliant in moissanite · Tilt 94

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: No marquise-shaped cut we measure is bright enough to recommend for this. One round that keeps its light at an angle is the Old European: 100 at 20°, with Brilliance 79.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Smaller for its weight than a round

Face-up size 92 against 100 for the T73 Round Brilliant in moissanite (T73 = 100): 8% less face-up area for the same weight

Face-up size compares outline area with weight for each model, with the T73 at 100. DG-Bowtie covers 92. The Marquise covers 121, level with the Rectangle for the most we measure.

DG-Bowtie · 9.41 x 4.57 mm at 1.00 ct · Face-up size 92

T73 Round Brilliant · 6.68 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in moissanite and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: The Marquise gives far more face for the weight, 121. Otherwise, choose by millimeters: a DG-Bowtie 6.5 mm wide weighs 2.89 ct.

Try it yourself: See its size at 1.00 ct in moissanite in the 3D Gemstone Simulator

Who DG-Bowtie in moissanite suits

DG-Bowtie is here to study next to the remodeled Marquise, and to render when you want to show a bow-tie. In moissanite it is a fire stone with very little light.

For a marquise to wear, choose the Marquise: more light, less leakage and a larger face for the weight. If the outline can change, DG-M5 Moissanite returns the most light we measure in moissanite.

DG-Bowtie Moissanite: questions

DG-Bowtie or marquise cut moissanite?

The Marquise: Brilliance 59 against 29, leakage 19% against 29%, face-up size 121 against 92. DG-Bowtie has more fire, 98 against 94.

Why is it called DG-Bowtie?

Because we left the bow-tie in. It is our original marquise without changes, dark middle band and all. We have no bow-tie metric, so we give it no number.

How much fire does DG-Bowtie have in moissanite?

Fire 98, against 82 in diamond and 97 for the T73 in moissanite.

What does a 6.5 mm wide DG-Bowtie moissanite weigh?

2.89 ct, and 3.16 ct in diamond. It is heavy for its width because it is cut so deep.
