DG-Rafaello Moissanite: more sparkle than the T73, and more face for its weight

Brilliance 84 · Fire 90 · Scintillation 96 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

A twelve-fold round with a pavilion that curves in five tiers. In moissanite it sparkles more than the T73 and shows a larger face for the same weight.

The DG-Rafaello in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Rafaello model, 1.00 ct, studio light.

DG-Rafaello Moissanite

Above the girdle, DG-Rafaello is a plain twelve-fold crown with twenty-four mains and twelve stars. Below it are five pavilion tiers, each a little shallower than the tier above. They bend the cone into a gentle curve from girdle to point. Our model has 145 facets, a 40.0° pavilion main and a depth of 59.0%.

It was drawn for diamond. There it returns Brilliance 94, and in moissanite 84. In moissanite it still beats the T73 on sparkle and face-up size, and the diamond version on fire. It also keeps more of its light than the T73 when tipped: Tilt 98 against 94.

Is DG-Rafaello a good moissanite cut? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the DG-Rafaello in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Rafaello in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Rafaello in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global0Brilliance−2Fire−7Scintillation+16Spread+1Symmetry0Shape-norm−2Tilt+4

Against the T73 Round Brilliant in moissanite: ahead on 3, level on 2, behind on 3.

  • Global91, the comparison 91, difference 0
  • Brilliance84, the comparison 86, difference −2
  • Fire90, the comparison 97, difference −7
  • Scintillation96, the comparison 80, difference +16
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm91, the comparison 93, difference −2
  • Tilt98, the comparison 94, difference +4
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in DG-Rafaello

More sparkle than the T73

Scintillation 96 against 80 for the T73 Round Brilliant in moissanite: 16 points higher

Five pavilion tiers and a twelve-fold crown give 145 facets, nearly twice the 73 of the T73. Our scintillation score follows that count.

DG-Rafaello · 145 facets · Scintillation 96

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

More fire than in diamond

Fire 90 against 80 for the DG-Rafaello in diamond: 10 points higher

The material adds this gain, not the design. In moissanite, DG-Rafaello has less fire than the T73: 90 against 97. So this is a pro against diamond only.

Dg-rafaello in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 90)

DG-Rafaello in moissanite · Fire 90

Dg-rafaello in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 80)

DG-Rafaello in diamond · Fire 80

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Lighter for its width than diamond

0.86 ct at 6.5 mm, against 0.94 ct for the same cut in diamond (−9%)

The lower density of moissanite sets the figure. Nothing in the five tiers changes it.

Moissanite0.86 ctDiamond0.94 ct
A DG-Rafaello 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Rafaello page

More face for its weight than the T73

Face-up size 106 against 100 for the T73 Round Brilliant in moissanite (T73 = 100): 6% more face-up area for the same weight

Both outlines are round, so the difference is in the body below. The twelve-fold round is 59.0% deep, against 61.7% for the T73. So it puts less weight under each millimeter of its face, and at 1.00 ct its circle is wider.

DG-Rafaello · 6.83 mm at 1.00 ct · Face-up size 106

T73 Round Brilliant · 6.68 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in moissanite and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in moissanite in the 3D Gemstone Simulator

The catch with a DG-Rafaello moissanite

Less light than in diamond

Brilliance 84 against 94 for the DG-Rafaello in diamond: 10 points lower

The tiers were set for the refractive index of diamond. Moissanite bends light more strongly, so the same angles return less. The T73 in moissanite is between the two, at 86.

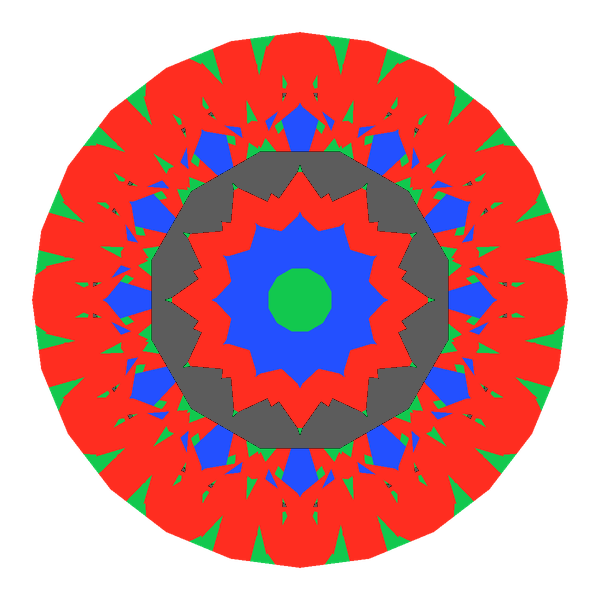

Dg-rafaello in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 84)

DG-Rafaello in moissanite · Brilliance 84

Dg-rafaello in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

DG-Rafaello in diamond · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a round moissanite with more light, choose DG-M5 Moissanite (98) or DG-Anteros Moissanite (92).

Try it yourself: Open this Light Return map in the simulator

More leakage than in diamond

Leakage 12 against 5 for the DG-Rafaello in diamond: 7 points higher

In our census, the pavilion lets 12% of the light escape. DG-Rafaello in diamond loses 5%, and the T73 in moissanite 7%.

DG-Rafaello in moissanite · Leakage 12

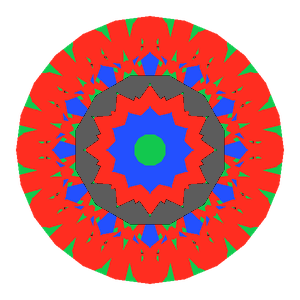

Dg-rafaello in moissanite tilted 0 degrees: Light Return map, 13% of the face leaking0° · 13% leak

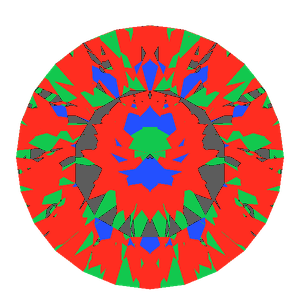

Dg-rafaello in moissanite tilted 10 degrees: Light Return map, 9% of the face leaking10° · 9% leak

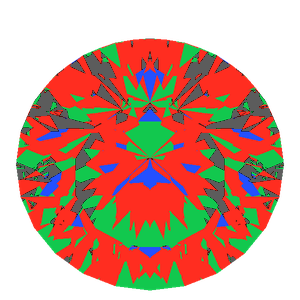

Dg-rafaello in moissanite tilted 20 degrees: Light Return map, 12% of the face leaking20° · 12% leak

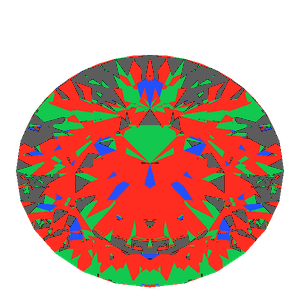

Dg-rafaello in moissanite tilted 30 degrees: Light Return map, 18% of the face leaking30° · 18% leak

DG-Rafaello in diamond · Leakage 5

Dg-rafaello in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-rafaello in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-rafaello in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-rafaello in diamond tilted 30 degrees: Light Return map, 17% of the face leaking30° · 17% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The pavilion main, at 40.0°, is above the 39.5° guide minimum for moissanite. So our data does not point to a steeper pavilion. DG-M5 leaks 1% and DG-Anteros 3%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a DG-Rafaello moissanite suits

DG-Rafaello suits a moissanite that people will see in motion: in a pendant, an earring or a ring worn at an angle. There, steady light under tilt is important. Its sparkle is near the top of our scale, and for the same weight it faces up larger than the T73.

For the most light face-up, choose DG-M5 Moissanite. In diamond this design returns more light: see DG-Rafaello.

DG-Rafaello Moissanite: questions

Is DG-Rafaello good for moissanite?

For sparkle, yes: Scintillation 96, against the T73's 80. Its Tilt 98 and Face-up size 106 beat the round as well. Its brilliance, 84, is just below the T73's 86.

DG-Rafaello or DG-M5 for moissanite?

Choose DG-M5 for light and fire (98 and 100). Choose DG-Rafaello for sparkle (96 against 85) and for light that holds when tipped (98 against 84).

Was DG-Rafaello designed for moissanite?

No, it was drawn for diamond, where it returns 94 for brilliance. In moissanite it returns 84.

What does a 6.5 mm DG-Rafaello moissanite weigh?

Close to 0.86 ct. In diamond, 0.94 ct.

Get the DG-Rafaello Cut files

6 formatsMillimetersWatertight

DG-Rafaello Cut 3D files

The DG-Rafaello Cut as exact geometry: 145 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-Rafaello Cut cutting files

The DG-Rafaello Cut as a faceting design: 121 + 24 girdles = 145 facets, 96 index, 12-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
