DG-Vitruvio Moissanite: more fire than in diamond, more sparkle than the T73

Brilliance 86 · Fire 97 · Scintillation 98 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

The T-series crown and pavilion, with the girdle cut into a band of small facets. In moissanite it keeps the light and fire of the T73 and scores higher for sparkle.

The DG-Vitruvio in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Vitruvio model, 1.00 ct, studio light.

DG-Vitruvio Moissanite

DG-Vitruvio keeps the crown and pavilion of the T-series round, with a 40.75° pavilion and a depth of 61.9%. All its extra work goes into the girdle, which becomes a band of many small facets.

In moissanite the census reads almost the same as for the T73: Brilliance 86 against 86, Fire 97 against 97, Tilt 94 against 94. The one large gap is scintillation. Our score counts facets, and the girdle adds very many.

Both its cons are against the same model in diamond, the stone these angles were drawn for. In diamond the same model returns more light and leaks less.

Is moissanite a good choice for DG-Vitruvio? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the DG-Vitruvio in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Vitruvio in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Vitruvio in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+2Brilliance0Fire0Scintillation+18Spread0Symmetry0Shape-norm0Tilt0

Against the T73 Round Brilliant in moissanite: ahead on 2, level on 6.

  • Global93, the comparison 91, difference +2
  • Brilliance86, the comparison 86, difference 0
  • Fire97, the comparison 97, difference 0
  • Scintillation98, the comparison 80, difference +18
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm93, the comparison 93, difference 0
  • Tilt94, the comparison 94, difference 0
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in DG-Vitruvio

Far more fire than in diamond

Fire 97 against 79 for the DG-Vitruvio in diamond: 18 points higher

Change diamond to moissanite in the renders and nothing else changes. Fire goes up from 79 to 97, and that gain comes from the material. The girdle band has no part that we can measure: the plain T73 scores 97 in this stone.

Dg-vitruvio in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 97)

DG-Vitruvio in moissanite · Fire 97

Dg-vitruvio in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 79)

DG-Vitruvio in diamond · Fire 79

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Sparkle at the top of our scale

Scintillation 98 against 80 for the T73 Round Brilliant in moissanite: 18 points higher

Our scintillation score increases with the number of facets and becomes flat near the top. So DG-Vitruvio gets 98, the top score in this stone, level with DG-Miliano and the Portuguese Bird's Nest. We do not calculate if a finely cut girdle looks like extra sparkle to the eye.

DG-Vitruvio · 153 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Lighter than the same round in diamond

0.93 ct at 6.5 mm, against 1.02 ct for the same cut in diamond (−9%)

Moissanite is the less dense of the two materials. So this round weighs less than the diamond figure at any width, although the model is identical.

Moissanite0.93 ctDiamond1.02 ct
A DG-Vitruvio 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Vitruvio page

The catch with a DG-Vitruvio moissanite

Less light than in diamond

Brilliance 86 against 93 for the DG-Vitruvio in diamond: 7 points lower

These are the classic diamond proportions. Moissanite bends light more sharply, and with these angles a little more of it leaves away from the eye. In diamond the same model returns 93.

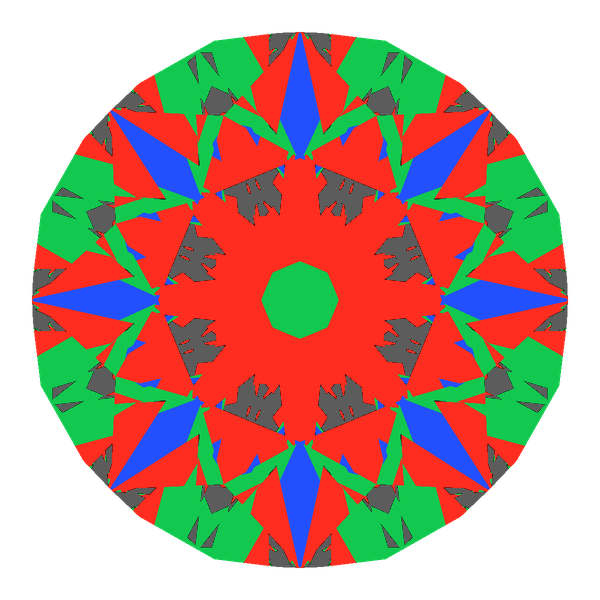

Dg-vitruvio in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

DG-Vitruvio in moissanite · Brilliance 86

Dg-vitruvio in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

DG-Vitruvio in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: A finer girdle cannot change this. Two house rounds made for moissanite do better here: DG-M5 Moissanite returns 98 and DG-Anteros Moissanite returns 92.

Try it yourself: Open this Light Return map in the simulator

More leakage than in diamond

Leakage 7 against 2 for the DG-Vitruvio in diamond: 5 points higher

In moissanite, 7% of the light in our census goes out through the pavilion. In diamond the same model loses 2%.

DG-Vitruvio in moissanite · Leakage 7

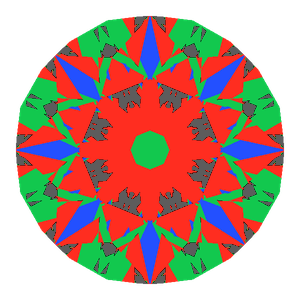

Dg-vitruvio in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak

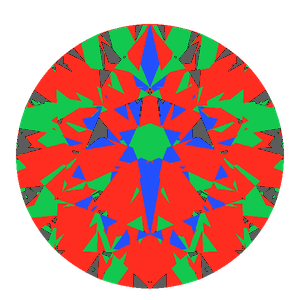

Dg-vitruvio in moissanite tilted 10 degrees: Light Return map, 7% of the face leaking10° · 7% leak

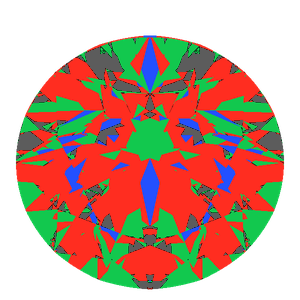

Dg-vitruvio in moissanite tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak

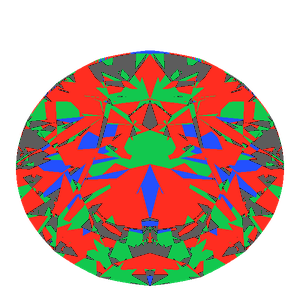

Dg-vitruvio in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak

DG-Vitruvio in diamond · Leakage 2

Dg-vitruvio in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-vitruvio in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-vitruvio in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-vitruvio in diamond tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: At 40.75°, the pavilion is already above the 39.5° guide minimum for moissanite, and we have not measured a steeper one. DG-M5 leaks 1% and DG-Anteros 3%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a DG-Vitruvio moissanite suits

DG-Vitruvio suits a round moissanite where sparkle comes first and the light of the T73 is enough. It was made for renders and settings where the outline should look as smooth as the stone is bright.

For more light, DG-M5 Moissanite. For the same sparkle score from a three-tier pavilion, DG-Miliano Moissanite, which also matches it on light.

At the wheel, the girdle band is a lot of extra work. Only our scintillation score sees the gain.

DG-Vitruvio Moissanite: questions

Is DG-Vitruvio good for moissanite?

In moissanite it equals the T73 on light (86) and fire (97). It scores 98 for scintillation, against 80.

DG-Vitruvio or T73 for a moissanite?

Here they have the same scores for light, fire and tilt. DG-Vitruvio sparkles more in our census, 98 against 80. The T73 has far fewer facets to cut.

Does DG-Vitruvio leak light in moissanite?

7% in our census, the same as the T73. DG-Vitruvio in diamond leaks 2%.

What does a 6.5 mm DG-Vitruvio moissanite weigh?

0.93 ct. The diamond version weighs 1.02 ct.
