DG-Vitruvio Cubic Zirconia: the T73's light, with far more sparkle

Brilliance 98 · Fire 87 · Scintillation 98 · in our census, where the T73 scores 98 · 87 · 80 in cubic zirconia

Point for point it matches the T73 in CZ on light, fire and leakage. Then it adds Scintillation 98, the highest we measure, shared with DG-Miliano and the Portuguese Bird's Nest.

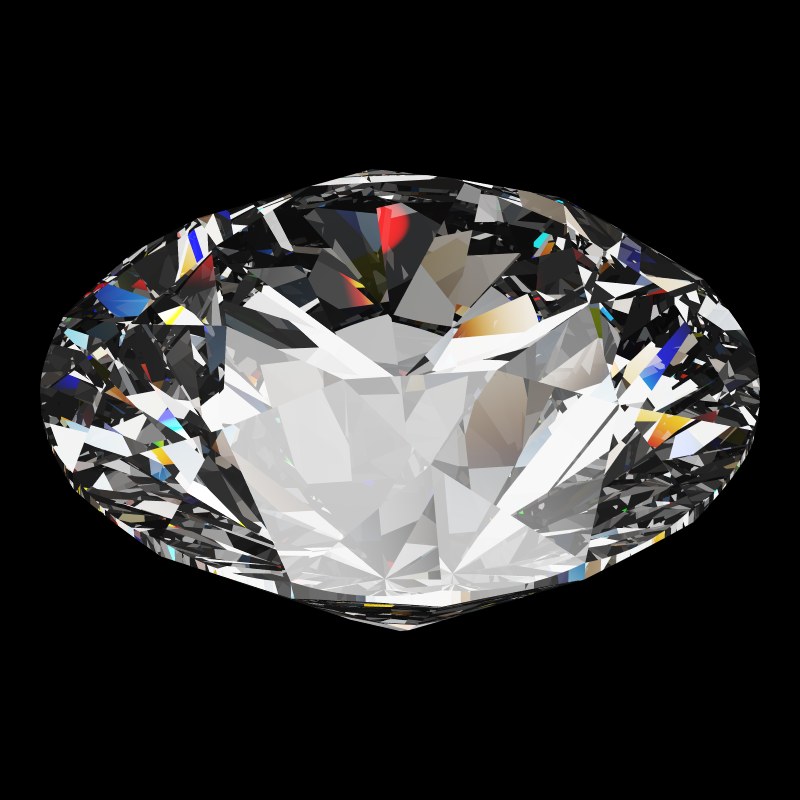

The DG-Vitruvio in cubic zirconia, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Vitruvio model, 1.00 ct, studio light.

DG-Vitruvio Cubic Zirconia

DG-Vitruvio is the 1919 round brilliant plan at its finest subdivision. The crown and pavilion keep the classic proportions, and all the extra work is in a girdle band of ninety-six facets. The pavilion mains are at 40.75°, the T73's angle, and the whole stone is 61.9% deep.

In CZ it ties the T73 on Brilliance, Fire, Tilt and leakage. By our margins only scintillation separates them, and there the gap is wide. Against the same cut in diamond, CZ adds light and fire and gives up some steadiness when the stone tips.

Does DG-Vitruvio suit cubic zirconia? Pros and cons

Compared with the T73 Round Brilliant in cubic zirconia and with the DG-Vitruvio in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Vitruvio in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Vitruvio in cubic zirconia, against the T73 Round Brilliant in cubic zirconia as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+2Brilliance0Fire0Scintillation+18Spread0Symmetry0Shape-norm0Tilt0

Against the T73 Round Brilliant in cubic zirconia: ahead on 2, level on 6.

  • Global95, the comparison 93, difference +2
  • Brilliance98, the comparison 98, difference 0
  • Fire87, the comparison 87, difference 0
  • Scintillation98, the comparison 80, difference +18
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm106, the comparison 106, difference 0
  • Tilt87, the comparison 87, difference 0
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What DG-Vitruvio gives cubic zirconia

Far more sparkle than the T73

Scintillation 98 against 80 for the T73 Round Brilliant in cubic zirconia: 18 points higher

The finely divided girdle band breaks the outline into many small facets. Our scintillation score comes from the facet count of the census model, and it rises with that division. The facet diagrams print both counts side by side.

DG-Vitruvio · 153 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

More fire than DG-Vitruvio in diamond

Fire 87 against 79 for the DG-Vitruvio in diamond: 8 points higher

The plan is identical in both stones. So the higher Fire share in CZ, 87 against 79, comes from the change of stone, not the design.

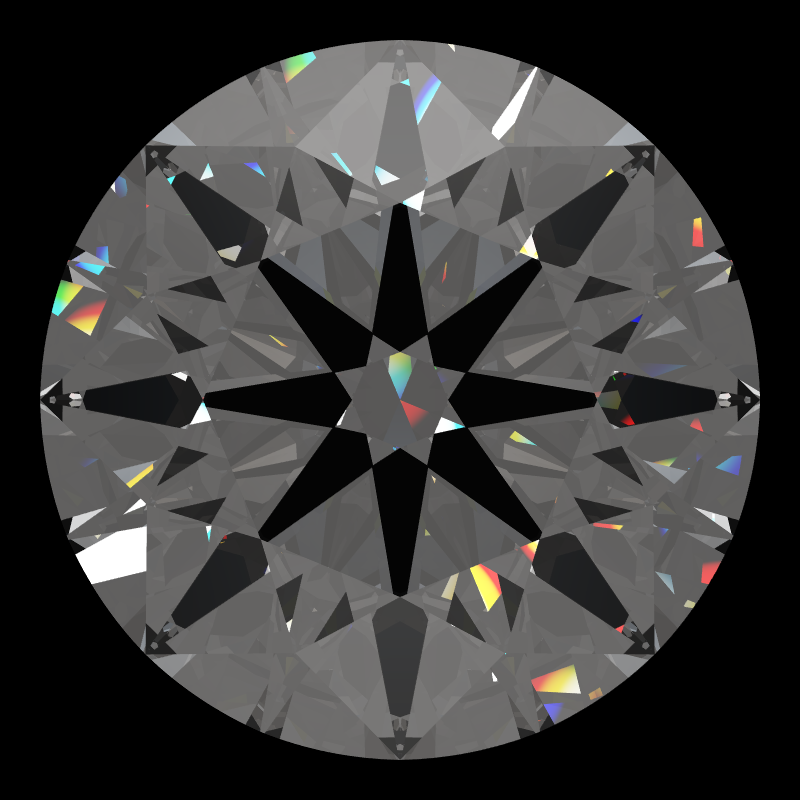

Dg-vitruvio in cubic zirconia face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 87)

DG-Vitruvio in cubic zirconia · Fire 87

Dg-vitruvio in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 79)

DG-Vitruvio in diamond · Fire 79

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

More light than the diamond version

Brilliance 98 against 93 for the DG-Vitruvio in diamond: 5 points higher

The extra girdle facets cost no light at all in CZ. Brilliance is level with the T73 here, 98, and above what the same cut returns in diamond.

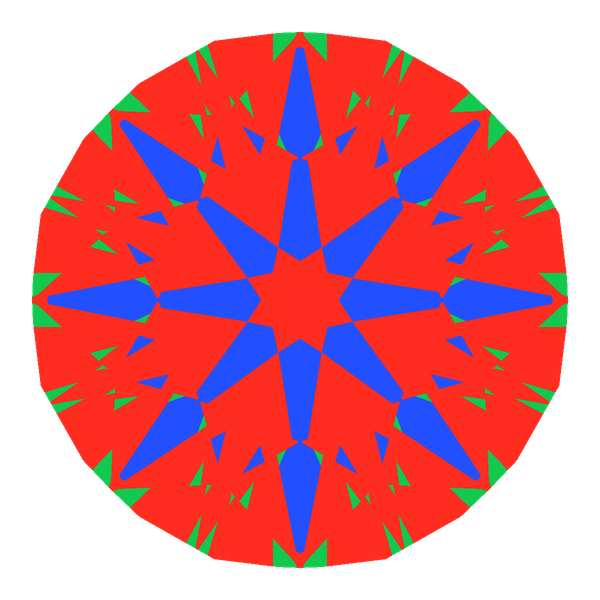

Dg-vitruvio in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 98)

DG-Vitruvio in cubic zirconia · Brilliance 98

Dg-vitruvio in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

DG-Vitruvio in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

The catch with a DG-Vitruvio CZ

Heavier than diamond

1.68 ct at 6.5 mm, against 1.02 ct for the same cut in diamond (+65%)

At 61.9% it is a little deeper than any of our T-series rounds (the T73 is 61.7%). So the 65% that CZ adds over diamond goes onto a full-bodied stone.

Cubic Zirconia1.68 ctDiamond1.02 ct
A DG-Vitruvio 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: No cut fixes density. Choose by size.

Try it yourself: Weights in every gemstone on the DG-Vitruvio page

Less steady than in diamond when tipped

Tilt 87 against 93 for the DG-Vitruvio in diamond: 6 points lower

When tilted, it keeps 87 of its face-up light, and the diamond version keeps 93. Every T-series round we measure in CZ (T57, T73, T105) is at 87 too.

DG-Vitruvio in cubic zirconia · Tilt 87

Dg-vitruvio in cubic zirconia tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

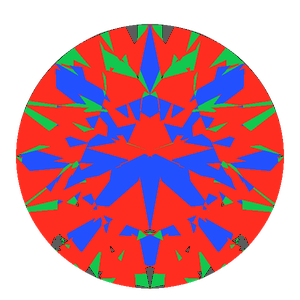

Dg-vitruvio in cubic zirconia tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak

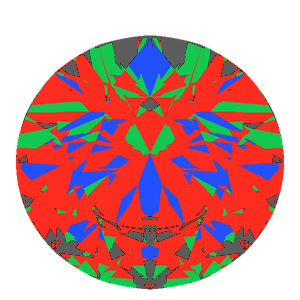

Dg-vitruvio in cubic zirconia tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak

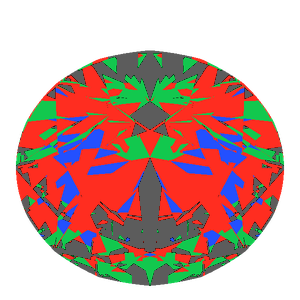

Dg-vitruvio in cubic zirconia tilted 30 degrees: Light Return map, 21% of the face leaking30° · 21% leak

DG-Vitruvio in diamond · Tilt 93

Dg-vitruvio in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-vitruvio in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-vitruvio in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-vitruvio in diamond tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-Miliano Cubic Zirconia keeps 90 when tipped in CZ, with Brilliance 97 and the same sparkle score.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-Vitruvio CZ suits

Choose DG-Vitruvio in CZ for everything the T73 does, plus far finer sparkle and an outline that looks smooth in renders and settings. You give up nothing on light or fire for it.

If you want slightly more light, DG-Rafaello Cubic Zirconia reaches 100. If you want the eight-fold plan with a sixteen-facet girdle band, choose the T73 Round Brilliant Cubic Zirconia.

The fine girdle is the cutter's challenge: ninety-six small facets that must meet cleanly. CZ is a forgiving stone to practice on. The same file cuts the same plan in any stone you move on to.

Against the diamond version, the CZ trades steadiness for light. It is brighter and more colorful face-up, loses its light a little sooner when tipped, and is about 65% heavier.

DG-Vitruvio Cubic Zirconia: questions

DG-Vitruvio or T73 in cubic zirconia?

Light and fire are level, 98 and 87 for both. DG-Vitruvio sparkles far more: 98 against 80.

Is DG-Vitruvio brighter in CZ than in diamond?

Yes: Brilliance 98 here, 93 in diamond, with Fire 87 against 79.

What does a 6.5 mm DG-Vitruvio CZ weigh?

About 1.68 ct. A diamond of that size is 1.02 ct.

Does DG-Vitruvio leak light in CZ?

Hardly: 1% in our census, the same as the T73.

Get the DG-Vitruvio Cut files

6 formatsMillimetersWatertight

DG-Vitruvio Cut 3D files

The DG-Vitruvio Cut as exact geometry: 265 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-Vitruvio Cut cutting files

The DG-Vitruvio Cut as a faceting design: 57 + 96 girdles = 153 facets, 96 index, 8-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
