Radiant Cut Cubic Zirconia: a large face for its weight, with little light behind it

Brilliance 33 · Fire 91 · Scintillation 74 · in our census, where the T73 scores 98 · 87 · 80 in cubic zirconia

Shallow and broad, the radiant in CZ shows a large face for its weight and throws more colour than a diamond radiant. Nearly half its light leaks through the back.

The Radiant Cut in cubic zirconia, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Radiant Cut model, 1.00 ct, studio light.

Radiant Cut Cubic Zirconia

Our radiant puts a brilliant plan of 74 facets under a step-cut outline with cropped corners, 1.284 to 1 and only 53.8% deep. For light it is one of the weakest pairings we measure in CZ: only DG-Bowtie and DG-Elongated Hexagon return less.

Its face-up size and its fire are real. So is the reason to read the fire with care: the score describes the light that comes back, and here little does.

Radiant cut cubic zirconia: is it a good pairing? Pros and cons

Compared with the T73 Round Brilliant in cubic zirconia and with the Radiant Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Radiant Cut in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Radiant Cut in cubic zirconia, against the T73 Round Brilliant in cubic zirconia as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−25Brilliance−65Fire+4Scintillation−6Spread+5Symmetry−1Shape-norm−67Tilt+13

Against the T73 Round Brilliant in cubic zirconia: ahead on 3, behind on 5.

  • Global68, the comparison 93, difference −25
  • Brilliance33, the comparison 98, difference −65
  • Fire91, the comparison 87, difference +4
  • Scintillation74, the comparison 80, difference −6
  • Spread105, the comparison 100, difference +5
  • Symmetry99, the comparison 100, difference −1
  • Shape-norm39, the comparison 106, difference −67
  • Tilt100, the comparison 87, difference +13
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What the radiant gives cubic zirconia

Faces up much larger for its weight

Face-up size 118 against 100 for the T73 Round Brilliant in cubic zirconia (T73 = 100): 18% more face-up area for the same weight

Measured from its outline, a radiant of a given weight covers 118 against the T73's 100, third among the cuts in our CZ census behind the marquise and the rectangle. At 53.8% deep it carries less stone under its face than the round, at 61.7%.

Radiant Cut · 5.85 x 3.19 mm at 1.00 ct · Face-up size 118

T73 Round Brilliant · 5.49 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in cubic zirconia and are drawn to the same scale in millimetres, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in cubic zirconia in the 3D Gemstone Simulator

More fire than a diamond radiant

Fire 91 against 77 for the Radiant Cut in diamond: 14 points higher

In diamond this radiant scores 77; in CZ it reaches 91, above the T73 in CZ as well. With Brilliance at 33, that colour rides on a small amount of light.

Radiant cut in cubic zirconia face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 91)

Radiant Cut in cubic zirconia · Fire 91

Radiant cut in diamond face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 77)

Radiant Cut in diamond · Fire 77

Look at the coloured flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

The catch with a radiant CZ

A third of the T73's light

Brilliance 33 against 98 for the T73 Round Brilliant in cubic zirconia: 65 points lower

The census returns 33 against 98. A build this shallow lets much of the light run straight through the pavilion instead of turning back up. The diamond radiant fares no better, at 32.

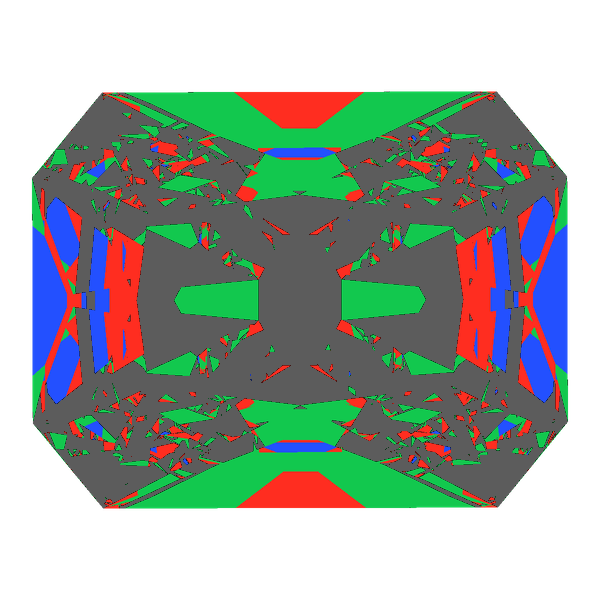

Radiant cut in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 33)

Radiant Cut in cubic zirconia · Brilliance 33

T73 round brilliant in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 98)

T73 Round Brilliant in cubic zirconia · Brilliance 98

Red, green and blue = light returning to the eye; grey = light leaving through the pavilion. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Radiant Square Cut Cubic Zirconia carries the same idea on a square and returns 74. For the most light in CZ, DG-Rafaello Cubic Zirconia (100).

Try it yourself: Open this Light Return map in the simulator

Heavier than diamond, as always in CZ

2.57 ct at 6.5 mm, against 1.56 ct for the same cut in diamond (+65%)

The radiant is 1.284 times as long as it is wide, so at 6.5 mm wide it weighs 2.57 ct in CZ against 1.56 ct in diamond.

Cubic Zirconia2.57 ctDiamond1.56 ct
A Radiant Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Compare radiants by their length and width.

Try it yourself: Weights in all seven gemstones on the Radiant Cut page

Nearly half the light leaks

Leakage 47 against 1 for the T73 Round Brilliant in cubic zirconia: 46 points higher

47% of the light leaves through the back in our census, the second highest share of any cut we measure in CZ, after DG-Elongated Hexagon. The T73 loses 1%.

Radiant Cut in cubic zirconia · Leakage 47

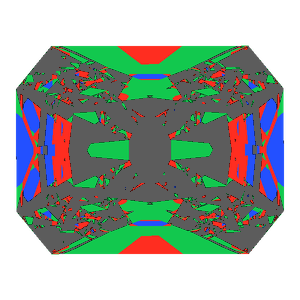

Radiant cut in cubic zirconia tilted 0 degrees: Light Return map, 50% of the face leaking0° · 50% leak

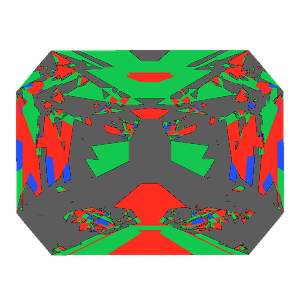

Radiant cut in cubic zirconia tilted 10 degrees: Light Return map, 46% of the face leaking10° · 46% leak

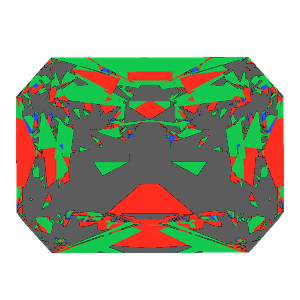

Radiant cut in cubic zirconia tilted 20 degrees: Light Return map, 47% of the face leaking20° · 47% leak

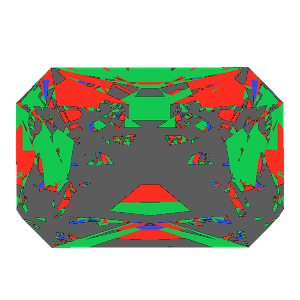

Radiant cut in cubic zirconia tilted 30 degrees: Light Return map, 49% of the face leaking30° · 49% leak

T73 Round Brilliant in cubic zirconia · Leakage 1

T73 round brilliant in cubic zirconia tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
T73 round brilliant in cubic zirconia tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak
T73 round brilliant in cubic zirconia tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in cubic zirconia tilted 30 degrees: Light Return map, 21% of the face leaking30° · 21% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

What helps: Size changes nothing here. The Radiant Square Cut Cubic Zirconia leaks 13%, the Cushion Cut Cubic Zirconia 7%.

Try it yourself: Tilt it yourself in the simulator's light map

A little less sparkle than the T73

Scintillation 74 against 80 for the T73 Round Brilliant in cubic zirconia: 6 points lower

Our scintillation score is read from the census's own model of the radiant, whose facet count can differ from our 74-facet cutting design, and it trails the T73 by a few points. It is the mildest of its cons.

Radiant Cut · 74 facets · Scintillation 74

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Count the facets in each crown. Drawn from each cut's own model.

What helps: The Cushion Cut Cubic Zirconia scores 85 for scintillation in CZ.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who a radiant CZ suits

The radiant in CZ is a weak pairing for light, and we say so plainly: Brilliance 33, with 47% leaking. It suits a design or a render where a broad face for the weight is the point.

For the same cropped-corner look with far more light, the Radiant Square Cut Cubic Zirconia. For a long outline, the Marquise Cut Cubic Zirconia faces up larger still, 121, and returns 66.

Radiant Cut Cubic Zirconia: questions

Is a radiant cut good for cubic zirconia?

Not for light: it returns 33 against 98 for the T73 and leaks 47%. It does face up large for its weight, 118 against 100.

Radiant or radiant square in CZ?

The square returns more than twice the light (74 against 33) and leaks 13%. This longer radiant has more fire, 91 against 81, and faces up larger, 118 against 91.

Does a radiant CZ have more fire than a diamond radiant?

Yes, 91 against 77. Neither returns much light: 33 in CZ, 32 in diamond.

How heavy is a 6.5 mm wide radiant CZ?

2.57 ct; the same radiant in diamond is 1.56 ct.

Get the Radiant Cut files

6 formatsMillimetresWatertight

Radiant Cut 3D files

The Radiant Cut as exact geometry: 74 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modelling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
€9.99 · Personal useBuy the 3D files
In preparation

Radiant Cut cutting files

The faceting design for the Radiant Cut is in preparation. It will include the GemCad file, the tier table and a printable diagram.

Checkout opens soonComing soon

Questions before you buy? Email us.
