DG-M5 Cubic Zirconia: a twelve-fold round with a little more sparkle

Brilliance 91 · Fire 73 · Scintillation 85 · in our census, where the T73 scores 98 · 87 · 80 in cubic zirconia

Twelve-fold and cut at a single pavilion angle, DG-M5 sparkles a little more than the T73 in CZ. It trails on fire, light and leakage.

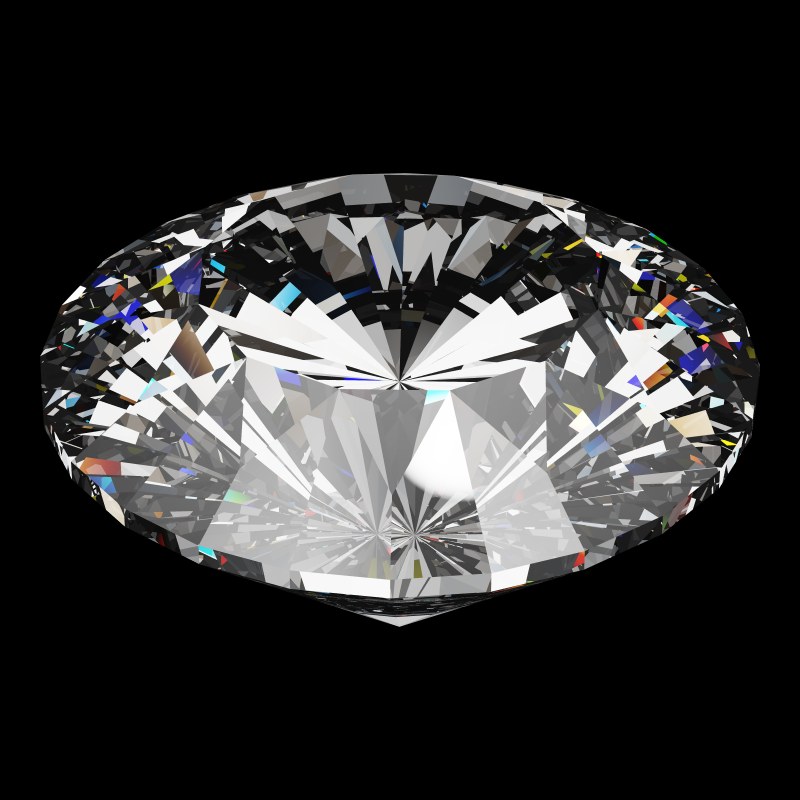

The DG-M5 in cubic zirconia, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-M5 model, 1.00 ct, studio light.

DG-M5 Cubic Zirconia

DG-M5 has twelve stars and twenty-four crown mains around the table. Twenty-four pavilion mains run at one angle, 41.49°, to a pointed culet. There are no halves. Our model has 85 facets in all and is 60.6% deep.

It was drawn for moissanite. CZ bends light less than diamond and far less than moissanite. In CZ, DG-M5 ties the T73 on Tilt, 87 each, and trails it on light, fire and leakage.

Against DG-M5 in diamond, CZ trades: more fire (73 against 67) for less light (91 against 97). Its Tilt reads higher, 87 against 83, but from less light, so we do not count it.

How does DG-M5 do in cubic zirconia? Pros and cons

Compared with the T73 Round Brilliant in cubic zirconia and with the DG-M5 in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-M5 in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-M5 in cubic zirconia, against the T73 Round Brilliant in cubic zirconia as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−6Brilliance−7Fire−14Scintillation+5Spread0Symmetry0Shape-norm−8Tilt0

Against the T73 Round Brilliant in cubic zirconia: ahead on 1, level on 3, behind on 4.

  • Global87, the comparison 93, difference −6
  • Brilliance91, the comparison 98, difference −7
  • Fire73, the comparison 87, difference −14
  • Scintillation85, the comparison 80, difference +5
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm98, the comparison 106, difference −8
  • Tilt87, the comparison 87, difference 0
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What DG-M5 gives cubic zirconia

A little more sparkle than the T73

Scintillation 85 against 80 for the T73 Round Brilliant in cubic zirconia: 5 points higher

Twelve stars and twenty-four crown mains bring the plan to 85 facets against the T73's 73, and our scintillation score follows the count.

DG-M5 · 85 facets · Scintillation 85

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where DG-M5 falls short in CZ

Much heavier than diamond

1.62 ct at 6.5 mm, against 0.98 ct for the same cut in diamond (+65%)

CZ is the denser stone of the two. A DG-M5 in CZ weighs 65% more than in diamond, only because of the material.

Cubic Zirconia1.62 ctDiamond0.98 ct
A DG-M5 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose the stone by its width.

Try it yourself: Weights in every gemstone on the DG-M5 page

Much less fire than the T73 in CZ

Fire 73 against 87 for the T73 Round Brilliant in cubic zirconia: 14 points lower

With no halves, each pavilion main is long and broad. The CZ render shows less color than the T73 under the same light. It is still more than DG-M5 gets in diamond, 67.

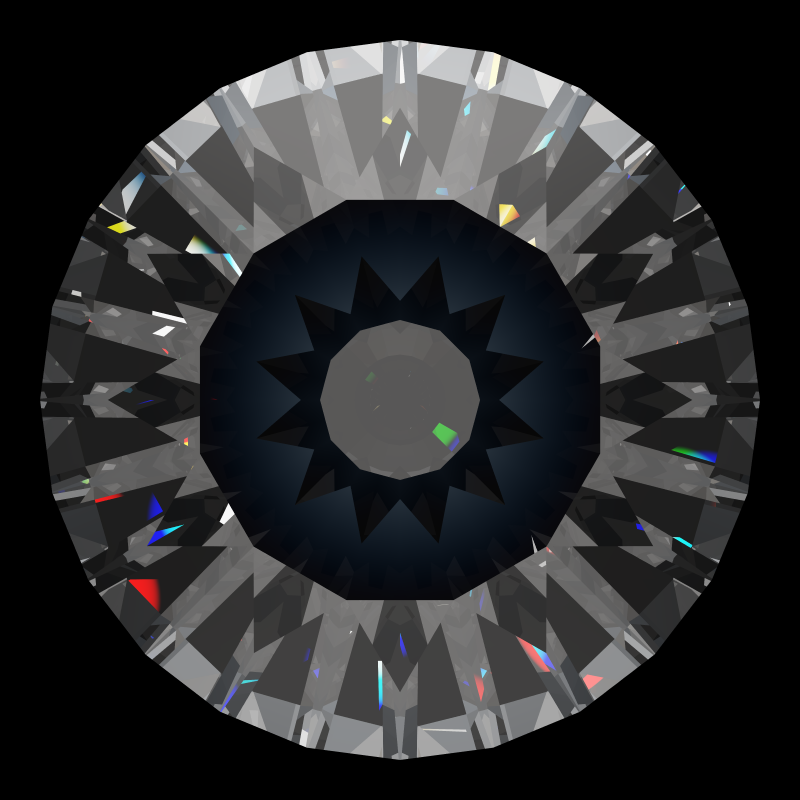

Dg-m5 in cubic zirconia face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 73)

DG-M5 in cubic zirconia · Fire 73

T73 round brilliant in cubic zirconia face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 87)

T73 Round Brilliant in cubic zirconia · Fire 87

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: For fire in a round CZ, DG-Miliano Cubic Zirconia scores 90. Among the fancy shapes, DG-Octagonal Kite Cubic Zirconia reaches 92 with Brilliance 93.

Try it yourself: See the fire in the 3D Gemstone Simulator

More light out of the back

Leakage 9 against 1 for the T73 Round Brilliant in cubic zirconia: 8 points higher

9% leaks in our census, against 1% for the T73 in CZ. The single 41.49° angle is above CZ's 38.1° guide minimum, so a steeper angle is not the fix.

DG-M5 in cubic zirconia · Leakage 9

Dg-m5 in cubic zirconia tilted 0 degrees: Light Return map, 8% of the face leaking0° · 8% leak

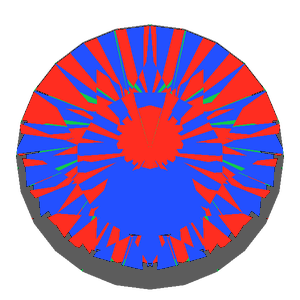

Dg-m5 in cubic zirconia tilted 10 degrees: Light Return map, 12% of the face leaking10° · 12% leak

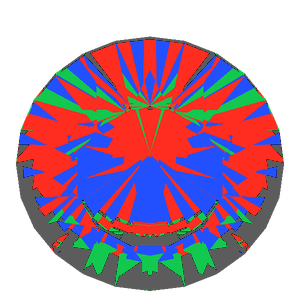

Dg-m5 in cubic zirconia tilted 20 degrees: Light Return map, 16% of the face leaking20° · 16% leak

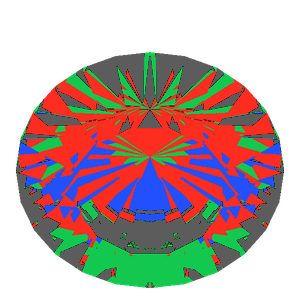

Dg-m5 in cubic zirconia tilted 30 degrees: Light Return map, 24% of the face leaking30° · 24% leak

T73 Round Brilliant in cubic zirconia · Leakage 1

T73 round brilliant in cubic zirconia tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
T73 round brilliant in cubic zirconia tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak
T73 round brilliant in cubic zirconia tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in cubic zirconia tilted 30 degrees: Light Return map, 21% of the face leaking30° · 21% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-Rafaello Cubic Zirconia, also twelve-fold, leaks 0% in CZ.

Try it yourself: Tilt it yourself in the simulator's light map

Less light than the T73 in CZ

Brilliance 91 against 98 for the T73 Round Brilliant in cubic zirconia: 7 points lower

In diamond DG-M5 returns 97. CZ costs it light, but the T73 gains light in CZ. Against a baseline at 98, the gap is small but well past our margin.

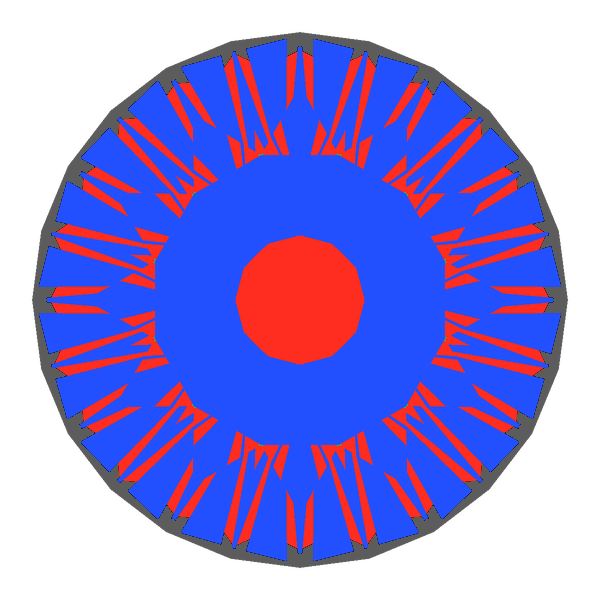

Dg-m5 in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 91)

DG-M5 in cubic zirconia · Brilliance 91

T73 round brilliant in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 98)

T73 Round Brilliant in cubic zirconia · Brilliance 98

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a twelve-fold round in CZ, DG-Rafaello Cubic Zirconia returns 100.

Try it yourself: Open this Light Return map in the simulator

Who a DG-M5 CZ suits

In CZ we would cut DG-M5 only to practice its plan before cutting moissanite. As a finished CZ it trails the T73 on light and on fire.

For a twelve-fold round in CZ, choose DG-Rafaello Cubic Zirconia. It has more light, more fire and finer sparkle. In moissanite, see DG-M5 Moissanite.

Its one-angle pavilion is quick to cut and easy to check, which is the plan's appeal at the wheel.

DG-M5 Cubic Zirconia: questions

Is DG-M5 good for cubic zirconia?

Not our first choice: Brilliance 91 and Fire 73, against 98 and 87 for the T73 in CZ.

Does DG-M5 sparkle more than the T73 in CZ?

A little: scintillation 85 against 80, with 85 facets to the T73's 73.

DG-M5 or DG-Rafaello in CZ?

DG-Rafaello: Brilliance 100 against 91, Fire 87 against 73, and 0% leakage against 9%.

Does DG-M5 leak light in CZ?

Some: 9% of the light in our census, where the T73 lets out 1%. Its single pavilion angle is 41.49°.
