DG-Broken Hearts and Arrows Cubic Zirconia: more fire than in diamond, and more sparkle than the T73

Brilliance 98 · Fire 87 · Scintillation 86 · in our census, where the T73 scores 98 · 87 · 80 in cubic zirconia

This cut is designed specifically for diamond, and its hearts do not form in CZ. Its sixteen crack facets leave the light where the T73 has it: Brilliance 98 against 98, Fire 87 against 87. They raise the facet count, and with it Scintillation.

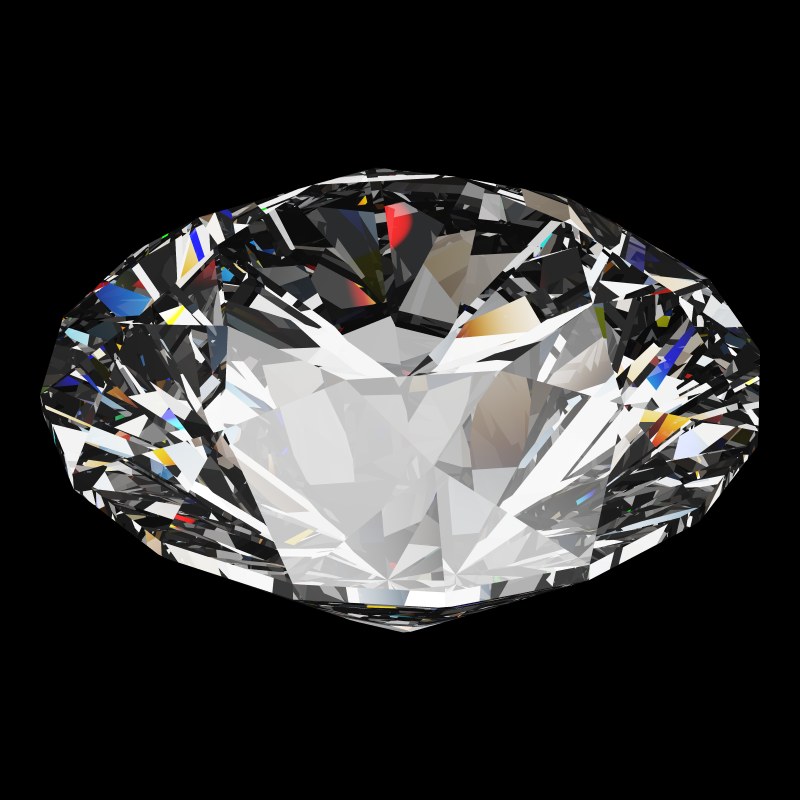

The DG-Broken Hearts and Arrows in cubic zirconia, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Broken Hearts and Arrows model, 1.00 ct, studio light.

DG-Broken Hearts and Arrows Cubic Zirconia

DG-Broken Hearts and Arrows is the T73 round brilliant with sixteen narrow crack facets on the pavilion, in eight pairs. Each pair sits either side of a ridge where two lower girdle halves meet between the mains: 89 facets against the T73's 73. On a 6.5 mm stone each one is a sliver at most 0.067 mm wide and 0.003 mm deep. The rest is the T73: 40.75° mains, 61.7% depth, a 53.0% table and a 34.5° crown.

In our simulated Hearts and Arrows viewer, a diamond shows eight T73-like hearts and arrows that look like the T73's. Each heart has a tapered red crack from its notch about three quarters of the way to its point.

Against the T73 in CZ, Brilliance, Fire and Tilt are level by our margins. The leakage shares in our tilted maps match to within a point at every angle. Scintillation is the one gain. Against the diamond version, CZ gains fire and light and gives up some steadiness when tipped.

Is DG-Broken Hearts and Arrows right for CZ? Pros and cons

Compared with the T73 Round Brilliant in cubic zirconia and with the DG-Broken Hearts and Arrows in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Broken Hearts and Arrows in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Broken Hearts and Arrows in cubic zirconia, against the T73 Round Brilliant in cubic zirconia as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global0Brilliance0Fire0Scintillation+6Spread0Symmetry−1Shape-norm0Tilt+1

Against the T73 Round Brilliant in cubic zirconia: ahead on 2, level on 5, behind on 1.

  • Global93, the comparison 93, difference 0
  • Brilliance98, the comparison 98, difference 0
  • Fire87, the comparison 87, difference 0
  • Scintillation86, the comparison 80, difference +6
  • Spread100, the comparison 100, difference 0
  • Symmetry99, the comparison 100, difference −1
  • Shape-norm106, the comparison 106, difference 0
  • Tilt88, the comparison 87, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What DG-Broken Hearts and Arrows gives cubic zirconia

More fire than the diamond version

Fire 87 against 78 for the DG-Broken Hearts and Arrows in diamond: 9 points higher

The facets are identical in both stones, so the gap comes from the material. CZ spreads light into color more strongly, with a dispersion of 0.060 against diamond's 0.044. Against the T73 in CZ there is no gain, 87 against 87, which our margins call level.

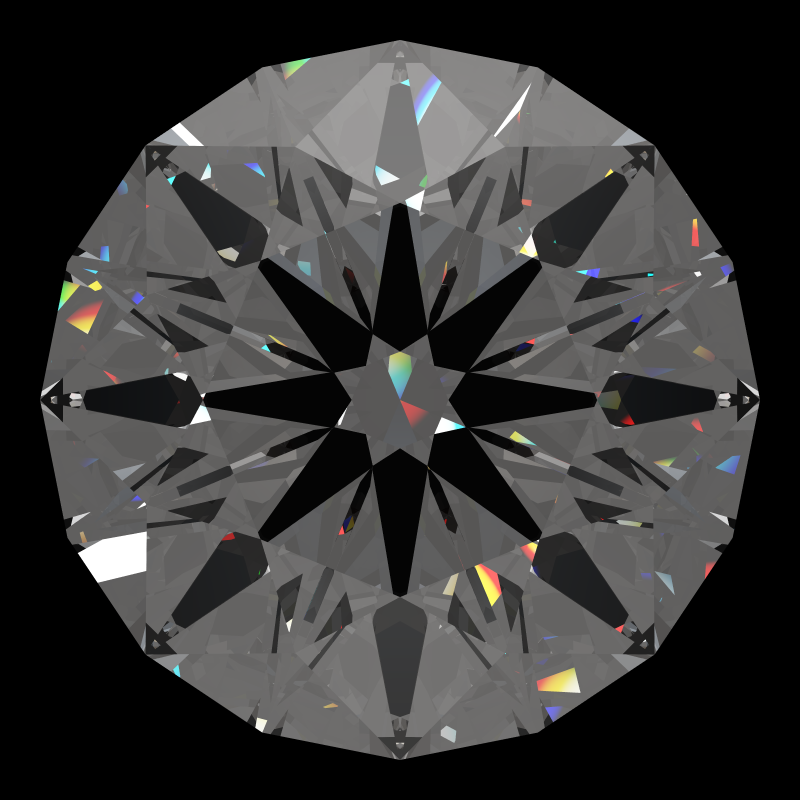

Dg-broken hearts and arrows in cubic zirconia face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 87)

DG-Broken Hearts and Arrows in cubic zirconia · Fire 87

Dg-broken hearts and arrows in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

DG-Broken Hearts and Arrows in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

More sparkle than the T73, on the facet count

Scintillation 86 against 80 for the T73 Round Brilliant in cubic zirconia: 6 points higher

Our scintillation score is a facet-count formula, and the sixteen slivers take the count from 73 to 89. The two crown diagrams look alike, because every added facet is on the pavilion. Only the printed counts differ. The score cannot tell us if slivers this narrow give flashes an eye can pick out.

DG-Broken Hearts and Arrows · 89 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

More light than the same cut in diamond

Brilliance 98 against 93 for the DG-Broken Hearts and Arrows in diamond: 5 points higher

Head-on, the CZ Light Return map shows no gray, while the diamond map loses a little, mostly at the rim. Over the wider cone the census averages, CZ stays ahead. In this stone only DG-Rafaello scores higher.

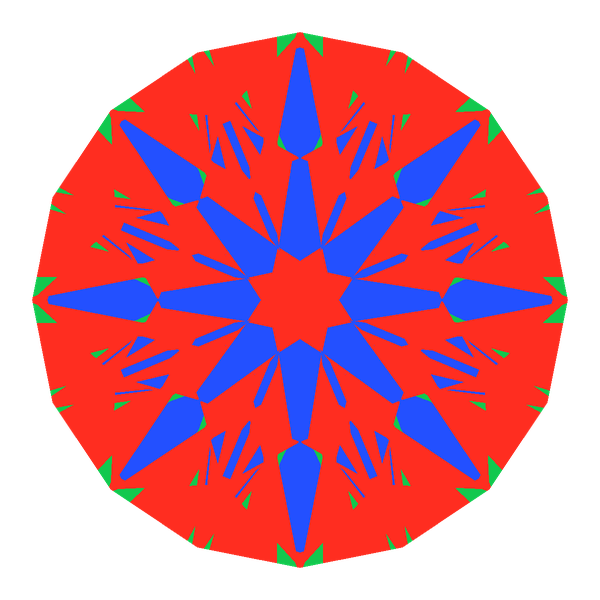

Dg-broken hearts and arrows in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 98)

DG-Broken Hearts and Arrows in cubic zirconia · Brilliance 98

Dg-broken hearts and arrows in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

DG-Broken Hearts and Arrows in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

Where this cut gives ground in CZ

Far heavier than a diamond of the same size

1.66 ct at 6.5 mm, against 1.01 ct for the same cut in diamond (+65%)

CZ's specific gravity is about 5.8 against diamond's 3.52, so a 6.5 mm stone weighs 1.66 ct here and 1.01 ct in diamond.

Cubic Zirconia1.66 ctDiamond1.01 ct
A DG-Broken Hearts and Arrows 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Order it in millimeters, as with any CZ.

Try it yourself: Weights in every gemstone on the DG-Broken Hearts and Arrows page

Less steady than the diamond version when tipped

Tilt 88 against 93 for the DG-Broken Hearts and Arrows in diamond: 5 points lower

In the strips the CZ starts cleaner, and the two stay close through 20°. By 30° the CZ map has clearly more gray. Against the T73 in CZ it gives nothing away, 88 against 87.

DG-Broken Hearts and Arrows in cubic zirconia · Tilt 88

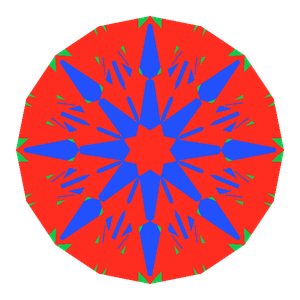

Dg-broken hearts and arrows in cubic zirconia tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

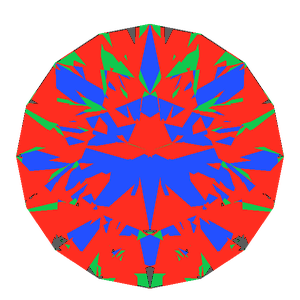

Dg-broken hearts and arrows in cubic zirconia tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak

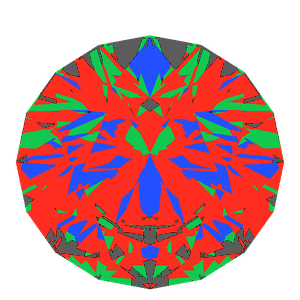

Dg-broken hearts and arrows in cubic zirconia tilted 20 degrees: Light Return map, 8% of the face leaking20° · 8% leak

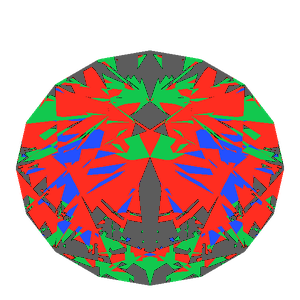

Dg-broken hearts and arrows in cubic zirconia tilted 30 degrees: Light Return map, 21% of the face leaking30° · 21% leak

DG-Broken Hearts and Arrows in diamond · Tilt 93

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Of the CZ rounds that return 97 or more, DG-Miliano Cubic Zirconia stays steadiest when tipped, at 90. The Old European Cut Cubic Zirconia reaches 91 with less light, 92.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-Broken Hearts and Arrows CZ suits

In CZ this is a T73 with sixteen pavilion slivers added, and for light it scores like one. Brilliance, Fire and Tilt are level with the T73 by our margins, with almost no leakage. Choose it to cut in CZ the file you plan for diamond, or to rehearse the crack facets before cutting a diamond.

Do not choose it in CZ for the cracked hearts: that pattern forms in diamond, on DG-Broken Hearts and Arrows Diamond. For the most light in CZ, choose DG-Rafaello Cubic Zirconia (100). For finer sparkle at the T73's light, choose DG-Vitruvio Cubic Zirconia (98 for scintillation). For more fire in a round, choose DG-Miliano Cubic Zirconia (90).

The crack facets go on last, 0.003 mm deep at most on a 6.5 mm stone. In our simulation, angle errors of 0.1° weaken the crack in a diamond. CZ polishes easily, so it suits practice on facets that shallow.

DG-Broken Hearts and Arrows Cubic Zirconia: questions

Do the hearts show in a DG-Broken Hearts and Arrows CZ?

Not in our simulated Hearts and Arrows viewer: in CZ the hearts do not form, cracked or whole. The red crack from notch toward point is a diamond pattern.

DG-Broken Hearts and Arrows or T73 for cubic zirconia?

Level on light: Brilliance 98 against 98, Fire 87 against 87 and Tilt 88 against 87. Scintillation, 86 against 80, is the one gap our margins count.

Does DG-Broken Hearts and Arrows leak light in CZ?

Almost none: 0% in our census, against 1% for the T73 and 0% for DG-Rafaello: level by our margins.

What does a 6.5 mm DG-Broken Hearts and Arrows CZ weigh?

1.66 ct. Cut in diamond, the same stone is 1.01 ct.

Get the DG-Broken Hearts and Arrows Cut files

6 formatsMillimetersWatertight

DG-Broken Hearts and Arrows Cut 3D files

The DG-Broken Hearts and Arrows Cut as exact geometry: 89 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-Broken Hearts and Arrows Cut cutting files

The DG-Broken Hearts and Arrows Cut as a faceting design: 73 + 16 girdles = 89 facets, 96 index, 8-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
