DG-Broken Hearts and Arrows Sapphire: more sparkle than the T73, with the round's light, fire and tilt

Brilliance 95 · Fire 36 · Scintillation 86 · in our census, where the T73 scores 94 · 37 · 80 in sapphire

This cut is designed specifically for diamond. In sapphire, its hearts do not form. Its sixteen crack facets on a T73 pavilion lift our sparkle score to 86, against 80 for the plain round. Light, fire and tilt stay within a point of it.

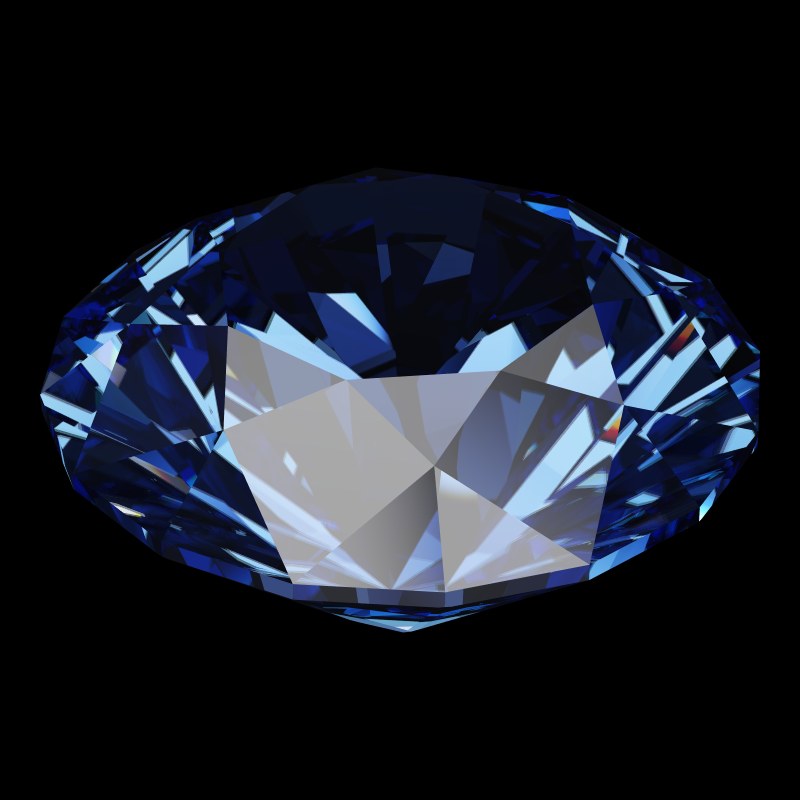

The DG-Broken Hearts and Arrows in sapphire, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Broken Hearts and Arrows model, 1.00 ct, studio light.

DG-Broken Hearts and Arrows Sapphire

DG-Broken Hearts and Arrows is the T73 with sixteen narrow crack facets on the pavilion. They sit in eight pairs, one facet on each side of each heart's axis, at 41.68°. That makes 89 facets on the T73's 53.0% table, 40.75° mains and 61.7% depth. On a 6.5 mm stone, each crack facet is at most about 0.07 mm wide and 0.003 mm deep.

In our simulated Hearts and Arrows viewer, a diamond shows eight T73-like hearts and arrows like the T73's. Each heart has a tapered red crack from its notch most of the way to its point. In sapphire, as in moissanite, cubic zirconia, ruby, emerald and amethyst, the hearts do not form. All four cons below set it against the same cut in diamond.

Should a sapphire be cut as DG-Broken Hearts and Arrows? Pros and cons

Compared with the T73 Round Brilliant in sapphire and with the DG-Broken Hearts and Arrows in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Broken Hearts and Arrows in sapphire (white) against the T73 Round Brilliant in sapphire (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Broken Hearts and Arrows in sapphire, against the T73 Round Brilliant in sapphire as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+1Brilliance+1Fire−1Scintillation+6Spread0Symmetry−1Shape-norm0Tilt+1

Against the T73 Round Brilliant in sapphire: ahead on 4, level on 2, behind on 2.

  • Global80, the comparison 79, difference +1
  • Brilliance95, the comparison 94, difference +1
  • Fire36, the comparison 37, difference −1
  • Scintillation86, the comparison 80, difference +6
  • Spread100, the comparison 100, difference 0
  • Symmetry99, the comparison 100, difference −1
  • Shape-norm102, the comparison 102, difference 0
  • Tilt76, the comparison 75, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What the crack facets add in sapphire

A higher sparkle score than the T73, from sixteen more facets

Scintillation 86 against 80 for the T73 Round Brilliant in sapphire: 6 points higher

Our scintillation score reads the facet plan, not the material: 89 facets against the T73's 73, and the same 86 as in diamond. It does not weigh facet size, and these slivers are under a tenth of a millimeter wide. So we cannot say how much of the gain an eye would catch in a blue stone. The two crown drawings match line for line, because every added facet sits on the pavilion.

DG-Broken Hearts and Arrows · 89 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

What a sapphire gives up against the diamond version

Under half the fire of the diamond version

Fire 36 against 78 for the DG-Broken Hearts and Arrows in diamond: 42 points lower

The same model scores 78 in diamond. In the renders, the diamond scatters small red, yellow and blue flashes across its face. The sapphire stays deep blue, with a few colored glints, most of them near the rim. Corundum disperses light at 0.018 and diamond at 0.044. But our census swaps the whole material at once and does not split the gap by cause.

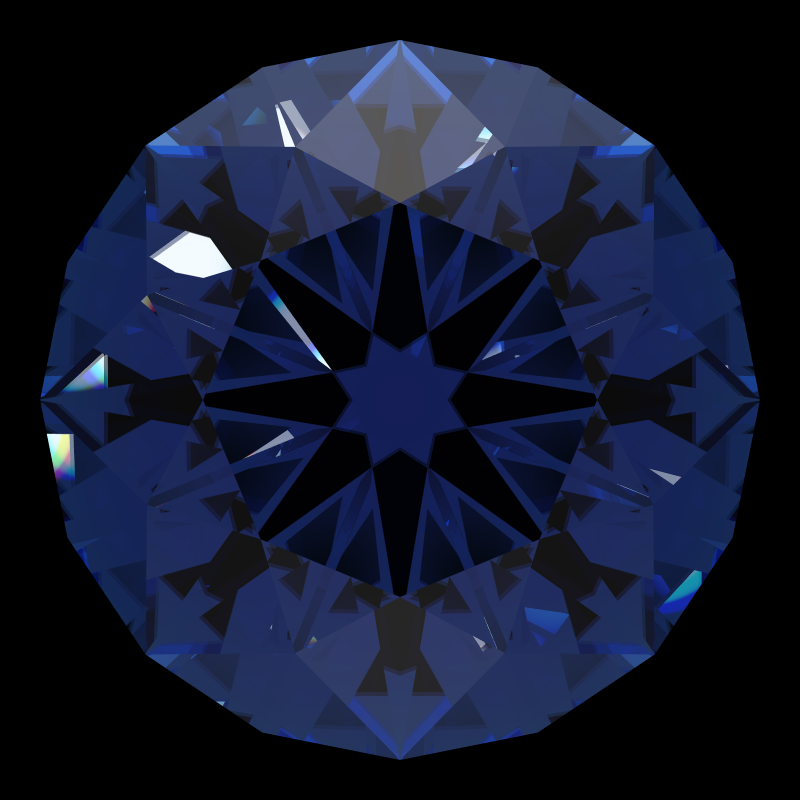

Dg-broken hearts and arrows in sapphire face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 36)

DG-Broken Hearts and Arrows in sapphire · Fire 36

Dg-broken hearts and arrows in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

DG-Broken Hearts and Arrows in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Of the rounds we measure in sapphire, DG-Anteros Sapphire comes closest to the diamond figure, at 43. The Trilliant Cut Sapphire reaches 52 and keeps near a round's light.

Try it yourself: See the fire in the 3D Gemstone Simulator

Holds less of its light at a tilt than in diamond

Tilt 76 against 93 for the DG-Broken Hearts and Arrows in diamond: 17 points lower

In the strip, the sapphire's gray covers about a tenth of the face at 10°. At 20° it covers over a quarter, and a broad gray patch opens just below the center. The diamond's gray stays under a tenth through 20°. A critical angle of 34.6°, against 24.4° in diamond, lets more light out once a corundum stone tips.

DG-Broken Hearts and Arrows in sapphire · Tilt 76

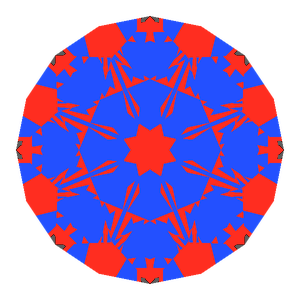

Dg-broken hearts and arrows in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
Dg-broken hearts and arrows in sapphire tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak

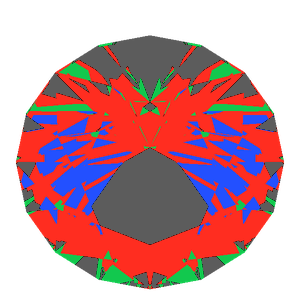

Dg-broken hearts and arrows in sapphire tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak

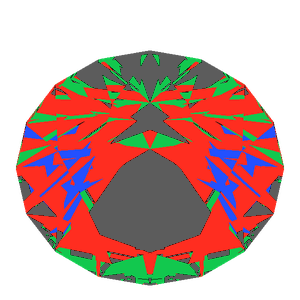

Dg-broken hearts and arrows in sapphire tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak

DG-Broken Hearts and Arrows in diamond · Tilt 93

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: For a steadier stone at a tilt, DG-Miliano Sapphire scores 83, at 90 brilliance. That is the best of the sapphire rounds that keep near the T73's light.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Heavier than the diamond version

1.15 ct at 6.5 mm, against 1.01 ct for the same cut in diamond (+14%)

Corundum's specific gravity is 4.00 to diamond's 3.52: 1.15 ct against 1.01 ct for a stone 6.5 mm across.

Sapphire1.15 ctDiamond1.01 ct
A DG-Broken Hearts and Arrows 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose it by width, not carats. The outline is the diamond version's, and the stone is denser.

Try it yourself: Weights in every gemstone on the DG-Broken Hearts and Arrows page

More light lost through the pavilion than in diamond

Leakage 5 against 2 for the DG-Broken Hearts and Arrows in diamond: 3 points higher

The T73 in sapphire also rounds to 5%, so the sixteen crack facets neither add to the loss nor cure it. In the 0° frames, neither map shows much gray. The census figure averages a wider cone of light, and the gap opens in the strip as the stone tips.

DG-Broken Hearts and Arrows in sapphire · Leakage 5

Dg-broken hearts and arrows in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
Dg-broken hearts and arrows in sapphire tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
Dg-broken hearts and arrows in sapphire tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
Dg-broken hearts and arrows in sapphire tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak

DG-Broken Hearts and Arrows in diamond · Leakage 2

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The pavilion already sits at 40.75°, above sapphire's 36.4° guide minimum, so steepening is not the answer. DG-M5 Sapphire leaks less, 0%.

Try it yourself: Tilt it yourself in the simulator's light map

Who should cut a sapphire this way

In sapphire this cut performs like the T73, within a point on light, fire, tilt and leakage. Its sixteen extra facets lift our sparkle score from 80 to 86. It suits a buyer who wants one design across a matched diamond and sapphire.

Otherwise, the T73 Round Brilliant Sapphire gives a point less light, 94. It has sixteen fewer facets to cut. DG-M5 Sapphire returns more, 100, and DG-Vitruvio Sapphire scores 98 for sparkle. For the cracked hearts themselves, see DG-Broken Hearts and Arrows Diamond.

DG-Broken Hearts and Arrows Sapphire: questions

Does a DG-Broken Hearts and Arrows sapphire show hearts?

No. In our simulated Hearts and Arrows viewer the hearts, and the red crack in each, form only in diamond.

Is DG-Broken Hearts and Arrows better than the T73 for sapphire?

For sparkle, by our margins: Scintillation 86 against 80. Everywhere else it matches the round within a point: Brilliance 95 against 94, Fire 36 against 37, Tilt 76 against 75, leakage 5% against 5%.

What does a 6.5 mm DG-Broken Hearts and Arrows sapphire weigh?

1.15 ct; the diamond version of that width weighs 1.01 ct.
