Old Single Cut Sapphire: an eight cut that leaks half its light

Brilliance 36 · Fire 9 · Scintillation 44 · in our census, where the T73 scores 94 · 37 · 80 in sapphire

In sapphire the eight cut lets 54% of its light out of the back, the most of the historic cuts we measure.

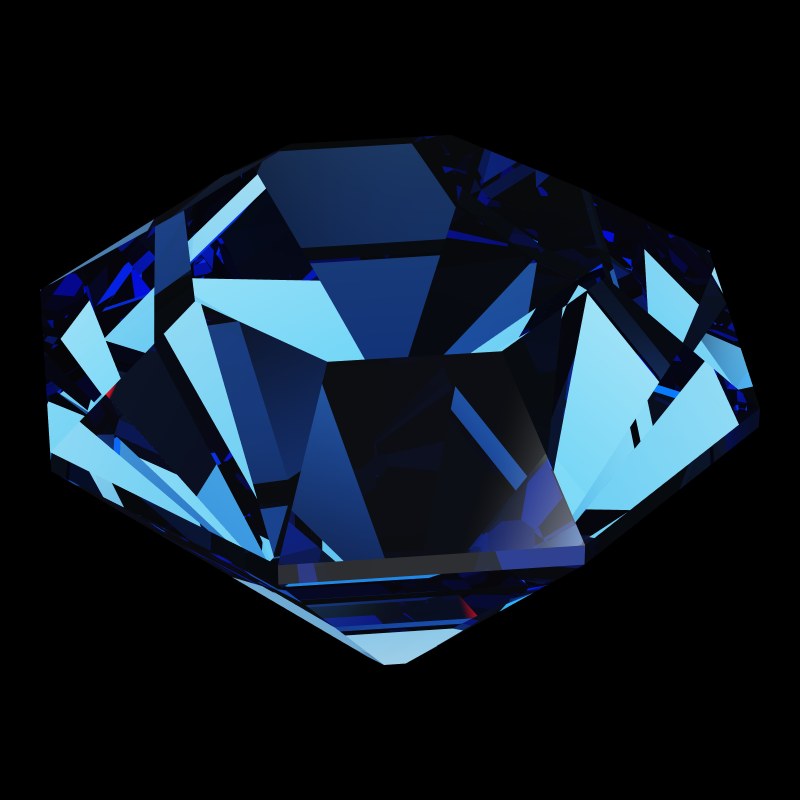

The Old Single Cut in sapphire, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Single Cut model, 1.00 ct, studio light.

Old Single Cut Sapphire

Sapphire bends light far less than diamond: its critical angle is about 34.6°, against 24.4° for diamond. Light inside the stone must strike a facet at a more glancing angle for the facet to reflect it. In the Old Single, much of it does not: over half leaks through the pavilion.

Its fire, 9, is the lowest of any cut we measure in sapphire, and its light is among the lowest. We include it so that you can compare its numbers with the other cuts we measure in sapphire.

Is sapphire good in an Old Single cut? Pros and cons

Pros

None that we measure.

Compared with the T73 Round Brilliant in sapphire and with the Old Single Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Single Cut in sapphire (white) against the T73 Round Brilliant in sapphire (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Single Cut in sapphire, against the T73 Round Brilliant in sapphire as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−30Brilliance−58Fire−28Scintillation−36Spread−3Symmetry0Shape-norm−63Tilt+25

Against the T73 Round Brilliant in sapphire: ahead on 1, level on 1, behind on 6.

  • Global49, the comparison 79, difference −30
  • Brilliance36, the comparison 94, difference −58
  • Fire9, the comparison 37, difference −28
  • Scintillation44, the comparison 80, difference −36
  • Spread97, the comparison 100, difference −3
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm39, the comparison 102, difference −63
  • Tilt100, the comparison 75, difference +25
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What sapphire gains in an Old Single cut

By our margins, no score counts as a pro for an Old Single in sapphire. Its Tilt is at the top of the scale, 100. But that is the share of very little light that it keeps when tilted: its brilliance is 36. The case for it is color and the historic outline, which we do not measure.

Why the Old Single struggles in sapphire

Almost no fire

Fire 9 against 84 for the Old Single Cut in diamond: 75 points lower

The same cut scores 84 for fire in diamond and 9 in sapphire. Corundum's dispersion, 0.018, is under half of diamond's. But the fall here is far steeper than that, and the census does not split it by cause.

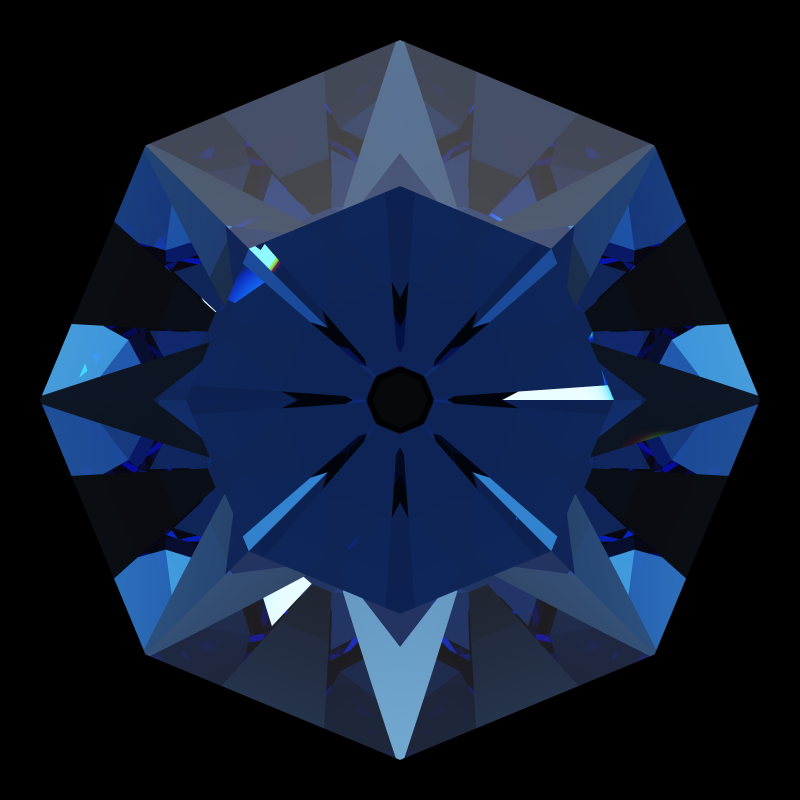

Old single cut in sapphire face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 9)

Old Single Cut in sapphire · Fire 9

Old single cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Old Single Cut in diamond · Fire 84

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Of the cuts that keep near a round's light, the Trilliant Cut Sapphire reaches 52. Even the T73 scores 37 against 9 here.

Try it yourself: See the fire in the 3D Gemstone Simulator

Little light back to the eye

Brilliance 36 against 94 for the T73 Round Brilliant in sapphire: 58 points lower

The face-up map is mostly gray, and the gray is light that leaves through the pavilion.

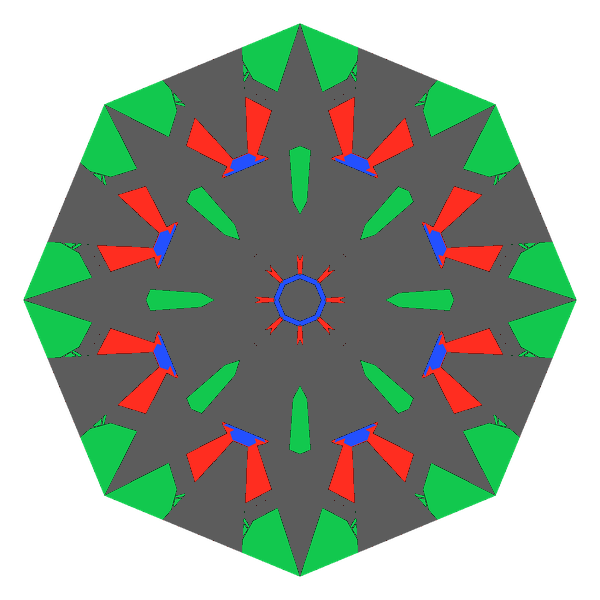

Old single cut in sapphire face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 36)

Old Single Cut in sapphire · Brilliance 36

T73 round brilliant in sapphire face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in sapphire · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: In sapphire the T73 Round Brilliant returns 94, DG-Anteros returns 97 and DG-M5 returns 100.

Try it yourself: Open this Light Return map in the simulator

Half the light leaks

Leakage 54 against 5 for the T73 Round Brilliant in sapphire: 49 points higher

In our census the pavilion loses 54% of the light. The T73 loses 5% in sapphire. The strip stays about half gray or more at every angle.

Old Single Cut in sapphire · Leakage 54

Old single cut in sapphire tilted 0 degrees: Light Return map, 71% of the face leaking0° · 71% leak

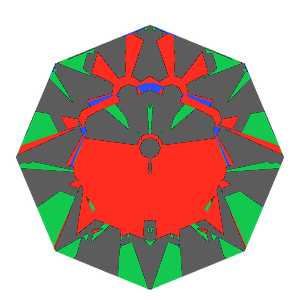

Old single cut in sapphire tilted 10 degrees: Light Return map, 48% of the face leaking10° · 48% leak

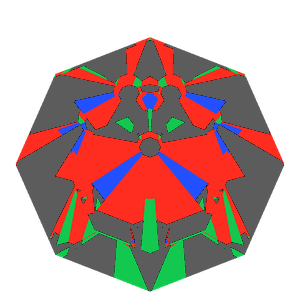

Old single cut in sapphire tilted 20 degrees: Light Return map, 48% of the face leaking20° · 48% leak

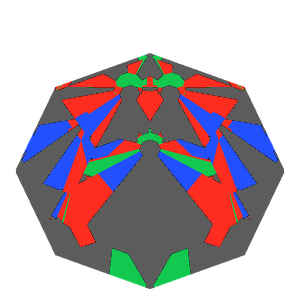

Old single cut in sapphire tilted 30 degrees: Light Return map, 53% of the face leaking30° · 53% leak

T73 Round Brilliant in sapphire · Leakage 5

T73 round brilliant in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in sapphire tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in sapphire tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in sapphire tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The mains already sit at 48.48°, well above sapphire's guide minimum of 36.4°. We have not measured a steeper Old Single. A different cut does better: DG-Anteros leaks 3% in sapphire.

Try it yourself: Tilt it yourself in the simulator's light map

Few flashes

Scintillation 44 against 80 for the T73 Round Brilliant in sapphire: 36 points lower

It has 26 facets against the T73's 73.

Old Single Cut · 26 facets · Scintillation 44

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: The facet plan sets it. The Old European Cut Sapphire has 81.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who an Old Single sapphire suits

We would not choose an Old Single for a sapphire that must be bright. It may suit a small, deep-colored accent where the outline matters more than light.

For a round sapphire, choose the T73 Round Brilliant or DG-Anteros. For a historic round, choose the Old European Cut Sapphire, which leaks 22% against 54% here.

Old Single Cut Sapphire: questions

Is the Old Single a good cut for sapphire?

Not in our census: Brilliance 36 against 94 for the T73 in sapphire, and 54% of the light leaking.

Why does an Old Single sapphire look dark?

Sapphire's critical angle is about 34.6°. So light passes out through facets that would reflect it in diamond. Here 54% leaks, against 19% in diamond.

Which round cut works best in sapphire?

Of the cuts we sell, DG-M5 (100) and DG-Anteros (97) return the most light in sapphire. Next is DG-Broken Hearts and Arrows (95). Then come the T73, the T57 and DG-Vitruvio, level at 94.

Does an Old Single sapphire show its color well?

We do not measure color. Our renders use a medium-tone blue, and the leaking areas read darker. Whether that suits a stone is the cutter's call.
