Old Single Cut Emerald: lighter in weight than diamond, but second-lowest for light in this stone

Brilliance 17 · Fire 32 · Scintillation 44 · in our census, where the T73 scores 78 · 39 · 80 in emerald

An Old Single in emerald loses three-quarters of its light through the pavilion. The same cut in diamond loses 19%. Brilliance is 17 against the T73's 78.

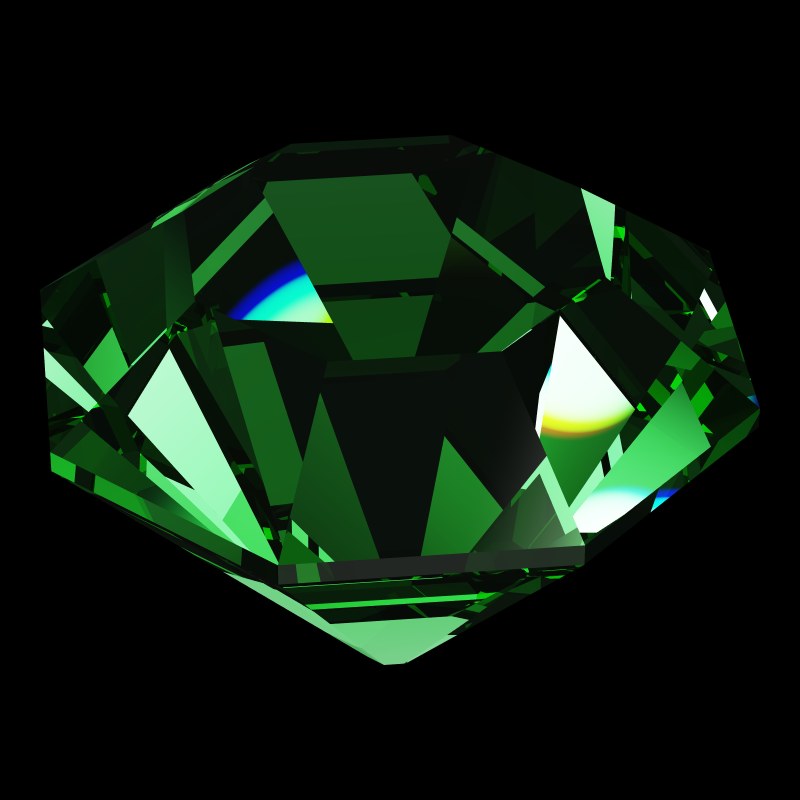

The Old Single Cut in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Single Cut model, 1.00 ct, studio light.

Old Single Cut Emerald

The single cut is an octahedron with its top ground away and its corners beveled: one crown angle, one pavilion angle. Our model has a 57.5% table, a 40.0° crown and a 48.48° pavilion, and it is 67.5% deep.

In diamond this plan returns 72. In emerald the census gives Brilliance 17. Of every cut we measure in emerald, only DG-Bowtie returns less. The pavilion is far above the 39.4° guide minimum, so a shallow pavilion is not the cause. With so few large facets, light gets few chances to turn back up.

Can an emerald work as an Old Single cut? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the Old Single Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Single Cut in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Single Cut in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−28Brilliance−61Fire−7Scintillation−36Spread−3Symmetry0Shape-norm−66Tilt+23

Against the T73 Round Brilliant in emerald: ahead on 1, level on 1, behind on 6.

  • Global45, the comparison 73, difference −28
  • Brilliance17, the comparison 78, difference −61
  • Fire32, the comparison 39, difference −7
  • Scintillation44, the comparison 80, difference −36
  • Spread97, the comparison 100, difference −3
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm18, the comparison 84, difference −66
  • Tilt100, the comparison 77, difference +23
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in an Old Single cut

Lighter than an eight-cut diamond

0.81 ct at 6.5 mm, against 1.05 ct for the same cut in diamond (−23%)

The single cut is deep, 67.5%, so it is a heavy stone for its width. Emerald makes it lighter. At 6.5 mm it weighs 0.81 ct, against 1.05 ct in diamond.

Emerald0.81 ctDiamond1.05 ct
A Old Single Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Old Single Cut page

Where the Old Single falls short in emerald

A small fraction of the T73's light

Brilliance 17 against 78 for the T73 Round Brilliant in emerald: 61 points lower

17 against 78: less than a quarter. The same cut in diamond returns 72, so here the pairing fails, not the plan alone.

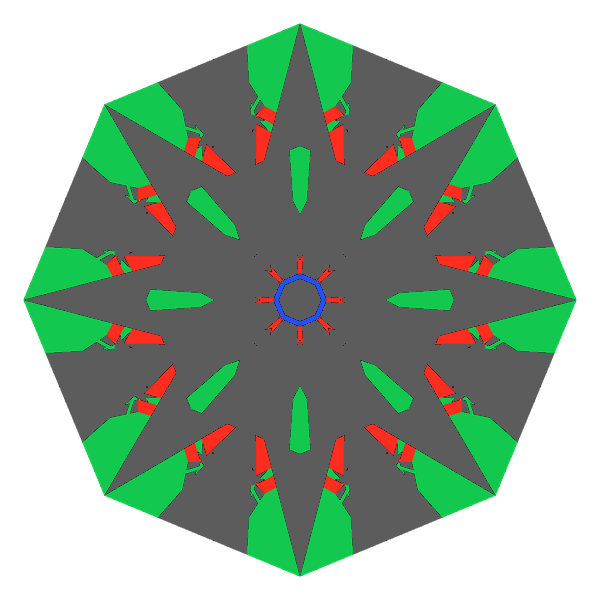

Old single cut in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 17)

Old Single Cut in emerald · Brilliance 17

T73 round brilliant in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 78)

T73 Round Brilliant in emerald · Brilliance 78

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: In emerald, the Old European Cut Emerald keeps an antique round at 64. DG-M5 Emerald returns 90.

Try it yourself: Open this Light Return map in the simulator

Three-quarters of the light leaks

Leakage 75 against 19 for the Old Single Cut in diamond: 56 points higher

75% of the light in our census leaves through the pavilion, about four times the diamond version's 19%.

Old Single Cut in emerald · Leakage 75

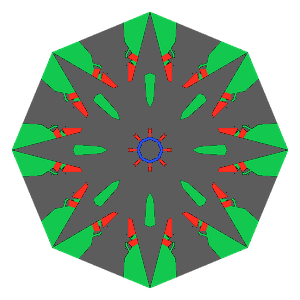

Old single cut in emerald tilted 0 degrees: Light Return map, 69% of the face leaking0° · 69% leak

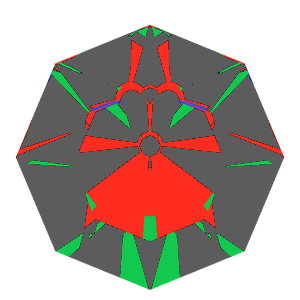

Old single cut in emerald tilted 10 degrees: Light Return map, 68% of the face leaking10° · 68% leak

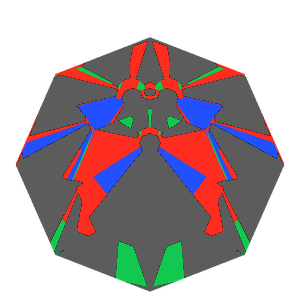

Old single cut in emerald tilted 20 degrees: Light Return map, 64% of the face leaking20° · 64% leak

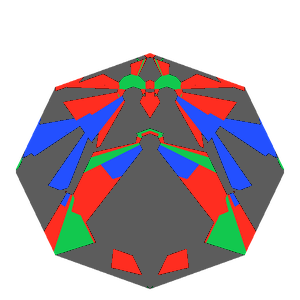

Old single cut in emerald tilted 30 degrees: Light Return map, 56% of the face leaking30° · 56% leak

Old Single Cut in diamond · Leakage 19

Old single cut in diamond tilted 0 degrees: Light Return map, 23% of the face leaking0° · 23% leak
Old single cut in diamond tilted 10 degrees: Light Return map, 19% of the face leaking10° · 19% leak
Old single cut in diamond tilted 20 degrees: Light Return map, 27% of the face leaking20° · 27% leak
Old single cut in diamond tilted 30 degrees: Light Return map, 35% of the face leaking30° · 35% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A steeper pavilion is not the answer: at 48.48° the mains are already about nine degrees past emerald's 39.4° guide minimum. A different plan is the answer: the Old European Cut Emerald leaks 36%.

Try it yourself: Tilt it yourself in the simulator's light map

Little fire, below even the T73 in emerald

Fire 32 against 84 for the Old Single Cut in diamond: 52 points lower

Our fire score is the share of the returned light that splits into color. So it does not mark a dim stone down for being dim. This one scores 32, against 84 for the diamond version and the T73's 39 in emerald.

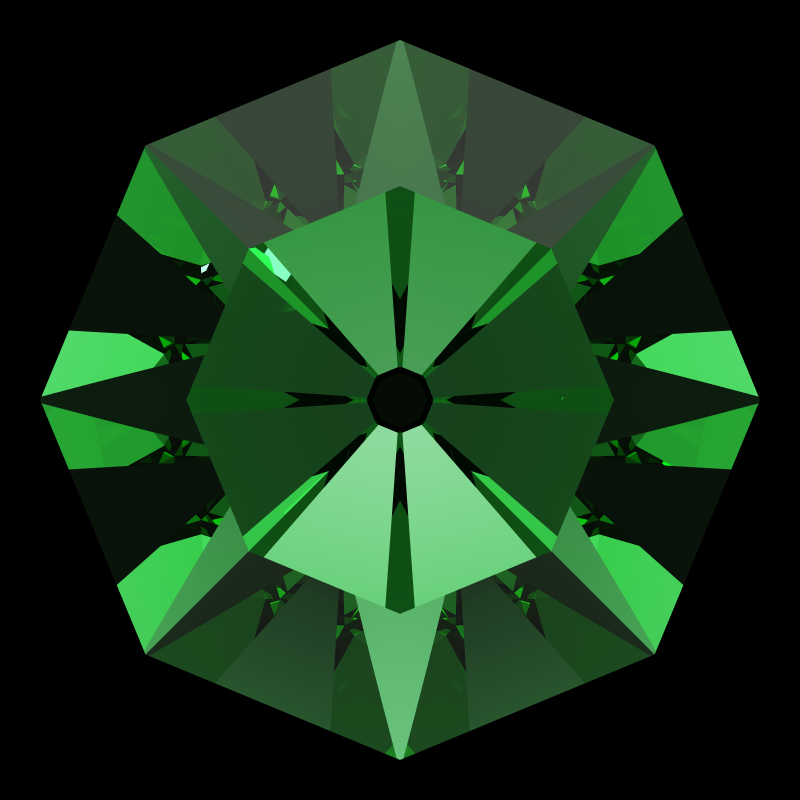

Old single cut in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 32)

Old Single Cut in emerald · Fire 32

Old single cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Old Single Cut in diamond · Fire 84

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Few, large flashes

Scintillation 44 against 80 for the T73 Round Brilliant in emerald: 36 points lower

With 26 facets against the T73's 73, the stone shows a slow, broad flash pattern. The score is the same in any stone.

Old Single Cut · 26 facets · Scintillation 44

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: Only more facets change this. An antique round with them: the Old European Cut Emerald, at 81.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who an Old Single emerald suits

For light, we do not recommend an Old Single in emerald. The site's cut notes say the eight cut still serves for a tiny accent stone. If you want the plan for one, expect a dark, glassy face.

For an antique round in emerald, choose the Old European Cut Emerald. For a round with light, choose DG-M5 Emerald or the T73 Round Brilliant Emerald.

Old Single Cut Emerald: questions

Is the Old Single a good cut for emerald?

No, in our census: Brilliance 17 against 78 for the T73, and 75% of the light leaking through the pavilion.

How much light does an Old Single emerald lose?

In our census 75% gets out through the back. The same cut in diamond loses 19%.

Does an Old Single emerald keep its light when tilted?

It scores 100 for Tilt, the maximum. But Tilt measures the share of its own face-up light that it keeps, and here that light is small: Brilliance 17.
