Octagon Cut Emerald: nearly the light of the diamond octagon, for less weight
Brilliance 69 · Fire 34 · Scintillation 66 · in our census, where the T73 scores 78 · 39 · 80 in emerald
Eight sides and a stepped crown over a tiered pavilion. In emerald the octagon returns nearly as much light as in diamond, more than any other step-cut outline we measure here.

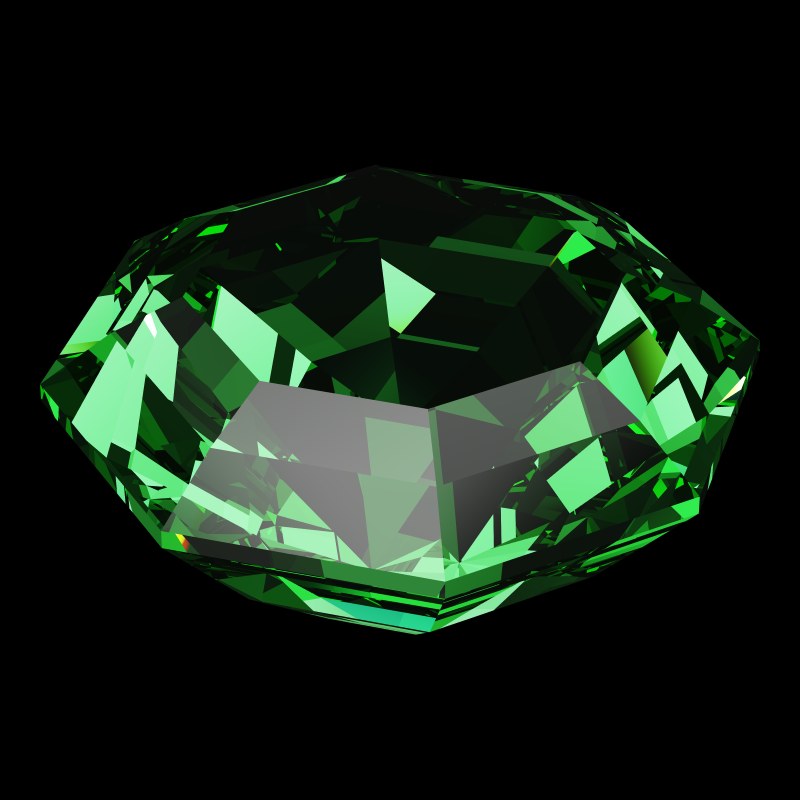

Rendered in our 3D Gemstone Simulator from the Octagon Cut model, 1.00 ct, studio light.
Octagon Cut Emerald
Our octagon has eight equal sides, a stepped crown and a pavilion in three tiers. The model has 49 facets, a 60.0% table and a 39.8° crown over a pavilion figure of 29.3°, and it stands 61.0% deep.
In emerald it returns 69, against 71 for the same octagon in diamond. That is one of the smallest gaps between the two stones that we measure. The Emerald Cut, Asscher, Emerald Square, baguette and rectangle all return less in emerald.
We set three of its four cons against the diamond octagon, and the fourth, Scintillation, against the T73. Brilliance, 69 against 78 for the T73, also clears our margin. But we show only the four largest cons, and it comes fifth, ahead of Face-up size (95 against 100).
Compared with the T73 Round Brilliant in emerald and with the Octagon Cut in diamond.
A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation,
Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within
5 points of the brilliance it is compared with. How we measure.
All eight scores against the T73
At a glance: the Octagon Cut in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where
it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.
Against the T73 Round Brilliant in emerald: ahead on 2, level on 2, behind on 4.
Global67, the comparison 73, difference −6
Brilliance69, the comparison 78, difference −9
Fire34, the comparison 39, difference −5
Scintillation66, the comparison 80, difference −14
Spread100, the comparison 100, difference 0
Symmetry100, the comparison 100, difference 0
Shape-norm90, the comparison 84, difference +6
Tilt83, the comparison 77, difference +6
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.
0.95 ct at 6.5 mm, against 1.23 ct for the same cut in diamond (−23%)
Six and a half millimeters across, our octagon weighs 0.95 ct in emerald and 1.23 ct in diamond. Of the two materials, beryl is the less dense, 2.72 against 3.52.
A Octagon Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.
Fire 34 against 76 for the Octagon Cut in diamond: 42 points lower
34 against 76. The plan is identical, so the gap is the stone's. It sits a few points below the T73 in emerald as well, 39.

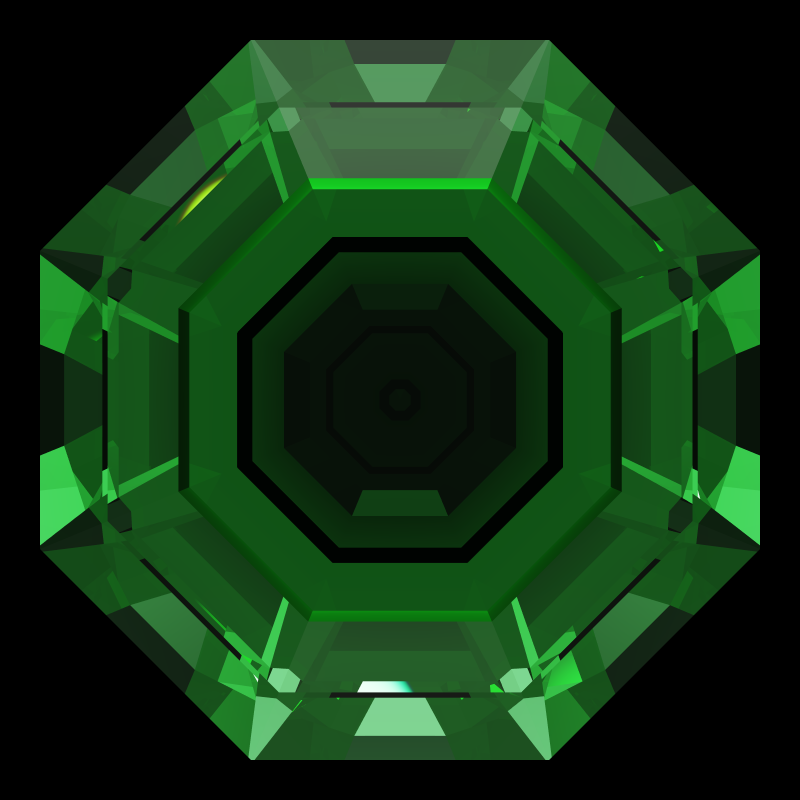

Octagon Cut in emerald · Fire 34
Octagon Cut in diamond · Fire 76
Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.
What helps: This is emerald. For more color with light to match, DG-Anteros Emerald scores 52 at 86 brilliance, though as a round.
Steadier than a round, not as steady as in diamond
Tilt 83 against 97 for the Octagon Cut in diamond: 14 points lower
Tipped by 20°, the emerald octagon keeps 83 of its face-up light, more than the T73's 77 in emerald. Of the cuts within 10 points of the T73's brilliance here, only the square brilliant keeps more, 85. The T105 keeps as much, 83. The diamond octagon keeps 97.
Octagon Cut in emerald · Tilt 83

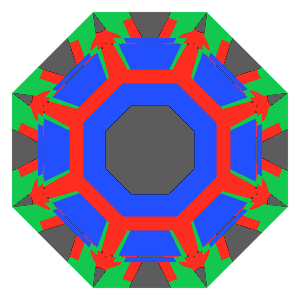

0° · 20% leak

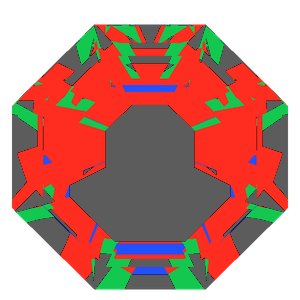

10° · 38% leak

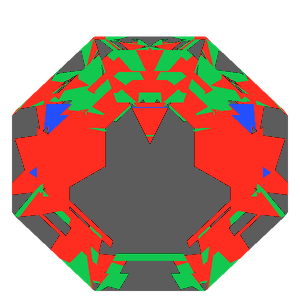

20° · 38% leak

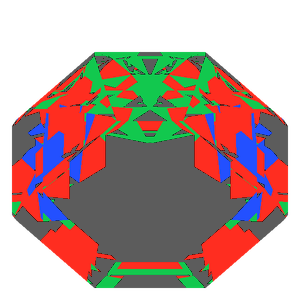

30° · 41% leak
Octagon Cut in diamond · Tilt 97
0° · 23% leak
10° · 15% leak
20° · 19% leak
30° · 23% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.
Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.
Leakage 31 against 18 for the Octagon Cut in diamond: 13 points higher
31% against 18% for the diamond octagon, and 22% for the T73 in emerald. Even so, it is the lowest leakage of the step cuts we measure in emerald.
Octagon Cut in emerald · Leakage 31
0° · 20% leak
10° · 38% leak
20° · 38% leak
30° · 41% leak
Octagon Cut in diamond · Leakage 18
0° · 23% leak
10° · 15% leak
20° · 19% leak
30° · 23% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.
What helps: We have not measured a steeper octagon and promise nothing from one. For less leakage in emerald, DG-M5 Emerald loses 10%.
Of the step-cut outlines we measure in emerald, our numbers favor this one. It has the most light, the least leakage and a steady stone when tipped. It suits a geometric center stone where emerald's color should read clearly.
For more sparkle and still more light, choose a round such as DG-M5 Emerald. For a rectangular step cut, choose the Emerald Cut Emerald, with less light.
Octagon Cut Emerald: questions
Is an octagon cut good for emerald?
Yes, as step cuts go: Brilliance 69 against 78 for the T73, 31% leakage and Tilt 83.
Octagon or emerald cut for an emerald?
Against the Emerald Cut, the octagon returns more light (69 against 58) and leaks less (31% against 35%). It also holds far steadier when tipped (83 against 52). The Emerald Cut faces up larger per carat and sparkles a little more.
Does an octagon emerald have fire?
Not much: 34, against 39 for the T73 in emerald and 76 for the octagon in diamond.
What does a 6.5 mm octagon emerald weigh?
0.95 ct by our model's volume. The diamond equivalent weighs 1.23 ct.
