Trillion Cut Emerald: a shallow triangle, lighter than diamond at the same width

Brilliance 63 · Fire 48 · Scintillation 80 · in our census, where the T73 scores 78 · 39 · 80 in emerald

A shallow three-sided brilliant: lighter than a diamond of its width, level with a round for face per carat, and dimmer than the T73.

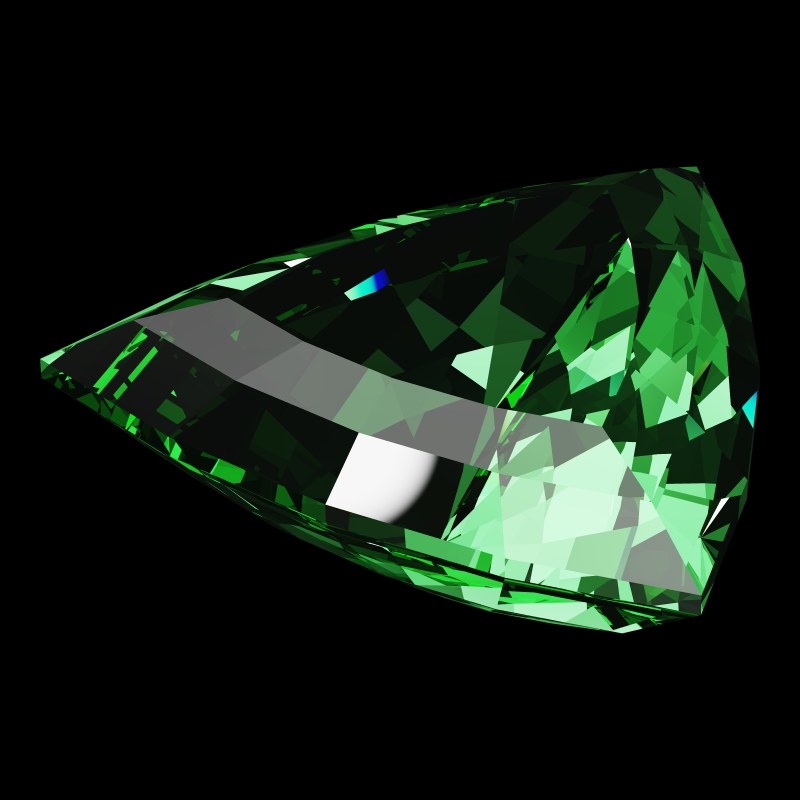

The Trillion Cut in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Trillion Cut model, 1.00 ct, studio light.

Trillion Cut Emerald

The trillion's sides bow gently outward. Our model is only 50.7% deep, with a 56.6% table, a 36.0° crown, a 31.91° pavilion and 73 facets.

For all its shallow depth, it shows no more face for its weight than the T73. Measured from each model's outline, the figures are 100 against 100. Three sides enclose less area than a circle of the same width, and that uses up what the low depth saves. The wheel's Spread, an estimate from depth alone, reads 107, and it cannot see the outline.

It also holds its light well when tipped, 86, but from Brilliance 63, so we do not count that as a pro. The pavilion is far below the 39.4° guide minimum for rounds. For a triangle, that guide is only a rough reference.

Trillion cut emerald: a good idea? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the Trillion Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Trillion Cut in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Trillion Cut in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−3Brilliance−15Fire+9Scintillation0Spread+7Symmetry0Shape-norm−10Tilt+9

Against the T73 Round Brilliant in emerald: ahead on 3, level on 2, behind on 3.

  • Global70, the comparison 73, difference −3
  • Brilliance63, the comparison 78, difference −15
  • Fire48, the comparison 39, difference +9
  • Scintillation80, the comparison 80, difference 0
  • Spread107, the comparison 100, difference +7
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm74, the comparison 84, difference −10
  • Tilt86, the comparison 77, difference +9
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in a trillion cut

Lighter than a diamond trillion

0.62 ct at 6.5 mm, against 0.80 ct for the same cut in diamond (−23%)

Shallow and light: a trillion 6.5 mm wide weighs 0.62 ct in emerald and 0.80 ct in diamond. Of every cut we measure in emerald, only our Triangle cut weighs less at that width.

Emerald0.62 ctDiamond0.80 ct
A Trillion Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Trillion Cut page

The catch with a trillion emerald

Much less fire than in diamond

Fire 48 against 87 for the Trillion Cut in diamond: 39 points lower

48 against 87 for a diamond trillion. It is still above the T73 in emerald, 39.

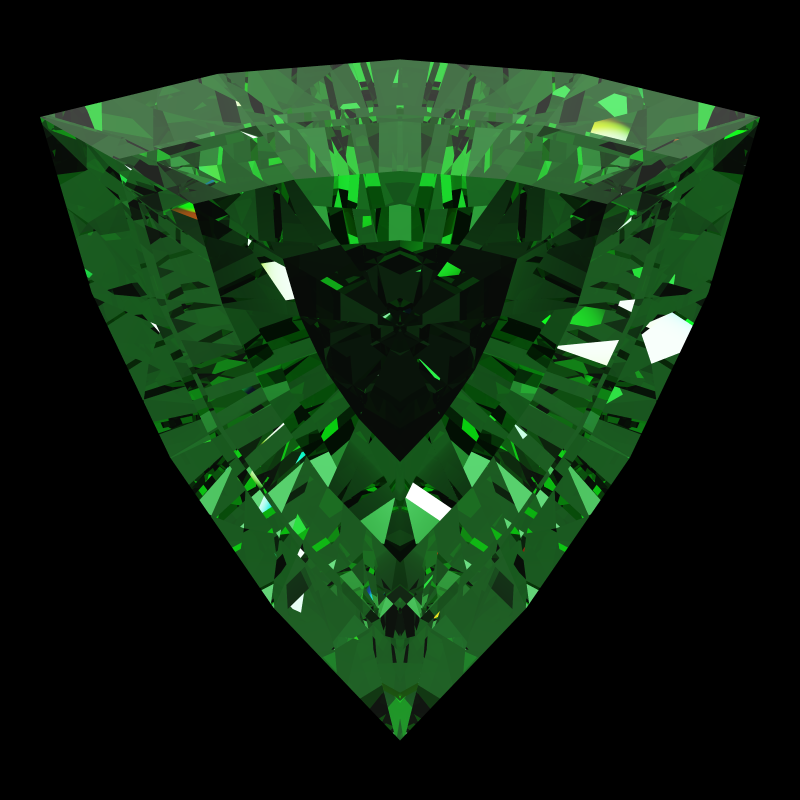

Trillion cut in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 48)

Trillion Cut in emerald · Fire 48

Trillion cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 87)

Trillion Cut in diamond · Fire 87

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Less light than a round emerald

Brilliance 63 against 78 for the T73 Round Brilliant in emerald: 15 points lower

63 against 78. A 31.91° pavilion is far shallower than emerald's 39.4° critical angle, and some head-on light passes through it.

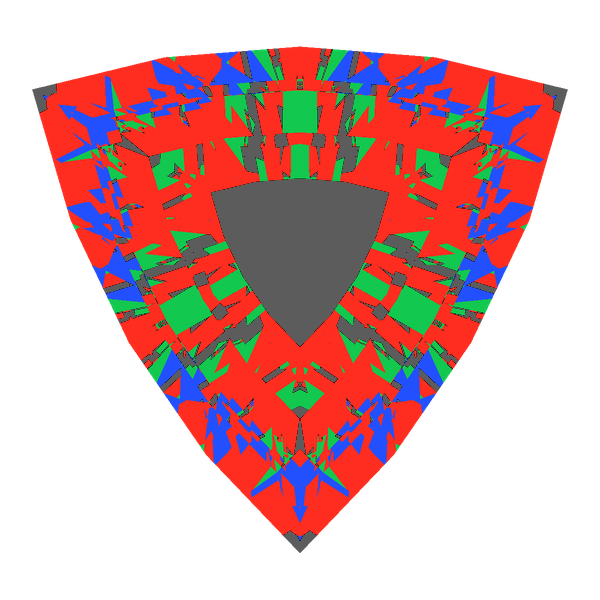

Trillion cut in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 63)

Trillion Cut in emerald · Brilliance 63

T73 round brilliant in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 78)

T73 Round Brilliant in emerald · Brilliance 78

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a triangle with more light, the Trilliant Cut Emerald returns 68. It is deeper, and it faces up smaller for its weight, at 93.

Try it yourself: Open this Light Return map in the simulator

Twice the diamond trillion's leakage

Leakage 27 against 13 for the Trillion Cut in diamond: 14 points higher

27% of the light in our census leaves through the pavilion, against 13% in diamond.

Trillion Cut in emerald · Leakage 27

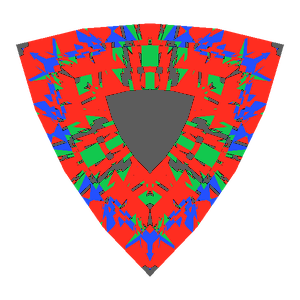

Trillion cut in emerald tilted 0 degrees: Light Return map, 18% of the face leaking0° · 18% leak

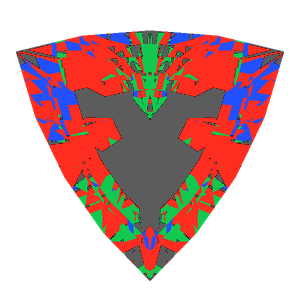

Trillion cut in emerald tilted 10 degrees: Light Return map, 28% of the face leaking10° · 28% leak

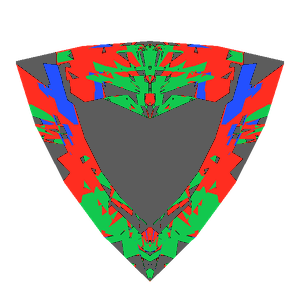

Trillion cut in emerald tilted 20 degrees: Light Return map, 41% of the face leaking20° · 41% leak
Trillion cut in emerald tilted 30 degrees: Light Return map, 55% of the face leaking30° · 55% leak

Trillion Cut in diamond · Leakage 13

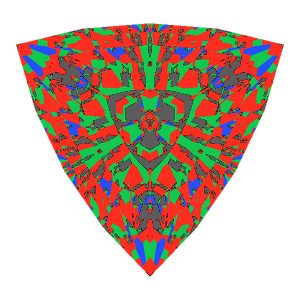

Trillion cut in diamond tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak

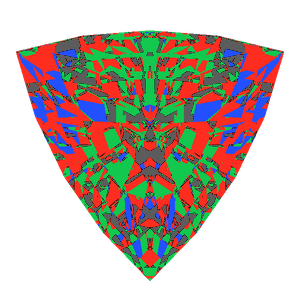

Trillion cut in diamond tilted 10 degrees: Light Return map, 17% of the face leaking10° · 17% leak

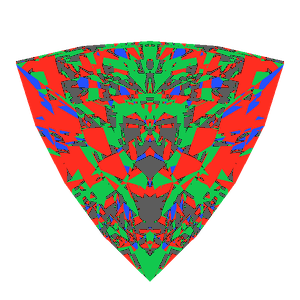

Trillion cut in diamond tilted 20 degrees: Light Return map, 19% of the face leaking20° · 19% leak

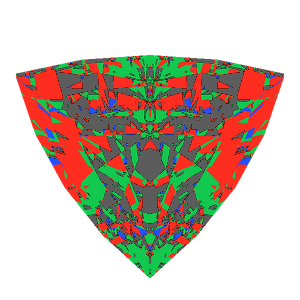

Trillion cut in diamond tilted 30 degrees: Light Return map, 29% of the face leaking30° · 29% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: We have not measured a steeper trillion. Measured alternatives in emerald: DG-M5 Emerald leaks 10%, the Cushion Cut Emerald 25%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a trillion emerald suits

Choose a trillion in emerald for its triangular outline, or for a pair of side stones, where its low weight at a given width helps. Do not choose it for size: carat for carat, it faces up level with a round.

For more light, choose the Trilliant Cut Emerald or a round, DG-M5 Emerald. For a larger face per carat, choose an elongated cut: the Teardrop Cut Emerald at 116, the Marquise Cut Emerald at 121.

Trillion Cut Emerald: questions

Does a trillion emerald look bigger?

Not for its weight: its face-up size, measured from the model, is 100, level with the T73's 100. Matched by width, it is the lighter stone, 0.62 ct at 6.5 mm.

Is a trillion cut good for emerald?

As a stone that weighs little for its width, yes. For light it trails the round: Brilliance 63 against 78.

Trillion or trilliant for an emerald?

Of the two, the trilliant returns a little more light (68 against 63). The trillion faces up larger for its weight (100 against 93) and has a fully regular pavilion (Symmetry 100 against 62).

Does a trillion emerald hold its light when tilted?

Well: it keeps 86 of its face-up light at 20°, against 77 for the T73 in emerald. With Brilliance 63, that is a steady share of a smaller amount.
