Trillion Cut Diamond: more fire than a modern round, in a three-sided outline with bowed sides

Brilliance 67 · Fire 87 · Scintillation 80 · in our census, where the T73 scores 93 · 78 · 80 in diamond

A three-sided brilliant with gently bowed sides. It has more fire than the T73 and a heavy cost in light. Its profile is shallow, but it has no more face for its weight.

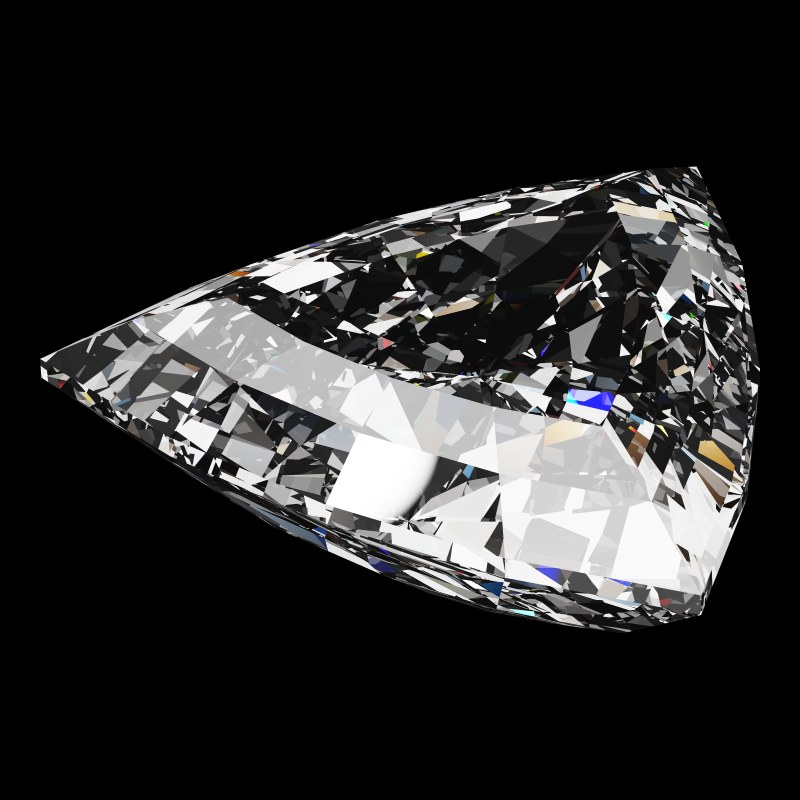

The Trillion Cut in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Trillion Cut model, 1.00 ct, studio light.

Trillion Cut Diamond

Both are three-sided brilliants, but bowed sides make the trillion rounder in the hand than the straight-sided trilliant. Ours is a shallow stone: 50.7% deep, with a 56.6% table, a 36.0° crown, a 31.91° pavilion and 73 facets.

Against the T73 Round Brilliant it has one pro and three cons. It is a popular solitaire shape for colored stones, and a side stone too. In diamond, the numbers below show where it gains on the T73 and where it trails.

Is a trillion a good cut for diamond? Pros and cons

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Trillion Cut in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Trillion Cut in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−9Brilliance−26Fire+9Scintillation0Spread+7Symmetry0Shape-norm−22Tilt−5

Against the T73 Round Brilliant in diamond: ahead on 2, level on 2, behind on 4.

  • Global81, the comparison 90, difference −9
  • Brilliance67, the comparison 93, difference −26
  • Fire87, the comparison 78, difference +9
  • Scintillation80, the comparison 80, difference 0
  • Spread107, the comparison 100, difference +7
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm78, the comparison 100, difference −22
  • Tilt87, the comparison 92, difference −5
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What diamond gains in a trillion

More fire than the T73

Fire 87 against 78 for the T73 Round Brilliant in diamond: 9 points higher

Fire is clearly ahead of the benchmark. A broad table over a shallow pavilion sends the returning light out at low angles. There, diamond's dispersion of 0.044 has room to split it into color.

Trillion cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 87)

Trillion Cut in diamond · Fire 87

T73 round brilliant in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

T73 Round Brilliant in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

The trillion's costs in diamond

Much less light than a round

Brilliance 67 against 93 for the T73 Round Brilliant in diamond: 26 points lower

Brilliance trails by a wide margin. The pavilion figure, 31.91°, is well under the 38.9° guide minimum we use for round designs. In a shallow stone, more of the light passes out through the back.

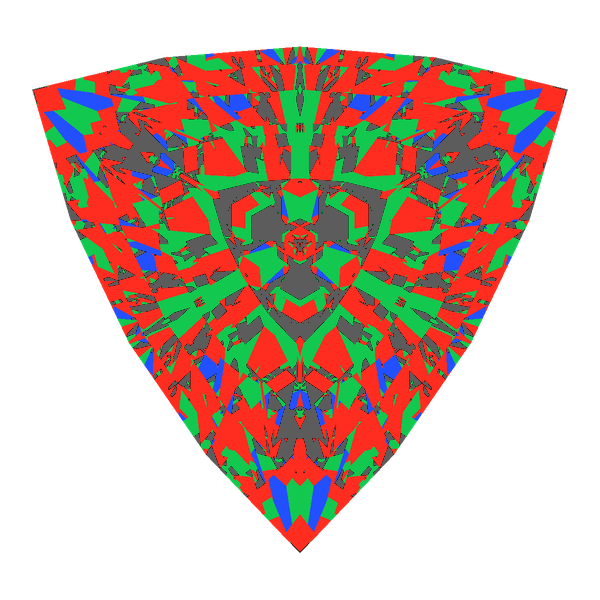

Trillion cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 67)

Trillion Cut in diamond · Brilliance 67

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

T73 Round Brilliant in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Trilliant Cut Diamond keeps three sides and returns 78. We have not measured a deeper trillion, so we cannot promise what steeper angles would give.

Try it yourself: Open this Light Return map in the simulator

Much more light leaks

Leakage 13 against 2 for the T73 Round Brilliant in diamond: 11 points higher

In our census 13% of the trillion's light goes out of the back, against 2% for the T73. Light that leaves through the back is light that the shallow profile does not send back up.

Trillion Cut in diamond · Leakage 13

Trillion cut in diamond tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak
Trillion cut in diamond tilted 10 degrees: Light Return map, 17% of the face leaking10° · 17% leak
Trillion cut in diamond tilted 20 degrees: Light Return map, 19% of the face leaking20° · 19% leak
Trillion cut in diamond tilted 30 degrees: Light Return map, 29% of the face leaking30° · 29% leak

T73 Round Brilliant in diamond · Leakage 2

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller stone leaks the same share. The Trilliant Cut Diamond loses 11%. For far less, choose a round such as the T73 Round Brilliant Diamond.

Try it yourself: Tilt it yourself in the simulator's light map

A little less light when tipped

Tilt 87 against 92 for the T73 Round Brilliant in diamond: 5 points lower

Tipped by 20°, it keeps 87 of its face-up light, against 92: a small gap next to its light and leakage.

Trillion Cut in diamond · Tilt 87

Trillion cut in diamond tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak
Trillion cut in diamond tilted 10 degrees: Light Return map, 17% of the face leaking10° · 17% leak
Trillion cut in diamond tilted 20 degrees: Light Return map, 19% of the face leaking20° · 19% leak
Trillion cut in diamond tilted 30 degrees: Light Return map, 29% of the face leaking30° · 29% leak

T73 Round Brilliant in diamond · Tilt 92

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a trillion diamond suits

Choose the trillion when color and a three-sided outline with bowed sides matter more than light. It has more fire than the T73 and faces up as large for its weight as a round. It suits a solitaire or side stone that needs a soft triangle.

With three sides and more light, choose the Trilliant Cut Diamond. For the most light, choose a round. For far more face per carat, choose the Marquise Cut Diamond, at 121.

Trillion Cut Diamond: questions

Does a trillion cut diamond look big for its weight?

Not bigger than a round: Face-up size 100 against 100 for the T73. The model is shallow. But three sides enclose less area than a circle of the same width, and the two effects cancel out.

Is a trillion cut diamond brilliant?

Less than a round: Brilliance 67 against 93, with 13% of the light leaking.

Trillion or trilliant cut diamond?

The trillion has more fire (87 against 83) and faces up larger per carat (100 against 93). The trilliant has the lead on brilliance, 78 against 67.

What does a 6.5 mm trillion diamond weigh?

Just 0.80 ct, well under a T73 of that width.

Get the Trillion Cut files

6 formatsMillimetersWatertight

Trillion Cut 3D files

The Trillion Cut as exact geometry: 73 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad120 index

Trillion Cut cutting files

The Trillion Cut as a faceting design: 61 + 12 girdles = 73 facets, 120 index, 3-fold symmetry, ready for the machine.

  • .ascGemCad design file, 120 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Save with a bundle: the Trillion Cut cutting files are also in Faceter's Classics, 10 cuts for €22.49 until 1 December, then €29.99 (€69.90 as single files). Buy the bundle.

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
