Portuguese Bird's Nest Cut Diamond: as much scintillation as any cut we measure

Brilliance 85 · Fire 65 · Scintillation 98 · in our census, where the T73 scores 93 · 78 · 80 in diamond

A woven nest of facets that sparkles as finely as anything we measure, and pays for it in diamond with less light, less fire and more leakage than the T73.

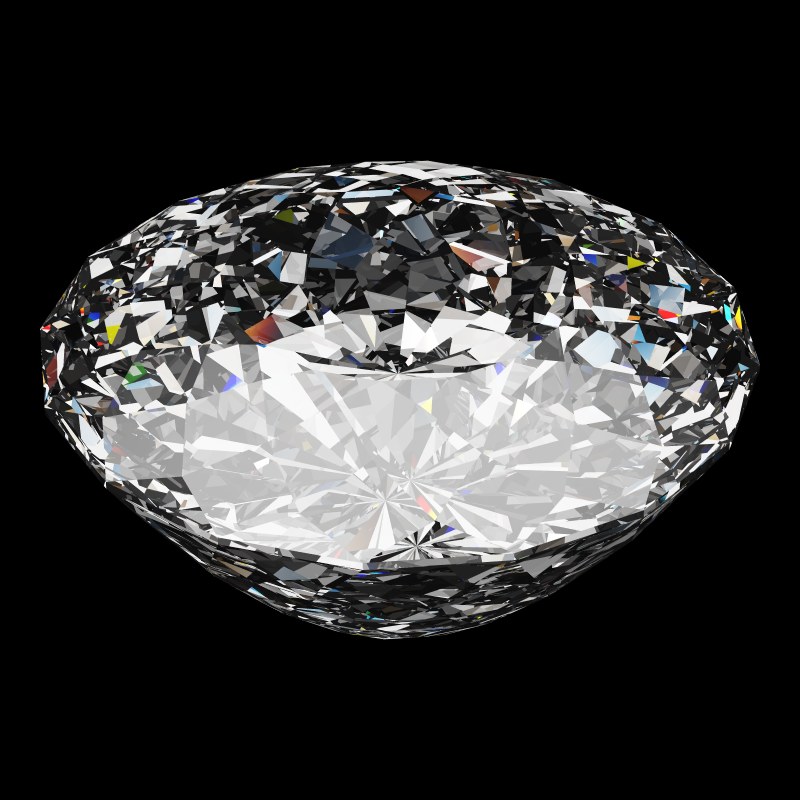

The Portuguese Bird's Nest Cut in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Portuguese Bird's Nest Cut model, 1.00 ct, studio light.

Portuguese Bird's Nest Cut Diamond

Sixteen-fold and built in tiers, five above the girdle and five below, the Portuguese cut offsets each tier half an index step from its neighbour, so the facets lock together like a woven nest. The model we measured has 177 facets, a 48.9% table, a low 26.0° crown and a 38.0° pavilion, 63.1% deep overall.

It is a long-standing favourite for coloured stones and a showpiece for the faceting machine. In diamond, against the T73 Round Brilliant, it wins one score clearly and loses three.

Is a Portuguese cut good for diamond? Pros and cons

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 2 (Spread) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Portuguese Bird's Nest Cut in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Portuguese Bird's Nest Cut in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−4Brilliance−8Fire−13Scintillation+18Spread0Symmetry0Shape-norm−9Tilt+8

Against the T73 Round Brilliant in diamond: ahead on 2, level on 2, behind on 4.

  • Global86, the comparison 90, difference −4
  • Brilliance85, the comparison 93, difference −8
  • Fire65, the comparison 78, difference −13
  • Scintillation98, the comparison 80, difference +18
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm91, the comparison 100, difference −9
  • Tilt100, the comparison 92, difference +8
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring.

What diamond gains in a Portuguese cut

Scintillation at the top of our scale

Scintillation 98 against 80 for the T73 Round Brilliant in diamond: 18 points higher

Five tiers above and five below, each offset from the next, give 177 facets against the T73's 73. Our scintillation score rises with that count and tops out here; no cut we measure in diamond scores higher.

Portuguese Bird's Nest Cut · 177 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Count the facets in each crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

The Portuguese cut's costs in diamond

Much less fire than the T73

Fire 65 against 78 for the T73 Round Brilliant in diamond: 13 points lower

Fire is the largest of its three cons. With so many small facets, the light that returns comes back in many small pieces, and less of it is spread into colour.

Portuguese bird's nest cut in diamond face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 65)

Portuguese Bird's Nest Cut in diamond · Fire 65

T73 round brilliant in diamond face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 78)

T73 Round Brilliant in diamond · Fire 78

Look at the coloured flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: For a fine-sparkling round with more fire, DG-Miliano Diamond scores 82 with the same top-of-scale scintillation.

Try it yourself: See the fire in the 3D Gemstone Simulator

Far more light leaks than in the T73

Leakage 13 against 2 for the T73 Round Brilliant in diamond: 11 points higher

In our census 13% of the light escapes through the pavilion, against 2% for the T73. DG-Miliano carries the same number of facets and leaks far less, so the facet count alone does not explain it.

Portuguese Bird's Nest Cut in diamond · Leakage 13

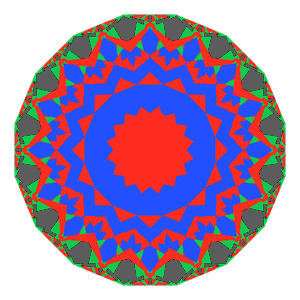

Portuguese bird's nest cut in diamond tilted 0 degrees: Light Return map, 12% of the face leaking0° · 12% leak

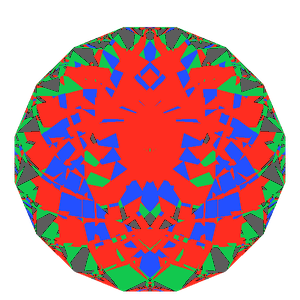

Portuguese bird's nest cut in diamond tilted 10 degrees: Light Return map, 8% of the face leaking10° · 8% leak

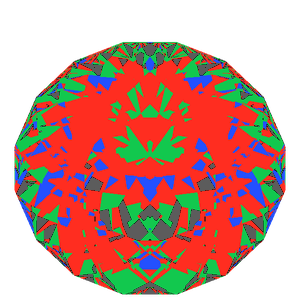

Portuguese bird's nest cut in diamond tilted 20 degrees: Light Return map, 8% of the face leaking20° · 8% leak

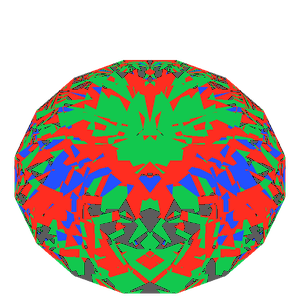

Portuguese bird's nest cut in diamond tilted 30 degrees: Light Return map, 8% of the face leaking30° · 8% leak

T73 Round Brilliant in diamond · Leakage 2

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

What helps: Our data does not point to a pavilion fix: its 38.0° figure sits just under the 38.9° guide minimum for round designs, but we have not measured a steeper version. DG-Miliano Diamond leaks 3% with as many facets.

Try it yourself: Tilt it yourself in the simulator's light map

Less light back to the eye

Brilliance 85 against 93 for the T73 Round Brilliant in diamond: 8 points lower

Brilliance trails the T73 by a clear margin. Much of the gap is the light counted as leakage: light that leaves through the back cannot come up to the eye.

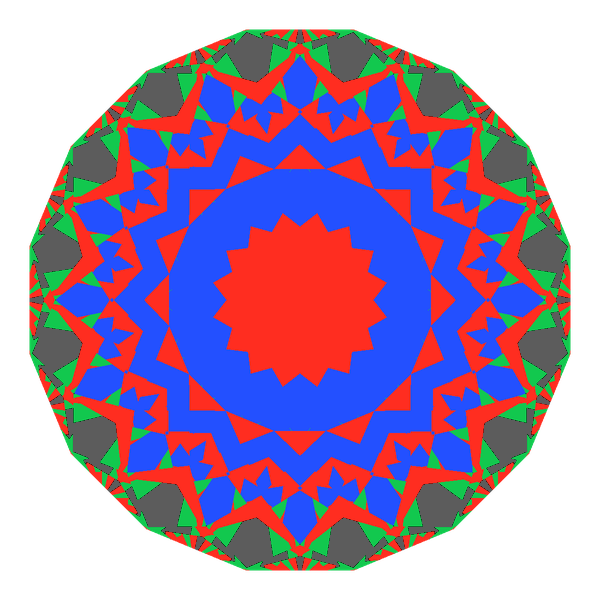

Portuguese bird's nest cut in diamond face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 85)

Portuguese Bird's Nest Cut in diamond · Brilliance 85

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 93)

T73 Round Brilliant in diamond · Brilliance 93

Red, green and blue = light returning to the eye; grey = light leaving through the pavilion. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: DG-Vitruvio Diamond matches its scintillation at 98 and returns 93 brilliance.

Try it yourself: Open this Light Return map in the simulator

Who a Portuguese cut diamond suits

Choose the Portuguese cut in diamond for the facet pattern itself: a showpiece of sixteen-fold symmetry whose sparkle tops our scale. Expect a stone with less light and much less colour than a modern round.

For the same fine sparkle with the T73's light, choose DG-Vitruvio Diamond or DG-Miliano Diamond. In coloured stones the trade may differ; see the cut page for the Portuguese Bird's Nest Cut.

Portuguese Bird's Nest Cut Diamond: questions

Is a Portuguese cut good for diamond?

For sparkle, yes: Scintillation 98 against 80 for the T73. For light and fire, no: Brilliance 85 and Fire 65, against 93 and 78.

Does a Portuguese cut diamond hold its light when tilted?

Its Tilt score is 100, the top of the scale, but Tilt is the share of its own light a stone keeps, and at 85 brilliance that is a share of a smaller amount. We do not count it as a pro.

How many facets does a Portuguese Bird's Nest cut have?

Our model has 177, in five crown tiers and five pavilion tiers on a sixteen-fold plan.

What does a 6.5 mm Portuguese cut diamond weigh?

1.11 ct: at 63.1% deep it is heavier for its width than the T73.

Get the Portuguese Bird's Nest Cut files

6 formatsMillimetresWatertight

Portuguese Bird's Nest Cut 3D files

The Portuguese Bird's Nest Cut as exact geometry: 177 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modelling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
€9.99 · Personal useBuy the 3D files
GemCad96 index

Portuguese Bird's Nest Cut cutting files

The Portuguese Bird's Nest Cut as a faceting design: 161 + 16 girdles = 177 facets, 96 index, 16-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram
€9.99 · Personal useBuy the cutting files

Questions before you buy? Email us.
