Old Mine Cut Diamond: a historic cushion that leaks nearly a third of its light

Brilliance 59 · Fire 72 · Scintillation 81 · in our census, where the T73 scores 93 · 78 · 80 in diamond

A historic cushion that leaks more light than any of our other historic cuts in diamond: 32% against 2% for the T73.

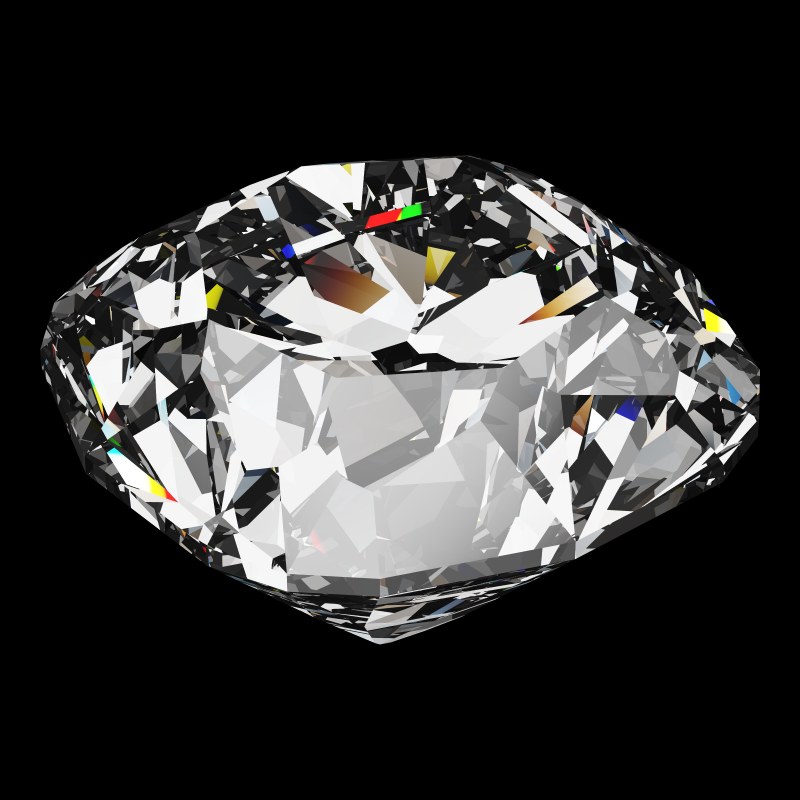

The Old Mine Cut in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Mine Cut model, 1.00 ct, studio light.

Old Mine Cut Diamond

The Old Mine cut has 58 facets in the classic count. Our model, with its girdle facets, has 74. It sits on a rounded cushion outline with a wide 60.3% table, a steep 43.0° crown and a 44.38° pavilion.

We expected a dark stone, and the census agrees. It trails the T73 on brilliance by more than any other antique cut we measure in diamond.

Is an Old Mine cut diamond a good buy? Pros and cons

Pros

None that we count: its Tilt of 100 is a share of much less light than the T73's.

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Mine Cut in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Mine Cut in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−16Brilliance−34Fire−6Scintillation+1Spread−2Symmetry−10Shape-norm−8Tilt+8

Against the T73 Round Brilliant in diamond: ahead on 2, behind on 6.

  • Global74, the comparison 90, difference −16
  • Brilliance59, the comparison 93, difference −34
  • Fire72, the comparison 78, difference −6
  • Scintillation81, the comparison 80, difference +1
  • Spread98, the comparison 100, difference −2
  • Symmetry90, the comparison 100, difference −10
  • Shape-norm92, the comparison 100, difference −8
  • Tilt100, the comparison 92, difference +8
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What diamond gains in an Old Mine cut

We found no pro that we count. The Tilt score is 100 against 92, past our margin. But Tilt is the share of a stone's own light that it keeps when tilted. It counts as a pro with us only when brilliance sits within 5 points of the round's. At 59 against 93, the Old Mine keeps its share of a much smaller amount. Scintillation is level with the T73, 81 against 80. Its appeal is the look: a broad cushion with large, soft facets.

The Old Mine's costs in diamond

The least light face-up of our antique cuts

Brilliance 59 against 93 for the T73 Round Brilliant in diamond: 34 points lower

The wide table and steep pavilion let light that comes straight down pass through the pavilion. Head-on, gray covers nearly a third of its face-up map, against a sliver in the T73's.

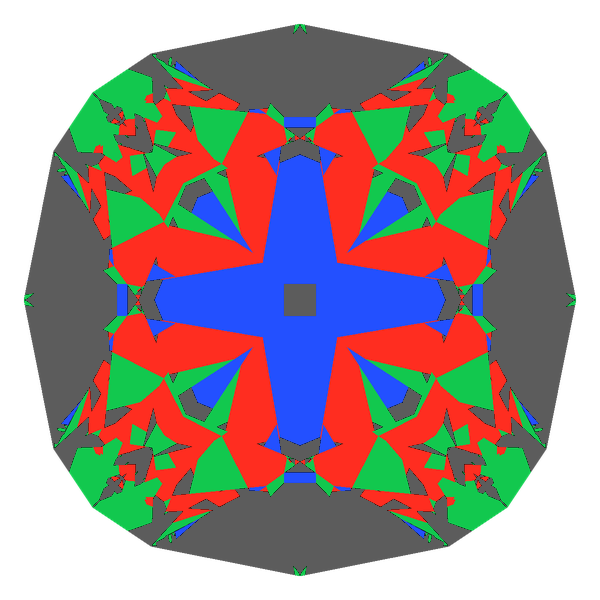

Old mine cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 59)

Old Mine Cut in diamond · Brilliance 59

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

T73 Round Brilliant in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: In the same outline, our modern Cushion Cut returns 80, and the Peruzzi Cut Diamond returns 75.

Try it yourself: Open this Light Return map in the simulator

Nearly a third of the light leaks

Leakage 32 against 2 for the T73 Round Brilliant in diamond: 30 points higher

Of the light in our census, 32% escapes through the back. The T73 loses 2%. The gray in the strip shrinks a little as the stone tips, but it never goes.

Old Mine Cut in diamond · Leakage 32

Old mine cut in diamond tilted 0 degrees: Light Return map, 31% of the face leaking0° · 31% leak

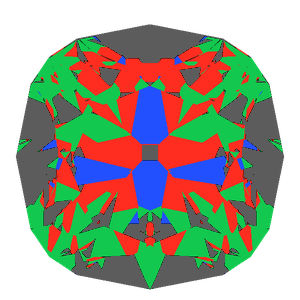

Old mine cut in diamond tilted 10 degrees: Light Return map, 28% of the face leaking10° · 28% leak

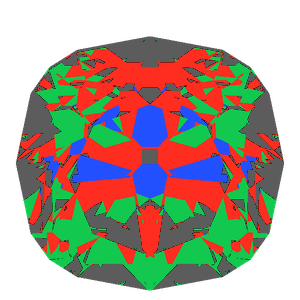

Old mine cut in diamond tilted 20 degrees: Light Return map, 25% of the face leaking20° · 25% leak

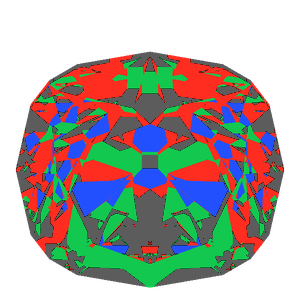

Old mine cut in diamond tilted 30 degrees: Light Return map, 27% of the face leaking30° · 27% leak

T73 Round Brilliant in diamond · Leakage 2

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller stone leaks the same share. The Cushion Cut leaks 9%.

Try it yourself: Tilt it yourself in the simulator's light map

A less regular pavilion

Symmetry 90 against 100 for the T73 Round Brilliant in diamond: 10 points lower

The pavilion's facets vary more within the design than a modern round's: Symmetry 90.

Old Mine Cut · 74 facets · Symmetry 90

T73 Round Brilliant · 73 facets · Symmetry 100

Symmetry scores how regular the pavilion facets are within the design. Compare how evenly the facets repeat around each pavilion. Drawn from each cut's own model.

What helps: This is the design. The Old European Cut, the Old Mine's round successor, scores 100.

Try it yourself: Compare the Symmetry spoke in the Cut Performance Wheel

Less face-up area for its weight

Face-up size 93 against 100 for the T73 Round Brilliant in diamond (T73 = 100): 7% less face-up area for the same weight

A cushion covers more of its width than a circle does, and that works in its favor. But it gives that back and more in height: 65.6% deep against the T73's 61.7%, with a fuller body between table and culet.

Old Mine Cut · 6.10 mm at 1.00 ct · Face-up size 93

T73 Round Brilliant · 6.48 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in diamond and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: Our modern Cushion Cut Diamond keeps the outline and faces up at 97 for its weight. Of the antique cushions, the Mazarin Cut Diamond does best, at 96.

Try it yourself: See its size at 1.00 ct in diamond in the 3D Gemstone Simulator

Who an Old Mine cut diamond suits

The Old Mine suits someone who wants the look above all, and a period setting. Expect a darker stone than a modern round: Brilliance 59 against 93.

If you like the outline and want light, choose the modern Cushion Cut or the Peruzzi Cut Diamond. If an antique round will do, the Old European Cut Diamond comes within a few points of the T73.

Old Mine Cut Diamond: questions

Is an Old Mine cut diamond darker than a modern round?

Yes, in our census: Brilliance 59 against 93. Also, 32% of its light leaves through the pavilion, against 2%.

Old Mine or Old European cut diamond?

The Old European returns far more light: Brilliance 90 against 59. It leaks 5% against 32%.

Does an Old Mine cut diamond look smaller than a round of the same weight?

A little. Measured from the model's outline, its face-up size per carat is 93, against 100 for the T73 Round Brilliant. If you buy by width instead, a 6.5 mm Old Mine weighs about 1.21 ct.
