Marquise Cut Diamond: as much face for its weight as any cut we measure, with strong fire

Brilliance 64 · Fire 89 · Scintillation 86 · in our census, where the T73 scores 93 · 78 · 80 in diamond

Pointed at both ends and long for its width. It has more face for its weight, more fire and more sparkle than the T73, and much less light.

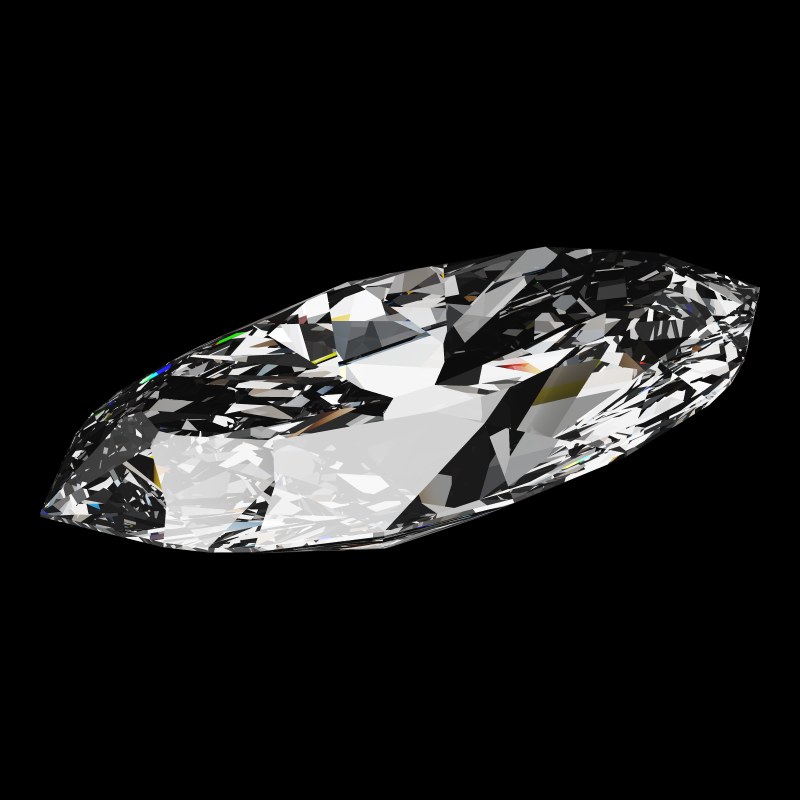

The Marquise Cut in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Marquise Cut model, 1.00 ct, studio light.

Marquise Cut Diamond

A marquise, also called the navette, is a brilliant drawn out to a point at each end. In our model it is 2.059 times as long as it is wide, with 87 facets, a 31.41° pavilion and 62.0% depth.

In diamond it beats the T73 Round Brilliant on face-up size, fire and scintillation. It loses on four scores, two by wide margins: brilliance and leakage. But it returns more light than any other elongated cut we measure in diamond. The oval scores 47, the pear 53, the teardrop 46.

People often say the marquise has the largest face for its weight of any classic shape. Our model's outline shows that this holds in diamond: no cut we measure faces up larger. The wheel's Spread, 100, estimates size from depth alone and cannot see a long outline.

Is a marquise a good cut for diamond? Pros and cons

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Marquise Cut in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Marquise Cut in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−10Brilliance−29Fire+11Scintillation+6Spread0Symmetry−6Shape-norm−26Tilt−5

Against the T73 Round Brilliant in diamond: ahead on 2, level on 1, behind on 5.

  • Global80, the comparison 90, difference −10
  • Brilliance64, the comparison 93, difference −29
  • Fire89, the comparison 78, difference +11
  • Scintillation86, the comparison 80, difference +6
  • Spread100, the comparison 100, difference 0
  • Symmetry94, the comparison 100, difference −6
  • Shape-norm74, the comparison 100, difference −26
  • Tilt87, the comparison 92, difference −5
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What diamond gains in a marquise

As much face for its weight as any cut we measure

Face-up size 121 against 100 for the T73 Round Brilliant in diamond (T73 = 100): 21% more face-up area for the same weight

Its depth, 62.0%, is close to the T73's 61.7%, so the gain comes from the outline. Drawn out to 2.059 times its width, the same volume covers more area. The picture sets a 1.00 ct marquise beside a 1.00 ct T73, to one scale. Of the cuts we measure, only the rectangle ties it.

Marquise Cut · 10.47 x 5.08 mm at 1.00 ct · Face-up size 121

T73 Round Brilliant · 6.48 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in diamond and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in diamond in the 3D Gemstone Simulator

More fire than the T73

Fire 89 against 78 for the T73 Round Brilliant in diamond: 11 points higher

Only two cuts we measure in diamond show more. The long facets toward the points send light out at wide angles, where it separates into color.

Marquise cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 89)

Marquise Cut in diamond · Fire 89

T73 round brilliant in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

T73 Round Brilliant in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

More scintillation than the T73

Scintillation 86 against 80 for the T73 Round Brilliant in diamond: 6 points higher

Its 87 facets against the T73's 73 give more flashes as the stone moves, laid out along its length.

Marquise Cut · 87 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

The marquise's costs in diamond

Far less light than a round

Brilliance 64 against 93 for the T73 Round Brilliant in diamond: 29 points lower

Brilliance is the marquise's heaviest loss. The pavilion figure of 31.41° is well under the 38.9° guide minimum we use for round designs. In the census much of the light leaves through the back and does not come up. We have not measured a steeper marquise, so we cannot say how much that would recover.

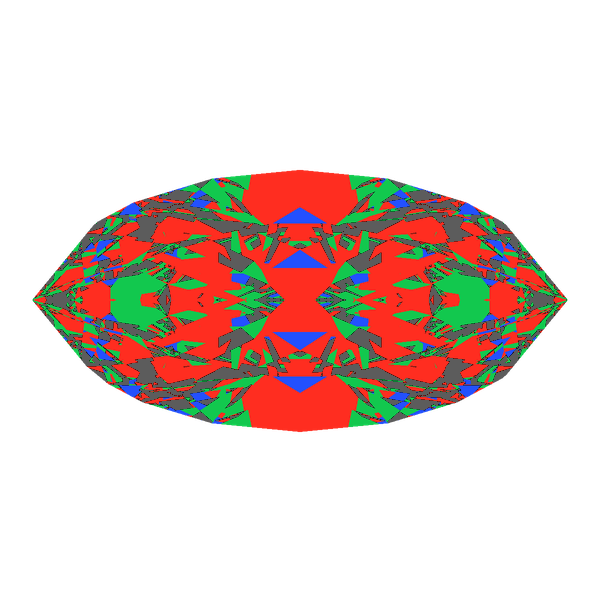

Marquise cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 64)

Marquise Cut in diamond · Brilliance 64

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

T73 Round Brilliant in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: No elongated cut we measure returns more light in diamond. For more, choose a round: the T73 Round Brilliant Diamond returns 93.

Try it yourself: Open this Light Return map in the simulator

Much more light through the back

Leakage 17 against 2 for the T73 Round Brilliant in diamond: 15 points higher

A marquise in our census loses 17% of its light through the back, the T73 just 2%. It still leaks the least of the elongated cuts we measure. The pear loses 22%, the oval 27%.

Marquise Cut in diamond · Leakage 17

Marquise cut in diamond tilted 0 degrees: Light Return map, 17% of the face leaking0° · 17% leak
Marquise cut in diamond tilted 10 degrees: Light Return map, 23% of the face leaking10° · 23% leak
Marquise cut in diamond tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak
Marquise cut in diamond tilted 30 degrees: Light Return map, 29% of the face leaking30° · 29% leak

T73 Round Brilliant in diamond · Leakage 2

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Among elongated cuts it already leaks least. For less in a fancy shape, the Cushion Cut Diamond leaks 9%.

Try it yourself: Tilt it yourself in the simulator's light map

A slightly less regular pavilion

Symmetry 94 against 100 for the T73 Round Brilliant in diamond: 6 points lower

The plan stretches along one axis, so pavilion facets of one angle sit at different distances from the center. Symmetry 94 is a small gap, just over our threshold.

Marquise Cut · 87 facets · Symmetry 94

T73 Round Brilliant · 73 facets · Symmetry 100

Symmetry scores how regular the pavilion facets are within the design. Compare how evenly the facets repeat around each pavilion. Drawn from each cut's own model.

What helps: The Oval Cut Diamond keeps an elongated outline with Symmetry 98, but it returns less light.

Try it yourself: Compare the Symmetry spoke in the Cut Performance Wheel

Keeps a little less light when tipped

Tilt 87 against 92 for the T73 Round Brilliant in diamond: 5 points lower

Tipped by 20°, the marquise keeps 87 of its face-up light against 92 for the T73. The gap is modest next to its brilliance.

Marquise Cut in diamond · Tilt 87

Marquise cut in diamond tilted 0 degrees: Light Return map, 17% of the face leaking0° · 17% leak
Marquise cut in diamond tilted 10 degrees: Light Return map, 23% of the face leaking10° · 23% leak
Marquise cut in diamond tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak
Marquise cut in diamond tilted 30 degrees: Light Return map, 29% of the face leaking30° · 29% leak

T73 Round Brilliant in diamond · Tilt 92

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Every elongated cut we measure that keeps a larger share of its light when tipped returns far less to begin with. For both, choose a round: DG-Rafaello Diamond keeps 97.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a marquise diamond suits

Choose the marquise for an elongated diamond with high fire, more scintillation and more face for its weight. Accept that it returns far less light than a round. Of the elongated cuts we measure, it is the one we would pick in diamond. It has the most light and the least leakage of the group. Elongated cuts often show a dark band across the middle, the bowtie. We do not measure it.

The points need protection, usually with V-prongs. If light matters more than outline, choose the T73 Round Brilliant Diamond. For a round with more fire than the T73 and no loss of light, choose DG-Miliano Diamond.

Marquise Cut Diamond: questions

Does a marquise diamond look bigger than a round?

For its weight, yes: Face-up size 121 against 100 for the T73, measured from the two models' outlines. Its length may make it look larger still on the finger.

Is a marquise diamond fiery?

Yes: Fire 89 against 78 for the T73, third-highest in our diamond census, level with the teardrop.

Marquise or oval cut diamond?

The marquise returns more light, 64 against 47, and leaks less, 17% against 27%. It faces up larger per carat, 121 to 108. The oval has a little more fire, 92.

What does a 6.5 mm wide marquise diamond weigh?

2.09 ct. 6.5 mm is its width, and at a ratio of 2.059 the stone is about twice as long.

Get the Marquise Cut files

6 formatsMillimetersWatertight

Marquise Cut 3D files

The Marquise Cut as exact geometry: 87 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad64 index

Marquise Cut cutting files

The Marquise Cut as a faceting design: 67 + 20 girdles = 87 facets, 64 index, 2-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 64 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Save with a bundle: the Marquise Cut 3D files are also in Jewelry Essentials 3D, 10 cuts for €29.99 until 1 December, then €39.99 (€99.90 as single files). Buy the bundle.

Save with a bundle: the Marquise Cut cutting files are also in Faceter's Classics, 10 cuts for €22.49 until 1 December, then €29.99 (€69.90 as single files). Buy the bundle.

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
