Old Single Cut Diamond: more fire than a modern round, on just 26 facets

Brilliance 72 · Fire 84 · Scintillation 44 · in our census, where the T73 scores 93 · 78 · 80 in diamond

Fire 84 against 78 for the T73, on just 26 facets. But the Old Single trails the T73 on scintillation, brilliance, leakage and face-up size for its weight.

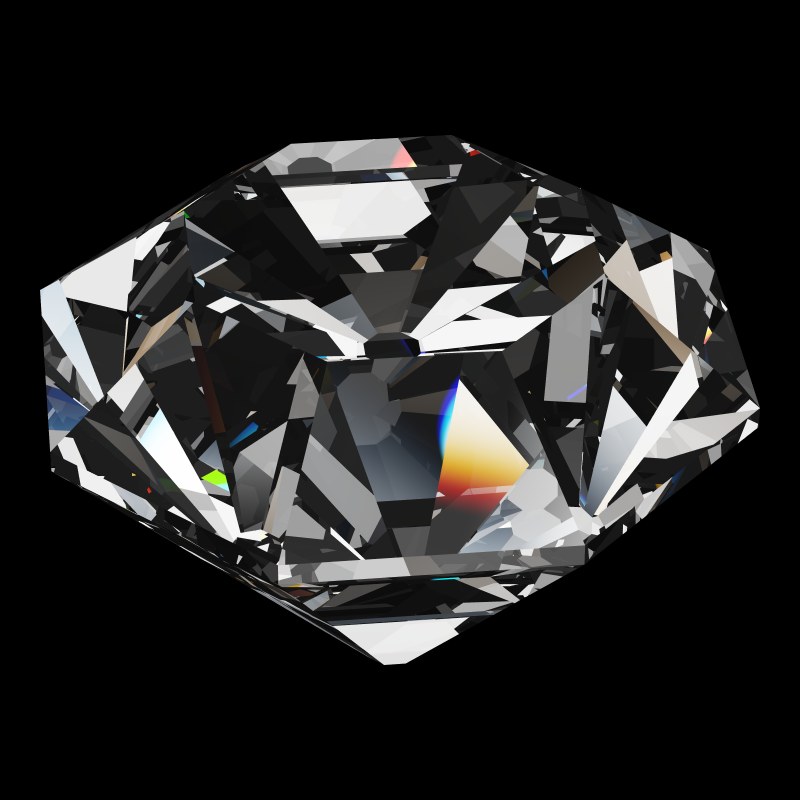

The Old Single Cut in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Single Cut model, 1.00 ct, studio light.

Old Single Cut Diamond

The single cut, or eight cut, has a table, a ring of crown facets and a ring of pavilion mains on an octagonal outline. Our model has 26 facets, a 57.5% table and a steep 48.48° pavilion. We traced it in diamond with the census that gives every score on this site. Then we set it against the T73 Round Brilliant, our modern round.

Is an Old Single cut diamond any good? Pros and cons

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Single Cut in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Single Cut in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−11Brilliance−21Fire+6Scintillation−36Spread−3Symmetry0Shape-norm−22Tilt+2

Against the T73 Round Brilliant in diamond: ahead on 2, level on 1, behind on 5.

  • Global79, the comparison 90, difference −11
  • Brilliance72, the comparison 93, difference −21
  • Fire84, the comparison 78, difference +6
  • Scintillation44, the comparison 80, difference −36
  • Spread97, the comparison 100, difference −3
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm78, the comparison 100, difference −22
  • Tilt94, the comparison 92, difference +2
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What diamond gains in an Old Single cut

More fire than the modern round

Fire 84 against 78 for the T73 Round Brilliant in diamond: 6 points higher

With so few facets, every flash is large. More of the light that comes back splits into color. This is the only pro that this old plan earns against the T73 in diamond.

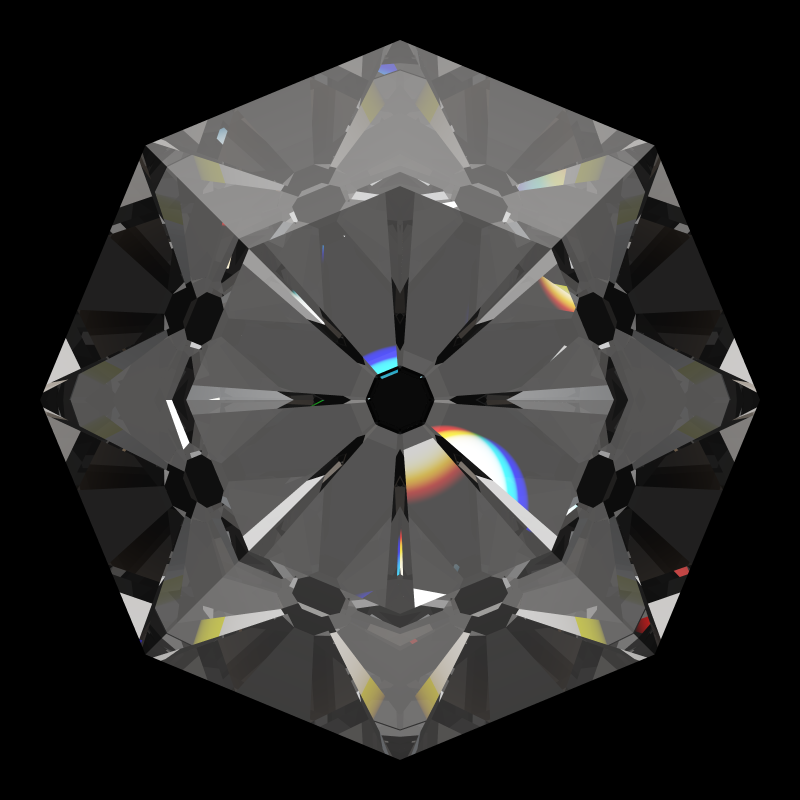

Old single cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Old Single Cut in diamond · Fire 84

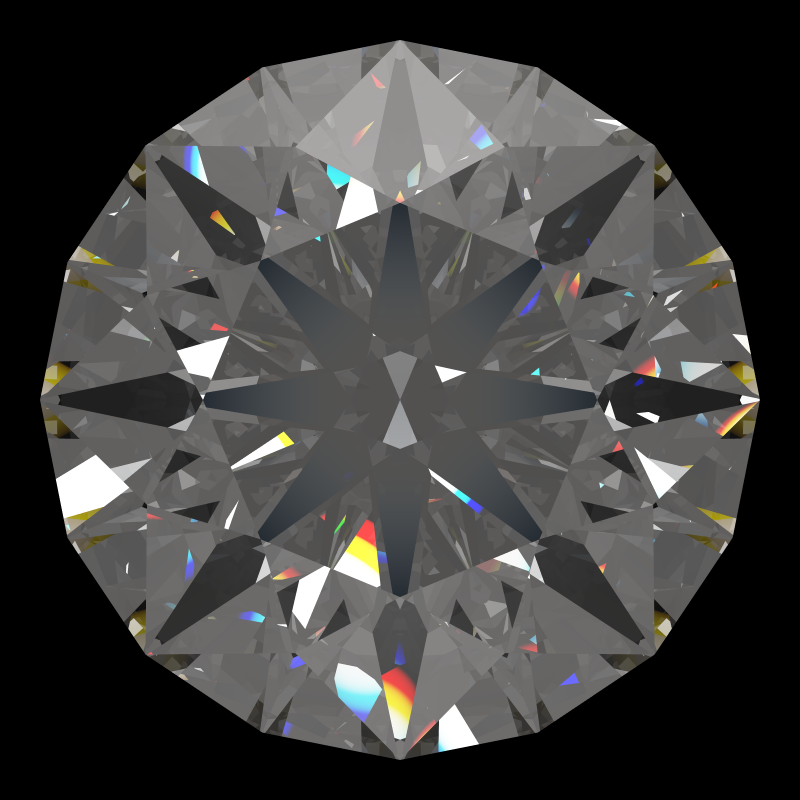

T73 round brilliant in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

T73 Round Brilliant in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Where the Old Single falls short in diamond

Far fewer flashes as it moves

Scintillation 44 against 80 for the T73 Round Brilliant in diamond: 36 points lower

Our scintillation score follows the facet count: 26 facets against the T73's 73. Expect a slow, bold sparkle, not the fine glitter of a modern round.

Old Single Cut · 26 facets · Scintillation 44

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: The angles do not change this, because the facet plan sets it. For an antique round with more sparkle, the Old European Cut Diamond scores 81 for scintillation.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Less light back to the eye

Brilliance 72 against 93 for the T73 Round Brilliant in diamond: 21 points lower

The face-up maps show the difference. About a quarter of the Old Single's face is gray, but the T73's face shows only a sliver.

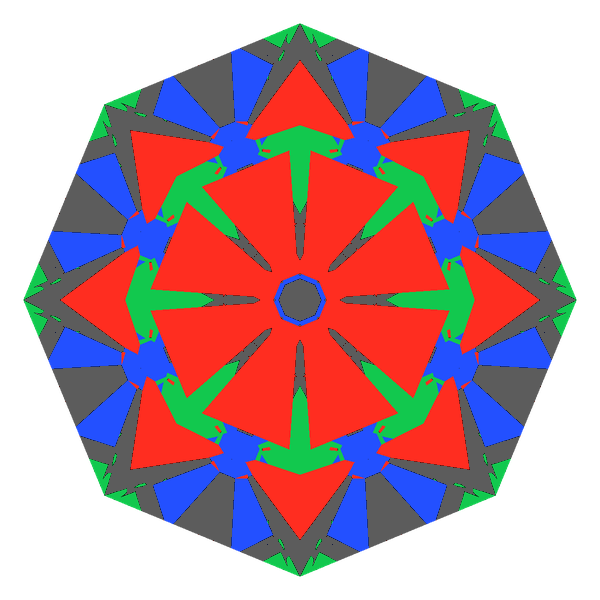

Old single cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 72)

Old Single Cut in diamond · Brilliance 72

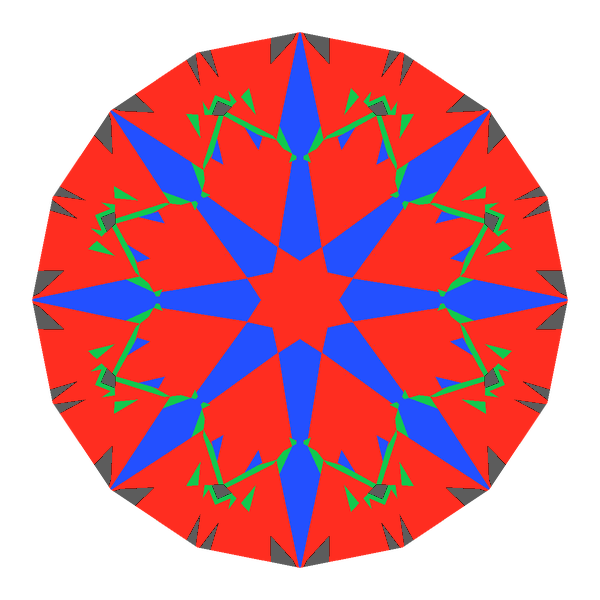

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

T73 Round Brilliant in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Old European Cut Diamond is an antique round within a few points of the T73, at 90. The 1919 T57 Round Brilliant Diamond returns 92, level with the T73 by our margins.

Try it yourself: Open this Light Return map in the simulator

Light escapes through the pavilion

Leakage 19 against 2 for the T73 Round Brilliant in diamond: 17 points higher

Nearly a fifth of the light in our census leaves through the back. The tilt strip shows gray in every frame. In the T73, the gray is a sliver up to 10° and still small at 30°.

Old Single Cut in diamond · Leakage 19

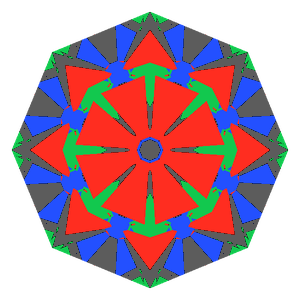

Old single cut in diamond tilted 0 degrees: Light Return map, 23% of the face leaking0° · 23% leak

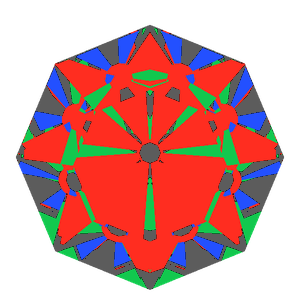

Old single cut in diamond tilted 10 degrees: Light Return map, 19% of the face leaking10° · 19% leak

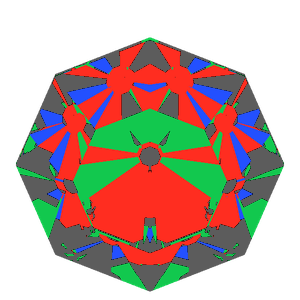

Old single cut in diamond tilted 20 degrees: Light Return map, 27% of the face leaking20° · 27% leak

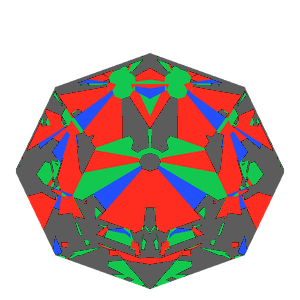

Old single cut in diamond tilted 30 degrees: Light Return map, 35% of the face leaking30° · 35% leak

T73 Round Brilliant in diamond · Leakage 2

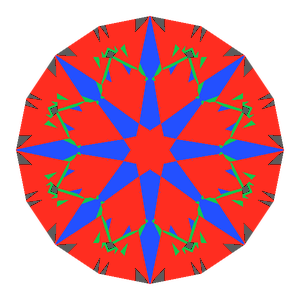

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak

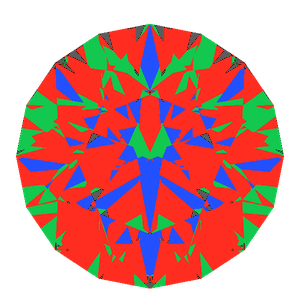

T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak

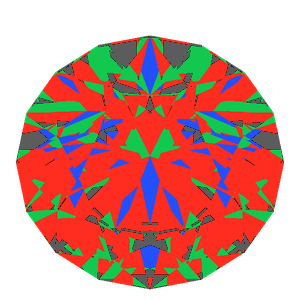

T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak

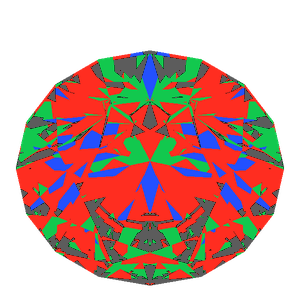

T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size does not help: a smaller stone of the same cut leaks the same share. The Old European Cut leaks 5% in diamond, and the T73 leaks 2%.

Try it yourself: Tilt it yourself in the simulator's light map

Faces up smaller for its weight

Face-up size 90 against 100 for the T73 Round Brilliant in diamond (T73 = 100): 10% less face-up area for the same weight

The octagonal outline costs it some face. Measured across its points, an octagon covers less than a circle of the same width. Depth costs it more: at 67.5% against the T73's 61.7%, more of every carat goes into height, not face.

Old Single Cut · 6.39 mm at 1.00 ct · Face-up size 90

T73 Round Brilliant · 6.48 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in diamond and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: Of our historic rounds, the Old European Cut Diamond faces up at 95 for its weight. The T57 Round Brilliant Diamond reaches 107, ahead of the T73 itself.

Try it yourself: See its size at 1.00 ct in diamond in the 3D Gemstone Simulator

Who an Old Single cut diamond suits

Choose it for small accent stones and for collections of early cuts. For these, large, slow flashes and a high fire score are the point. The fire score shows that a high share of its returned light is color. But it returns less light than the T73. The facet count explains the boldness.

If light matters most, pick a different cut. The T73 Round Brilliant returns more light and scores higher for scintillation (80 against 44). The Old European Cut Diamond gives a historic round at 90 brilliance.

Old Single Cut Diamond: questions

Is an Old Single cut diamond less brilliant than a round brilliant?

Yes, in our census: Brilliance 72 against 93 for the T73 Round Brilliant, with 19% of the light leaking against 2%.

Does an Old Single cut diamond have more fire?

It does: Fire 84 against 78 for the T73. That is its only lead by our margins. On light, sparkle and face-up size for its weight, it trails.

How many facets does an Old Single cut have?

Our model has 26, against 73 on the T73. That is why its scintillation scores 44 against 80.

What does a 6.5 mm Old Single cut diamond weigh?

About 1.05 ct, from the model's measured volume and diamond's specific gravity of 3.52.
