Old Single Cut Moissanite: fire second only to DG-M5 in this stone

Brilliance 77 · Fire 99 · Scintillation 44 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

A historic octagon of just 26 facets. In moissanite it scores Fire 99, second only to DG-M5 in this stone. But its Scintillation is 44 against 80 for the T73.

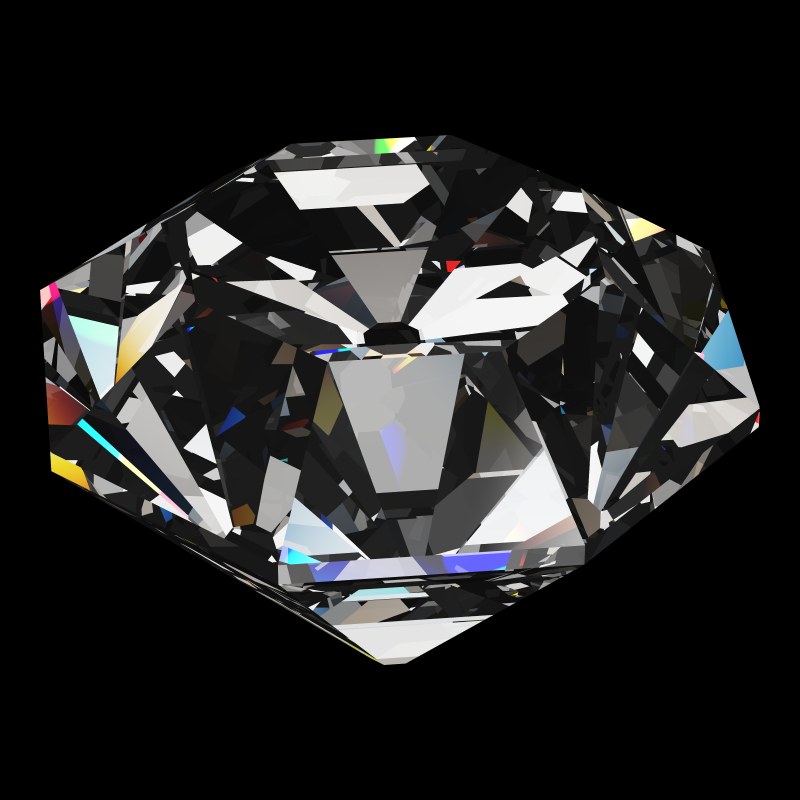

The Old Single Cut in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Single Cut model, 1.00 ct, studio light.

Old Single Cut Moissanite

Cut in moissanite, not diamond, the Old Single goes from Fire 84 to 99, near the top of our scale.

The same few facets cost sparkle. It also returns less light than the T73. This page compares the stone with the same cut in diamond and with the T73 in moissanite.

Is moissanite good in an Old Single cut? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the Old Single Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Single Cut in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Single Cut in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−8Brilliance−9Fire+2Scintillation−36Spread−3Symmetry0Shape-norm−11Tilt−5

Against the T73 Round Brilliant in moissanite: ahead on 1, level on 1, behind on 6.

  • Global83, the comparison 91, difference −8
  • Brilliance77, the comparison 86, difference −9
  • Fire99, the comparison 97, difference +2
  • Scintillation44, the comparison 80, difference −36
  • Spread97, the comparison 100, difference −3
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm82, the comparison 93, difference −11
  • Tilt89, the comparison 94, difference −5
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in an Old Single cut

Far more fire than the same cut in diamond

Fire 99 against 84 for the Old Single Cut in diamond: 15 points higher

The material makes all of this gap, because the cut is the same in both. The two renders show the same cut under the same light, so the difference you see is the stone.

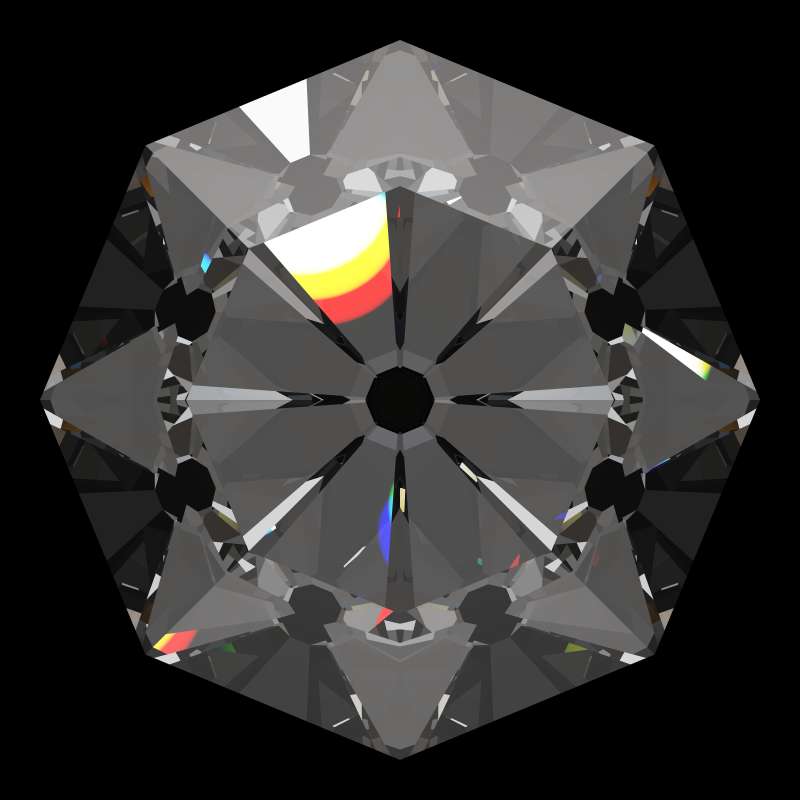

Old single cut in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 99)

Old Single Cut in moissanite · Fire 99

Old single cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Old Single Cut in diamond · Fire 84

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Lighter for its size

0.96 ct at 6.5 mm, against 1.05 ct for the same cut in diamond (−9%)

Moissanite's specific gravity is 3.22 against diamond's 3.52, so the same size weighs less.

Moissanite0.96 ctDiamond1.05 ct
A Old Single Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Old Single Cut page

Leaks less than in diamond

Leakage 12 against 19 for the Old Single Cut in diamond: 7 points lower

Through the same facets, 12% of the light in our census leaks in moissanite and 19% in diamond. That runs against the usual pattern: most of the rounds we measure leak more in moissanite than in diamond.

Old Single Cut in moissanite · Leakage 12

Old single cut in moissanite tilted 0 degrees: Light Return map, 14% of the face leaking0° · 14% leak

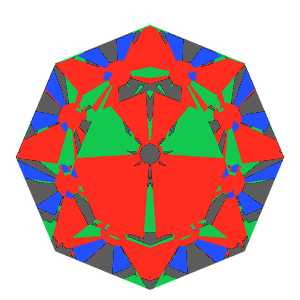

Old single cut in moissanite tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak

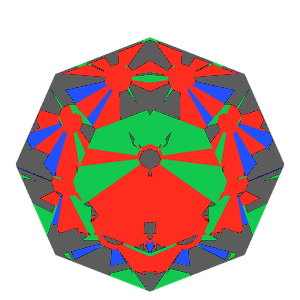

Old single cut in moissanite tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak

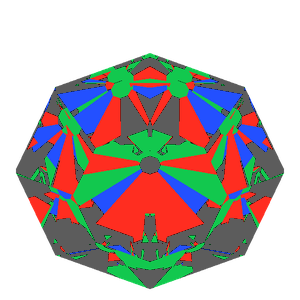

Old single cut in moissanite tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

Old Single Cut in diamond · Leakage 19

Old single cut in diamond tilted 0 degrees: Light Return map, 23% of the face leaking0° · 23% leak
Old single cut in diamond tilted 10 degrees: Light Return map, 19% of the face leaking10° · 19% leak
Old single cut in diamond tilted 20 degrees: Light Return map, 27% of the face leaking20° · 27% leak
Old single cut in diamond tilted 30 degrees: Light Return map, 35% of the face leaking30° · 35% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Tilt it yourself in the simulator's light map

The catch with an Old Single moissanite

Far fewer flashes than a modern round

Scintillation 44 against 80 for the T73 Round Brilliant in moissanite: 36 points lower

Scintillation on our scale follows the facet count. The Old Single has just 26 facets to the T73's 73. The sparkle should be slow and bold, not fine.

Old Single Cut · 26 facets · Scintillation 44

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: This is the facet plan. The Old European Cut Moissanite keeps an antique round with 81 for scintillation.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

A smaller face than the T73 for its weight

Face-up size 90 against 100 for the T73 Round Brilliant in moissanite (T73 = 100): 10% less face-up area for the same weight

Against the T73 the gap is the same in any stone, because it comes from the shape, not the material. The octagon covers less than a circle measured across the same points. At 67.5% deep against 61.7%, more of every carat also sits in the height of the stone.

Old Single Cut · 6.58 mm at 1.00 ct · Face-up size 90

T73 Round Brilliant · 6.68 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in moissanite and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: The T57 Round Brilliant Moissanite faces up at 107 for its weight and keeps almost all of the fire, 98 against 99. Among the older rounds, the Old European Cut Moissanite reaches 95.

Try it yourself: See its size at 1.00 ct in moissanite in the 3D Gemstone Simulator

Less light than the T73 in moissanite

Brilliance 77 against 86 for the T73 Round Brilliant in moissanite: 9 points lower

About a seventh of its head-on Light Return map is gray. For the T73, the gray is a ninth. More of the light that enters this stone leaks away.

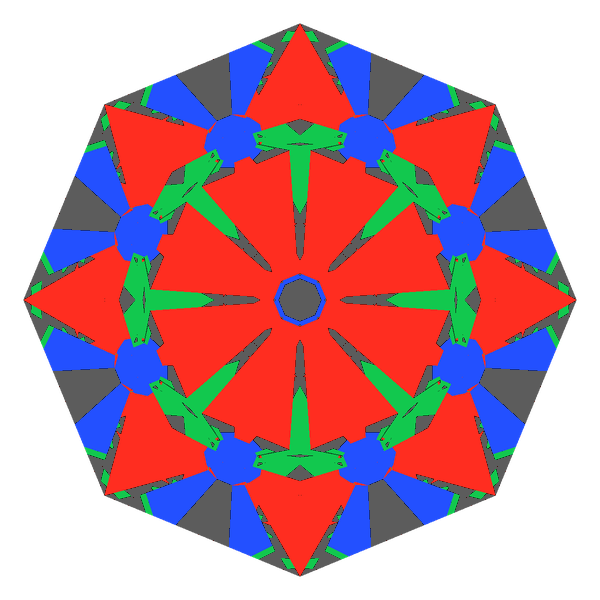

Old single cut in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 77)

Old Single Cut in moissanite · Brilliance 77

T73 round brilliant in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

T73 Round Brilliant in moissanite · Brilliance 86

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For light in moissanite, two of our house rounds lead: DG-M5 Moissanite at 98 and DG-Anteros at 92.

Try it yourself: Open this Light Return map in the simulator

Loses more light when tilted

Tilt 89 against 94 for the T73 Round Brilliant in moissanite: 5 points lower

Tipped by 20°, it keeps less of its face-up light than the T73: 89 against 94. The gray in the strip grows as the stone tips.

Old Single Cut in moissanite · Tilt 89

Old single cut in moissanite tilted 0 degrees: Light Return map, 14% of the face leaking0° · 14% leak
Old single cut in moissanite tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak
Old single cut in moissanite tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak
Old single cut in moissanite tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

T73 Round Brilliant in moissanite · Tilt 94

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: For a steadier antique round, the Old European Cut Moissanite keeps 100 at 20°, with Brilliance 79.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who an Old Single moissanite suits

For color above all, this is one of the strongest choices we measure. It has an antique outline and fire close to the top of our scale. It suits accent stones and anyone who wants a stone that flashes color across a room.

If light and sparkle matter more, DG-Anteros Moissanite returns more light. The Old European Cut Moissanite is an antique cut too, with many more facets.

Old Single Cut Moissanite: questions

Does Old Single cut moissanite have a lot of fire?

Yes. It scores 99 for fire, against 84 for the same cut in diamond and 97 for the T73 in moissanite.

Is Old Single cut moissanite too sparkly?

It is fiery, not sparkly: with 26 facets its scintillation is 44, against 80 for a modern round.

Will an Old Single moissanite look doubled?

Under a loupe, in places. Moissanite is doubly refractive, and our renders trace both of its rays. The table sits across the optic axis, as cutters set it. Seen straight through the table, the facets stay single. Their reflections, and the view at an angle, show doubled edges. The scores use a single index and leave doubling out.

Get the Old Single Cut files

6 formatsMillimetersWatertight

Old Single Cut 3D files

The Old Single Cut as exact geometry: 26 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

Old Single Cut cutting files

The Old Single Cut as a faceting design: 18 + 8 girdles = 26 facets, 96 index, 8-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Save with a bundle: the Old Single Cut 3D and cutting files are also in Historic Cuts Complete, 6 cuts for €29.99 until 1 December, then €39.99 (€101.88 as single files). Buy the bundle.

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
