Old Mine Cut Moissanite: 13 points more fire than the diamond version

Brilliance 60 · Fire 85 · Scintillation 81 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

In moissanite the Old Mine scores Fire 85 against 72 for the same cut in diamond. But it scores Brilliance 60 against 86 for the T73, with 29% leaking.

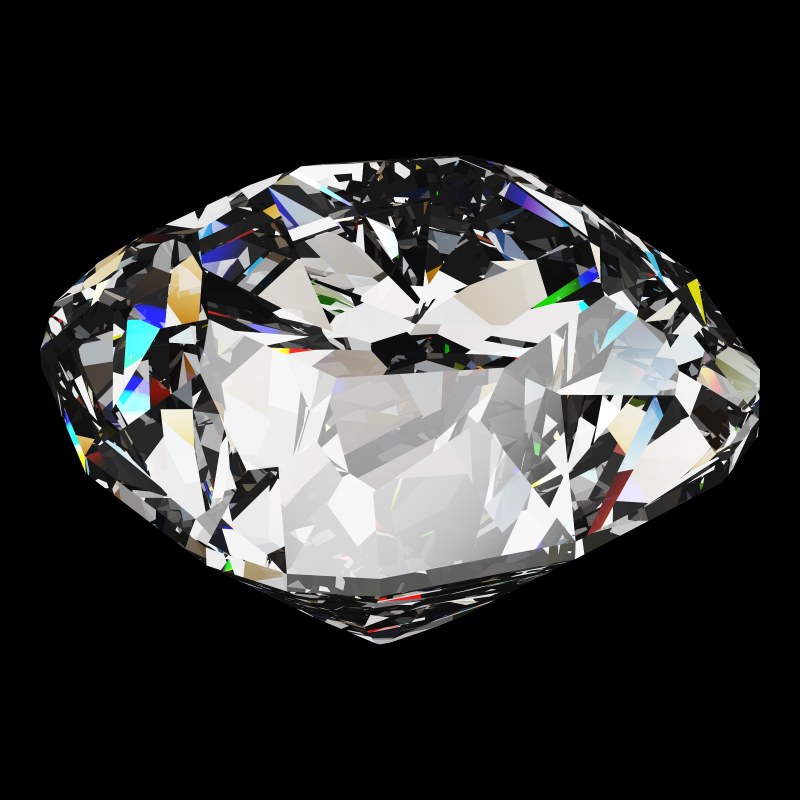

The Old Mine Cut in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Mine Cut model, 1.00 ct, studio light.

Old Mine Cut Moissanite

The Old Mine is the cushion people picture when they say antique. Our model has 74 facets, a wide 60.3% table and a 44.38° pavilion. In moissanite the fire rises well above the diamond version.

The leak barely changes: 29% in moissanite against 32% in diamond.

In our models, the Old Mine and the Peruzzi both have 74 facets on a cushion. In moissanite they differ mainly in light. The Peruzzi returns 71 and leaks 15%. For the Old Mine, the figures are 60 and 29%. The Old Mine shows a little more face for its weight, 93 against 90. Both gain fire over diamond, the Peruzzi more.

Is moissanite good in an Old Mine cut? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the Old Mine Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Mine Cut in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Mine Cut in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−14Brilliance−26Fire−12Scintillation+1Spread−2Symmetry−10Shape-norm0Tilt+6

Against the T73 Round Brilliant in moissanite: ahead on 2, level on 1, behind on 5.

  • Global77, the comparison 91, difference −14
  • Brilliance60, the comparison 86, difference −26
  • Fire85, the comparison 97, difference −12
  • Scintillation81, the comparison 80, difference +1
  • Spread98, the comparison 100, difference −2
  • Symmetry90, the comparison 100, difference −10
  • Shape-norm93, the comparison 93, difference 0
  • Tilt100, the comparison 94, difference +6
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in an Old Mine cut

More fire than in diamond

Fire 85 against 72 for the Old Mine Cut in diamond: 13 points higher

Only the stone changes between the two renders, and fire climbs from 72 to 85.

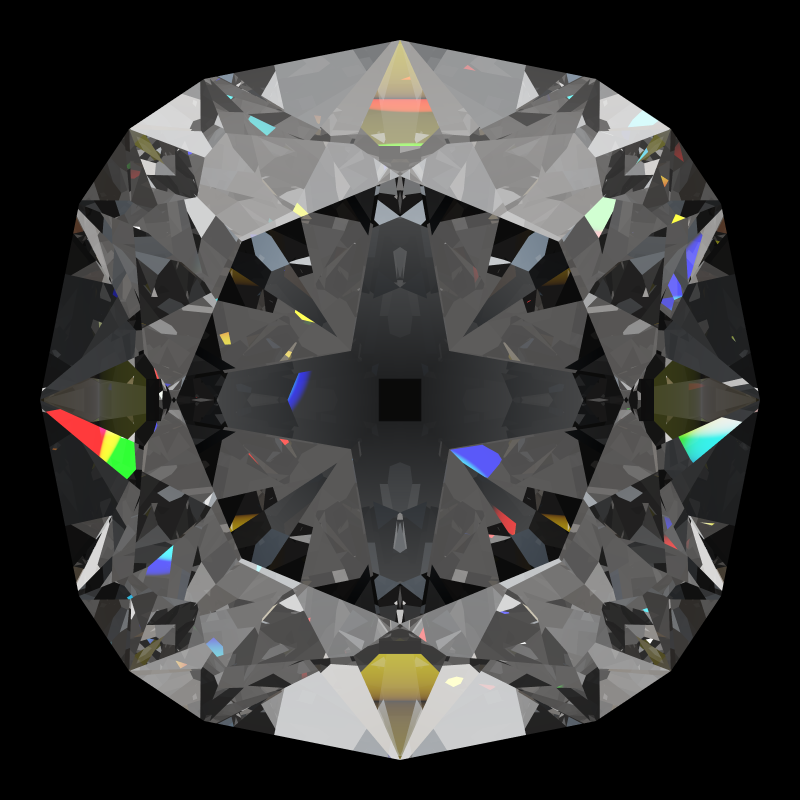

Old mine cut in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 85)

Old Mine Cut in moissanite · Fire 85

Old mine cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 72)

Old Mine Cut in diamond · Fire 72

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Lighter than the diamond version

1.10 ct at 6.5 mm, against 1.21 ct for the same cut in diamond (−9%)

The broad cushion sits on a lighter material: moissanite's specific gravity is 3.22, and diamond's is 3.52.

Moissanite1.10 ctDiamond1.21 ct
A Old Mine Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Old Mine Cut page

The catch with an Old Mine moissanite

A lot less light than a modern round

Brilliance 60 against 86 for the T73 Round Brilliant in moissanite: 26 points lower

About a third of the face-up map is gray: light that leaves through the pavilion.

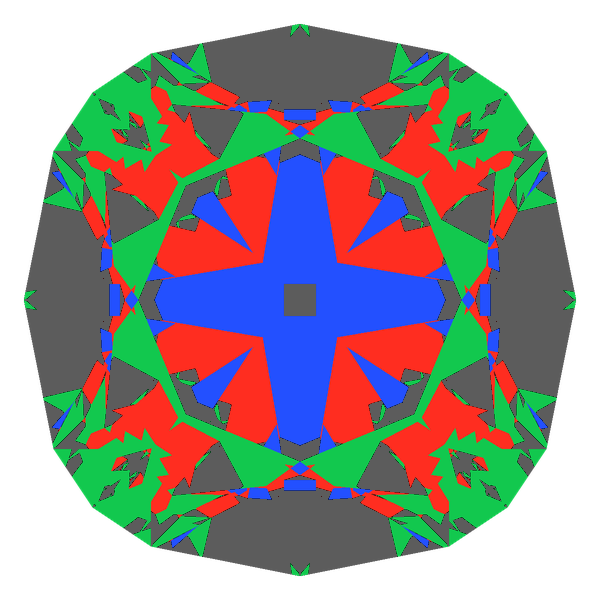

Old mine cut in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 60)

Old Mine Cut in moissanite · Brilliance 60

T73 round brilliant in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

T73 Round Brilliant in moissanite · Brilliance 86

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For an antique cushion in moissanite, the Peruzzi Cut Moissanite returns 71. For far more light, choose DG-Anteros (92).

Try it yourself: Open this Light Return map in the simulator

Over a quarter of the light leaks

Leakage 29 against 7 for the T73 Round Brilliant in moissanite: 22 points higher

The leak is 29% in our census, against 7% for the T73 in moissanite. Tipping the stone shifts the gray but does not clear it.

Old Mine Cut in moissanite · Leakage 29

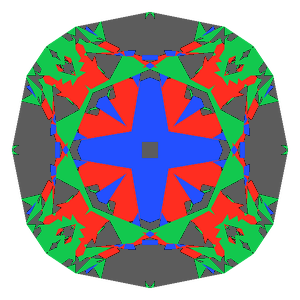

Old mine cut in moissanite tilted 0 degrees: Light Return map, 31% of the face leaking0° · 31% leak

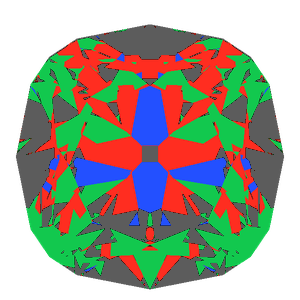

Old mine cut in moissanite tilted 10 degrees: Light Return map, 28% of the face leaking10° · 28% leak

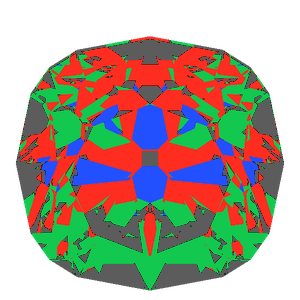

Old mine cut in moissanite tilted 20 degrees: Light Return map, 22% of the face leaking20° · 22% leak

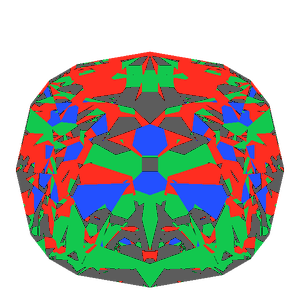

Old mine cut in moissanite tilted 30 degrees: Light Return map, 22% of the face leaking30° · 22% leak

T73 Round Brilliant in moissanite · Leakage 7

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size does not move the share. The Peruzzi Cut Moissanite leaks 15%.

Try it yourself: Tilt it yourself in the simulator's light map

A less regular pavilion

Symmetry 90 against 100 for the T73 Round Brilliant in moissanite: 10 points lower

Symmetry 90: the pavilion's facets vary more within the design than a modern round's.

Old Mine Cut · 74 facets · Symmetry 90

T73 Round Brilliant · 73 facets · Symmetry 100

Symmetry scores how regular the pavilion facets are within the design. Compare how evenly the facets repeat around each pavilion. Drawn from each cut's own model.

What helps: This is the design. The Old European Cut Moissanite scores 100.

Try it yourself: Compare the Symmetry spoke in the Cut Performance Wheel

Less face for its weight than the T73

Face-up size 93 against 100 for the T73 Round Brilliant in moissanite (T73 = 100): 7% less face-up area for the same weight

The cushion outline alone gives it an advantage, because a cushion covers more of its width than a circle. The depth takes away more than that: 65.6% for the Old Mine, 61.7% for the T73.

Old Mine Cut · 6.29 mm at 1.00 ct · Face-up size 93

T73 Round Brilliant · 6.68 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in moissanite and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: Among antique cushions, the Mazarin Cut Moissanite does better at 96. Our modern Cushion Cut Moissanite reaches 97 and returns more light too, 74 against 60.

Try it yourself: See its size at 1.00 ct in moissanite in the 3D Gemstone Simulator

Who an Old Mine moissanite suits

Choose it for the classic antique cushion with lots of color, and expect a softer face than a modern round. A bezel or a low basket shows its broad crown well. But no setting wins back the light lost through the pavilion.

The Peruzzi Cut Moissanite gives a brighter antique cushion. For a round, DG-M5 Moissanite is the brightest we measure in moissanite.

For cutters: the 44.38° pavilion is already above moissanite's 39.5° guide minimum. We have not measured other angles. That guide is for rounds, and we do not trace where the light escapes. The fix that our data supports is a different cut.

Old Mine Cut Moissanite: questions

Is Old Mine cut moissanite worth it?

For fire, yes: 85 against 72 in diamond. For light, it trails a modern round: 60 against 86.

Why does Old Mine moissanite look darker than a round?

In our census, 29% of its light leaves through the pavilion, against 7% for the T73.

Old Mine or Old European cut moissanite?

The Old European. It returns Brilliance 79 against 60 and fire 95 against 85. It also shows a little more face for its weight, 95 against 93.

How much fire does an Old Mine moissanite have?

Fire 85 in our census. That is below the T73 in moissanite (97) but well above the same cut in diamond (72).
