Old Mine Cut Ruby: a modern round's sparkle, with half the light lost

Brilliance 50 · Fire 36 · Scintillation 81 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A historic cushion, in ruby: Scintillation 81 to the T73's 80, and 14% heavier than the same cut in diamond. Also, 49% of the light escapes through the pavilion.

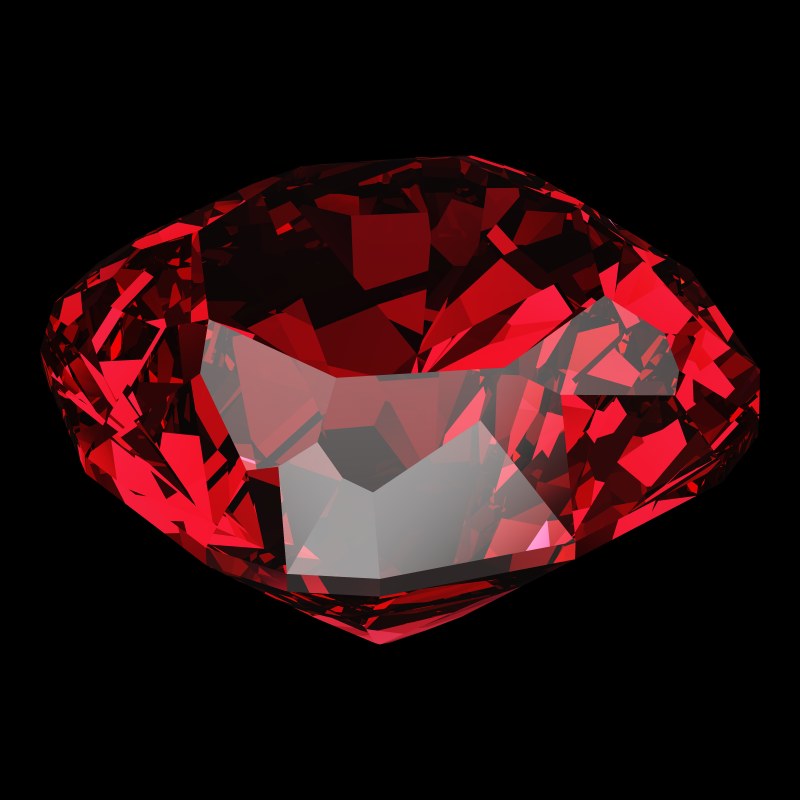

The Old Mine Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Mine Cut model, 1.00 ct, studio light.

Old Mine Cut Ruby

A rounder cushion with the facets of the Peruzzi, a wide table and a steep pavilion: that is the old mine cut. We modeled it with 74 facets, a broad 60.3% table, a 43.0° crown and a 44.38° pavilion.

In ruby it sits between the other two historic cushions we measure. It returns more light than the Peruzzi and less than the Mazarin. Its sparkle is level with the T73's.

Old Mine cut ruby: worth choosing? Pros and cons

Pros

None by our margins; scintillation runs level with the T73, 81 to 80.

Compared with the T73 Round Brilliant in ruby and with the Old Mine Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Mine Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Mine Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−17Brilliance−44Fire−1Scintillation+1Spread−2Symmetry−10Shape-norm−24Tilt+25

Against the T73 Round Brilliant in ruby: ahead on 2, behind on 6.

  • Global62, the comparison 79, difference −17
  • Brilliance50, the comparison 94, difference −44
  • Fire36, the comparison 37, difference −1
  • Scintillation81, the comparison 80, difference +1
  • Spread98, the comparison 100, difference −2
  • Symmetry90, the comparison 100, difference −10
  • Shape-norm78, the comparison 102, difference −24
  • Tilt100, the comparison 75, difference +25
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in an Old Mine cut

Only Tilt beats a baseline, 100 against the T73's 75. On a face that returns 50, that is a full share of little light, so it does not count as a pro. Scintillation, 81, is level with the T73's 80. The case for the cut is the look of its broad facets and its place in the history of the brilliant.

The Old Mine's costs in ruby

About half a round's light

Brilliance 50 against 94 for the T73 Round Brilliant in ruby: 44 points lower

Light that enters the wide 60.3% table meets a pavilion drawn for the narrower critical angle of diamond. In ruby, more of that light gets through. Against the same cut in diamond, the ruby returns 50 to 59.

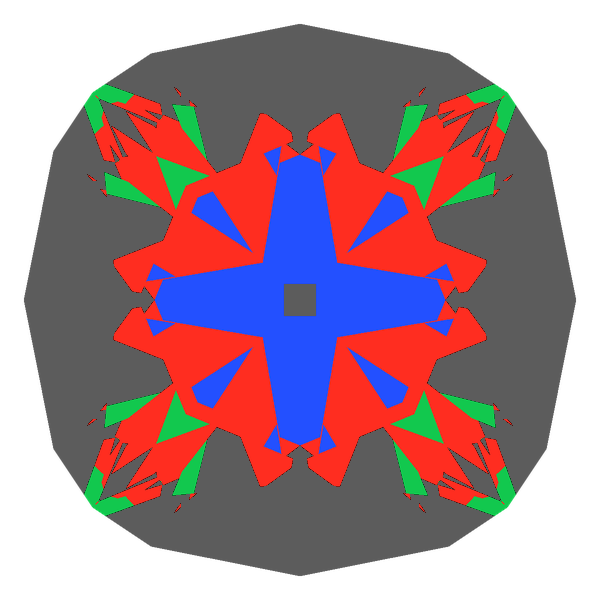

Old mine cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 50)

Old Mine Cut in ruby · Brilliance 50

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: Its 44.38° pavilion is above the guide minimum for ruby, so our data does not suggest a steeper one. The Mazarin Cut Ruby gives more light in a historic cushion, 58. The modern Cushion Cut Ruby gives 88.

Try it yourself: Open this Light Return map in the simulator

Nearly half the light leaks

Leakage 49 against 5 for the T73 Round Brilliant in ruby: 44 points higher

In our census, 49% of the light leaves through the pavilion, far from the T73's 5%. The diamond Old Mine loses 32%.

Old Mine Cut in ruby · Leakage 49

Old mine cut in ruby tilted 0 degrees: Light Return map, 48% of the face leaking0° · 48% leak

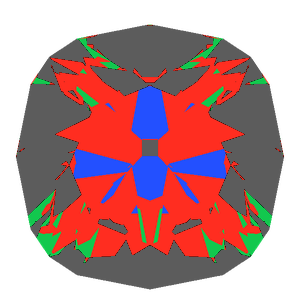

Old mine cut in ruby tilted 10 degrees: Light Return map, 46% of the face leaking10° · 46% leak

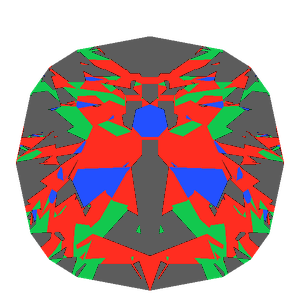

Old mine cut in ruby tilted 20 degrees: Light Return map, 37% of the face leaking20° · 37% leak

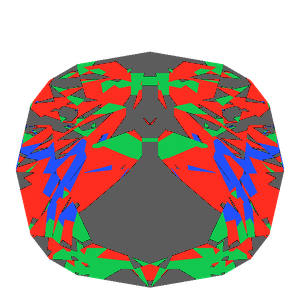

Old mine cut in ruby tilted 30 degrees: Light Return map, 37% of the face leaking30° · 37% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size has no effect on the share. The Mazarin Cut Ruby leaks 37%, and the Cushion Cut Ruby 11%.

Try it yourself: Tilt it yourself in the simulator's light map

Half the fire of a diamond Old Mine

Fire 36 against 72 for the Old Mine Cut in diamond: 36 points lower

Fire 36 in ruby against 72 in diamond, about level with the T73 in ruby, 37.

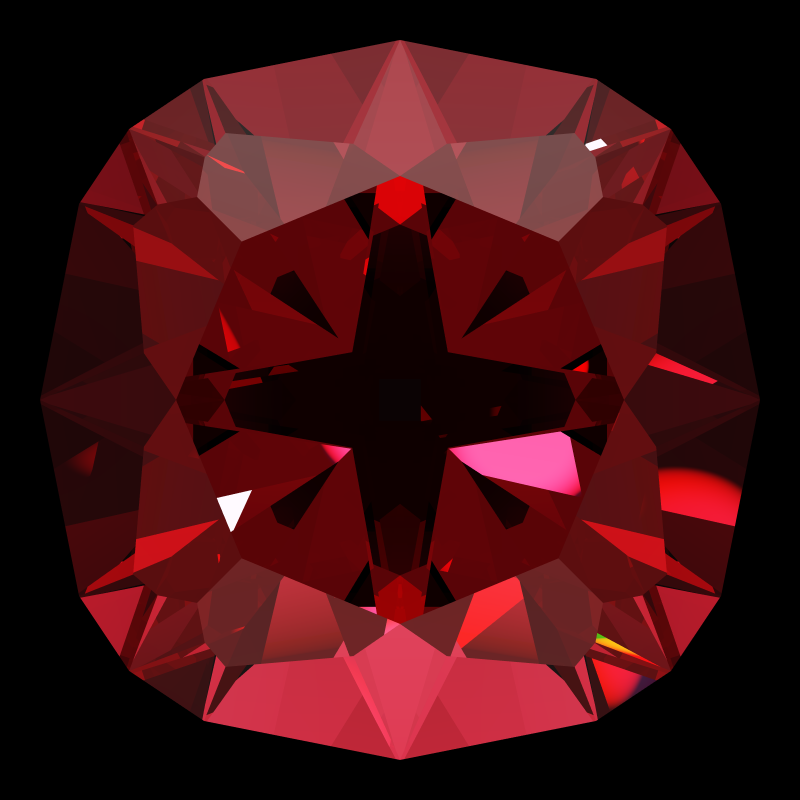

Old mine cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 36)

Old Mine Cut in ruby · Fire 36

Old mine cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 72)

Old Mine Cut in diamond · Fire 72

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: For fire in a ruby that keeps its light, the Trilliant Cut Ruby scores 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Heavier than a diamond Old Mine

1.37 ct at 6.5 mm, against 1.21 ct for the same cut in diamond (+14%)

The Old Mine is cut 65.6% deep in diamond and ruby alike, so depth does not cause the difference. Density does: ruby, at 4.00 against 3.52 for diamond, makes a stone of the same width 14% heavier.

Ruby1.37 ctDiamond1.21 ct
A Old Mine Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose by millimeters.

Try it yourself: Weights in every gemstone on the Old Mine Cut page

Who an Old Mine ruby suits

Choose the Old Mine in ruby for a reproduction piece or an antique-style setting, where the broad facets of the cushion matter more than light. Expect a darker face than a modern cut. In our census, almost half the light leaves through the pavilion.

For more light in a historic cushion, choose the Mazarin Cut Ruby. For a historic round, choose the Old European Cut Ruby, at 78. For a modern cushion, choose the Cushion Cut Ruby.

Old Mine Cut Ruby: questions

Is an Old Mine cut good for ruby?

It sparkles like a modern round, scintillation 81, but it returns much less light: Brilliance 50 against 94.

Old Mine or Old European cut ruby?

The Old European returns more light (78 against 50) and leaks less (22% against 49%).

What does a 6.5 mm Old Mine ruby weigh?

About 1.37 ct. The same cushion in diamond weighs 1.21 ct.
