Old European Cut Ruby: a small-table round that lets more than a fifth of its light leak

Brilliance 78 · Fire 39 · Scintillation 81 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A 45.0% table and a 35.0° crown on a round outline. In ruby 22% of the light leaks, more than from any of our DG or T-series rounds.

The Old European Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old European Cut model, 1.00 ct, studio light.

Old European Cut Ruby

When bruting became mechanized, the facets of the old mine cut could sit on a true circle, and the result was the Old European cut. We measured a 74-facet model with a 45.0% table under a tall 35.0° crown. It has a 41.5° pavilion and is 64.7% deep overall.

In diamond it comes close to a modern round. In ruby it does not. The T73 returns 94 where the Old European returns 78, and the leak increases from 5% to 22%.

At 41.5°, its pavilion is above the guide minimum for ruby, 36.4°. So this is not the window of a shallow stone. The census lights the ruby from a wide cone, and ruby lets more of the off-axis light through.

Is an Old European cut right for ruby? Pros and cons

Pros

None by our margins. Its Tilt of 87 comes with a dimmer face, so it does not count as a pro.

Compared with the T73 Round Brilliant in ruby and with the Old European Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old European Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old European Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−5Brilliance−16Fire+2Scintillation+1Spread−2Symmetry0Shape-norm+20Tilt+12

Against the T73 Round Brilliant in ruby: ahead on 4, level on 1, behind on 3.

  • Global74, the comparison 79, difference −5
  • Brilliance78, the comparison 94, difference −16
  • Fire39, the comparison 37, difference +2
  • Scintillation81, the comparison 80, difference +1
  • Spread98, the comparison 100, difference −2
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm122, the comparison 102, difference +20
  • Tilt87, the comparison 75, difference +12
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in an Old European cut

By our margins, only Tilt beats a baseline, and the rule on brilliance stops it from being a pro. Tilt reads 87 against 75, but Brilliance is 78 against 94. A tilt pro needs brilliance within five points of the baseline's. Instead, the cut offers the period outline and its high crown on a hard, everyday stone.

The Old European's costs in ruby

Far less fire than the diamond version

Fire 39 against 74 for the Old European Cut in diamond: 35 points lower

Diamond gives this cut 74 for fire, and ruby gives it 39. The high 35.0° crown would throw more color in a stone with more dispersion, but ruby has little to give.

Old european cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 39)

Old European Cut in ruby · Fire 39

Old european cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 74)

Old European Cut in diamond · Fire 74

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Among ruby cuts close to the T73's light, the Trilliant Cut Ruby leads for fire at 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

More than a fifth of the light leaks

Leakage 22 against 5 for the T73 Round Brilliant in ruby: 17 points higher

In our census, 22% of the light leaves through the pavilion of the ruby, where the T73 loses 5%. With a 34.6° critical angle, more of the light that reaches the pavilion at a slant goes straight through.

Old European Cut in ruby · Leakage 22

Old european cut in ruby tilted 0 degrees: Light Return map, 21% of the face leaking0° · 21% leak

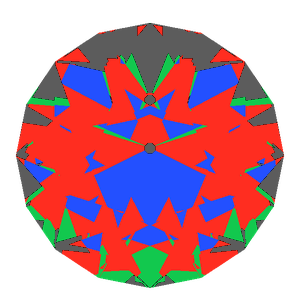

Old european cut in ruby tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak

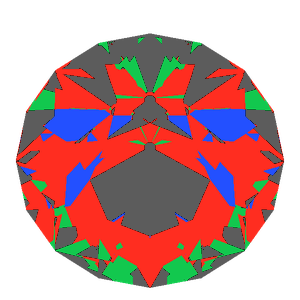

Old european cut in ruby tilted 20 degrees: Light Return map, 34% of the face leaking20° · 34% leak

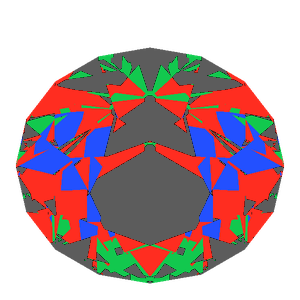

Old european cut in ruby tilted 30 degrees: Light Return map, 37% of the face leaking30° · 37% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: We have not measured a steeper Old European. Its 41.5° pavilion is already above the 36.4° guide minimum for ruby. A modern round plan does better: DG-Anteros Ruby leaks only 3% in ruby.

Try it yourself: Tilt it yourself in the simulator's light map

Less light than a modern ruby round

Brilliance 78 against 94 for the T73 Round Brilliant in ruby: 16 points lower

Brilliance 78 against 94. Leakage increases by about as much, 22% against 5%.

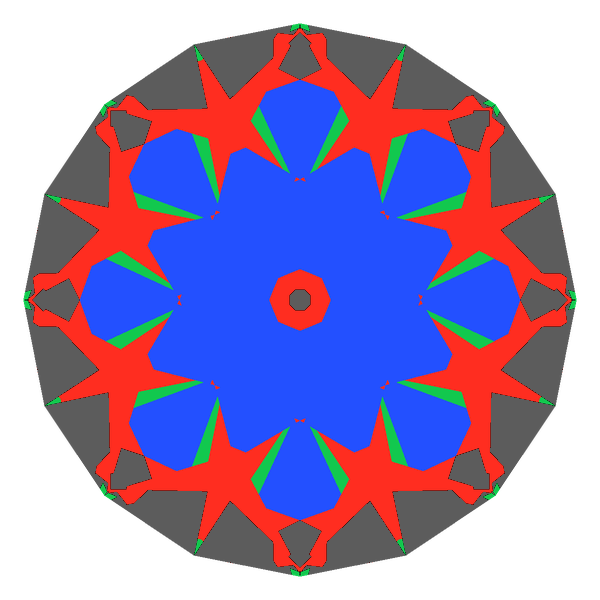

Old european cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 78)

Old European Cut in ruby · Brilliance 78

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: Change to a modern round plan and the light comes back. The T73 Round Brilliant Ruby returns 94, and DG-M5 Ruby 100.

Try it yourself: Open this Light Return map in the simulator

Heavier than diamond

1.24 ct at 6.5 mm, against 1.09 ct for the same cut in diamond (+14%)

The Old European is deep, 64.7%, and ruby is denser than diamond. A 6.5 mm stone weighs 1.24 ct, against 1.09 ct in diamond.

Ruby1.24 ctDiamond1.09 ct
A Old European Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Compare stones by diameter.

Try it yourself: Weights in every gemstone on the Old European Cut page

Who an Old European ruby suits

The Old European suits a ruby for a period piece, where the small table and tall crown are the look. There, some loss of light is acceptable. Of our other historic cuts, only the T57 returns more light in ruby. Every DG and T-series round returns more.

For a round ruby with full light, choose the T73 Round Brilliant Ruby or DG-Anteros Ruby. For a historic plan, the 1919 T57 Round Brilliant Ruby returns 94. Outside the rounds, the Cushion Cut Ruby reaches 88.

Old European Cut Ruby: questions

Is an Old European cut good for ruby?

Among our historic cuts, only the T57 returns more light in ruby. Against the T73 the Old European trails: Brilliance 78 against 94, leakage 22% against 5%.

Old European ruby or Old Mine ruby?

The round one, clearly. The Old Mine cushion returns 50 in ruby and loses 49% through the pavilion. The Old European returns 78 and loses 22%.

What does a 6.5 mm Old European ruby weigh?

About 1.24 ct, heavier than the T73 or any DG round of that width in ruby. Its depth is 64.7%.
