DG-Miliano Ruby: sparkle as fine as any we measure in this stone, and steadier light than the T73 when tilted

Brilliance 90 · Fire 35 · Scintillation 98 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A 177-facet round that sparkles as finely as anything we measure in ruby, and darkens less than the T73 when it tilts.

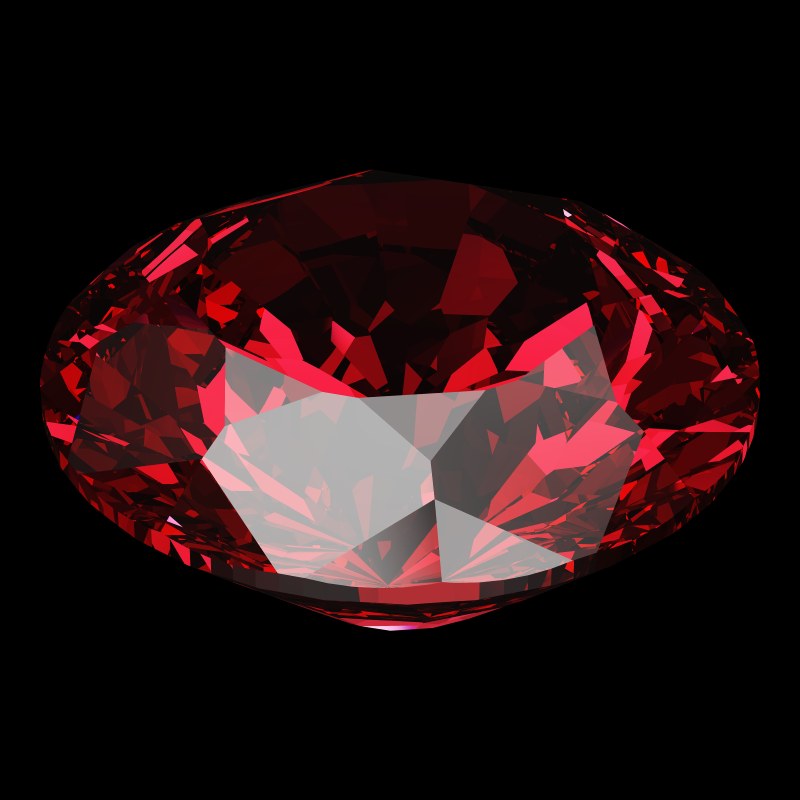

The DG-Miliano in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Miliano model, 1.00 ct, studio light.

DG-Miliano Ruby

DG-Miliano puts eight stars, eight crown mains and sixteen upper girdle facets around the table. Below them is a girdle of ninety-six facets. The pavilion has three tiers of sixteen, and the steepest tier is at the girdle. Our model has 177 facets, a pavilion that measures 38.3° and a depth of 60.3%.

In ruby it loses a few points of light but gets two real gains. First, it has the finest sparkle we measure, level with DG-Vitruvio and the Portuguese Bird's Nest. Second, it has the best tilt score among the bright rounds. Against the same cut in diamond it loses on fire, light and leakage, and the material is the cause.

Does ruby suit DG-Miliano? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the DG-Miliano in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Miliano in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Miliano in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+1Brilliance−4Fire−2Scintillation+18Spread+1Symmetry0Shape-norm−6Tilt+8

Against the T73 Round Brilliant in ruby: ahead on 4, level on 1, behind on 3.

  • Global80, the comparison 79, difference +1
  • Brilliance90, the comparison 94, difference −4
  • Fire35, the comparison 37, difference −2
  • Scintillation98, the comparison 80, difference +18
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm96, the comparison 102, difference −6
  • Tilt83, the comparison 75, difference +8
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in DG-Miliano

Tied for the finest sparkle we measure in ruby

Scintillation 98 against 80 for the T73 Round Brilliant in ruby: 18 points higher

Three pavilion tiers and a ninety-six-facet girdle divide the stone into 177 facets. Our scintillation score rises with that subdivision. Nothing on our ruby pages scores higher, and DG-Vitruvio and the Portuguese Bird's Nest have the same score.

DG-Miliano · 177 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Keeps more light than the T73 when tipped

Tilt 83 against 75 for the T73 Round Brilliant in ruby: 8 points higher

Tilted by 20°, DG-Miliano still returns 83% of its face-up light, and the T73 keeps 75%. Its light stays within a few points of the T73's brilliance. So the gain is real: this is not a dim stone holding on to little light.

DG-Miliano in ruby · Tilt 83

Dg-miliano in ruby tilted 0 degrees: Light Return map, 13% of the face leaking0° · 13% leak

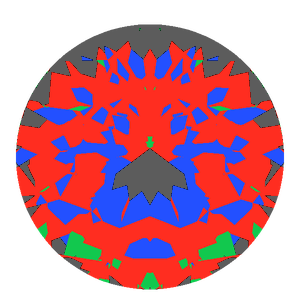

Dg-miliano in ruby tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak

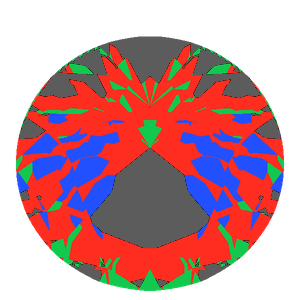

Dg-miliano in ruby tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak

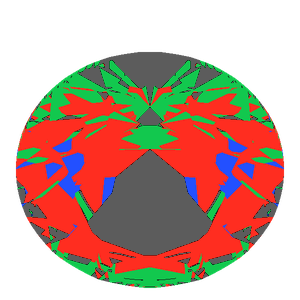

Dg-miliano in ruby tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak

T73 Round Brilliant in ruby · Tilt 75

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

What DG-Miliano gives up in ruby

Less than half the diamond version's fire

Fire 35 against 82 for the DG-Miliano in diamond: 47 points lower

With the same design, the diamond scores 82 for fire and the ruby 35. None of the ruby rounds we measure scores above 43 for fire.

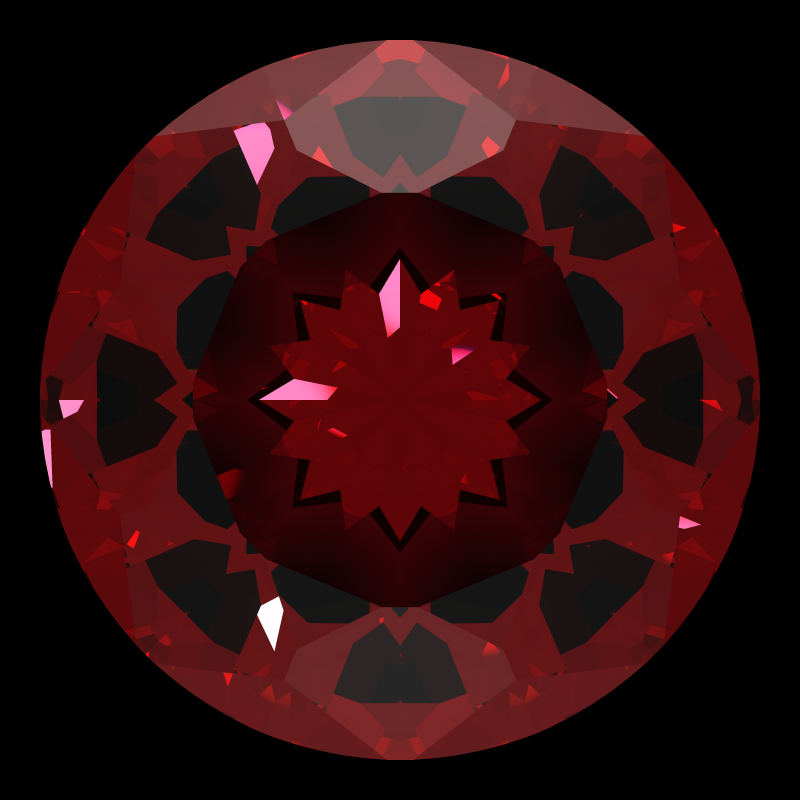

Dg-miliano in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 35)

DG-Miliano in ruby · Fire 35

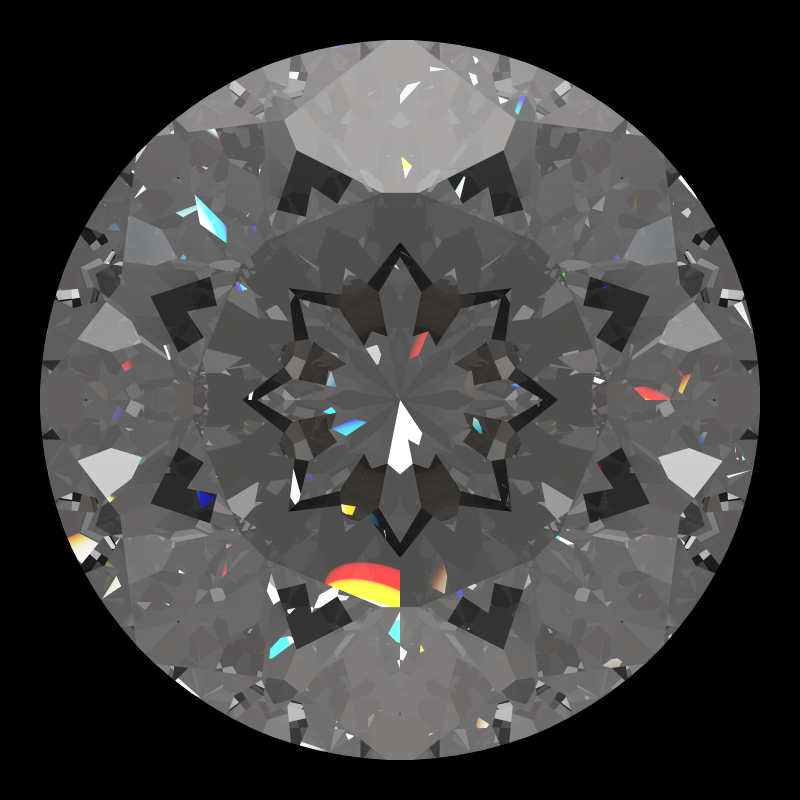

Dg-miliano in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 82)

DG-Miliano in diamond · Fire 82

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: A red stone that must flash color needs a cut that is not round. The Trilliant Cut Ruby reaches 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Weighs more than diamond for its size

1.17 ct at 6.5 mm, against 1.03 ct for the same cut in diamond (+14%)

A 6.5 mm DG-Miliano weighs 1.17 ct in ruby against 1.03 ct in diamond, because ruby is the denser material.

Ruby1.17 ctDiamond1.03 ct
A DG-Miliano 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Order the stone by its diameter and let the carat weight follow. The density of ruby sets the rest.

Try it yourself: Weights in every gemstone on the DG-Miliano page

More leakage than in diamond

Leakage 10 against 3 for the DG-Miliano in diamond: 7 points higher

In ruby, 10% of the light escapes through the pavilion, against 3% in diamond. Ruby has a larger critical angle, 34.6° against 24.4°, so light that the diamond version reflects goes through.

DG-Miliano in ruby · Leakage 10

Dg-miliano in ruby tilted 0 degrees: Light Return map, 13% of the face leaking0° · 13% leak
Dg-miliano in ruby tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak
Dg-miliano in ruby tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak
Dg-miliano in ruby tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak

DG-Miliano in diamond · Leakage 3

Dg-miliano in diamond tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak

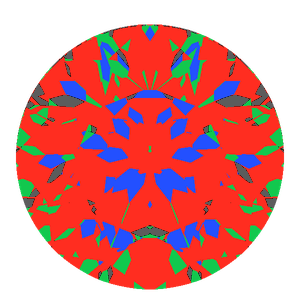

Dg-miliano in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak

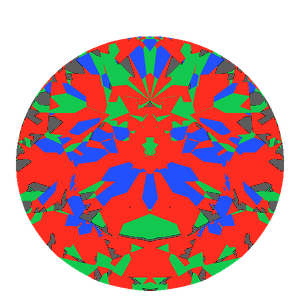

Dg-miliano in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak

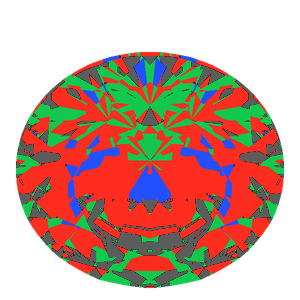

Dg-miliano in diamond tilted 30 degrees: Light Return map, 16% of the face leaking30° · 16% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller DG-Miliano leaks the same share as a larger one. The single-angle DG-M5 Ruby leaks 0% in ruby.

Try it yourself: Tilt it yourself in the simulator's light map

A little less light than the diamond version

Brilliance 90 against 95 for the DG-Miliano in diamond: 5 points lower

Brilliance 90 against 95. The tiered pavilion was drawn for a stone that bends light much more strongly than ruby. Its shallow lower tiers give ruby slightly less to work with.

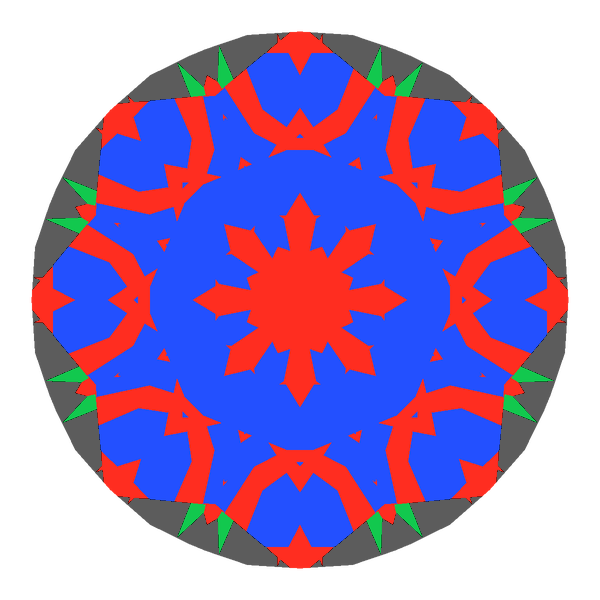

Dg-miliano in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 90)

DG-Miliano in ruby · Brilliance 90

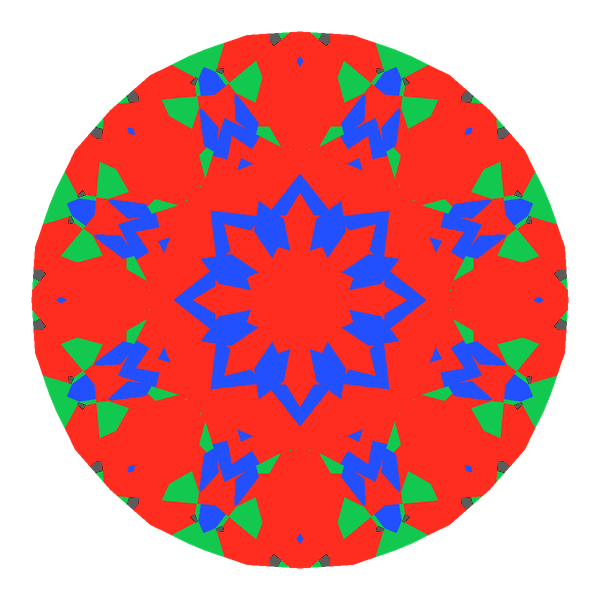

Dg-miliano in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 95)

DG-Miliano in diamond · Brilliance 95

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: If face-up light is the first need, DG-M5 Ruby tops our ruby census at 100, with coarser sparkle.

Try it yourself: Open this Light Return map in the simulator

Who a DG-Miliano ruby suits

DG-Miliano suits a round ruby that will move, in earrings or a pendant. There, light at an angle counts, and a busy, fine sparkle is welcome. For that, it gives up four points of brilliance against the T73.

For maximum light face-up, choose DG-M5 Ruby. DG-Vitruvio pairs the same fine sparkle with the T73's light: see DG-Vitruvio Ruby.

Ruby has a hardness of 9, which helps a thin, finely faceted girdle keep its edges in daily wear.

DG-Miliano Ruby: questions

Does DG-Miliano make a ruby sparkle?

Very finely. Its Scintillation is 98, the joint top of our ruby rounds, and the T73 scores 80.

Is DG-Miliano as bright as DG-M5 in ruby?

Not quite. DG-M5 returns 100 and leaks 0%. DG-Miliano returns 90 and leaks 10%, but it keeps more light when tilted: 83 against 76.

How heavy is a 6.5 mm DG-Miliano ruby?

About 1.17 ct in ruby, almost the same as a T73 of that width. Cut in diamond, it weighs 1.03 ct.
