T105 Round Brilliant Ruby: more sparkle than the T73, on a knife-edge girdle

Brilliance 90 · Fire 36 · Scintillation 90 · in our census, where the T73 scores 94 · 37 · 80 in ruby

The T57 with 48 extra facets and no girdle band. In ruby it has finer sparkle than the T73 and a few points less light.

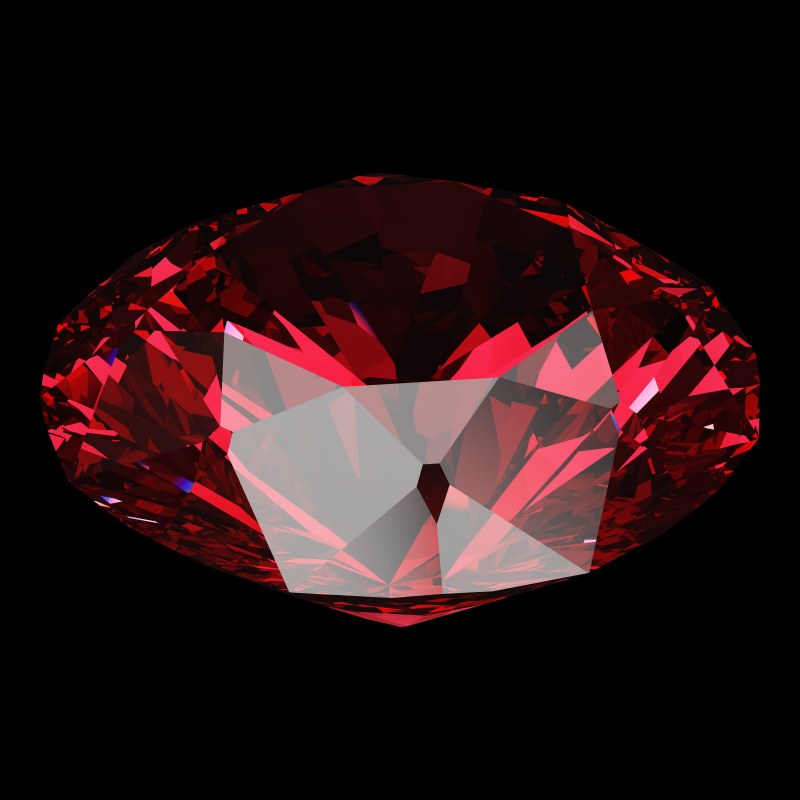

The T105 Round Brilliant in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the T105 Round Brilliant model, 1.00 ct, studio light.

T105 Round Brilliant Ruby

Start with the T57 and keep its main angles (40.75° on the pavilion). Then add 48 facets: eight star halves on the crown, two extra rows of lower halves and eight pavilion star halves at the girdle. Our 105-facet model is 59.3% deep, with no girdle band at all.

In ruby the added facets clearly increase scintillation. The cut also trails a little on light: Brilliance 90 against 94 for the T73, and twice its leakage. Against the same cut in diamond, the costs are fire, tilt and still more leakage.

Carat for carat, it also shows more face than the T73: 106 against 100 on our face-up measure.

Should a ruby be cut as a T105? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the T105 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the T105 Round Brilliant in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: T105 Round Brilliant in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−1Brilliance−4Fire−1Scintillation+10Spread+1Symmetry0Shape-norm−5Tilt+3

Against the T73 Round Brilliant in ruby: ahead on 3, level on 1, behind on 4.

  • Global78, the comparison 79, difference −1
  • Brilliance90, the comparison 94, difference −4
  • Fire36, the comparison 37, difference −1
  • Scintillation90, the comparison 80, difference +10
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm97, the comparison 102, difference −5
  • Tilt78, the comparison 75, difference +3
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a T105

Finer sparkle than the T73

Scintillation 90 against 80 for the T73 Round Brilliant in ruby: 10 points higher

Our scintillation score comes from the facet plan, and 105 facets divide the face more finely than 73. Most of the new flashes come from the added rows of lower halves.

T105 Round Brilliant · 105 facets · Scintillation 90

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

More face per carat than the T73

Face-up size 106 against 100 for the T73 Round Brilliant in ruby (T73 = 100): 6% more face-up area for the same weight

Both outlines are circles, so the gain comes from the profile, not the shape. The knife-edge model is 59.3% deep against the T73's 61.7%, and it has no band. So less ruby fills the same round outline, and a stone of a given weight is wider. The picture shows the two at 1.00 ct, on one scale. On this measure this cut is level with DG-Rafaello and a point behind the T57.

T105 Round Brilliant · 6.41 mm at 1.00 ct · Face-up size 106

T73 Round Brilliant · 6.21 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in ruby and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in ruby in the 3D Gemstone Simulator

The T105's costs in ruby

Under half the fire of a diamond T105

Fire 36 against 77 for the T105 Round Brilliant in diamond: 41 points lower

Fire 36 in ruby, 77 in diamond. Extra facets cannot make up for a dispersion of 0.018. They only divide the little color into smaller pieces.

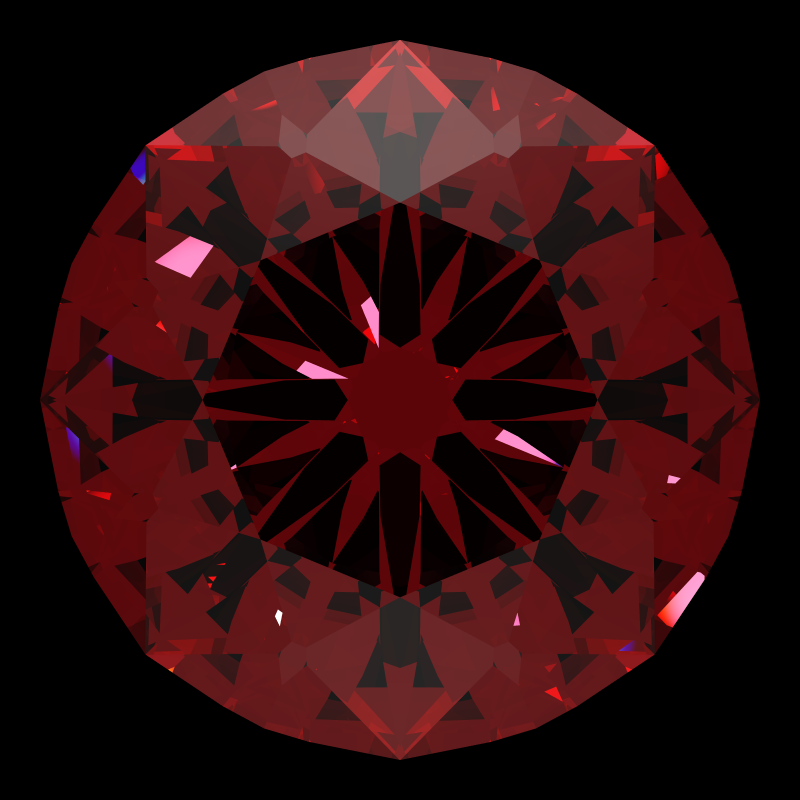

T105 round brilliant in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 36)

T105 Round Brilliant in ruby · Fire 36

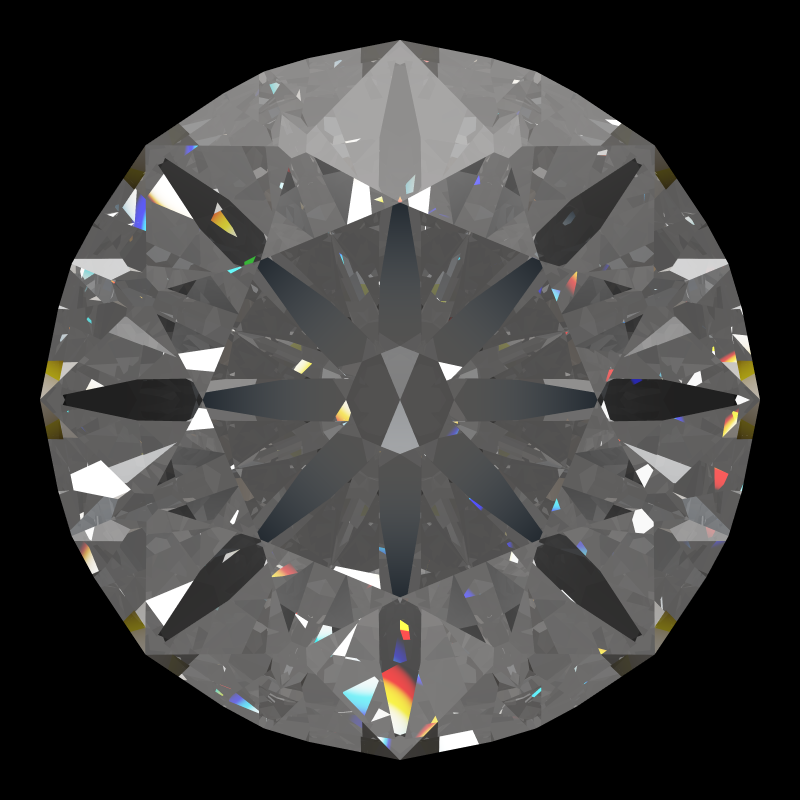

T105 round brilliant in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 77)

T105 Round Brilliant in diamond · Fire 77

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: None of our ruby rounds scores above 43 for fire. A ruby that must flash color is better as a Trilliant Cut Ruby, at 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Heavier than the same size in diamond

1.04 ct at 6.5 mm, against 0.92 ct for the same cut in diamond (+14%)

The knife-edge model is light for a round: 1.04 ct at 6.5 mm in ruby. In diamond the same outline weighs 0.92 ct.

Ruby1.04 ctDiamond0.92 ct
A T105 Round Brilliant 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose by width. This is already one of the lighter rounds for its size.

Try it yourself: Weights in every gemstone on the T105 Round Brilliant page

Darkens more when tipped than in diamond

Tilt 78 against 87 for the T105 Round Brilliant in diamond: 9 points lower

Tilted by 20°, the ruby keeps 78% of its face-up light and the diamond 87%. The extra facets of the T105 do not change how the wider escape cone of ruby behaves.

T105 Round Brilliant in ruby · Tilt 78

T105 round brilliant in ruby tilted 0 degrees: Light Return map, 12% of the face leaking0° · 12% leak

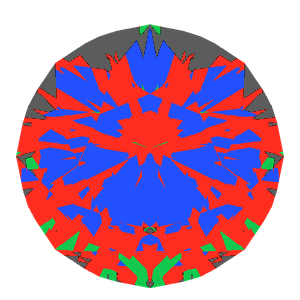

T105 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak

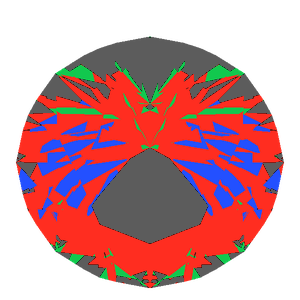

T105 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak

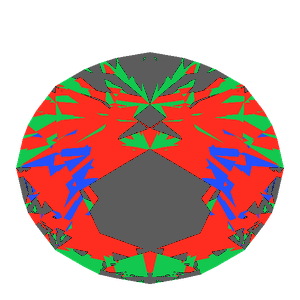

T105 round brilliant in ruby tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

T105 Round Brilliant in diamond · Tilt 87

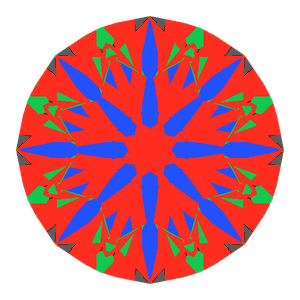

T105 round brilliant in diamond tilted 0 degrees: Light Return map, 2% of the face leaking0° · 2% leak

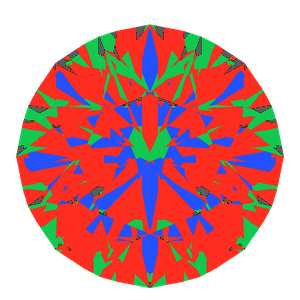

T105 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak

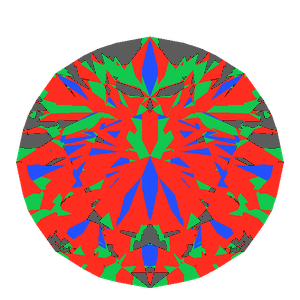

T105 round brilliant in diamond tilted 20 degrees: Light Return map, 11% of the face leaking20° · 11% leak

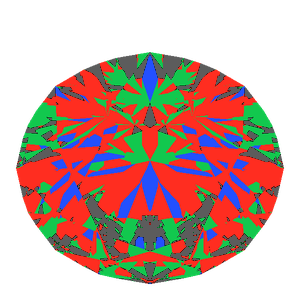

T105 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: For a fine-sparkling ruby round that also holds its light at an angle, DG-Miliano Ruby keeps 83.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Far more leakage than in diamond

Leakage 10 against 1 for the T105 Round Brilliant in diamond: 9 points higher

In our ruby census, 10% of the light leaves through the pavilion, and 1% in diamond. The added facets are slightly steeper. They help diamond more than ruby, which has a critical angle of 34.6°.

T105 Round Brilliant in ruby · Leakage 10

T105 round brilliant in ruby tilted 0 degrees: Light Return map, 12% of the face leaking0° · 12% leak
T105 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T105 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T105 round brilliant in ruby tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

T105 Round Brilliant in diamond · Leakage 1

T105 round brilliant in diamond tilted 0 degrees: Light Return map, 2% of the face leaking0° · 2% leak
T105 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T105 round brilliant in diamond tilted 20 degrees: Light Return map, 11% of the face leaking20° · 11% leak
T105 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: No size changes the share. The 73-facet plan of the T73 Round Brilliant Ruby cuts it to 5%. The twelve-fold DG-M5 Ruby leaks 0%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a T105 ruby suits

The T105 suits a round ruby that needs finer sparkle than the T73. It needs a setting that protects a knife-edge girdle, such as a full bezel. Expect a few points less light than the T73, and a little more face for the weight.

For both sparkle and the T73's light, DG-Vitruvio Ruby scores 98 with 94 brilliance. If the ruby goes into prongs and needs a faceted girdle band, choose the T73 Round Brilliant Ruby.

T105 Round Brilliant Ruby: questions

Does a T105 ruby sparkle more than a T73?

Yes: Scintillation 90 against 80.

Is a T105 ruby less bright than a T73?

It returns a few points less, 90 against 94. It also leaks 10% of the light through the pavilion, where the T73 leaks 5%.

Is a knife-edge girdle safe on a ruby?

Ruby is hard, 9 on the Mohs scale, but a knife edge is thin at any hardness. It chips more easily than a faceted girdle. For exactly that reason, our cut notes advise a protective setting.

What does a 6.5 mm T105 ruby weigh?

It is lighter than a T73 of the same width: about 1.04 ct in ruby, 0.92 ct in diamond.
