DG-M5 Ruby: the most light we measure in this stone, and no leakage

Brilliance 100 · Fire 39 · Scintillation 85 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A twelve-fold round is the best light-returner we measure in ruby. Its Brilliance is 100, and no light escapes through the pavilion.

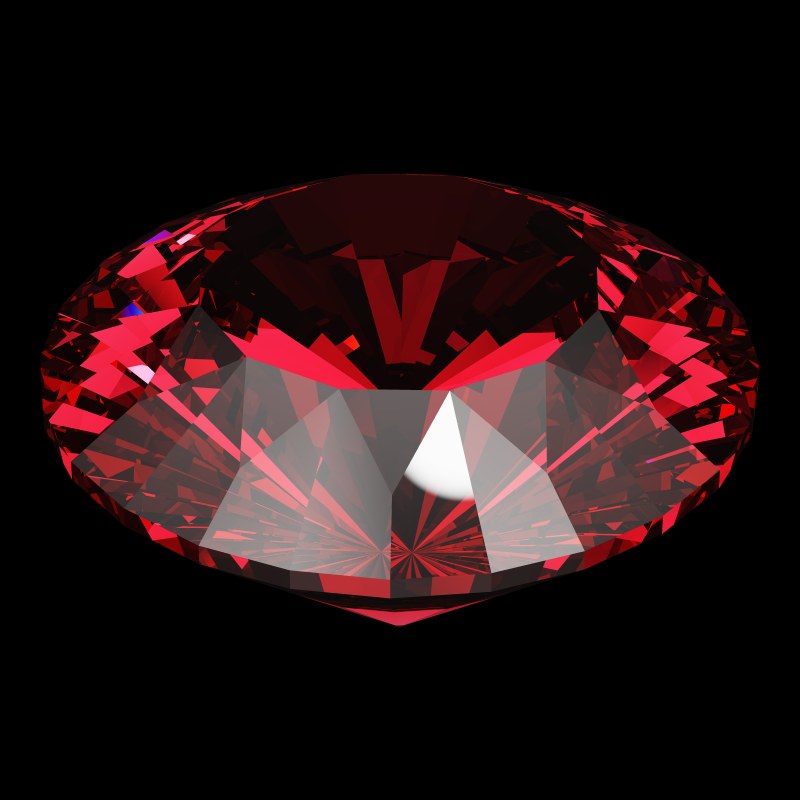

The DG-M5 in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-M5 model, 1.00 ct, studio light.

DG-M5 Ruby

DG-M5 puts twenty-four crown mains and twelve stars around the table. It cuts the whole pavilion at one angle: 41.49° on our model, with 85 facets and a total depth of 60.6%. It has no upper or lower halves.

We drew it for moissanite, but it tops the ruby census for light. It is ahead of every round and fancy shape we measure in this stone. Its single pavilion cone at 41.49° is five degrees above the guide minimum for ruby, 36.4°. So the light that enters the table comes back up.

Its weak point is fire: 39 against 67 for the same cut in diamond. Like the other bright ruby rounds, it also keeps less of its light at an angle than its diamond twin.

DG-M5 in ruby: good choice or not? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the DG-M5 in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-M5 in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-M5 in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+3Brilliance+6Fire+2Scintillation+5Spread0Symmetry0Shape-norm+5Tilt+1

Against the T73 Round Brilliant in ruby: ahead on 6, level on 2.

  • Global82, the comparison 79, difference +3
  • Brilliance100, the comparison 94, difference +6
  • Fire39, the comparison 37, difference +2
  • Scintillation85, the comparison 80, difference +5
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm107, the comparison 102, difference +5
  • Tilt76, the comparison 75, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in DG-M5

More light than any other cut we measure in ruby

Brilliance 100 against 94 for the T73 Round Brilliant in ruby: 6 points higher

Brilliance 100 is the top of our scale for this stone. The T73 returns 94 and DG-Anteros 97. For a red stone this matters more than usual, because returned light carries the body color to the eye.

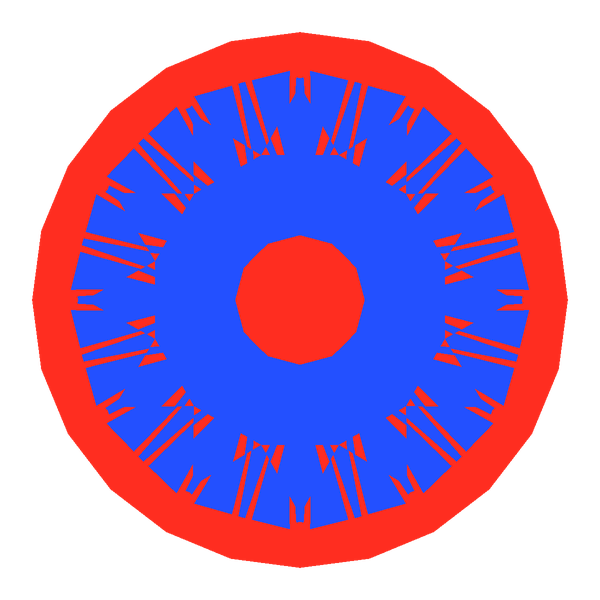

Dg-m5 in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 100)

DG-M5 in ruby · Brilliance 100

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

A little more sparkle than the T73

Scintillation 85 against 80 for the T73 Round Brilliant in ruby: 5 points higher

The twelve-fold crown divides the face into more, narrower facets than the eight-fold T73. Our scintillation score follows the facet count of the census's model. The margin is small: 85 against 80, exactly our five-point threshold.

DG-M5 · 85 facets · Scintillation 85

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Nothing lost through the back

Leakage 0 against 5 for the T73 Round Brilliant in ruby: 5 points lower

In our census 0% of the light leaves through the pavilion, against 5% for the T73 in ruby. Every other cut in our ruby census loses some light through the pavilion. This one loses nothing measurable.

DG-M5 in ruby · Leakage 0

Dg-m5 in ruby tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

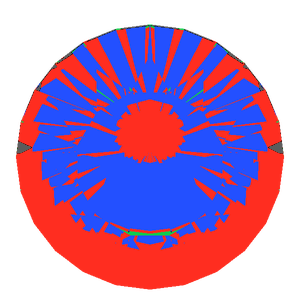

Dg-m5 in ruby tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak

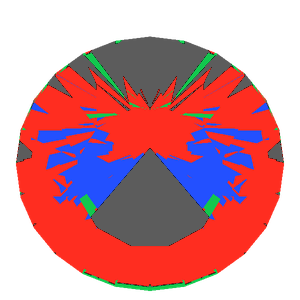

Dg-m5 in ruby tilted 20 degrees: Light Return map, 25% of the face leaking20° · 25% leak

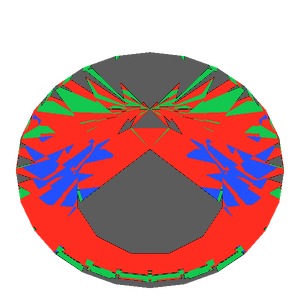

Dg-m5 in ruby tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Tilt it yourself in the simulator's light map

The catch with a DG-M5 ruby

Much less fire than the diamond version

Fire 39 against 67 for the DG-M5 in diamond: 28 points lower

The facets are the same, but the material is different. The diamond DG-M5 scores 67 for fire and the ruby 39. The census swaps refractive index and dispersion together, so it cannot tell which of them costs the ruby its fire.

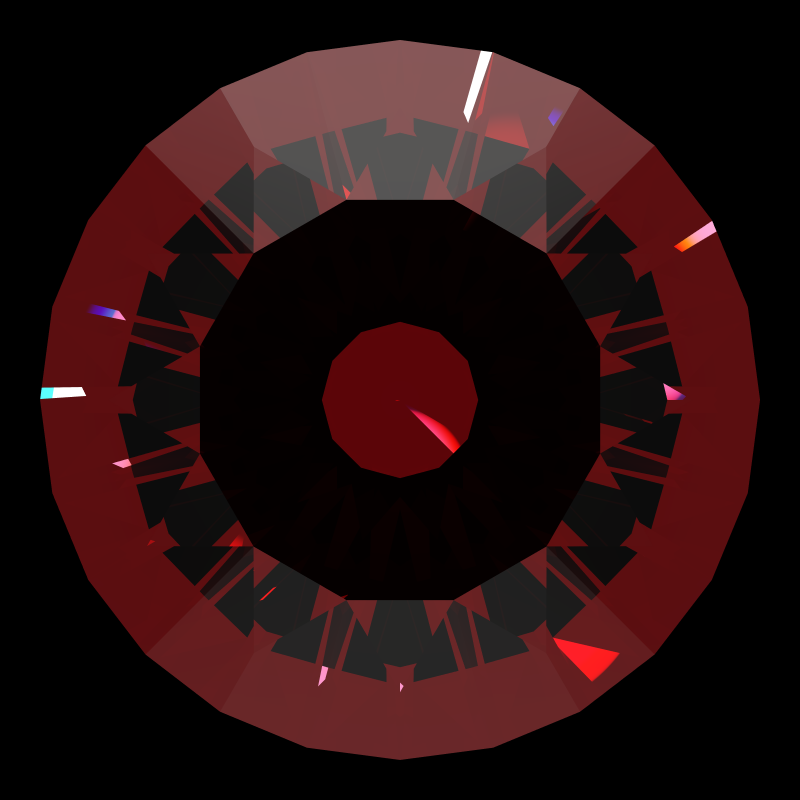

Dg-m5 in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 39)

DG-M5 in ruby · Fire 39

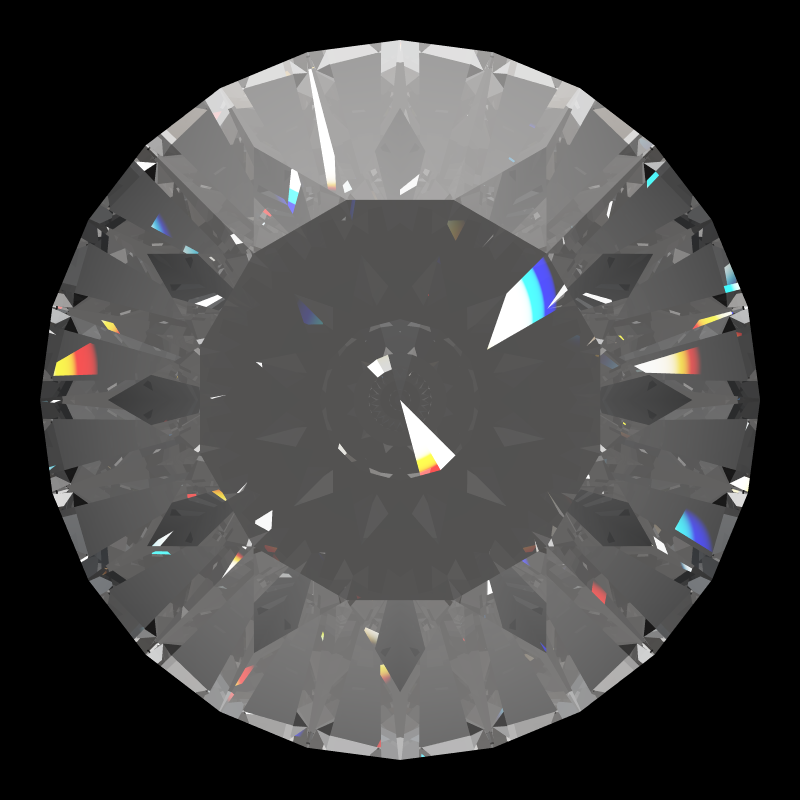

Dg-m5 in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 67)

DG-M5 in diamond · Fire 67

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: No round on our ruby pages scores more than 43 for fire. A ruby that must flash color needs a different shape. The Trilliant Cut Ruby reaches 52, at 86 brilliance.

Try it yourself: See the fire in the 3D Gemstone Simulator

Heavier than a diamond of the same width

1.12 ct at 6.5 mm, against 0.98 ct for the same cut in diamond (+14%)

At a specific gravity of 4.00, ruby is about 14% heavier than diamond at identical dimensions. A 6.5 mm DG-M5 weighs 1.12 ct here and 0.98 ct in diamond.

Ruby1.12 ctDiamond0.98 ct
A DG-M5 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: No part of the cut changes density. Specify the stone by its diameter.

Try it yourself: Weights in every gemstone on the DG-M5 page

Holds less of its light at an angle than in diamond

Tilt 76 against 83 for the DG-M5 in diamond: 7 points lower

Tilted 20°, the ruby keeps 76% of its face-up light, and the diamond version keeps 83%. A larger critical angle gives the pavilion fewer directions in which it reflects, and a tilt finds the gaps.

DG-M5 in ruby · Tilt 76

Dg-m5 in ruby tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in ruby tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak
Dg-m5 in ruby tilted 20 degrees: Light Return map, 25% of the face leaking20° · 25% leak
Dg-m5 in ruby tilted 30 degrees: Light Return map, 31% of the face leaking30° · 31% leak

DG-M5 in diamond · Tilt 83

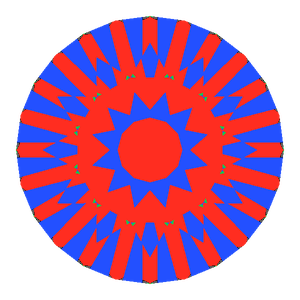

Dg-m5 in diamond tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

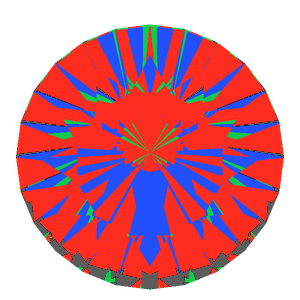

Dg-m5 in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak

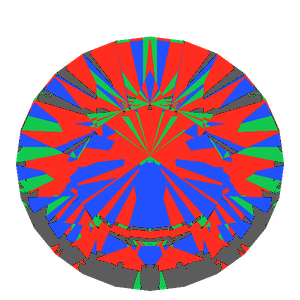

Dg-m5 in diamond tilted 20 degrees: Light Return map, 14% of the face leaking20° · 14% leak

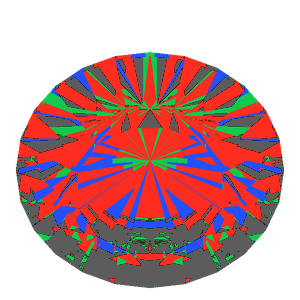

Dg-m5 in diamond tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Among the bright rounds in ruby, DG-Miliano Ruby keeps 83 when tilted, with 90 brilliance.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-M5 ruby suits

If a round ruby must return as much light as possible, our numbers point to this cut. It leads the ruby census on light and on leakage at the same time.

For finer sparkle, choose DG-Vitruvio Ruby: Scintillation 98 at 94 brilliance. For the eight-fold plan, choose DG-Anteros Ruby or the T73 Round Brilliant Ruby. DG-M5 is weakest on color flashes. For those, see the Trilliant Cut Ruby, 52 for fire.

Ruby is dichroic: purplish red along the c-axis of the crystal and orangey red across it. So cutters usually put the table of a round square to that axis, to show the purer red face-up. Our census traces a single refractive index, so none of this shows in the scores.

DG-M5 Ruby: questions

Is DG-M5 a good cut for ruby?

For light, yes. It is the brightest cut we measure in ruby: Brilliance 100 against 94 for the T73, with 0% leakage.

Why does DG-M5 work so well in ruby?

Its one-angle pavilion at 41.49° is well above the guide minimum for ruby, 36.4°, so little light escapes. We measured both stones separately. We did not predict one result from the other.

Does a DG-M5 ruby have fire?

Some: Fire 39, a little above the T73's 37 in ruby. The same cut in diamond scores 67.

What does a 6.5 mm DG-M5 ruby weigh?

At 6.5 mm across, the twelve-fold round weighs 1.12 ct in ruby. Cut in diamond, it weighs 0.98 ct.
