DG-M5 Amethyst: more light back than any other cut we measure in quartz

Brilliance 85 · Fire 50 · Scintillation 85 · in our census, where the T73 scores 72 · 36 · 80 in amethyst

Light inside amethyst must meet a facet beyond 40.4° to stay in. DG-M5 returns more of it than any other cut we measure in amethyst: Brilliance 85 against 72 for the T73.

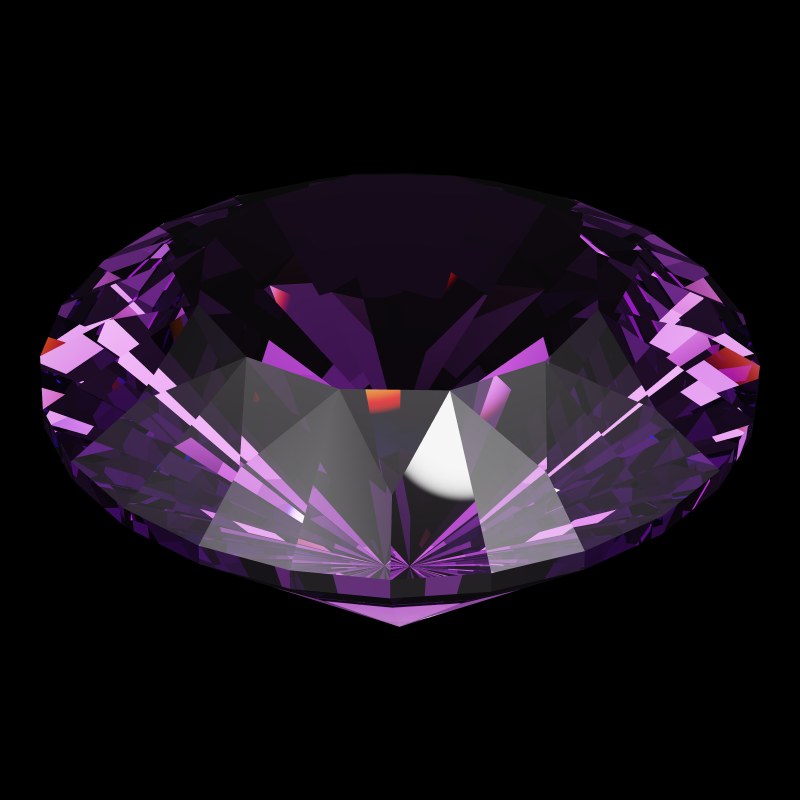

The DG-M5 in amethyst, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-M5 model, 1.00 ct, studio light.

DG-M5 Amethyst

Amethyst is quartz. Its refractive index is about 1.55, the lowest of the gemstones on this site. DG-M5 has a single tier of twenty-four pavilion mains, all at 41.49°, about a degree past amethyst's guide minimum of 40.4°.

In our census, the 85-facet plan beats every cut we measure in amethyst for brilliance. It also leaks the least of any.

Two results go the other way. When tipped, it keeps less of its light than the diamond version does. Its fire, 50, is also well under the diamond version's 67.

Is DG-M5 the best round for amethyst? Pros and cons

Compared with the T73 Round Brilliant in amethyst and with the DG-M5 in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-M5 in amethyst (white) against the T73 Round Brilliant in amethyst (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-M5 in amethyst, against the T73 Round Brilliant in amethyst as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+6Brilliance+13Fire+14Scintillation+5Spread0Symmetry0Shape-norm+14Tilt−17

Against the T73 Round Brilliant in amethyst: ahead on 5, level on 2, behind on 1.

  • Global76, the comparison 70, difference +6
  • Brilliance85, the comparison 72, difference +13
  • Fire50, the comparison 36, difference +14
  • Scintillation85, the comparison 80, difference +5
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm91, the comparison 77, difference +14
  • Tilt63, the comparison 80, difference −17
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What amethyst gains in DG-M5

A quarter lighter than diamond

0.74 ct at 6.5 mm, against 0.98 ct for the same cut in diamond (−25%)

Quartz has a specific gravity of 2.65 against diamond's 3.52. A DG-M5 6.5 mm across weighs 0.74 ct in amethyst, where the diamond version comes to 0.98 ct.

Amethyst0.74 ctDiamond0.98 ct
A DG-M5 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-M5 page

The most light of any cut we measure in amethyst

Brilliance 85 against 72 for the T73 Round Brilliant in amethyst: 13 points higher

Twenty-four pavilion mains instead of eight give light more chances to meet a main at the right angle. DG-Anteros comes next in amethyst at 82. The T73 is behind both.

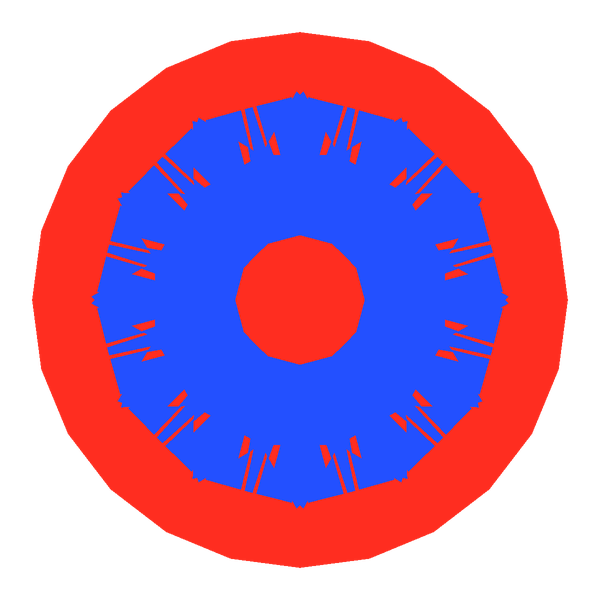

Dg-m5 in amethyst face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 85)

DG-M5 in amethyst · Brilliance 85

T73 round brilliant in amethyst face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 72)

T73 Round Brilliant in amethyst · Brilliance 72

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

Less light out of the back

Leakage 15 against 28 for the T73 Round Brilliant in amethyst: 13 points lower

Only 15% of the light in our census escapes through the pavilion, the smallest share of any cut we measure in amethyst. The T73 lets out 28% in the same stone.

DG-M5 in amethyst · Leakage 15

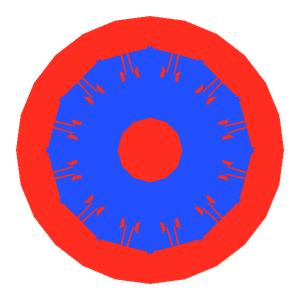

Dg-m5 in amethyst tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

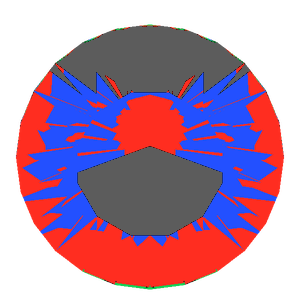

Dg-m5 in amethyst tilted 10 degrees: Light Return map, 32% of the face leaking10° · 32% leak

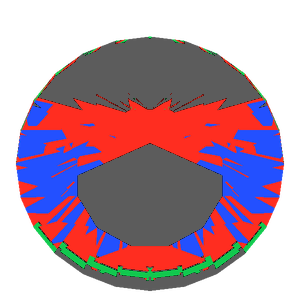

Dg-m5 in amethyst tilted 20 degrees: Light Return map, 43% of the face leaking20° · 43% leak

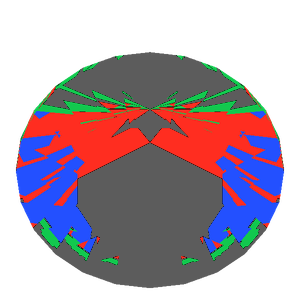

Dg-m5 in amethyst tilted 30 degrees: Light Return map, 50% of the face leaking30° · 50% leak

T73 Round Brilliant in amethyst · Leakage 28

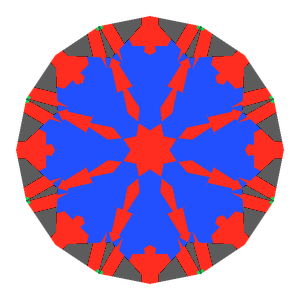

T73 round brilliant in amethyst tilted 0 degrees: Light Return map, 13% of the face leaking0° · 13% leak

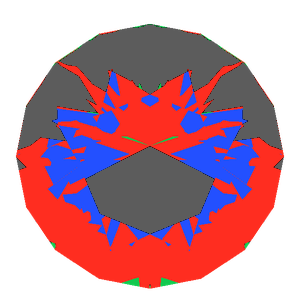

T73 round brilliant in amethyst tilted 10 degrees: Light Return map, 38% of the face leaking10° · 38% leak

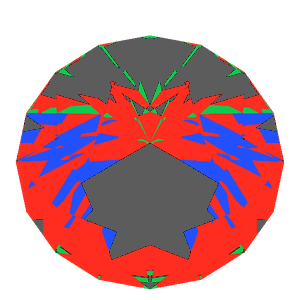

T73 round brilliant in amethyst tilted 20 degrees: Light Return map, 36% of the face leaking20° · 36% leak

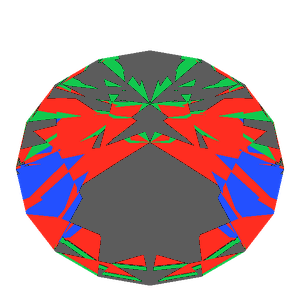

T73 round brilliant in amethyst tilted 30 degrees: Light Return map, 44% of the face leaking30° · 44% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Tilt it yourself in the simulator's light map

A little more sparkle than the T73

Scintillation 85 against 80 for the T73 Round Brilliant in amethyst: 5 points higher

Our scintillation score follows the facet plan. A twelve-fold ring of 85 facets gives it more to count than the T73's 73.

DG-M5 · 85 facets · Scintillation 85

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where DG-M5 gives ground in amethyst

Holds less light when tipped

Tilt 63 against 83 for the DG-M5 in diamond: 20 points lower

Tilted by 20°, DG-M5 keeps 63 of its face-up light in amethyst, against 83 for the diamond version. Its strength is straight on. When it tips, more light meets the single-angle pavilion too squarely for quartz to hold.

DG-M5 in amethyst · Tilt 63

Dg-m5 in amethyst tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in amethyst tilted 10 degrees: Light Return map, 32% of the face leaking10° · 32% leak
Dg-m5 in amethyst tilted 20 degrees: Light Return map, 43% of the face leaking20° · 43% leak
Dg-m5 in amethyst tilted 30 degrees: Light Return map, 50% of the face leaking30° · 50% leak

DG-M5 in diamond · Tilt 83

Dg-m5 in diamond tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-m5 in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-m5 in diamond tilted 20 degrees: Light Return map, 14% of the face leaking20° · 14% leak
Dg-m5 in diamond tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: For a stone seen at an angle, as in a drop earring, the T73 Round Brilliant Amethyst keeps 80 when tipped. But it starts from less light: 72 against 85.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Less fire than the diamond version

Fire 50 against 67 for the DG-M5 in diamond: 17 points lower

The diamond version scores 67 for fire. The census changes the whole material between the two stones, so it does not show how much of the gap comes from dispersion. In amethyst, DG-M5 still has more fire than the T73: 50 against 36.

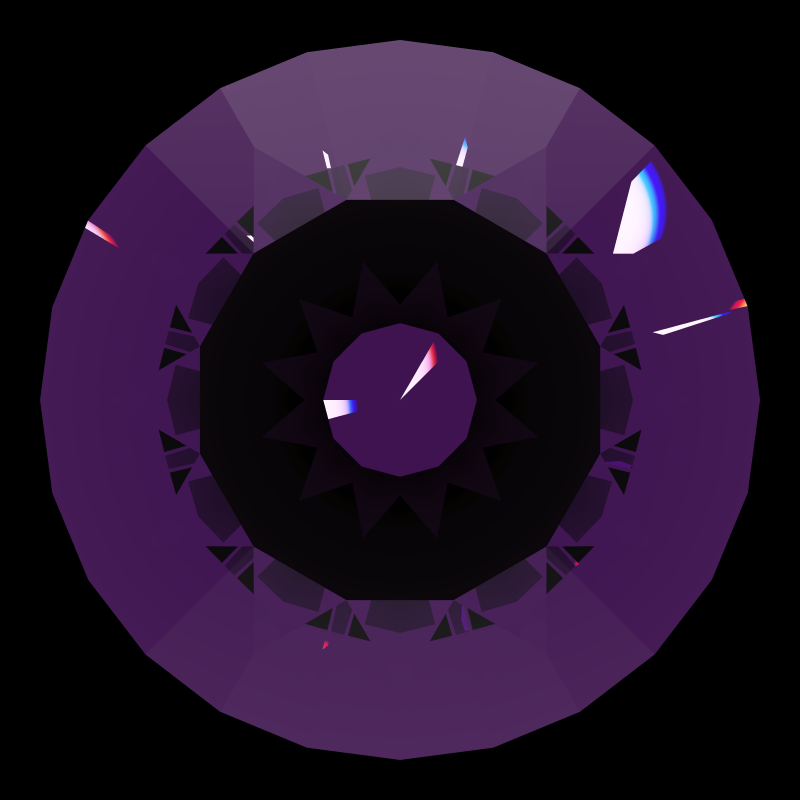

Dg-m5 in amethyst face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 50)

DG-M5 in amethyst · Fire 50

Dg-m5 in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 67)

DG-M5 in diamond · Fire 67

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Among rounds, DG-Anteros Amethyst edges ahead at 54.

Try it yourself: See the fire in the 3D Gemstone Simulator

Who a DG-M5 amethyst suits

For a round amethyst with the most light of any cut we measure in this stone, we would choose this cut. It has Brilliance 85, leakage 15% and more sparkle than the T73. It suits a solitaire seen mostly face-up.

Amethyst is a favorite first stone for hobby cutters. DG-M5 uses one pavilion angle on all twenty-four mains. So the cutter has only one pavilion setting to get right.

If the stone will hang and swing, the T73 Round Brilliant Amethyst holds more of its light at an angle. For a little more fire on an eight-fold round, choose DG-Anteros Amethyst (54 against 50).

DG-M5 Amethyst: questions

What is the best round cut for amethyst?

Of the rounds we measure, DG-M5: Brilliance 85. DG-Anteros comes next at 82, then the T73 at 72.

Does DG-M5 amethyst have fire?

Some: Fire 50 in our census. That is more than the T73's 36 in amethyst, but well under the diamond version's 67.

Why does DG-M5 leak less than the T73 in amethyst?

Our census measures the result, 15% against 28%, not the reason. Its single pavilion tier sits at 41.49°, a little steeper than the T73's 40.75°.

How much does a 6.5 mm DG-M5 amethyst weigh?

About 0.74 ct. Cut from diamond, a stone that wide weighs 0.98 ct.
