Emerald Square Cut Amethyst: an open-table step cut, a quarter lighter than diamond

Brilliance 61 · Fire 40 · Scintillation 72 · in our census, where the T73 scores 72 · 36 · 80 in amethyst

A square step cut with an open table. In quartz, it faces up about as large as a round for its weight (99 against 100), and it leaks 36% of its light.

The Emerald Square Cut in amethyst, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Emerald Square Cut model, 1.00 ct, studio light.

Emerald Square Cut Amethyst

The emerald square puts concentric steps on a square with cropped corners, with a shallower, more open table than the Asscher. Ours is a plain plan of 49 facets: steps falling at 28.26° on the pavilion, 61.0% from table to culet.

That open table is a window. An amethyst's color zoning, if it has any, shows plainly through it. For a step cut, choose rough with even color.

Against the same cut in diamond, the light falls only a little: 64 to 61. Fire is what drops.

Is an emerald square cut good for amethyst? Pros and cons

Compared with the T73 Round Brilliant in amethyst and with the Emerald Square Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Emerald Square Cut in amethyst (white) against the T73 Round Brilliant in amethyst (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Emerald Square Cut in amethyst, against the T73 Round Brilliant in amethyst as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−5Brilliance−11Fire+4Scintillation−8Spread+8Symmetry0Shape-norm+3Tilt−2

Against the T73 Round Brilliant in amethyst: ahead on 3, level on 1, behind on 4.

  • Global65, the comparison 70, difference −5
  • Brilliance61, the comparison 72, difference −11
  • Fire40, the comparison 36, difference +4
  • Scintillation72, the comparison 80, difference −8
  • Spread108, the comparison 100, difference +8
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm80, the comparison 77, difference +3
  • Tilt78, the comparison 80, difference −2
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What amethyst gains in an emerald square

Lighter than diamond

1.10 ct at 6.5 mm, against 1.46 ct for the same cut in diamond (−25%)

6.5 mm across, the emerald square weighs 1.10 ct in amethyst and 1.46 ct in diamond. It is a heavy cut for its width in either stone, and a quarter lighter in quartz.

Amethyst1.10 ctDiamond1.46 ct
A Emerald Square Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Emerald Square Cut page

The catch with an emerald square amethyst

Under half the diamond's fire

Fire 40 against 84 for the Emerald Square Cut in diamond: 44 points lower

Broad step facets split light into large flashes, and quartz gives them little color. The diamond version scores 84.

Emerald square cut in amethyst face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 40)

Emerald Square Cut in amethyst · Fire 40

Emerald square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Emerald Square Cut in diamond · Fire 84

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: More color with more light means a round in quartz: DG-Anteros Amethyst scores 54 and DG-M5 Amethyst 50.

Try it yourself: See the fire in the 3D Gemstone Simulator

More leakage than in diamond

Leakage 36 against 17 for the Emerald Square Cut in diamond: 19 points higher

36% of the light in our census leaves through the pavilion, 17% in diamond. That is a little less than the Asscher loses in amethyst.

Emerald Square Cut in amethyst · Leakage 36

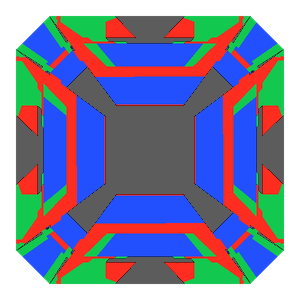

Emerald square cut in amethyst tilted 0 degrees: Light Return map, 25% of the face leaking0° · 25% leak

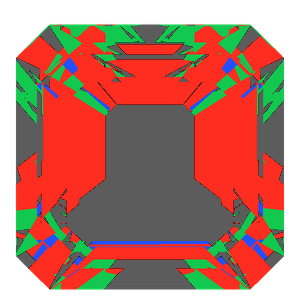

Emerald square cut in amethyst tilted 10 degrees: Light Return map, 36% of the face leaking10° · 36% leak

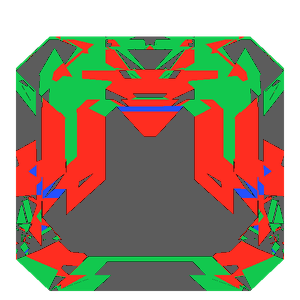

Emerald square cut in amethyst tilted 20 degrees: Light Return map, 43% of the face leaking20° · 43% leak

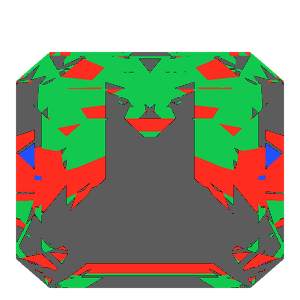

Emerald square cut in amethyst tilted 30 degrees: Light Return map, 48% of the face leaking30° · 48% leak

Emerald Square Cut in diamond · Leakage 17

Emerald square cut in diamond tilted 0 degrees: Light Return map, 20% of the face leaking0° · 20% leak
Emerald square cut in diamond tilted 10 degrees: Light Return map, 27% of the face leaking10° · 27% leak
Emerald square cut in diamond tilted 20 degrees: Light Return map, 28% of the face leaking20° · 28% leak
Emerald square cut in diamond tilted 30 degrees: Light Return map, 28% of the face leaking30° · 28% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The Square Cut Amethyst brilliant leaks 29% in amethyst.

Try it yourself: Tilt it yourself in the simulator's light map

Less light than the T73

Brilliance 61 against 72 for the T73 Round Brilliant in amethyst: 11 points lower

The step pavilion at 28.26° sits far below the angles a round needs in quartz, and less of the face sends light back.

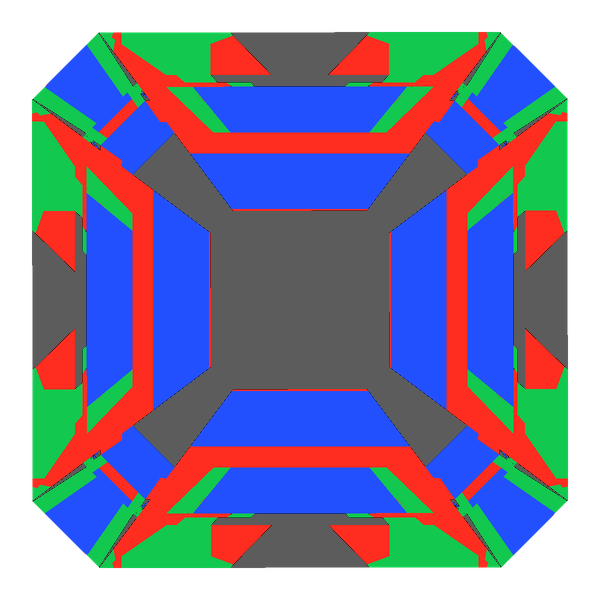

Emerald square cut in amethyst face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 61)

Emerald Square Cut in amethyst · Brilliance 61

T73 round brilliant in amethyst face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 72)

T73 Round Brilliant in amethyst · Brilliance 72

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: In a square outline, the Cushion Cut Amethyst returns 69.

Try it yourself: Open this Light Return map in the simulator

Fewer flashes than a round

Scintillation 72 against 80 for the T73 Round Brilliant in amethyst: 8 points lower

49 facets against the T73's 73: fewer, larger steps, and a calmer face.

Emerald Square Cut · 49 facets · Scintillation 72

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: The Cushion Cut Amethyst scores 85 on a square outline.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who an emerald square amethyst suits

Choose the emerald square for an architectural amethyst center stone or earrings, cut from rough with even color. For its weight, it faces up about as large as a round, so choose it for the look, not for size.

With 49 facets, it is one of the quicker plans on these pages to cut. That suits a hobby cutter's large, clean piece of amethyst.

For a stone with more fire and more light, DG-Anteros Amethyst. The Cushion Cut Amethyst gives more light in a square.

Emerald Square Cut Amethyst: questions

Is an emerald square cut good for amethyst?

As a step cut in quartz, a fair one. Brilliance is 61 against 72 for the T73, with 36% leakage. Its face per carat is close to the round's (99 against 100).

Emerald square or Asscher amethyst?

The emerald square leaks less (36% against 39%). The Asscher has more fire (52 against 40) and a little more face per carat, 102 against 99.

Will color bands show in an emerald square amethyst?

Likely, if the rough has them: the open table looks straight into the stone. Our census does not measure color.

What does a 6.5 mm emerald square amethyst weigh?

1.10 ct, against 1.46 ct in diamond.

Get the Emerald Square Cut files

6 formatsMillimetersWatertight

Emerald Square Cut 3D files

The Emerald Square Cut as exact geometry: 49 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

Emerald Square Cut cutting files

The Emerald Square Cut as a faceting design: 41 + 8 girdles = 49 facets, 96 index, 4-fold symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
