DG-Miliano Amethyst: sparkle level with the highest we measure

Brilliance 60 · Fire 28 · Scintillation 98 · in our census, where the T73 scores 72 · 36 · 80 in amethyst

A round with a three-tier pavilion and a facet plan that shares our highest sparkle score. In quartz, much of its light leaks.

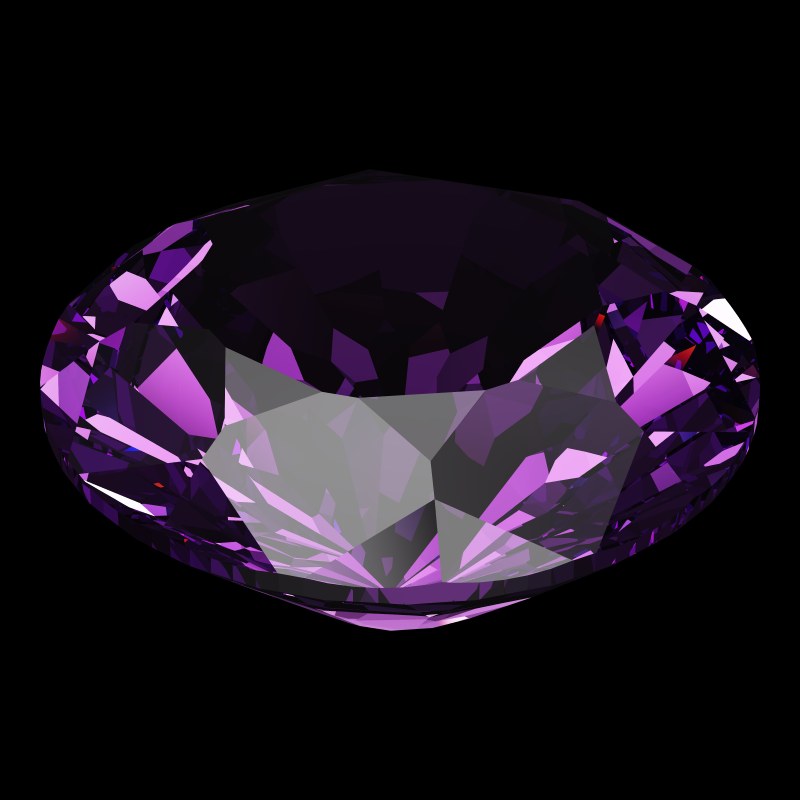

The DG-Miliano in amethyst, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Miliano model, 1.00 ct, studio light.

DG-Miliano Amethyst

DG-Miliano puts eight stars, eight crown mains and sixteen upper girdle facets over a 96-facet girdle. Its pavilion has three tiers of sixteen, steepest at the girdle. Our model has 177 facets and quotes a 38.3° pavilion, 60.3% deep.

That 38.3° sits about two degrees under amethyst's guide minimum of 40.4°. Moissanite, with a far smaller critical angle, can work with it. Quartz, at about 40.4°, lets 40% of the light out through the pavilion.

It holds what it keeps very steadily when tipped: Tilt 97. But that is a steady share of less light, so it is not a pro here.

Is amethyst a good match for DG-Miliano? Pros and cons

Compared with the T73 Round Brilliant in amethyst and with the DG-Miliano in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Miliano in amethyst (white) against the T73 Round Brilliant in amethyst (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Miliano in amethyst, against the T73 Round Brilliant in amethyst as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−2Brilliance−12Fire−8Scintillation+18Spread+1Symmetry0Shape-norm−12Tilt+17

Against the T73 Round Brilliant in amethyst: ahead on 3, level on 1, behind on 4.

  • Global68, the comparison 70, difference −2
  • Brilliance60, the comparison 72, difference −12
  • Fire28, the comparison 36, difference −8
  • Scintillation98, the comparison 80, difference +18
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm65, the comparison 77, difference −12
  • Tilt97, the comparison 80, difference +17
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What amethyst gains in DG-Miliano

Lighter than diamond

0.78 ct at 6.5 mm, against 1.03 ct for the same cut in diamond (−25%)

0.78 ct for a 6.5 mm DG-Miliano in amethyst, and 1.03 ct in diamond. Quartz is the less dense stone by about a quarter.

Amethyst0.78 ctDiamond1.03 ct
A DG-Miliano 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Miliano page

Sparkle level with the highest we measure

Scintillation 98 against 80 for the T73 Round Brilliant in amethyst: 18 points higher

Its 177-facet plan has sixteen-fold tiers and a finely divided girdle. That puts it level with DG-Vitruvio and the Portuguese Bird's Nest, the highest scores we measure.

DG-Miliano · 177 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

What quartz costs DG-Miliano

A third of the diamond version's fire

Fire 28 against 82 for the DG-Miliano in diamond: 54 points lower

Our fire score is a share of the light that does return, so leaked light does not count against it. Even so, DG-Miliano scores 28, under the T73's 36 in quartz. The diamond version scores 82.

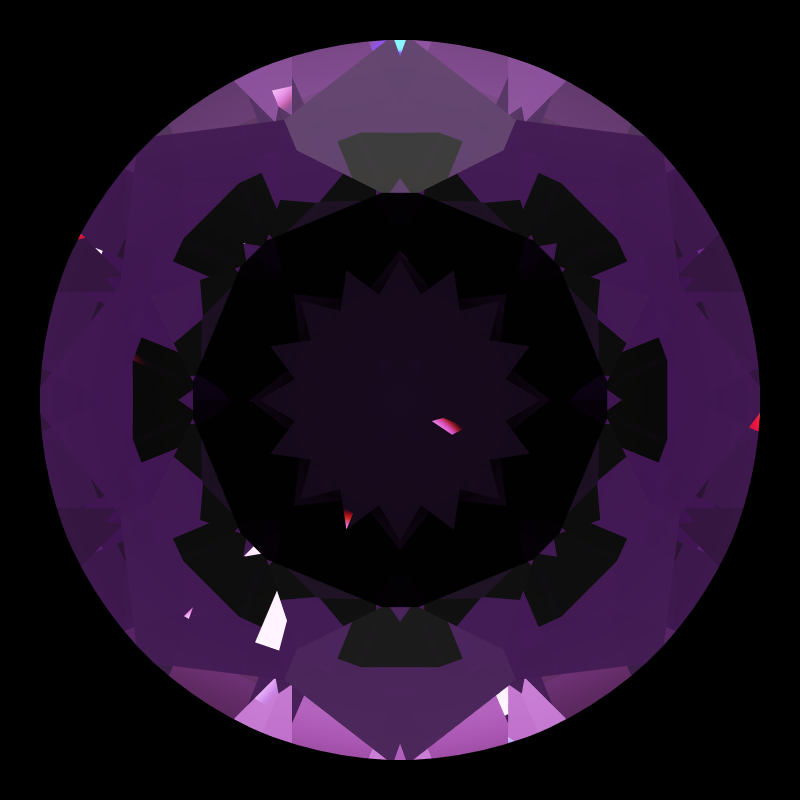

Dg-miliano in amethyst face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 28)

DG-Miliano in amethyst · Fire 28

Dg-miliano in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 82)

DG-Miliano in diamond · Fire 82

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Among amethyst rounds, DG-Anteros Amethyst reaches 54 and DG-M5 Amethyst 50.

Try it yourself: See the fire in the 3D Gemstone Simulator

Two-fifths of the light leaks

Leakage 40 against 3 for the DG-Miliano in diamond: 37 points higher

40% of the light in our census escapes through the pavilion, against almost none for the same cut in diamond.

DG-Miliano in amethyst · Leakage 40

Dg-miliano in amethyst tilted 0 degrees: Light Return map, 30% of the face leaking0° · 30% leak

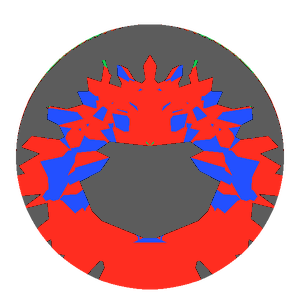

Dg-miliano in amethyst tilted 10 degrees: Light Return map, 42% of the face leaking10° · 42% leak

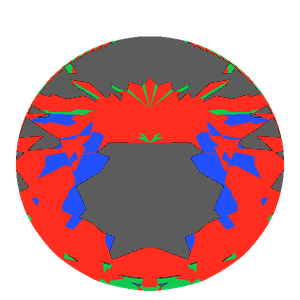

Dg-miliano in amethyst tilted 20 degrees: Light Return map, 40% of the face leaking20° · 40% leak

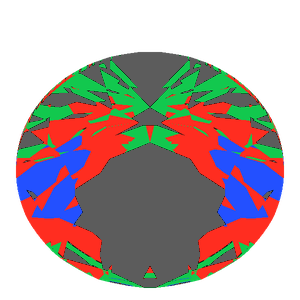

Dg-miliano in amethyst tilted 30 degrees: Light Return map, 41% of the face leaking30° · 41% leak

DG-Miliano in diamond · Leakage 3

Dg-miliano in diamond tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
Dg-miliano in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-miliano in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-miliano in diamond tilted 30 degrees: Light Return map, 16% of the face leaking30° · 16% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: We have not measured a steeper DG-Miliano, so we make no promise for one. DG-M5 Amethyst leaks 15% in amethyst, the least of any cut in this stone.

Try it yourself: Tilt it yourself in the simulator's light map

Much less light than in diamond

Brilliance 60 against 95 for the DG-Miliano in diamond: 35 points lower

DG-M5 and DG-Anteros stay well above the T73 in quartz, at 85 and 82. DG-Miliano drops from 95 in diamond to 60, below the T73's 72.

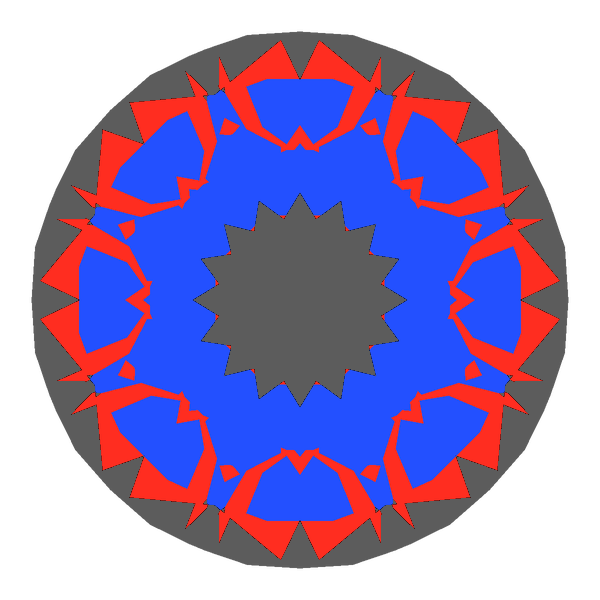

Dg-miliano in amethyst face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 60)

DG-Miliano in amethyst · Brilliance 60

Dg-miliano in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 95)

DG-Miliano in diamond · Brilliance 95

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: DG-M5 Amethyst returns 85 in amethyst. For this sparkle with more light, DG-Vitruvio Amethyst returns 71.

Try it yourself: Open this Light Return map in the simulator

Who a DG-Miliano amethyst suits

DG-Miliano in amethyst suits someone who wants sparkle level with the highest we measure, and a face that changes little as the stone moves. That person must also accept a darker stone than the T73.

We would not choose it for light. Its pavilion is designed for moissanite, and quartz shows the cost. As a cutting project, it is also long: three pavilion tiers and a 96-facet girdle.

For the same sparkle with light close to the T73's, DG-Vitruvio Amethyst. For the most light, DG-M5 Amethyst.

DG-Miliano Amethyst: questions

Is DG-Miliano good for amethyst?

For sparkle, yes: 98. For light, no: Brilliance 60 against 72 for the T73, with 40% leakage.

DG-Miliano or DG-Vitruvio in amethyst?

DG-Vitruvio also scores 98 for scintillation. It returns more light (71 against 60) with less leakage (29% against 40%).

Why does DG-Miliano leak in amethyst?

Its 38.3° pavilion is below amethyst's 40.4° guide minimum. Quartz holds light by total internal reflection only when the light meets a facet beyond 40.4°.

What does a 6.5 mm DG-Miliano amethyst weigh?

0.78 ct; 1.03 ct in diamond.
