DG-Miliano Sapphire: joint-top sparkle in this stone, and more light kept as it tips

Brilliance 90 · Fire 35 · Scintillation 98 · in our census, where the T73 scores 94 · 37 · 80 in sapphire

Three pavilion tiers and a 96-facet girdle. In sapphire, DG-Miliano returns a few points less face-up light than the T73, with more sparkle and a steadier face as the stone moves.

The DG-Miliano in sapphire, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Miliano model, 1.00 ct, studio light.

DG-Miliano Sapphire

DG-Miliano was drawn for moissanite. Its crown has eight stars, eight crown mains and sixteen upper girdle facets, over a girdle of ninety-six. The pavilion has three tiers of sixteen, steepest at the girdle and shallowest at the point. Our model has 177 facets and a pavilion figure of 38.3°.

That figure sits closer to sapphire's guide minimum of 36.4° than any other house or T-series round we sell. Against the T73 in sapphire, the design gains sparkle and keeps more light when tilted. Against the same cut in diamond, it loses fire, a little light and a share to leakage.

Does DG-Miliano suit sapphire? Pros and cons

Compared with the T73 Round Brilliant in sapphire and with the DG-Miliano in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Miliano in sapphire (white) against the T73 Round Brilliant in sapphire (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Miliano in sapphire, against the T73 Round Brilliant in sapphire as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+1Brilliance−4Fire−2Scintillation+18Spread+1Symmetry0Shape-norm−6Tilt+8

Against the T73 Round Brilliant in sapphire: ahead on 4, level on 1, behind on 3.

  • Global80, the comparison 79, difference +1
  • Brilliance90, the comparison 94, difference −4
  • Fire35, the comparison 37, difference −2
  • Scintillation98, the comparison 80, difference +18
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm96, the comparison 102, difference −6
  • Tilt83, the comparison 75, difference +8
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

Where DG-Miliano helps a sapphire

Among the finest sparkle we measure in sapphire

Scintillation 98 against 80 for the T73 Round Brilliant in sapphire: 18 points higher

It has 177 facets against 73. The girdle band and the three pavilion tiers both divide the face into smaller pieces. DG-Vitruvio and the Portuguese Bird's Nest tie it, and nothing we sell in sapphire scores higher.

DG-Miliano · 177 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Keeps more light than the T73 when tipped

Tilt 83 against 75 for the T73 Round Brilliant in sapphire: 8 points higher

Tilted 20°, it holds 83 of its face-up light, and the T73 in sapphire holds 75. Its brilliance is within a few points of the T73's. So this is a real gain, and not a dim stone that keeps a share of a small amount.

DG-Miliano in sapphire · Tilt 83

Dg-miliano in sapphire tilted 0 degrees: Light Return map, 13% of the face leaking0° · 13% leak

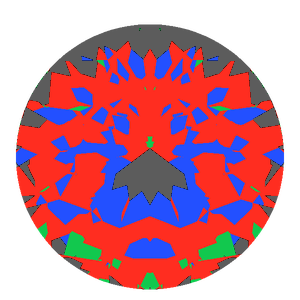

Dg-miliano in sapphire tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak

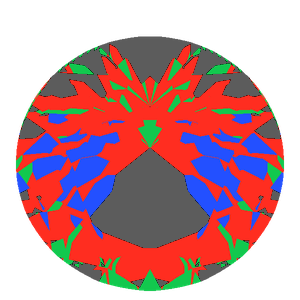

Dg-miliano in sapphire tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak

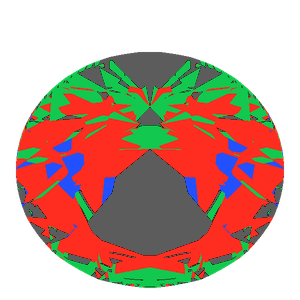

Dg-miliano in sapphire tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak

T73 Round Brilliant in sapphire · Tilt 75

T73 round brilliant in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in sapphire tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in sapphire tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in sapphire tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Where DG-Miliano gives ground in sapphire

Fire falls further than on most of our rounds

Fire 35 against 82 for the DG-Miliano in diamond: 47 points lower

The diamond version scores 82, one of our higher fire figures for a round. In sapphire it drops to 35. Of our house and T-series rounds, only DG-Rafaello loses more in the move.

Dg-miliano in sapphire face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 35)

DG-Miliano in sapphire · Fire 35

Dg-miliano in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 82)

DG-Miliano in diamond · Fire 82

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: None of our rounds lifts sapphire's fire far. The most is DG-Anteros's 43. Among cuts near a round's light, the Trilliant Cut Sapphire scores higher, 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Heavier than the diamond version

1.17 ct at 6.5 mm, against 1.03 ct for the same cut in diamond (+14%)

Corundum is the denser stone. So a 6.5 mm DG-Miliano is 1.17 ct here and 1.03 ct in diamond.

Sapphire1.17 ctDiamond1.03 ct
A DG-Miliano 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Nothing in the cut changes it: compare by width.

Try it yourself: Weights in every gemstone on the DG-Miliano page

More leakage than in diamond

Leakage 10 against 3 for the DG-Miliano in diamond: 7 points higher

In our census, 10% of the light leaves through the pavilion, and the diamond version loses 3%. A lower pavilion figure leaves less margin over sapphire's 34.6° critical angle.

DG-Miliano in sapphire · Leakage 10

Dg-miliano in sapphire tilted 0 degrees: Light Return map, 13% of the face leaking0° · 13% leak
Dg-miliano in sapphire tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak
Dg-miliano in sapphire tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak
Dg-miliano in sapphire tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak

DG-Miliano in diamond · Leakage 3

Dg-miliano in diamond tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
Dg-miliano in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-miliano in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-miliano in diamond tilted 30 degrees: Light Return map, 16% of the face leaking30° · 16% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-M5 Sapphire leaks 0% and DG-Anteros Sapphire 3%. But both keep a smaller share of their light when tipped: 76 and 78, against 83.

Try it yourself: Tilt it yourself in the simulator's light map

A few points less light than in diamond

Brilliance 90 against 95 for the DG-Miliano in diamond: 5 points lower

Brilliance is 90 in sapphire, 95 in diamond and 94 for the T73 in sapphire. The gap is small, and it is perhaps the price of the steadiness at a tilt.

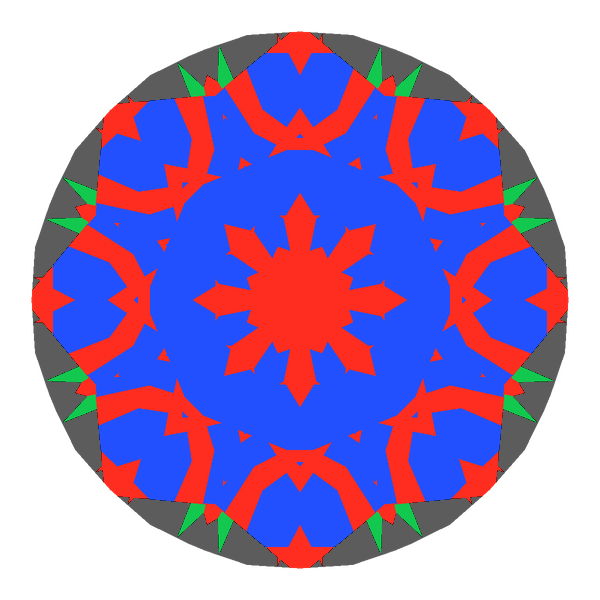

Dg-miliano in sapphire face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 90)

DG-Miliano in sapphire · Brilliance 90

Dg-miliano in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 95)

DG-Miliano in diamond · Brilliance 95

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For the most light in this stone, DG-M5 Sapphire returns 100.

Try it yourself: Open this Light Return map in the simulator

Who a DG-Miliano sapphire suits

DG-Miliano suits a sapphire that people will see in motion, in an earring or a pendant. There, light that holds through a tilt is worth a few points face-up.

For a ring seen mostly from above, DG-M5 Sapphire returns more light and leaks none. For the same finely divided sparkle with the T73's face-up light, choose DG-Vitruvio Sapphire.

Cutters who work color-zoned rough may find that its many small pavilion facets help blend bands of blue across the face.

DG-Miliano Sapphire: questions

Is DG-Miliano good for sapphire?

For sparkle and tilt, yes: Scintillation 98 and Tilt 83, against 80 and 75 for the T73. Its light is a little lower, 90.

DG-Miliano or DG-M5 for a sapphire?

DG-M5 returns more light (100 against 90) and leaks less. DG-Miliano sparkles more (98 against 85). It also keeps a larger share of its light when tilted (83 against 76).

What does a 6.5 mm DG-Miliano sapphire weigh?

1.17 ct by the model's volume; the same stone in diamond is 1.03 ct.
