Old Mine Cut Sapphire: a historic cushion that loses nearly half its light

Brilliance 50 · Fire 36 · Scintillation 81 · in our census, where the T73 scores 94 · 37 · 80 in sapphire

A historic cushion in sapphire: 49% of the light leaves through the back, against 5% for the T73.

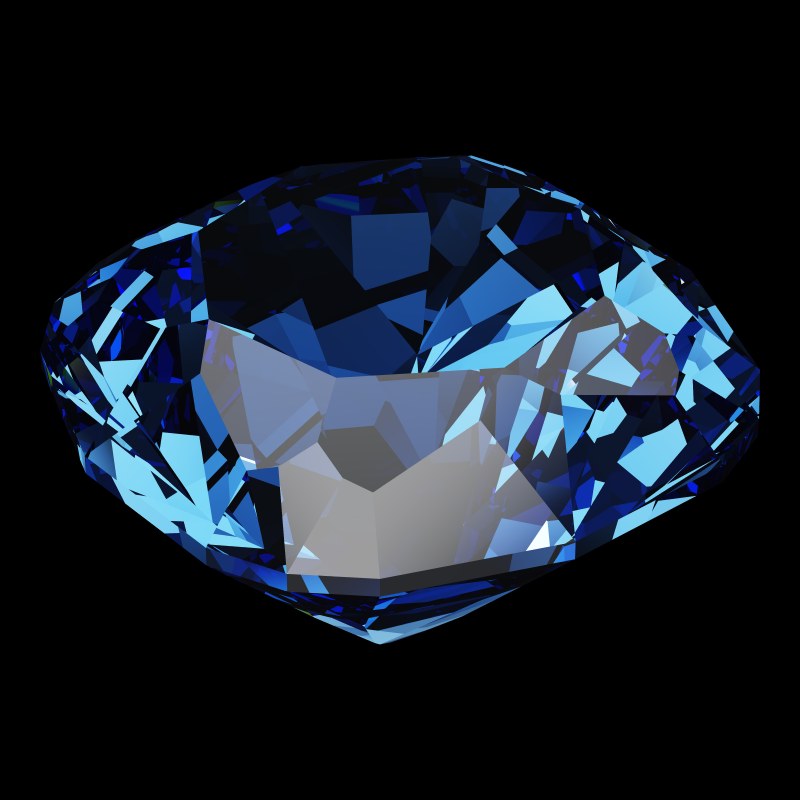

The Old Mine Cut in sapphire, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Mine Cut model, 1.00 ct, studio light.

Old Mine Cut Sapphire

In diamond the Old Mine already leaks a third of the light. In sapphire, with a critical angle near 34.6°, that rises to half.

It is also heavier than diamond for its size, as every sapphire is.

Of the five antique cuts we measure from before the 1919 round brilliant, the Old Mine ranks third for light in sapphire. It is behind the Old European (78) and the Mazarin (58), and ahead of the Peruzzi and the Old Single. Its pavilion, at 44.38°, sits well above sapphire's guide minimum of 36.4°. The cuts that leak less in sapphire are other designs: the modern Cushion leaks 11%.

Is sapphire good in an Old Mine cut? Pros and cons

Pros

None that we measure.

Compared with the T73 Round Brilliant in sapphire and with the Old Mine Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Mine Cut in sapphire (white) against the T73 Round Brilliant in sapphire (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Mine Cut in sapphire, against the T73 Round Brilliant in sapphire as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−17Brilliance−44Fire−1Scintillation+1Spread−2Symmetry−10Shape-norm−24Tilt+25

Against the T73 Round Brilliant in sapphire: ahead on 2, behind on 6.

  • Global62, the comparison 79, difference −17
  • Brilliance50, the comparison 94, difference −44
  • Fire36, the comparison 37, difference −1
  • Scintillation81, the comparison 80, difference +1
  • Spread98, the comparison 100, difference −2
  • Symmetry90, the comparison 100, difference −10
  • Shape-norm78, the comparison 102, difference −24
  • Tilt100, the comparison 75, difference +25
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What sapphire gains in an Old Mine cut

No score counts as a pro by our margins. Tilt reads 100, but that is the share kept of a face-up return of only 50, so it does not count. Scintillation is level with the T73: 81 against the T73's 80. The outline is its appeal.

Where the Old Mine falls short in sapphire

Half the T73's light

Brilliance 50 against 94 for the T73 Round Brilliant in sapphire: 44 points lower

Nearly half the face-up map is gray. The T73's map shows almost none.

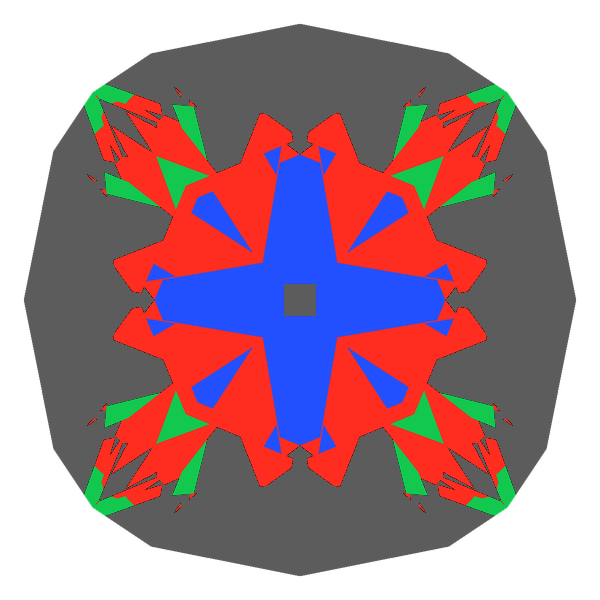

Old mine cut in sapphire face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 50)

Old Mine Cut in sapphire · Brilliance 50

T73 round brilliant in sapphire face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in sapphire · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: In sapphire the modern Cushion Cut returns 88.

Try it yourself: Open this Light Return map in the simulator

Half the light leaks

Leakage 49 against 5 for the T73 Round Brilliant in sapphire: 44 points higher

Nearly half the light in our census, 49%, leaves through the pavilion. The T73 in sapphire loses 5%.

Old Mine Cut in sapphire · Leakage 49

Old mine cut in sapphire tilted 0 degrees: Light Return map, 48% of the face leaking0° · 48% leak

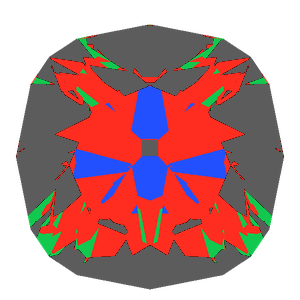

Old mine cut in sapphire tilted 10 degrees: Light Return map, 46% of the face leaking10° · 46% leak

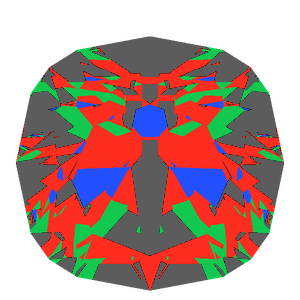

Old mine cut in sapphire tilted 20 degrees: Light Return map, 37% of the face leaking20° · 37% leak

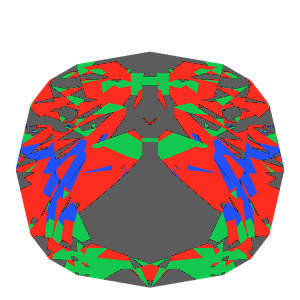

Old mine cut in sapphire tilted 30 degrees: Light Return map, 37% of the face leaking30° · 37% leak

T73 Round Brilliant in sapphire · Leakage 5

T73 round brilliant in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in sapphire tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in sapphire tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in sapphire tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The mains are at 44.38°, past sapphire's 36.4° guide minimum. We have not measured a steeper Old Mine. The Cushion Cut leaks 11%.

Try it yourself: Tilt it yourself in the simulator's light map

Half the fire of the diamond version

Fire 36 against 72 for the Old Mine Cut in diamond: 36 points lower

Diamond in the same cut scores 72 for fire, and this sapphire scores 36. Refractive index and dispersion change together between the two. So the census does not say how much of that is dispersion.

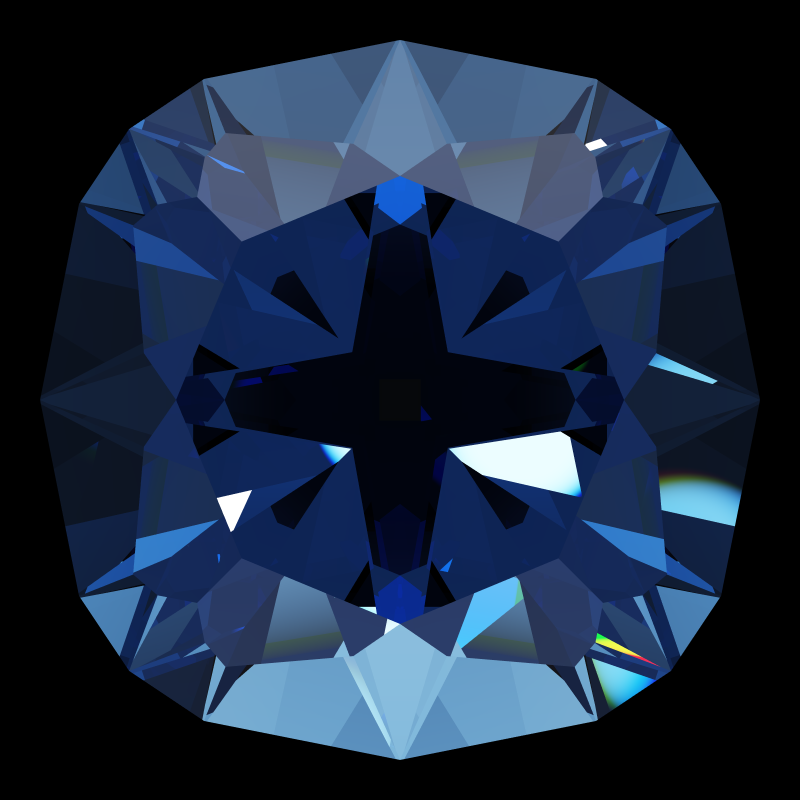

Old mine cut in sapphire face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 36)

Old Mine Cut in sapphire · Fire 36

Old mine cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 72)

Old Mine Cut in diamond · Fire 72

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: The material sets the limit. Among cuts that keep most of a round's light in sapphire, the Trilliant Cut Sapphire reaches 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Heavier than diamond

1.37 ct at 6.5 mm, against 1.21 ct for the same cut in diamond (+14%)

Sapphire's specific gravity is 4.00 against 3.52, about 14% more weight for the same size.

Sapphire1.37 ctDiamond1.21 ct
A Old Mine Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: None in the cut; choose by millimeters.

Try it yourself: Weights in every gemstone on the Old Mine Cut page

Who an Old Mine sapphire suits

An Old Mine sapphire suits a collector who wants the historic outline in color, not a bright stone.

For light in a cushion, choose the modern Cushion Cut: 88 brilliance against 50, and 11% leakage against 49%. If a round outline will do, the Old European Cut Sapphire returns 78 and leaks 22%.

Its 74 facets keep the sparkle level with the T73, at scintillation 81. It is the light that falls away.

Old Mine Cut Sapphire: questions

Is the Old Mine cut good for sapphire?

It loses half its light in our census: 49% leakage and Brilliance 50 against 94 for the T73.

Old Mine or Old European for a sapphire?

The Old European by a wide margin: Brilliance 78 against 50, leakage 22% against 49%.

What does a 6.5 mm Old Mine sapphire weigh?

It weighs 1.37 ct, where a diamond of the same size is 1.21 ct.

Does an Old Mine sapphire have any fire?

Some: Fire 36, about the T73's 37 in sapphire, against 72 for the same cut in diamond.
