DG-Rafaello Sapphire: a five-tier pavilion that sparkles far above the T73

Brilliance 85 · Fire 25 · Scintillation 96 · in our census, where the T73 scores 94 · 37 · 80 in sapphire

DG-Rafaello brings its sparkle and a slightly larger face for its weight to sapphire. It gives up fire and some light: the least fire of our house and T-series rounds, and more light out of the back.

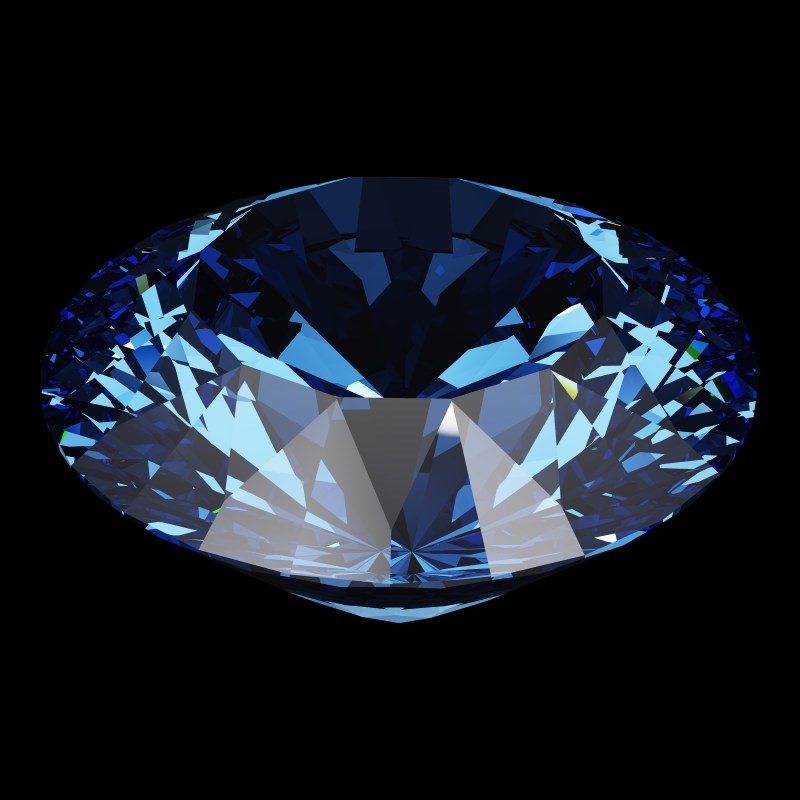

The DG-Rafaello in sapphire, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Rafaello model, 1.00 ct, studio light.

DG-Rafaello Sapphire

DG-Rafaello is a twelve-fold round. Its pavilion steps down in five tiers, each a little shallower than the last, so it curves from girdle to point. Our model has 145 facets and a 40.0° pavilion figure, 59.0% deep.

Those tiers were tuned for diamond, where it scores 94 for light and 80 for fire. Sapphire's critical angle is 34.6°, against diamond's 24.4°. So in sapphire, the shallower lower tiers give light more ways out.

Is DG-Rafaello a good choice for sapphire? Pros and cons

Compared with the T73 Round Brilliant in sapphire and with the DG-Rafaello in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Rafaello in sapphire (white) against the T73 Round Brilliant in sapphire (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Rafaello in sapphire, against the T73 Round Brilliant in sapphire as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−4Brilliance−9Fire−12Scintillation+16Spread+1Symmetry0Shape-norm−10Tilt+6

Against the T73 Round Brilliant in sapphire: ahead on 3, level on 1, behind on 4.

  • Global75, the comparison 79, difference −4
  • Brilliance85, the comparison 94, difference −9
  • Fire25, the comparison 37, difference −12
  • Scintillation96, the comparison 80, difference +16
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm92, the comparison 102, difference −10
  • Tilt81, the comparison 75, difference +6
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What a sapphire keeps in DG-Rafaello

Much more sparkle than the T73

Scintillation 96 against 80 for the T73 Round Brilliant in sapphire: 16 points higher

A twelve-fold crown, five pavilion tiers, and 145 facets against the T73's 73. The face breaks into many small, quick flashes.

DG-Rafaello · 145 facets · Scintillation 96

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

A little more face for its weight than the T73

Face-up size 106 against 100 for the T73 Round Brilliant in sapphire (T73 = 100): 6% more face-up area for the same weight

From above it is the T73's circle. Below, it is the shallower stone, 59.0% deep against 61.7%. Less sapphire sits under the same outline, so a carat of DG-Rafaello covers a little more area. The two 1.00 ct outlines in the picture show this to one scale. In diamond the gain is identical, because we read this score from the model, whatever the stone.

DG-Rafaello · 6.36 mm at 1.00 ct · Face-up size 106

T73 Round Brilliant · 6.21 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in sapphire and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in sapphire in the 3D Gemstone Simulator

What a sapphire loses in DG-Rafaello

The least fire of our house and T-series rounds in sapphire

Fire 25 against 80 for the DG-Rafaello in diamond: 55 points lower

Fire is 25, against 80 for DG-Rafaello in diamond. Of those rounds, none falls further on the move from diamond to sapphire.

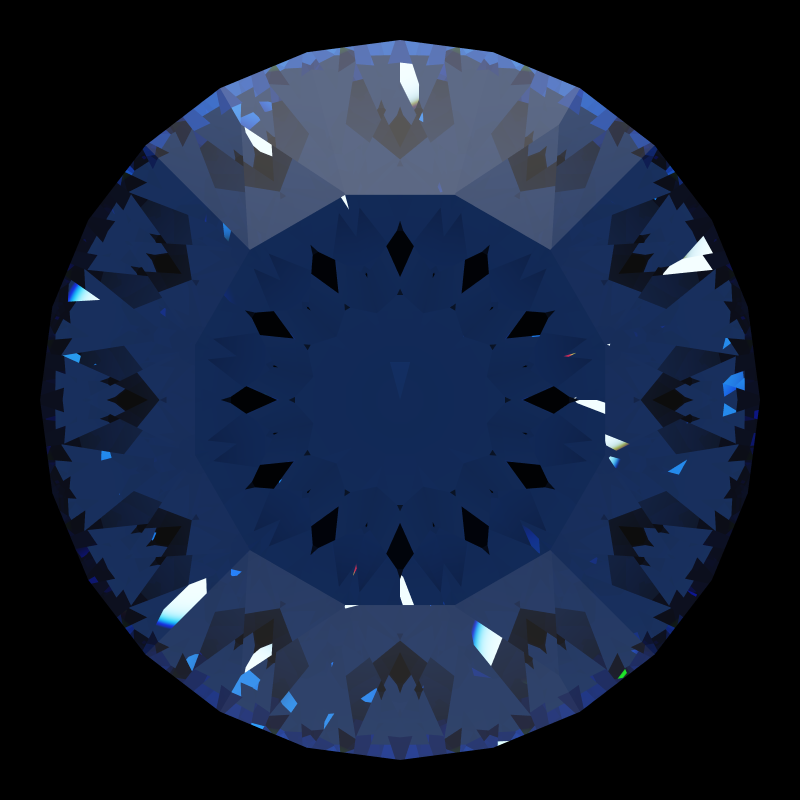

Dg-rafaello in sapphire face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 25)

DG-Rafaello in sapphire · Fire 25

Dg-rafaello in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 80)

DG-Rafaello in diamond · Fire 80

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Among rounds, DG-Anteros Sapphire has the most fire, 43.

Try it yourself: See the fire in the 3D Gemstone Simulator

Holds its light less well than in diamond

Tilt 81 against 97 for the DG-Rafaello in diamond: 16 points lower

The diamond version keeps 97 of its light at 20° of tilt, near the top of our scale. In sapphire it keeps 81, still a few points over the T73 in sapphire.

DG-Rafaello in sapphire · Tilt 81

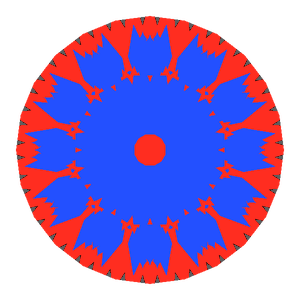

Dg-rafaello in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak

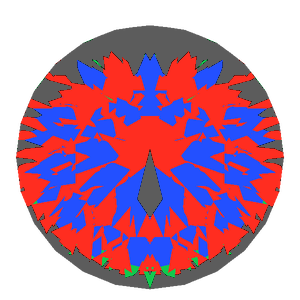

Dg-rafaello in sapphire tilted 10 degrees: Light Return map, 20% of the face leaking10° · 20% leak

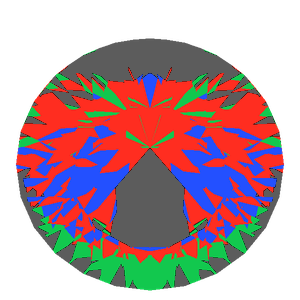

Dg-rafaello in sapphire tilted 20 degrees: Light Return map, 28% of the face leaking20° · 28% leak

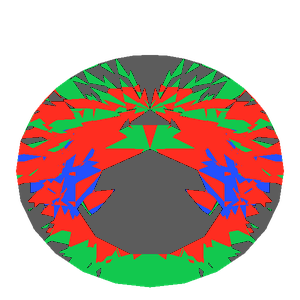

Dg-rafaello in sapphire tilted 30 degrees: Light Return map, 32% of the face leaking30° · 32% leak

DG-Rafaello in diamond · Tilt 97

Dg-rafaello in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-rafaello in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-rafaello in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-rafaello in diamond tilted 30 degrees: Light Return map, 17% of the face leaking30° · 17% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-Miliano Sapphire keeps 83 when tipped and leaks less, 10%.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Heavier than diamond

1.07 ct at 6.5 mm, against 0.94 ct for the same cut in diamond (+14%)

Weighed at 6.5 mm across, this design is 1.07 ct in sapphire and 0.94 ct in diamond.

Sapphire1.07 ctDiamond0.94 ct
A DG-Rafaello 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: No cut changes density; compare by width.

Try it yourself: Weights in every gemstone on the DG-Rafaello page

Three times the T73's leakage

Leakage 15 against 5 for the T73 Round Brilliant in sapphire: 10 points higher

In our census, 15% of the light leaves through the pavilion, and 5% for the T73 in sapphire. The pavilion sits at 40.0°, above sapphire's 36.4° guide minimum.

DG-Rafaello in sapphire · Leakage 15

Dg-rafaello in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
Dg-rafaello in sapphire tilted 10 degrees: Light Return map, 20% of the face leaking10° · 20% leak
Dg-rafaello in sapphire tilted 20 degrees: Light Return map, 28% of the face leaking20° · 28% leak
Dg-rafaello in sapphire tilted 30 degrees: Light Return map, 32% of the face leaking30° · 32% leak

T73 Round Brilliant in sapphire · Leakage 5

T73 round brilliant in sapphire tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in sapphire tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in sapphire tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in sapphire tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: At 40.0°, the pavilion already clears the guide minimum, and we have not measured a steeper version. DG-M5 Sapphire, also twelve-fold, leaks 0%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a DG-Rafaello sapphire suits

DG-Rafaello does better in diamond than in sapphire: 94 against 85 for light, 80 against 25 for fire. Keep it for diamond. Or use it for a sapphire where fine sparkle matters more than light, perhaps a pale or colorless stone.

For a twelve-fold round that suits sapphire, choose DG-M5 Sapphire: Brilliance 100 against 85 here. For the same level of sparkle with less leakage, choose DG-Vitruvio Sapphire.

A deep blue needs every point of light it can get. This pavilion leaks more than any other house or T-series round we measure in sapphire.

DG-Rafaello Sapphire: questions

Is DG-Rafaello good for sapphire?

Less than for diamond: Brilliance 85 against 94, Fire 25 against 80. Its sparkle holds at 96.

DG-Rafaello or DG-M5 for a sapphire?

DG-M5: Brilliance 100 against 85, and 0% leakage against 15%. DG-Rafaello sparkles more (96 against 85). It also shows a little more face per carat (106 against 103).

How much does a 6.5 mm DG-Rafaello sapphire weigh?

1.07 ct, against 0.94 ct in diamond.

Does DG-Rafaello hold its light when a sapphire tips?

Better than the T73 in sapphire, 81 against 75, but well short of its own 97 in diamond. At 85 brilliance, we do not count that as a pro.
