DG-Rafaello Diamond: more scintillation than the T73, and it keeps its light as it tips

Brilliance 94 · Fire 80 · Scintillation 96 · in our census, where the T73 scores 93 · 78 · 80 in diamond

A twelve-fold round with a curved, five-tier pavilion. Against the T73 it scores higher for scintillation, faces up a little larger for its weight and holds its light better when tipped. The catch is a pavilion that leaks slightly more.

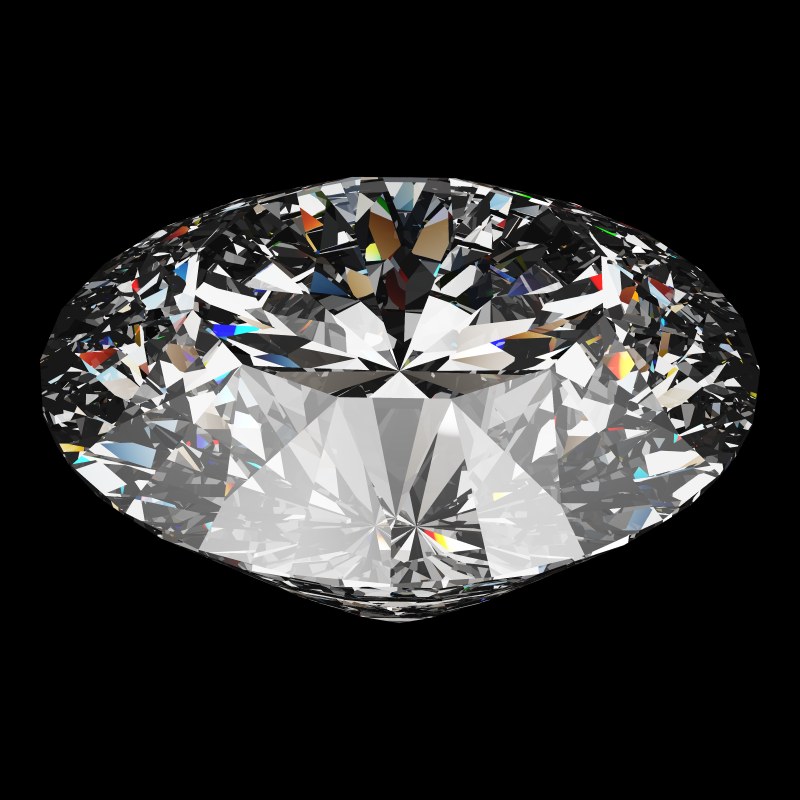

The DG-Rafaello in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Rafaello model, 1.00 ct, studio light.

DG-Rafaello Diamond

DG-Rafaello is one of our twelve-fold house rounds. Its crown is plain: twelve stars and twenty-four mains. The work is below the girdle. There, five pavilion tiers bend the cone into a gentle curve from girdle to point, and each tier is shallower than the one above. The model we measured has 145 facets and a depth of 59.0%.

Against the T73 Round Brilliant it is ahead on three counts and behind on one. Brilliance is level, 94 against 93, and that is why the tilt result counts. Tilt is a share of each stone's own light. A larger share of the same light means more light at an angle. Fire is level too, 80 against 78.

Is DG-Rafaello right for a diamond? Pros and cons

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Rafaello in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Rafaello in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+3Brilliance+1Fire+2Scintillation+16Spread+1Symmetry0Shape-norm+1Tilt+5

Against the T73 Round Brilliant in diamond: ahead on 7, level on 1.

  • Global93, the comparison 90, difference +3
  • Brilliance94, the comparison 93, difference +1
  • Fire80, the comparison 78, difference +2
  • Scintillation96, the comparison 80, difference +16
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm101, the comparison 100, difference +1
  • Tilt97, the comparison 92, difference +5
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What DG-Rafaello gives a diamond

Much more scintillation than the T73

Scintillation 96 against 80 for the T73 Round Brilliant in diamond: 16 points higher

Twelve-fold symmetry and a five-tier pavilion give 145 facets against the T73's 73. Our scintillation score goes up with that count. Only three cuts we measure in diamond score higher.

DG-Rafaello · 145 facets · Scintillation 96

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

A little more face for its weight

Face-up size 106 against 100 for the T73 Round Brilliant in diamond (T73 = 100): 6% more face-up area for the same weight

Both outlines are round. Our DG-Rafaello model is 59.0% deep against the T73's 61.7%, and it holds less diamond under the same outline. So a carat of it covers more area. The picture draws the two at 1.00 ct on one scale. The gain clears our threshold, but not by much.

DG-Rafaello · 6.64 mm at 1.00 ct · Face-up size 106

T73 Round Brilliant · 6.48 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in diamond and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in diamond in the 3D Gemstone Simulator

Holds its light better when tipped

Tilt 97 against 92 for the T73 Round Brilliant in diamond: 5 points higher

Our Tilt score asks how much face-up light stays when the stone tips by 20°. Some rounds we measure in diamond are within three points of the T73's brilliance. Of these, no other keeps as much. A curved pavilion gives light more than one angle to reflect from, and that may be the reason.

DG-Rafaello in diamond · Tilt 97

Dg-rafaello in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-rafaello in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-rafaello in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-rafaello in diamond tilted 30 degrees: Light Return map, 17% of the face leaking30° · 17% leak

T73 Round Brilliant in diamond · Tilt 92

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

The one catch with DG-Rafaello in diamond

A little more light through the back

Leakage 5 against 2 for the T73 Round Brilliant in diamond: 3 points higher

The difference is right at our threshold, so it counts, but it is small. In our census 5% of the light escapes through the pavilion, and the T73 lets out 2%. Both figures are low next to most fancy shapes we measure, where leakage often runs into double figures.

DG-Rafaello in diamond · Leakage 5

Dg-rafaello in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-rafaello in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-rafaello in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-rafaello in diamond tilted 30 degrees: Light Return map, 17% of the face leaking30° · 17% leak

T73 Round Brilliant in diamond · Leakage 2

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Our data does not point to a steeper pavilion. At 40.0° it already sits above diamond's 38.9° guide minimum, and size does not change the share. For the least leakage in a round, the T105 Round Brilliant Diamond loses 1% and DG-Vitruvio Diamond 2%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a DG-Rafaello diamond suits

Choose DG-Rafaello for a round diamond that people see at many angles, in a ring that moves or a pendant that swings. Of the rounds within three points of the T73's brilliance, it keeps the most light when tipped. Its scintillation is among the highest we measure. At a given carat weight, it also faces up a little larger than a T73.

If leakage is your first concern, choose DG-Vitruvio Diamond. It leaks 2%, the same as the T73, returns as much light and scores 98 for scintillation.

DG-Rafaello Diamond: questions

Is DG-Rafaello a good cut for diamond?

Yes, by our census: Scintillation 96 against 80 for the T73, and Tilt 97 against 92, with brilliance level.

Does DG-Rafaello leak more light than a round brilliant?

Slightly: 5% against 2% for the T73. It is the only con we count on this page.

Why does DG-Rafaello have twelve-fold symmetry?

A twelve-fold plan puts more, narrower facets around the stone than the classic eight-fold one, and our scintillation score rises with the facet count.

What does a 6.5 mm DG-Rafaello diamond weigh?

Close to 0.94 ct. A T73 of that width weighs more. That is why DG-Rafaello faces up a little larger per carat.

Get the DG-Rafaello Cut files

6 formatsMillimetersWatertight

DG-Rafaello Cut 3D files

The DG-Rafaello Cut as exact geometry: 145 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-Rafaello Cut cutting files

The DG-Rafaello Cut as a faceting design: 121 + 24 girdles = 145 facets, 96 index, 12-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
