DG-Vitruvio Diamond: the T73's light, with the joint-highest scintillation we measure

Brilliance 93 · Fire 79 · Scintillation 98 · in our census, where the T73 scores 93 · 78 · 80 in diamond

The T73's proportions with a finely faceted girdle: light, fire and leakage level with it, and far more scintillation in our census.

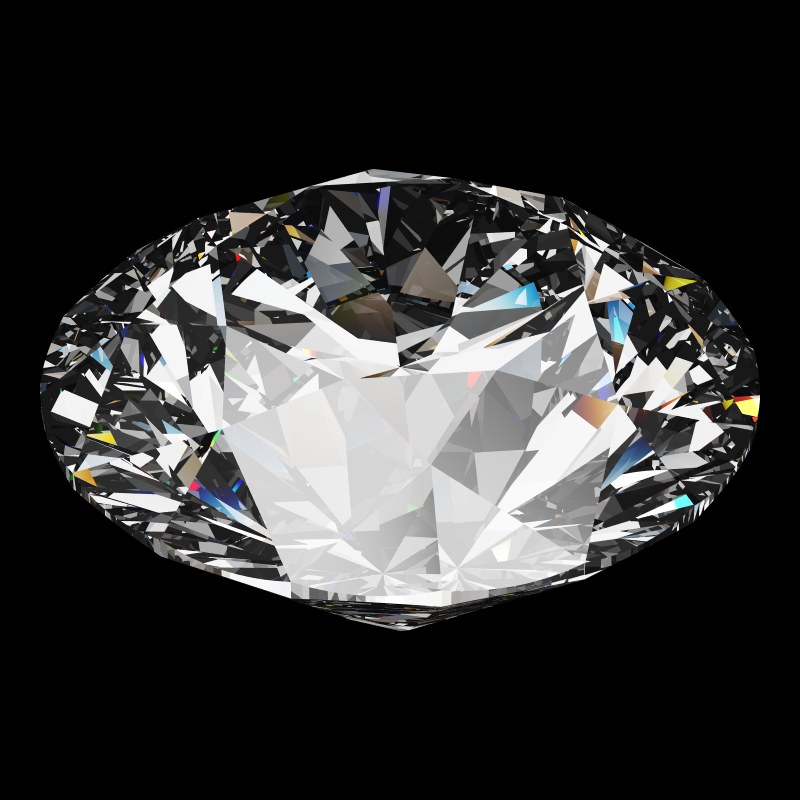

The DG-Vitruvio in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Vitruvio model, 1.00 ct, studio light.

DG-Vitruvio Diamond

DG-Vitruvio is our own development of the T-series round brilliants. It keeps the T73's crown and pavilion, down to the 40.75° pavilion angle. All its extra facets go on the girdle, in a band of 96. The model is 61.9% deep against the T73's 61.7%.

Only the girdle changes, so the comparison with the T73 Round Brilliant is close to a controlled test. Brilliance, fire, tilt and leakage come out within a point of the benchmark. Face-up size is within our margin. Scintillation is the one score that moves a long way.

Is DG-Vitruvio worth it in diamond? Pros and cons

Cons

None: it trails the T73 on no score we measure.

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Vitruvio in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Vitruvio in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+2Brilliance0Fire+1Scintillation+18Spread0Symmetry0Shape-norm0Tilt+1

Against the T73 Round Brilliant in diamond: ahead on 4, level on 4.

  • Global92, the comparison 90, difference +2
  • Brilliance93, the comparison 93, difference 0
  • Fire79, the comparison 78, difference +1
  • Scintillation98, the comparison 80, difference +18
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm100, the comparison 100, difference 0
  • Tilt93, the comparison 92, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What DG-Vitruvio gives a diamond

Far more scintillation than the T73

Scintillation 98 against 80 for the T73 Round Brilliant in diamond: 18 points higher

Our scintillation score counts the facets that can flash, and a 96-facet girdle adds a great many. It reaches 98, the highest we measure in diamond, level with DG-Miliano and the Portuguese Bird's Nest. Face-up, the girdle sits nearly edge-on. Our census does not measure how much of that sparkle a viewer sees from there.

DG-Vitruvio · 153 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where DG-Vitruvio trails the T73

Nothing trails the T73 here. Brilliance is 93 against 93, Fire 79 against 78, Tilt 93 against 92, and the two leak the same 2%. This cut has the T73's crown and pavilion with a girdle band of 96 facets. With these, it returns as much light as the T73 in our census.

Who a DG-Vitruvio diamond suits

Choose DG-Vitruvio when you want exactly the T73's light and an outline as smooth and finely divided as the stone allows. It suits renders and settings that show the girdle. It also suits anyone who wants the T73's proportions with the highest scintillation we measure (98, shared with DG-Miliano and the Portuguese Bird's Nest).

If you need a girdle that a setter will treat as standard, the T73 Round Brilliant Diamond gives the same light with sixteen girdle facets. For a round with more fire and the same top scintillation, DG-Miliano Diamond scores 82 for fire.

Cutters, think about the time. You must cut and polish every girdle facet, and a band of 96 asks far more of the machine than the T73's sixteen.

DG-Vitruvio Diamond: questions

Does DG-Vitruvio return as much light as a T73?

Yes: Brilliance 93 against 93, and both leak 2% in our census.

What is the difference between DG-Vitruvio and the T73?

The girdle. The T73 has sixteen girdle facets. DG-Vitruvio has a band of 96 over the same crown and pavilion. That lifts scintillation from 80 to 98 and leaves the other scores level.

Does DG-Vitruvio have more fire than a round brilliant?

Not by our margins: Fire 79 against 78 for the T73. It is level, not ahead.

What does a 6.5 mm DG-Vitruvio diamond weigh?

Our model gives 1.02 ct, almost exactly a T73 of the same width.

Get the DG-Vitruvio Cut files

6 formatsMillimetersWatertight

DG-Vitruvio Cut 3D files

The DG-Vitruvio Cut as exact geometry: 265 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-Vitruvio Cut cutting files

The DG-Vitruvio Cut as a faceting design: 57 + 96 girdles = 153 facets, 96 index, 8-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
