Asscher Cut Diamond: a square step cut with no lead over a round by our margins

Brilliance 69 · Fire 80 · Scintillation 72 · in our census, where the T73 scores 93 · 78 · 80 in diamond

A square step cut with its corners cropped deep. By our margins it is ahead of the T73 on nothing, and behind it on brilliance, tilt, leakage and scintillation.

The Asscher Cut in diamond, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Asscher Cut model, 1.00 ct, studio light.

Asscher Cut Diamond

Deeply cropped corners turn the Asscher's square into an octagon, and its pavilion falls away in concentric steps. The Asscher we measured has 58 facets and stands 60.4% deep. Its stepped pavilion is at a shallow 27.6°.

In diamond it wins no score against the T73 Round Brilliant and loses four. A step cut shows the inside of a stone plainly, so it suits stones with good clarity and Art Deco designs.

Is an Asscher cut good for diamond? Pros and cons

Pros

None by our margins: face-up size, fire and symmetry are level with the T73.

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Asscher Cut in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Asscher Cut in diamond, against the T73 Round Brilliant in diamond as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−12Brilliance−24Fire+2Scintillation−8Spread+7Symmetry0Shape-norm−9Tilt−13

Against the T73 Round Brilliant in diamond: ahead on 2, level on 1, behind on 5.

  • Global78, the comparison 90, difference −12
  • Brilliance69, the comparison 93, difference −24
  • Fire80, the comparison 78, difference +2
  • Scintillation72, the comparison 80, difference −8
  • Spread107, the comparison 100, difference +7
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm91, the comparison 100, difference −9
  • Tilt79, the comparison 92, difference −13
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What diamond gains in an Asscher cut

Nothing beats the T73 by our thresholds. Face-up size, measured from the model's outline, is 102 against 100: a sliver more area per carat, inside our margin. The Spread of 107 on the wheel is the census's estimate from depth alone, and the outline does not confirm it. Fire edges ahead too, 80 against 78, also inside the margin. What the Asscher offers is its look, which we do not score.

Where the Asscher falls short in diamond

Much less light than a round

Brilliance 69 against 93 for the T73 Round Brilliant in diamond: 24 points lower

Its face-up Light Return map shows far more gray than the T73's. A step-cut pavilion offers fewer angles to send light back up. Head-on, about a sixth of the map is gray, more than the 11% that the census counts as leaking. The census stops after 12 reflections and sets aside light that is still inside. The map follows that light to 18 reflections, and most of it ends up gray.

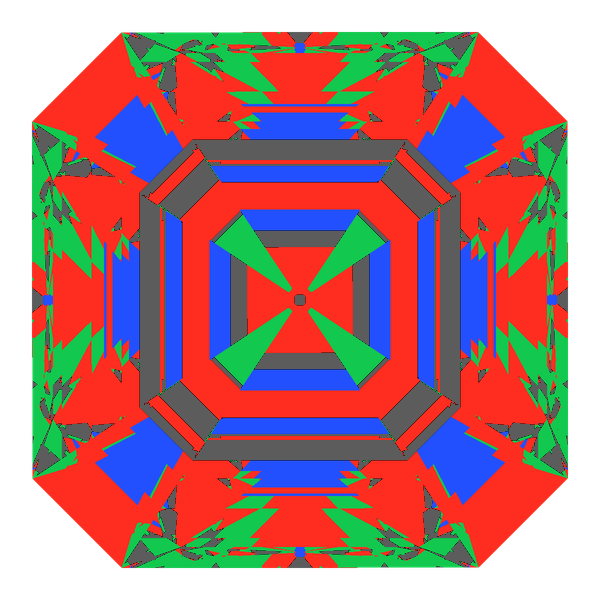

Asscher cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 69)

Asscher Cut in diamond · Brilliance 69

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

T73 Round Brilliant in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: Keep the square but change the steps for a brilliant plan: the Square Cut Diamond returns 85.

Try it yourself: Open this Light Return map in the simulator

Loses more light when tipped

Tilt 79 against 92 for the T73 Round Brilliant in diamond: 13 points lower

In the strip the gray grows as the stone tips to 20°, then holds at 30°. The T73's gray stays far lower at every angle. Tilt is the second-largest gap on this page.

Asscher Cut in diamond · Tilt 79

Asscher cut in diamond tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak
Asscher cut in diamond tilted 10 degrees: Light Return map, 19% of the face leaking10° · 19% leak
Asscher cut in diamond tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak
Asscher cut in diamond tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak

T73 Round Brilliant in diamond · Tilt 92

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The Square Cut Diamond, a brilliant, keeps 86 when tipped. We have not measured a steeper Asscher, so we cannot say what different angles would do.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

More light through the back

Leakage 11 against 2 for the T73 Round Brilliant in diamond: 9 points higher

In our census the Asscher lets 11% of the light out of its pavilion, and the T73 2%. Even face-up, the strip shows gray in the Asscher where the T73 is almost clear.

Asscher Cut in diamond · Leakage 11

Asscher cut in diamond tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak
Asscher cut in diamond tilted 10 degrees: Light Return map, 19% of the face leaking10° · 19% leak
Asscher cut in diamond tilted 20 degrees: Light Return map, 26% of the face leaking20° · 26% leak
Asscher cut in diamond tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak

T73 Round Brilliant in diamond · Leakage 2

T73 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T73 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T73 round brilliant in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size does not change the share. The Square Cut Diamond loses 10%, DG-Octagonal Kite Diamond 7%.

Try it yourself: Tilt it yourself in the simulator's light map

Fewer flashes than a round

Scintillation 72 against 80 for the T73 Round Brilliant in diamond: 8 points lower

A step cut has broad, parallel facets and fewer of them: 58 against the T73's 73. Our scintillation score follows that count.

Asscher Cut · 58 facets · Scintillation 72

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: This is the step-cut plan. For a square with more sparkle, the Cushion Cut Diamond scores 85.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who an Asscher cut diamond suits

Choose the Asscher for the step-cut look: broad, mirror-like steps and an octagonal outline. Expect far less light than the T73, 69 against 93, and a stone that darkens as it tips.

For more light in a square, choose the Square Cut Diamond. The Emerald Square Cut Diamond is the emerald cut drawn on a square. In diamond it returns less light still (64) and leaks more.

Asscher Cut Diamond: questions

Is an Asscher cut diamond less brilliant than a round?

Yes, by a wide margin in our census: 69 against 93 for the T73 Round Brilliant.

Asscher or emerald square cut diamond?

The Asscher returns more light (69 against 64) and leaks less (11% against 17%). The emerald square has more fire, 84 against 80.

Does an Asscher cut diamond look bigger for its weight?

Not by our measure. Face-up size is 102 against 100 for the T73 Round Brilliant, inside our margin. At the same carat weight, the two face up at much the same size.

What does a 6.5 mm Asscher diamond weigh?

1.34 ct across a 6.5 mm square: more stone than a round of that width.
