DG-Octagonal Kite Diamond: Pros & Cons

Eight crown kites run from the girdle corners of DG-Octagonal Kite to a large octagonal table, over eight triangles on the girdle flats; below, long pavilion kites close to a point. The model has 41 facets, a 55.0% table, a 32.0° crown and a steep 43.0° pavilion, and stands 70.0% deep.

We drew it for emerald, setting the pavilion kites clear of that stone's critical angle. Diamond's critical angle is far smaller, 24.4°, so the same kites reflect easily here. In the census it returns Brilliance 88 against 93 for the T73: the most light of any non-round cut we measure in diamond.

Is DG-Octagonal Kite good in diamond? Pros and cons

Pros

A little more fire than the T73 82 vs 78

Cons

Far fewer flashes than a round 60 vs 80
A little less light than the T73 88 vs 93
Some light leaks through the back 7 vs 2
Smaller for its weight 96 vs 100

Compared with the T73 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 2 (Spread) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Octagonal Kite in diamond (white) against the T73 Round Brilliant in diamond (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Against the T73 Round Brilliant in diamond: ahead on 2, level on 1, behind on 5.

Global86, the comparison 90, difference −4
Brilliance88, the comparison 93, difference −5
Fire82, the comparison 78, difference +4
Scintillation60, the comparison 80, difference −20
Spread96, the comparison 100, difference −4
Symmetry100, the comparison 100, difference 0
Shape-norm102, the comparison 100, difference +2
Tilt89, the comparison 92, difference −3

Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring.

Open it in the Cut Performance Wheel

What DG-Octagonal Kite gives a diamond

A little more fire than the T73

Fire 82 against 78 for the T73 Round Brilliant in diamond: 4 points higher

Large, simple facets send light out in broad flashes, and more of it is split into colour. The margin is small but clears our threshold.

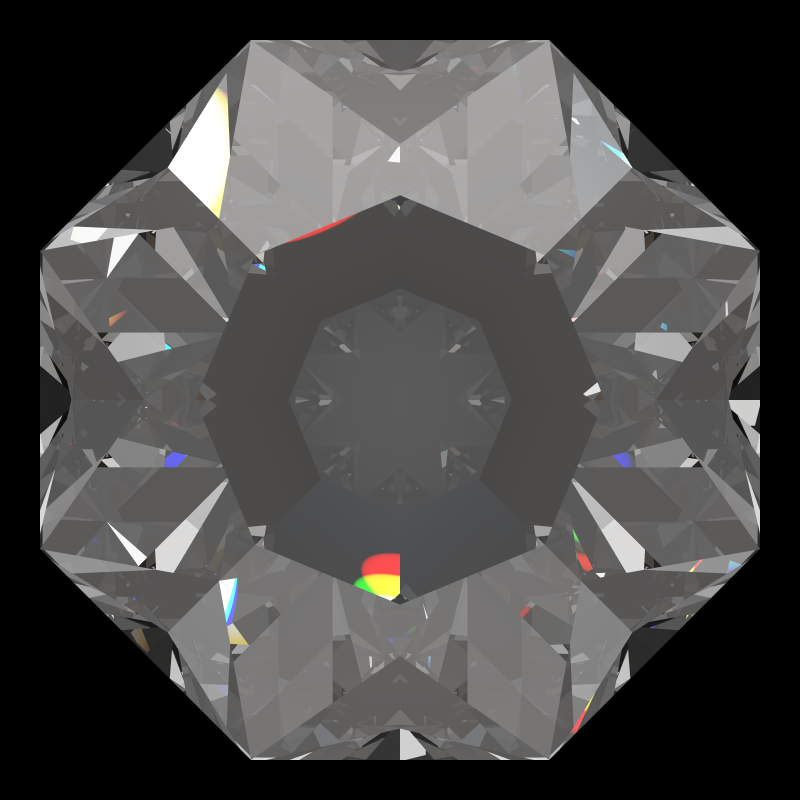

Dg-octagonal kite in diamond face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 82) — Look at the coloured flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

T73 round brilliant in diamond face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 78) — Look at the coloured flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Where DG-Octagonal Kite falls short in diamond

Far fewer flashes than a round

Scintillation 60 against 80 for the T73 Round Brilliant in diamond: 20 points lower

Our scintillation score follows the facet count, and 41 facets is little more than half the T73's 73. Expect a slow, bold pattern of light rather than a fine glitter.

DG-Octagonal Kite · 41 facets · Scintillation 60

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Count the facets in each crown. Drawn from each cut's own model.

What helps: The facet plan sets this. For a symmetrical outline with more sparkle, the Cushion Cut Diamond scores 85 and the Square Cut Diamond 78.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

A little less light than the T73

Brilliance 88 against 93 for the T73 Round Brilliant in diamond: 5 points lower

The gap is small for a fancy shape: most non-round cuts we measure in diamond trail the T73 by far more.

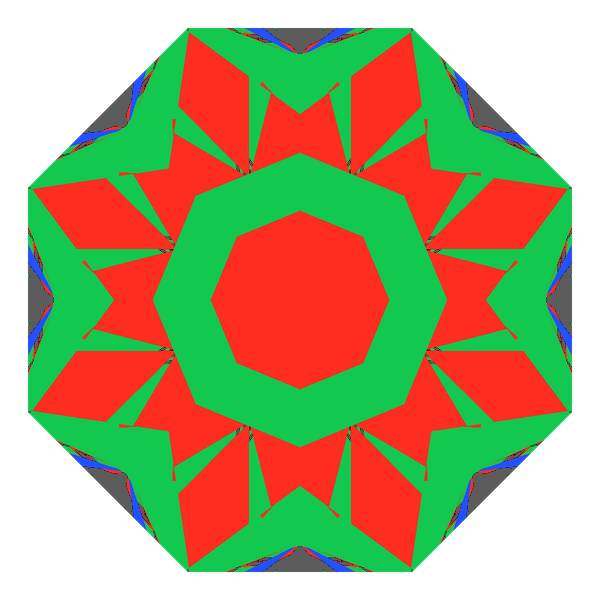

Dg-octagonal kite in diamond face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 88) — Red, green and blue = light returning to the eye; grey = light leaving through the pavilion. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

T73 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 93) — Red, green and blue = light returning to the eye; grey = light leaving through the pavilion. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For more light, a round: DG-Vitruvio Diamond returns 93 with far more sparkle.

Try it yourself: Open this Light Return map in the simulator

Some light leaks through the back

Leakage 7 against 2 for the T73 Round Brilliant in diamond: 5 points higher

The kite loses 7% of its light out of the back, against 2% for the T73 in our census. With kites this steep, it is not light slipping past a shallow pavilion.

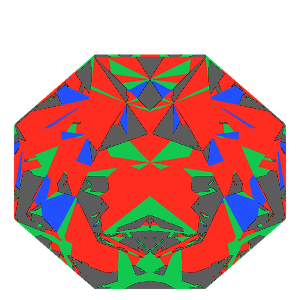

Dg-octagonal kite in diamond tilted 0 degrees: Light Return map, 3% of the face leaking — Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

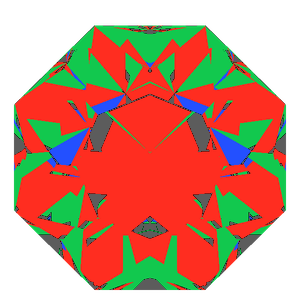

Dg-octagonal kite in diamond tilted 10 degrees: Light Return map, 6% of the face leaking — Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

What helps: Steepening is not the fix: at 43.0° the pavilion is well above diamond's 38.9° guide minimum. The T105 Round Brilliant Diamond leaks 1%.

Try it yourself: Tilt it yourself in the simulator's light map

Smaller for its weight

Spread 96 against 100 for the T73 Round Brilliant in diamond: 4 points lower

At 70.0% deep, it carries a lot of stone below the girdle, so a stone of a given carat weight shows less face than a T73.

DG-Octagonal Kite · 6.04 mm at 1.00 ct · Spread 96

T73 Round Brilliant · 6.48 mm at 1.00 ct · Spread 100

Both stones weigh 1.00 ct in diamond and are drawn to the same scale, from each cut's own model. Spread is face-up size per carat: a deeper stone carries more weight below the girdle and looks smaller for its weight.

What helps: Compare by millimetres: a 6.5 mm DG-Octagonal Kite comes to 1.25 ct in diamond.

Try it yourself: Compare the Spread spoke in the Cut Performance Wheel

Who a DG-Octagonal Kite diamond suits

Choose DG-Octagonal Kite for a bold, symmetrical diamond that returns nearly a round's light, with broad flashes and a touch of extra fire. Of the fancy shapes we measure in diamond, it gives up the least light to the T73.

If you want fine sparkle, choose a round such as DG-Rafaello Diamond or the T73 Round Brilliant Diamond. For a square outline, the Square Cut Diamond; in emerald, the stone it was drawn for, see DG-Octagonal Kite Emerald.

DG-Octagonal Kite Diamond: questions

Is DG-Octagonal Kite a good cut for diamond?

For light and fire, yes: Brilliance 88 and Fire 82, against 93 and 78 for the T73. For fine sparkle, no: Scintillation 60.

Why was DG-Octagonal Kite drawn for emerald?

Emerald's critical angle is much larger than diamond's, so its pavilion facets must be steep to reflect head-on light. The kites stand clear of it, and in diamond they clear it easily.

How many facets does DG-Octagonal Kite have?

41, around a large octagonal table: a plan of few, large facets.

What does a 6.5 mm DG-Octagonal Kite diamond weigh?

1.25 ct: deep at 70.0%, it is heavy for its width.
