DG-Vitruvio Amethyst: sparkle level with the highest we measure, with light close to the T73's

Brilliance 71 · Fire 36 · Scintillation 98 · in our census, where the T73 scores 72 · 36 · 80 in amethyst

A round with its girdle cut into 96 facets. In amethyst, it sparkles far more than the T73. In all else it behaves almost exactly like it.

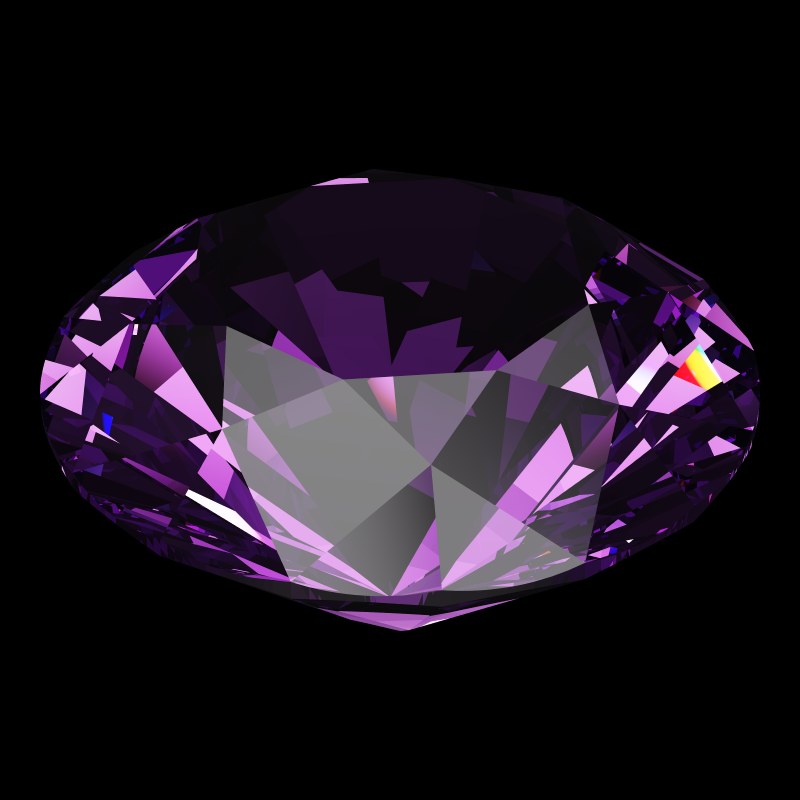

The DG-Vitruvio in amethyst, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Vitruvio model, 1.00 ct, studio light.

DG-Vitruvio Amethyst

DG-Vitruvio puts all of its extra work at the girdle: 153 facets in all, on a 40.75° pavilion, 61.9% deep. In amethyst, its light figures sit within a point of the T73's. Brilliance is 71 against 72, leakage 29% against 28% and Tilt 81 against 80.

Sparkle is what changes. Our scintillation score comes from the facet plan, and the girdle band lifts it level with the highest we measure. We set the cons against the same cut in diamond, where the gaps are large. In quartz, every round we measure has less fire and light than in diamond, and leaks more. Only some also lose tilt.

Does amethyst suit DG-Vitruvio? Pros and cons

Compared with the T73 Round Brilliant in amethyst and with the DG-Vitruvio in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Vitruvio in amethyst (white) against the T73 Round Brilliant in amethyst (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Vitruvio in amethyst, against the T73 Round Brilliant in amethyst as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+1Brilliance−1Fire0Scintillation+18Spread0Symmetry0Shape-norm−1Tilt+1

Against the T73 Round Brilliant in amethyst: ahead on 3, level on 3, behind on 2.

  • Global71, the comparison 70, difference +1
  • Brilliance71, the comparison 72, difference −1
  • Fire36, the comparison 36, difference 0
  • Scintillation98, the comparison 80, difference +18
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm76, the comparison 77, difference −1
  • Tilt81, the comparison 80, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What amethyst gains in DG-Vitruvio

Lighter than diamond at the same size

0.77 ct at 6.5 mm, against 1.02 ct for the same cut in diamond (−25%)

A 6.5 mm DG-Vitruvio in amethyst is 0.77 ct. In diamond, it is 1.02 ct. Quartz's lower density, 2.65 to 3.52, makes the difference.

Amethyst0.77 ctDiamond1.02 ct
A DG-Vitruvio 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Vitruvio page

Much more sparkle than the T73

Scintillation 98 against 80 for the T73 Round Brilliant in amethyst: 18 points higher

The 96-facet girdle breaks the rim into many small faces. Our score follows the facet plan, so it rises with them. Expect a finer glitter around the edge than a T73 shows.

DG-Vitruvio · 153 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

What quartz costs DG-Vitruvio

Far less fire than the diamond version

Fire 36 against 79 for the DG-Vitruvio in diamond: 43 points lower

In amethyst it scores 36 for fire, level with the T73's 36. In diamond the same crown and girdle score 79.

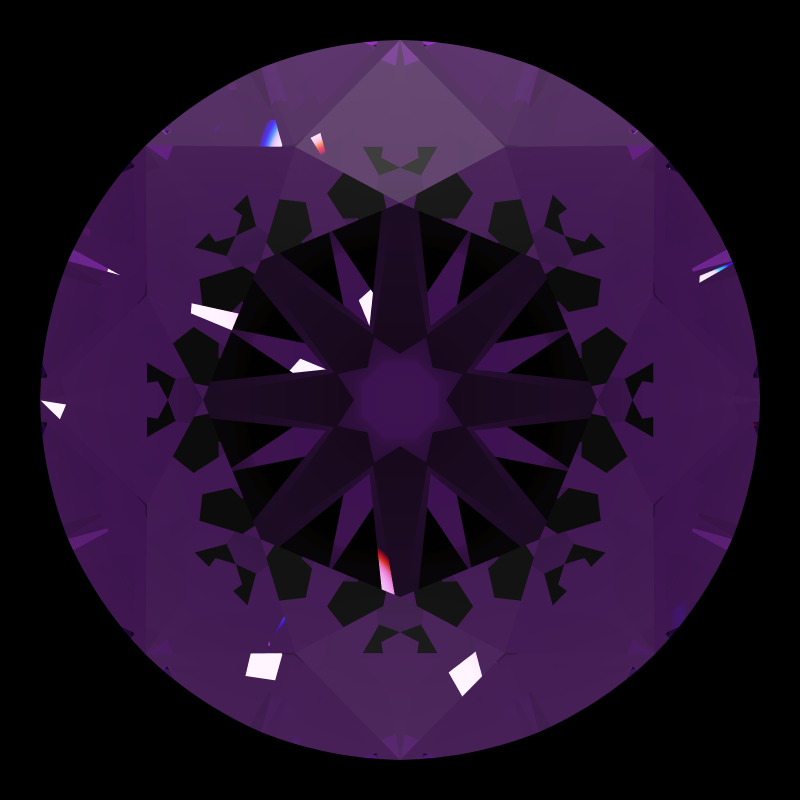

Dg-vitruvio in amethyst face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 36)

DG-Vitruvio in amethyst · Fire 36

Dg-vitruvio in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 79)

DG-Vitruvio in diamond · Fire 79

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: For more color in amethyst, DG-Anteros Amethyst reaches 54 and DG-M5 Amethyst 50. Both score more light in our census, and DG-M5 also leaks nothing in its head-on map.

Try it yourself: See the fire in the 3D Gemstone Simulator

Much more leakage than in diamond

Leakage 29 against 2 for the DG-Vitruvio in diamond: 27 points higher

In amethyst, 29% of the light in our census leaves through the pavilion, level with the T73's 28%. The diamond version lets almost nothing out.

DG-Vitruvio in amethyst · Leakage 29

Dg-vitruvio in amethyst tilted 0 degrees: Light Return map, 15% of the face leaking0° · 15% leak

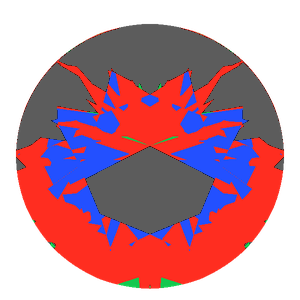

Dg-vitruvio in amethyst tilted 10 degrees: Light Return map, 38% of the face leaking10° · 38% leak

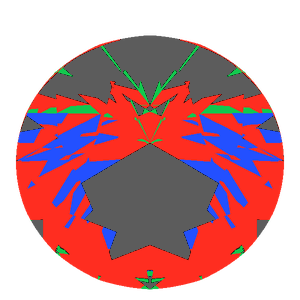

Dg-vitruvio in amethyst tilted 20 degrees: Light Return map, 36% of the face leaking20° · 36% leak

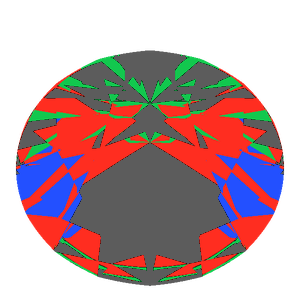

Dg-vitruvio in amethyst tilted 30 degrees: Light Return map, 44% of the face leaking30° · 44% leak

DG-Vitruvio in diamond · Leakage 2

Dg-vitruvio in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-vitruvio in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-vitruvio in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-vitruvio in diamond tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: We have measured no steeper DG-Vitruvio. DG-M5 Amethyst leaks 15%.

Try it yourself: Tilt it yourself in the simulator's light map

Less light than in diamond

Brilliance 71 against 93 for the DG-Vitruvio in diamond: 22 points lower

In amethyst, DG-Vitruvio returns 71 to the T73's 72. Both sit well under the diamond figure.

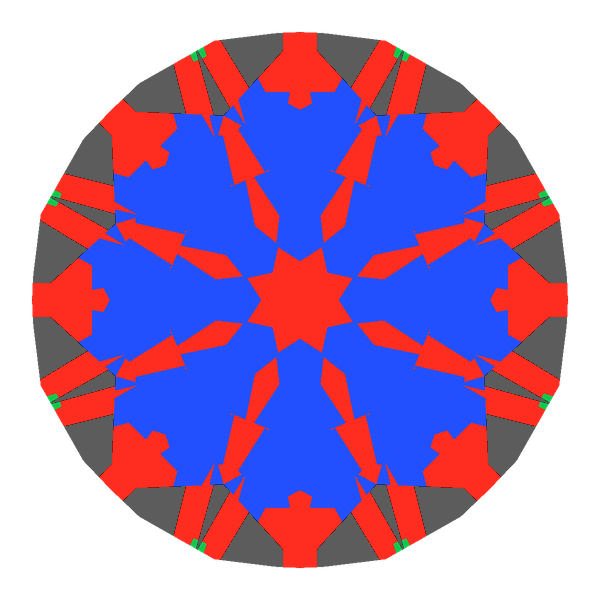

Dg-vitruvio in amethyst face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 71)

DG-Vitruvio in amethyst · Brilliance 71

Dg-vitruvio in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

DG-Vitruvio in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: DG-M5 Amethyst returns 85 in amethyst, with a head-on map free of gray. DG-Anteros Amethyst reaches 82 in our census, but its middle leaks when seen straight on.

Try it yourself: Open this Light Return map in the simulator

Holds less light when tipped than in diamond

Tilt 81 against 93 for the DG-Vitruvio in diamond: 12 points lower

At a 20° tip, the amethyst DG-Vitruvio holds on to 81 of its face-up light. The diamond one holds on to 93. In amethyst, it sits within a point of the T73's 80.

DG-Vitruvio in amethyst · Tilt 81

Dg-vitruvio in amethyst tilted 0 degrees: Light Return map, 15% of the face leaking0° · 15% leak
Dg-vitruvio in amethyst tilted 10 degrees: Light Return map, 38% of the face leaking10° · 38% leak
Dg-vitruvio in amethyst tilted 20 degrees: Light Return map, 36% of the face leaking20° · 36% leak
Dg-vitruvio in amethyst tilted 30 degrees: Light Return map, 44% of the face leaking30° · 44% leak

DG-Vitruvio in diamond · Tilt 93

Dg-vitruvio in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-vitruvio in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-vitruvio in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-vitruvio in diamond tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Of the rounds within ten points of the T73 for light, the T105 Round Brilliant Amethyst holds the most when tipped, 87. But its brilliance is lower: 65.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-Vitruvio amethyst suits

Choose DG-Vitruvio for a round amethyst where a smooth, glittering outline matters, in renders or in a setting that shows the girdle. On light, fire and tilt, it sits within a point of the T73 in this stone, and it adds sparkle.

Ninety-six girdle facets are a lot of extra work at the machine. For a hobby cutter's first amethyst, the T73 Round Brilliant Amethyst gives as much light in far fewer steps.

For more light, DG-M5 Amethyst. For more fire, DG-Anteros Amethyst.

DG-Vitruvio Amethyst: questions

Does DG-Vitruvio sparkle more than a round brilliant in amethyst?

Yes: Scintillation 98 against 80 for the T73, from a far more finely divided facet plan.

Is DG-Vitruvio brighter than the T73 in amethyst?

No, about level: Brilliance 71 against 72, and leakage 29% against 28%.

DG-Vitruvio or DG-Miliano for amethyst?

Both share our highest sparkle score, 98, with the Portuguese Bird's Nest. DG-Vitruvio returns far more light (71 against 60) and leaks less (29% against 40%).

What does a 6.5 mm DG-Vitruvio amethyst weigh?

0.77 ct, against 1.02 ct for the diamond version.

Get the DG-Vitruvio Cut files

6 formatsMillimetersWatertight

DG-Vitruvio Cut 3D files

The DG-Vitruvio Cut as exact geometry: 265 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-Vitruvio Cut cutting files

The DG-Vitruvio Cut as a faceting design: 57 + 96 girdles = 153 facets, 96 index, 8-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
